Creating a rebate in wood using the planer

Special application using the HL 850 EB planer

Rebates are often needed for a variety of applications in furniture

making and interior finishing. This illustrated guide shows you how

to create these using the planer and tells you what you need to look

out for. It contains detailed explanations of the function of the

planing head and how to achieve the right rebate depth.

Please note: These illustrated guides are not intended to replace operating manuals or safety instructions!1

Description

The Festool HL 850 electronic planer can do everything a standard planer can do, from planing wood to a smooth finish to milling off edges, and more besides.

The superior technical feature of this planer is the planing head mounted on one side. This means that users can plane out rebates in wood to almost any depth.

This illustrated guide shows how rebates can be created using the HL 850 planer.

Tools/accessories

The following tools and accessories are recommended for use in this application example: For rebating,

you need the HL 850 EB-Plus planer. All accessories are included in the scope of delivery.

Preparation/set-up

CT CYCLONE CT-VA-20

Item number: 204083

For CT 26/36/48

Procedure

We recommend the use of a dust extractor with a large container such as the

Festool CLEANTEC CTM 36 E. This can be fitted with a pre-separator to collect the

chips. In the long run, this is more economical than SELFCLEAN filter bags.

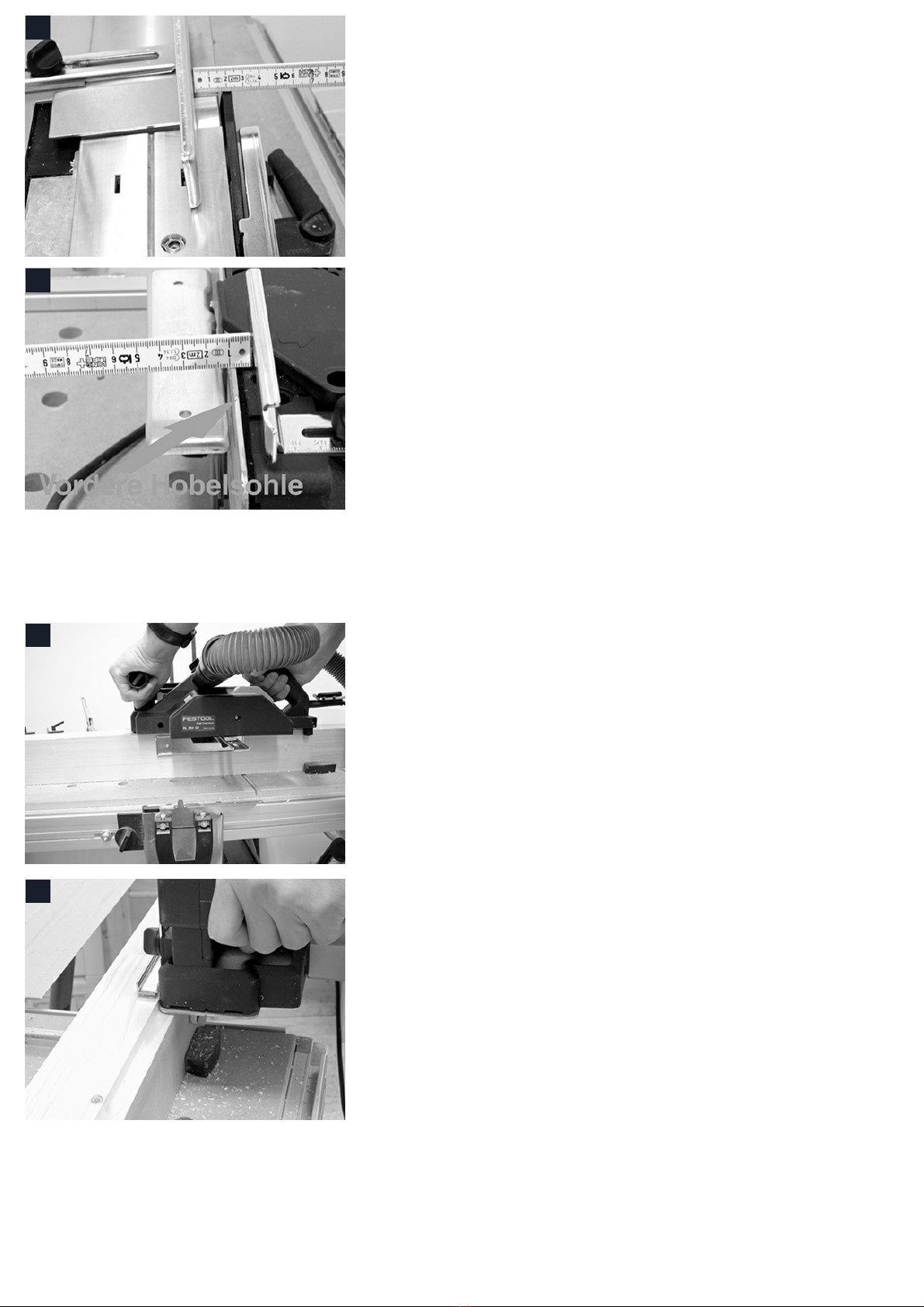

Set the desired rebate depth. To do this, measure the exact distance from the

planer foot to the rebate depth stop. Place the tool on its side so that the rebate

depth stop faces upwards; this will enable you to plane a precise rebate in the wood.

Set the chip thickness to 1 mm. During the first work step, guide the planer so that

the parallel side fence fits precisely along the wood. The first work step is key to

ensuring that the rebate is precisely positioned.

From the second work step onwards, the edge of the planer foot is placed against

the rebate edge. The parallel side fence is therefore only necessary at the start of

planing and can then be removed.

Ensure that the edge of the planer foot is always guided exactly along the rebate

edge.

1. Our illustrated guides and work results are documented working steps that we have performed in practice. They are individual examples and do not guarantee or promise that users will obtain the same

results. The results will depend on the user's experience and skill, as well as the material being used. Illustrated guides do not replace any Festool operating manuals and/or safety instructions.

Liability for ensuring that the information, instructions and applications are free from content defects and defects of title, in particular with regard to the absence of defects, correctness, freedom from

third party intellectual property rights and copyrights, completeness and fitness for purpose, is excluded. Claims for damages made by the user, regardless of their legal basis, are excluded. These

liability exclusions are not applicable if the damage was intentional or caused by gross negligence, or in cases of statutory liability.

We cannot accept liability for damage resulting from defects.↑

When the rebate depth stop is against the workpiece, the set rebate depth has been

reached.

Finished rebate.

If the rebate depth stop is not used, the rebate can be planed as deep as you

choose.
