Festool HKC 55 EB Manual de usuario
de Originalbetriebsanleitung - Akku-Handkreissäge 9
en Original Instructions - Cordless circular saw 19
fr Notice d'utilisation originale - Scie circulaire à capot basculant sans fil 28
es Manual de instrucciones original - Sierra circular de batería 38
it Istruzioni per l'uso originali - Sega circolare a batteria a cappa oscillante 48
nl Originele gebruiksaanwijzing - accu-pendelkapzaag 58
sv Originalbruksanvisning – battericirkelsåg 68
fi Alkuperäiset käyttöohjeet - akkukäsipyörösaha 77
da Original brugsanvisning – akku rundsav 86
nb Original bruksanvisning - batteridrevet håndsirkelsag 95
pt Manual de instruções original - Serra circular de bateria 104
ru Оригинальное руководство по эксплуатации — аккумуляторная дисковая
пила 114
cs Originální návod k obsluze – akumulátorová okružní pila 124
pl Oryginalna instrukcja obsługi - akumulatorowa ręczna pilarka tarczowa 133
HKC 55 EB
Festool GmbH
Wertstraße 20
73240 Wendlingen
Germany
+49 (0)70 24/804-0
www.festool.com 719333_E / 2022-08-31

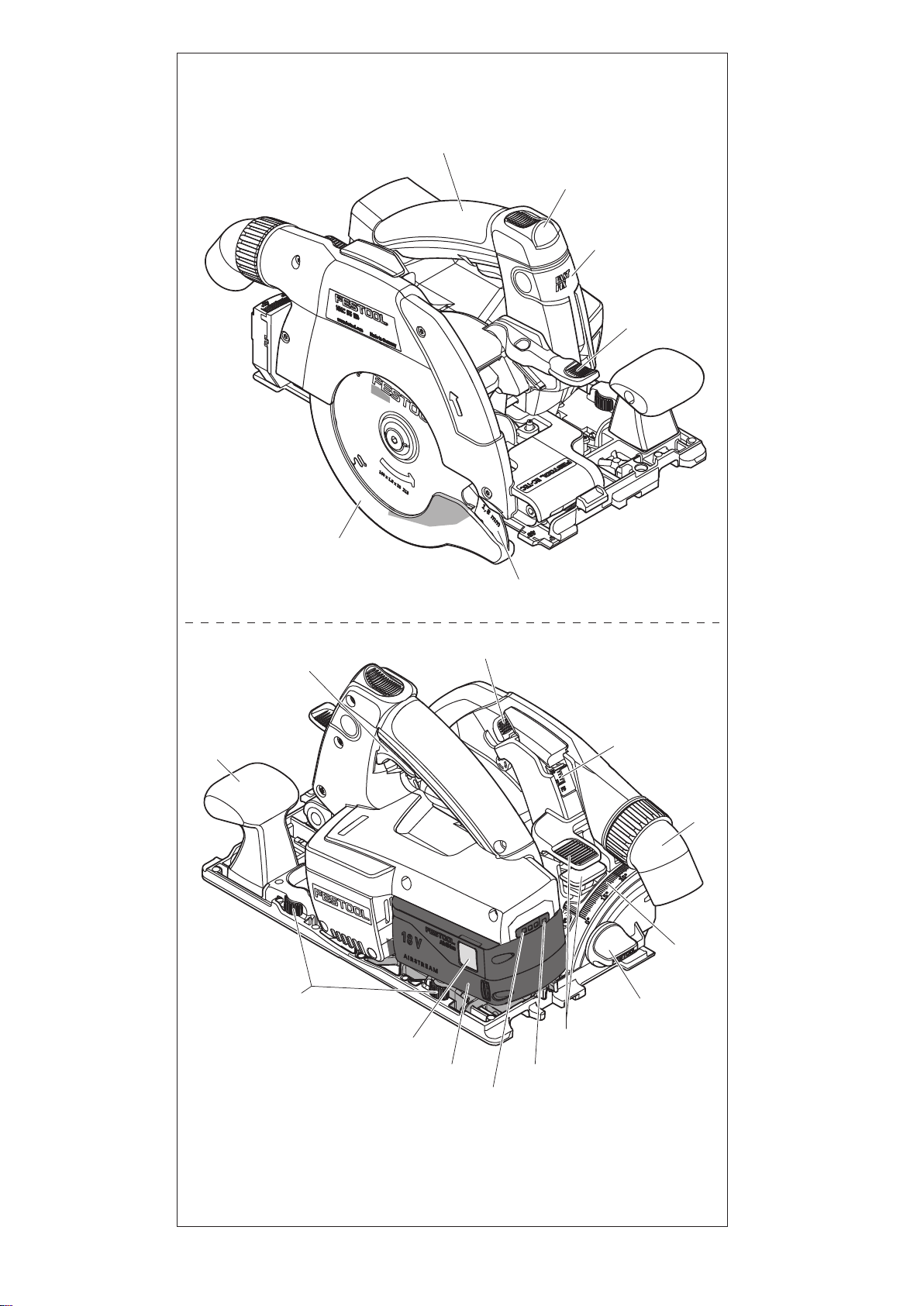

1
1-2
1-3
1-4
1-1
1-10
1-12
1-11
1-13
1-18
1-9
1-8
1-7
1-1
1-6
1-5
1-16
1-151-14
1-17

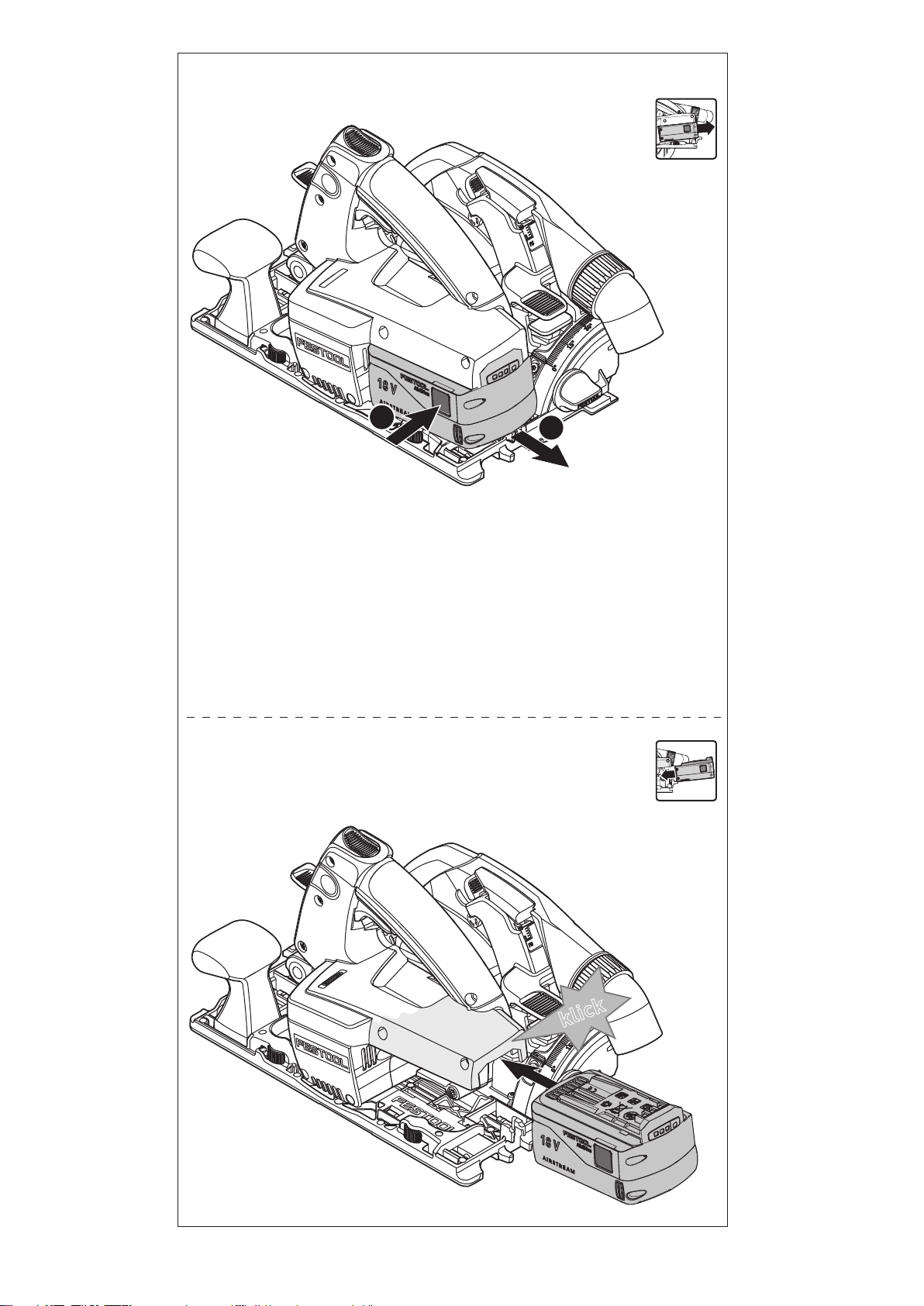

2 A
2 B
2
klick
1
3
4
47°
0° - 50°
3-1
4-2
4-1
+FS
0°
50°

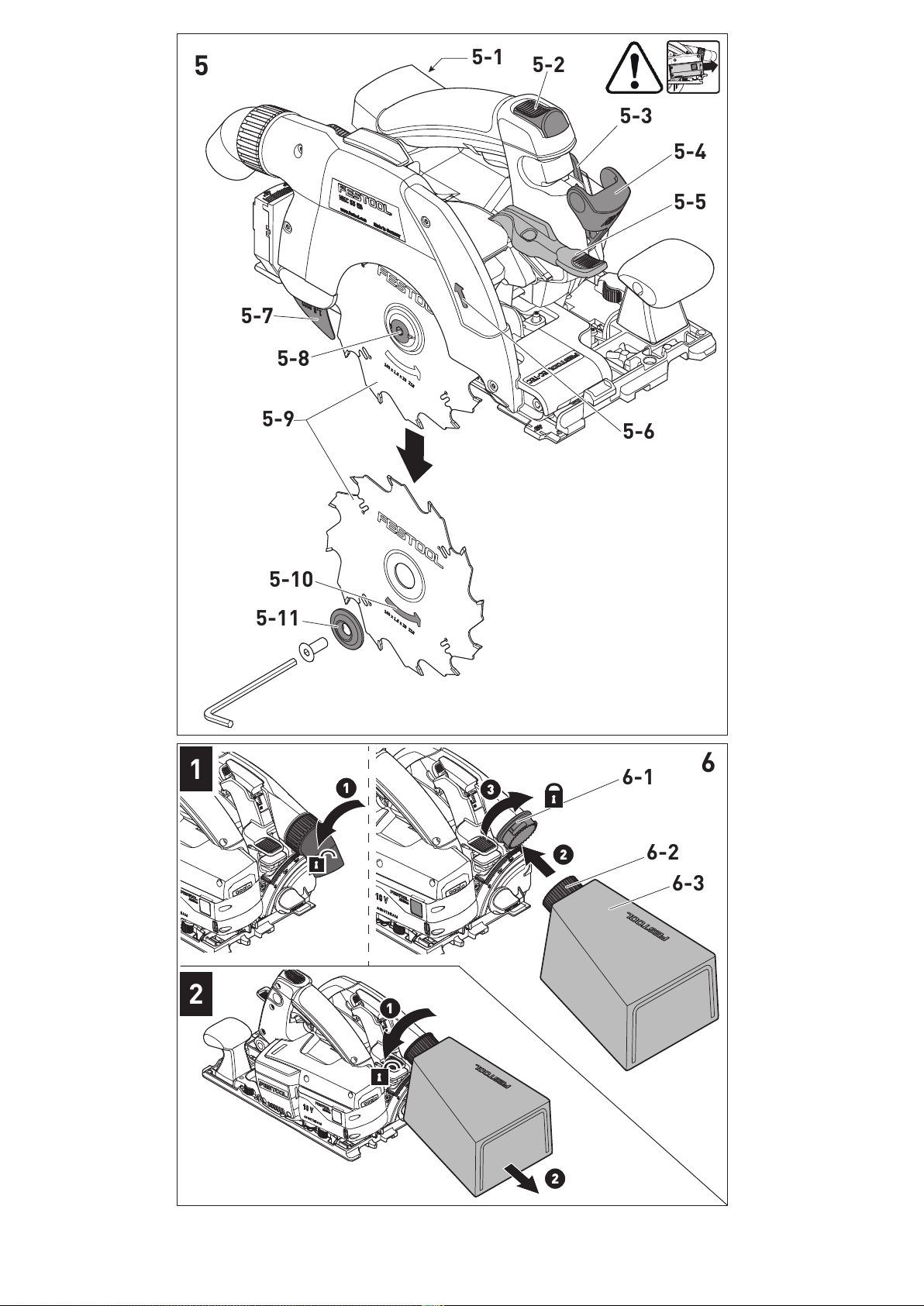

5
6
5-2
5-1
5-3
5-4
5-5
5-6
5-7
5-8
5-9
5-10
5-11
1
2
6-1
6-2
6-3
7
8
7-2
8-4
8-9
8-3
8-7
8-5
8-6
8-2
8-8
8-1
7-1
0°
45°
Akku-Handkreissäge
Cordless ircular saw
Scie circulaire à capot
basculant sans fil
Seriennummer 1)
Serial number 1)
N° de série 1)
(T-Nr.)
HKC 55 EB 204137
de EG-Konformitätserklärung. Wir erklären
in alleiniger Verantwortung, dass dieses Produkt
allen einschlägigen Bestimmungen der folgenden
Richtlinien einschließlich ihrer Änderungen ent-
spricht und mit den folgenden Normen überein-
stimmt:
en EC-Declaration of Conformity. We declare
under our sole responsibility that this product is in
conformity with all relevant provisions of the fol-
lowing directives including their amendments and
complies with the following standards:
fr CE-Déclaration de conformité communau-
taire. Nous déclarons sous notre propre respons-
abilité que ce produit est conforme aux normes ou
documents de normalisation suivants:
es CE-Declaración de conformidad. Declaramos
bajo nuestra exclusiva responsabilidad que este
producto corresponde a las siguientes normas o
documentos normalizados:
it CE-Dichiarazione di conformità. Dichiariamo
sotto la nostra esclusiva responsabilità che il pre-
sente prodotto e conforme alle norme e ai docu-
menti normativi seguenti:
nl EG-conformiteitsverklaring. Wij verklaren op
eigen verantwoordelijkheid dat dit produkt voldoet
aan de volgende normen of normatieve documen-
ten:
sv EG-konformitetsförklaring. Vi förklarar i eget
ansvar, att denna produkt stämmer överens med
följande normer och normativa dokument:
fiEY-standardinmukaisuusvakuutus. Va-
kuutamme yksinvastuullisina, etta tuote on seu-
raavien standardien ja normatiivisten ohjeiden
mukainen:
da EF-konformitetserklæring. Vi erklærer at
have alene ansvaret for, at dette produkt er i over-
ensstemmelse med de følgende normer eller
normative dokumenter:
nb CE-Konformitetserklæring. Vi erklærer på
eget ansvar at dette produktet er i overensstem-
melse med følgende normer eller normative doku-
menter:
pt CE-Declaração de conformidade. Declara-
mos, sob a nossa exclusiva responsabilidade, que
este produto corresponde às normas ou aos docu-
mentos normativos citados a seguir:
ru Декларация соответствия ЕС. Мы заявляем
с исключительной ответственностью, что данный
продукт соответствует следующим нормам или
нормативным документам:
cs ES prohlašeni o shodě. Prohlašujeme s vešk-
erou odpovědnosti, že tento vyrobek je ve shodě s
nasledujicimi normami nebo normativnimi doku-
menty:
pl Deklaracja o zgodności z normami UE. Ninie-
jszym oświadczamy na własną odpowiedzialność,
że produkt ten spełnia następujące normy lub
dokumenty normatywne:
2006/42/EG, 2014/30/EU2), 2014/53/EU3),
2011/65/EU
EN 62841-1: 2015 + AC:2015,
EN 62841-2-5:2014,
EN 55014-1: 20172),EN 55014-2: 20152),
EN 300 328:2016 V2.1.13),
EN 301 489-1:2017 V2.1.13),
EN 301 489-17:2017 V3.1.13),
EN 50581: 2012
Festool GmbH
Wertstr. 20, D-73240 Wendlingen
GERMANY
Wendlingen, 2019-04-12
Markus Stark
Head of Product Development
Ralf Brandt
Head of Product Conformity
1) im definierten Seriennummer-Bereich (S-Nr.) von 40000000 - 49999999/
in the specified serial number range (S-Nr.) from 40000000 - 49999999/
dans la plage de numéro de série (S-Nr.) de 40000000 - 49999999
2) gilt in Kombination mit Akku/
valid in combination with battery pack/
valable en combinaison avec batterie
BP 18 Li 5,2 AS, BP 18 Li 6,2 AS, BP 18 Li 3,1 C
3) gilt in Kombination mit Bluetooth®Akku/
valid in combination with Bluetooth®battery pack/
valable en combinaison avec Bluetooth®batterie
BP 18 Li 5,2 ASI, BP 18 Li 6,2 ASI, BP 18 Li 3,1 CI
720611_A
Contents
1 Symbols.....................................................19
2 Safety warnings.........................................19
3 Intended use..............................................22
4 Technical data........................................... 22
5 Parts of the device.....................................23
6 Battery pack.............................................. 23
7 Settings......................................................23
8 Working with the electric power tool........25
9 Service and maintenance..........................26
10 Accessories............................................... 26
11 Environment..............................................27
12 General information..................................27

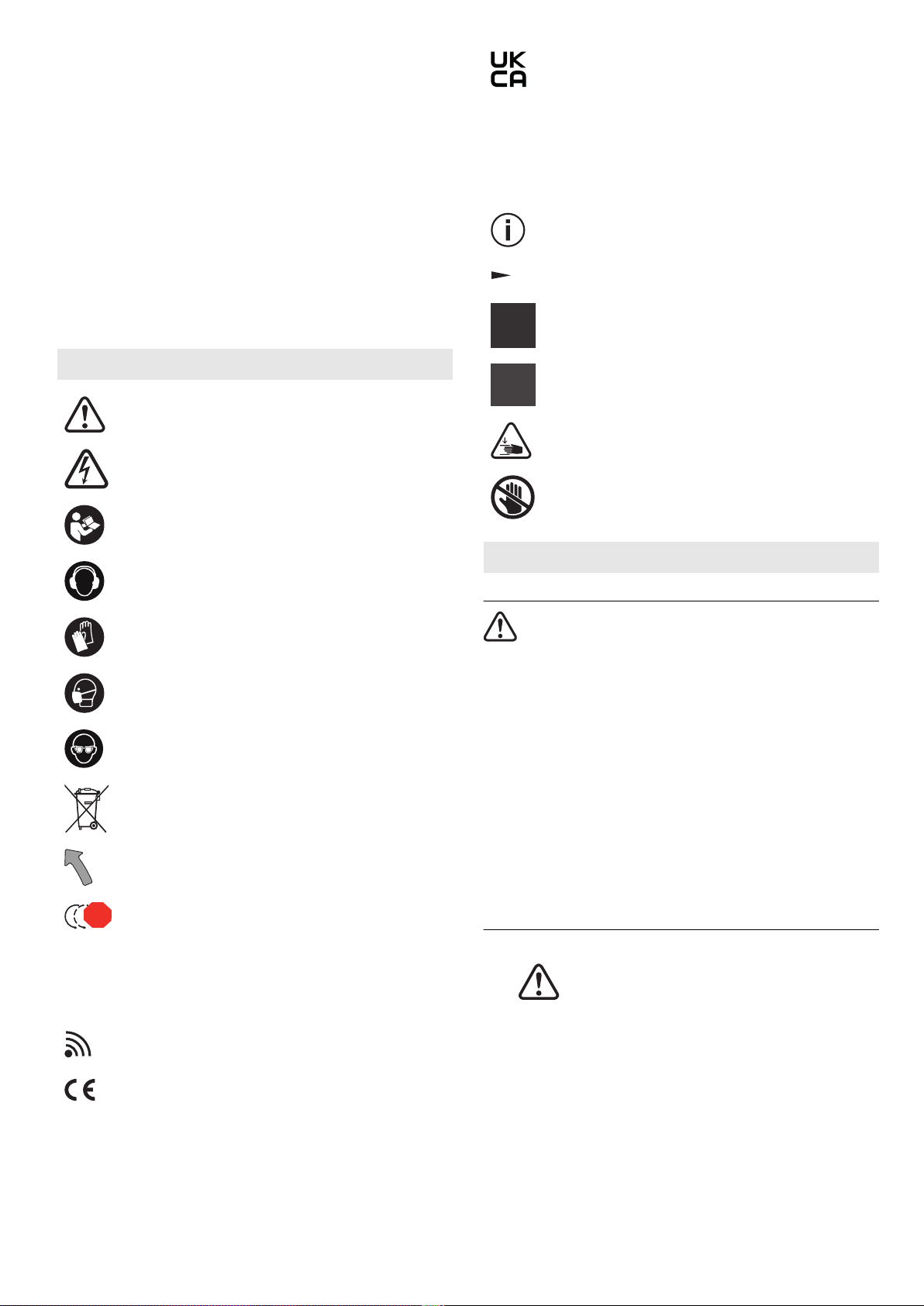

1 Symbols
Warning of general danger
Warning of electric shock
Read the operating instructions and
safety instructions.
Wear ear protection.
Wear protective gloves when changing
tools!
Wear a dust mask.
Wear protective goggles.
Do not dispose of it with domestic
waste.
Direction of rotation of saw and the
saw blade
STOP
Electro-dynamic run-down brake
Saw blade dimensions
a = diameter
b ... Locating bore
Tool contains a chip which stores data.
See section 12.1
CE marking: Confirms the conformity
of the power tool with the European
Community directives.
UKCA marking: The United Kingdom
Conformity Assessed symbol is a
marking for products being placed on
the market in the United Kingdom. It is
a manufacturers indication that the
product is in conformance with the rel
evant regulations in the UK.
Tip or advice
Handling instruction
Removing the battery pack.
Inserting the battery pack.
Risk of pinching fingers and hands!
Danger area! Keep hands away!
2 Safety warnings
2.1 General power tool safety warnings
WARNING! Read all safety warnings, in
structions, illustrations and specifica
tions provided with this power tool. Failure to
follow all instructions listed below may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
The term "power tool" in the warnings refers to
your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
Follow the operating manual for the charger
and the battery pack.
2.2 Safety instructions for specific circular
saws
Cutting procedures
–DANGER: Keep hands away from cut
ting area and the blade. Keep your second
hand on auxiliary handle, or motor hous
ing. If both hands are holding the saw, they
cannot be cut by the blade.
–Do not reach underneath the workpiece.
The guard cannot protect you from the
blade below the workpiece.
–Adjust the cutting depth to the thickness of
the workpiece. Less than a full tooth of the
blade teeth should be visible below the
workpiece.
English
19
–Never hold the workpiece in your hands or
across your leg while cutting. Secure the
workpiece to a stable platform. It is impor
tant to support the work properly to mini
mise body exposure, blade binding, or loss
of control.
–Hold the power tool by insulated gripping
surfaces, when performing an operation
where the cutting tool may contact hidden
wiring .Contact with a "live" wire will also
make exposed metal parts of the power
tool "live" and could give the operator an
electric shock.
–When ripping, always use a rip fence or
straight edge guide. This improves the ac
curacy of cut and reduces the chance of
blade binding.
–Always use blades with correct size and
shape (diamond versus round) of arbour
holes. Blades that do not match the mount
ing hardware of the saw will run off-centre,
causing loss of control.
–Never use damaged or incorrect blade
washers or bolt. The blade washers and
bolt were specially designed for your saw,
for optimum performance and safety of op
eration.
Causes of kickbacks and corresponding safety
instructions
– kickback is a sudden reaction to a pinched,
jammed or misaligned saw blade, causing
an uncontrolled saw to lift up and out of the
workpiece toward the operator;
– when the blade is pinched or jammed tight
ly by the kerf closing down, the blade stalls
and the motor reaction drives the unit rap
idly back toward the operator;
– if the blade becomes twisted or misaligned
in the cut, the teeth at the back edge of the
blade can dig into the top surface of the
wood causing the blade to climb out of the
kerf and jump back toward the operator.
Kickback is the result of saw misuse and/or in
correct operating procedures or conditions and
can be avoided by taking proper precautions as
given below.
–Maintain a firm grip with both hands on
the saw and position your arms to resist
kickback forces. Position your body to ei
ther side of the blade, but not in line with
the blade. Kickback could cause the saw to
jump backwards, but kickback forces can
be controlled by the operator, if proper pre
cautions are taken.
–When blade is binding, or when interrupt
ing a cut for any reason, release the trig
ger and hold the saw motionless in the
material until the blade comes to a com
plete stop. Never attempt to remove the
saw from the work or pull the saw back
ward while the blade is in motion or kick
back may occur. Investigate and take cor
rective actions to eliminate the cause of
blade binding.
–When restarting a saw in the workpiece,
centre the saw blade in the kerf so that
the saw teeth are not engaged into the
material. If a saw blade binds, it may walk
up or kickback from the workpiece as the
saw is restarted.
–Support large panels to minimise the risk
of blade pinching and kickback. Large pan
els tend to sag under their own weight.
Supports must be placed under the panel
on both sides, near the line of cut and near
the edge of the panel.
–Do not use dull or damaged blades. Un
sharpened or improperly set blades pro
duce narrow kerf causing excessive fric
tion, blade binding and kickback.
–Blade depth and bevel adjusting locking
levers must be tight and secure before
making the cut. If blade adjustment shifts
while cutting, it may cause binding and
kickback.
–Use extra caution when sawing into exist
ing walls or other blind areas. The pro
truding blade may cut objects that can
cause kickback.
Lower guard function
–Check the lower guard for proper closing
before each use. Do not operate the saw if
the lower guard does not move freely and
close instantly. Never clamp or tie the
lower guard into the open position. If the
saw is accidentally dropped, the lower
guard may be bent. Raise the lower guard
with the retracting handle and make sure it
moves freely and does not touch the blade
or any other part, in all angles and depths
of cut.
–Check the operation of the lower guard
spring. If the guard and the spring are not
operating properly, they must be serviced
before use. Lower guard may operate slug
gishly due to damaged parts, gummy de
posits, or a build-up of debris.
English
20
Otros manuales para HKC 55 EB
7
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Otros manuales de Sierra inalámbrica de Festool
Festool
Festool ISC 240 Li Instrucciones de instalación
Festool
Festool HKC 55 EB Manual de usuario
Festool
Festool TSC 55 REB Manual de usuario
Festool
Festool RSC 18 Manual de usuario
Festool
Festool PSC 420 EB Manual de usuario
Festool
Festool HKC 55 EB Manual de usuario
Festool
Festool TSC 55 KEB Manual de usuario
Festool
Festool TSC 55 KEB Manual de usuario
Festool
Festool HK 55 EBQ Instrucciones de instalación
