Fender VICTOR BAILEY JAZZ BASS Guía de inicio rápido

CAVITY

ASSEMBLY THROUGH CHANNEL TO ELECTRONIC

INSERT CABLE FROM DOUBLE BATTERY-SNAP

SO SNAPS CAN'T PULL BACK TO CAVITY

SNAP ASSEMBLY BLACK & RED WIRE(S)

APPLY TIE WRAP TO DOUBLE BATTERY

TO GROUND LUG

BRIDGE PICKUP AND BRIDGE GROUND

SOLDER BLACK WIRE FROM NECK PICKUP,

TO GROUND LUG

GROUND ASSEMBLY AND PC-BOARD

SOLDER BLACK WIRE FROM JACK ASSEMBLY,

AND RED WIRE FROM PC-BOARD

RED WIRE FROM DOUBLE BATTERY SNAP

SOLDER AND SHRINK TUBE TOGETHER

AND WHITE WIRE FROM PAN POT

WHITE WIRE FROM BRIDGE PICKUP

SOLDER AND SHRINK TUBE TOGETHER

WHITE WIRE FROM JACK ASSEMBLY

WHITE WIRE FROM PC-BOARD AND

SOLDER AND SHRINK TUBE TOGETHER

INAL (1) OF PAN CONTROL

GROUND-LUG ASSY TO TERM-

SOLDER BLACK WIRE FROM

017405

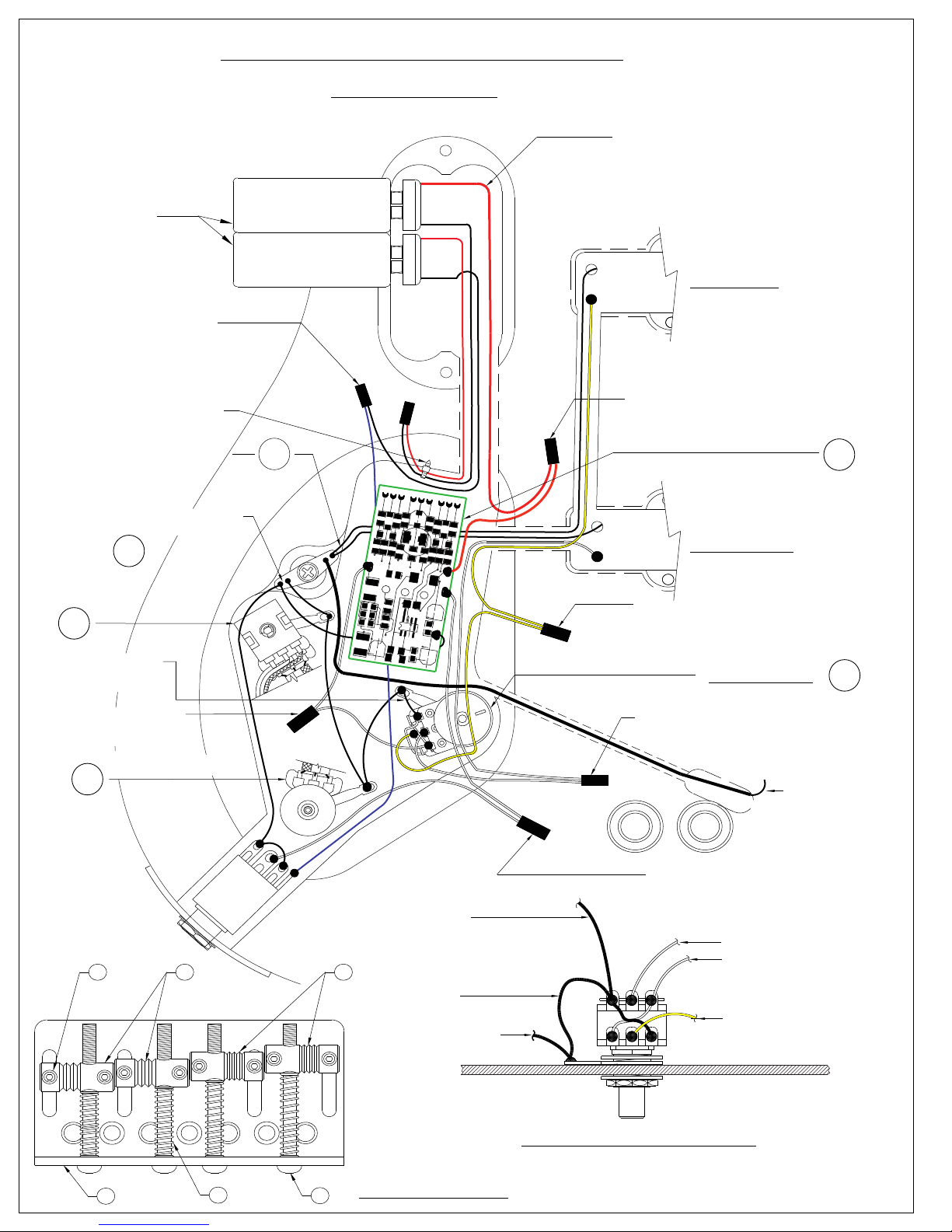

VICTOR BAILEY JAZZ BASS 0196800

WIRE DIAGRAM

06-17-2002 Rev. A

Pg. 2 of 4

DETAIL"A"

NECK PICKUP

BRIDGE PICKUP

R22

R25

C12

R23

C13

R24

GND

+9V

OUT

R15

R10

R11

R12 R16

R13

R20

R21

R17

C10

C11

R14 R18

R19

SOLDER & SHRINK TUBE WHITE

WIRE(S) FROM PC - BOARD & PAN-

CONTROL ASSEMBLY

AND BLUE WIRE FROM JACK ASSEMBLY

BLACK WIRE FROM BATTERY SNAP (1)

SOLDER AND SHRINK TUBE TOGETHER

STRIP 3/8" FROM END OF

WIRE, GROUND UNDER

BRIDGE PLATE

SOLDER AND SHRINK TUBE TOGETHER

YELLOW WIRE FROM NECK PICKUP &

YELLOW WIRE FROM PAN-POT

(2)

PAN CONTROL MOUNTING

DETAIL " A "

3" BLACK WIRE

TO GROUND-LUG

TO GROUND-LUG ASSY

YELLOW WIRE TO NECK PICKUP

WHITE WIRE TO P.C. BOARD

WHITE WIRE TO BRIDGE PICKUP

BRIDGE ASSEMBLY

23 26
