Fein Optic FZ12 Manual de usuario

Fein

FZ12 Microscope User’s Manual

info@feinoptic.com

1Fein

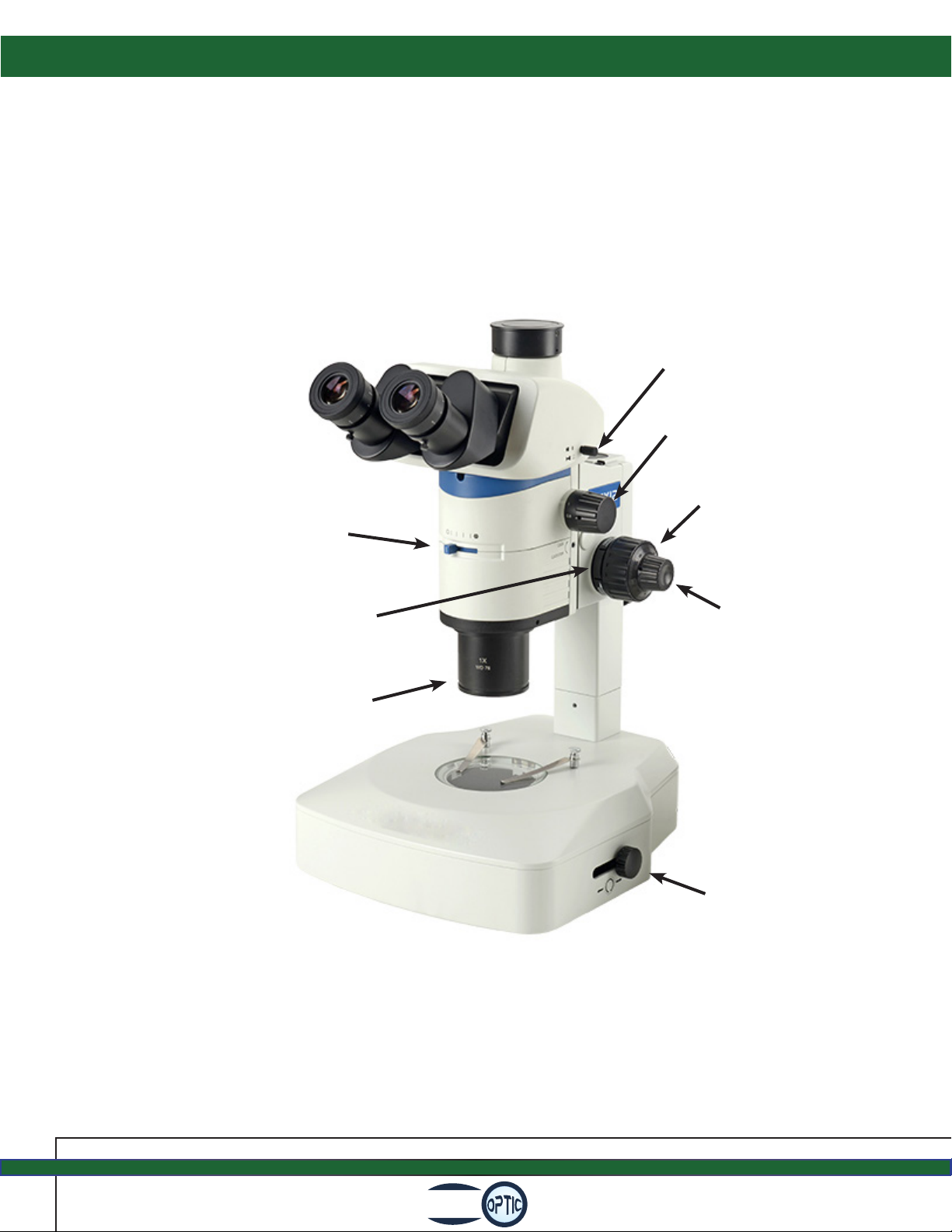

FZ12 Microscope Components

Beam Splitter

Fine Focusing

Knob

Main Objective

Aperture Diaphragm

Adjusting Knob

Coarse

Focusing Knob

BF/DF Reector Knob

Zoom Knob

Tension Adjustment

Knob

FZ12-BFDF

Fein

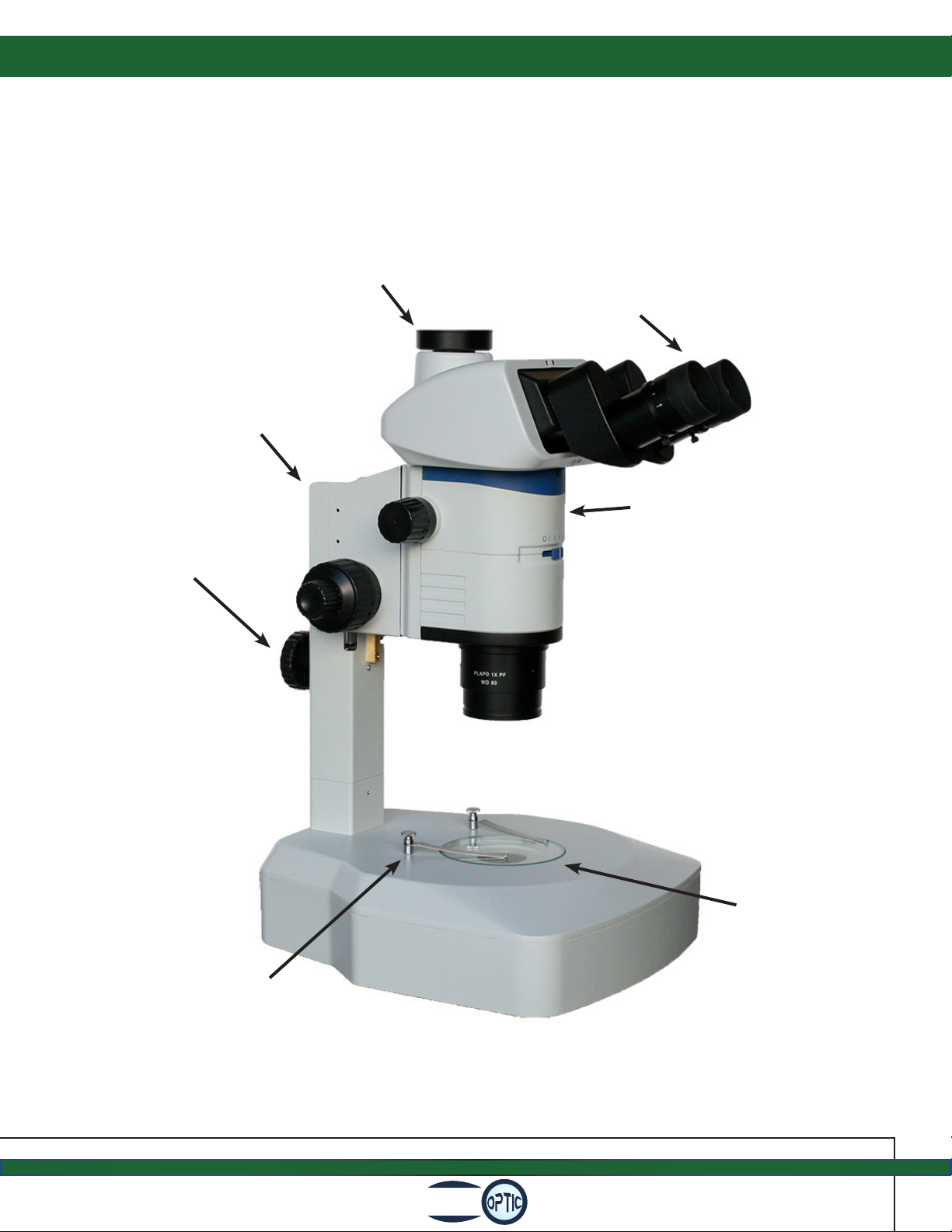

FZ12 Microscope Components

Lock Knob

Focus Holder

Microscope Body

Trinocular Head

Eyepieces

Stage Clips

Stage Plate

FZ12-BFDF

3Fein

FZ12-ILB

FZ12 Microscope Components

Trinocular Head

Eyepieces

Focus Holder

Fine Focusing

Knob

Coarse

Focusing Knob

Aperture Diaphragm

Adjusting Knob

LCD Display Intensity

and Color Temperature

Color Temperature

Control Stage Clips

Fein

FZ12 Microscope Components

Zoom Knob

Click Stop

Rheostat Control

Power On/O

Main Objective

FZ12-ILB

Ultra Thin base

Microscope Head

FZ12 Microscope Assembly

5Fein

FZ12 Microscope Assembly

Fein

Assemble the Microscope Body

Remove the decorative cover (1) of the focus

bracket. Loosen the M4 inner hexagon screw with a

M4 inner hexagon Allen key.

Match the dovetail interface (3) of the microscope

body with the dovetail groove (2) of the focus

bracket group, and insert it from top to bottom in

the direction as shown in the gure.

Tighten the M4 inner hexagon screw on the focus

bracket group with a M4 inner hexagon Allen key.

Replace the decorative cover (1).

Assemble the Objective

Attach the objective (2) into the bottom of the

microscope body (1) by rotating the objective until

objective is fully installed.

Assemble the Focusing Bracket

Loosen the lock knob (1) of the focusing bracket

group. Insert the hole (2) of focusing bracket group

into the column (3), until the focusing bracket group is

in the lowest position. Then tighten the lock knob (1)

to prevent the microscope from turning.

Ensure the focusing bracket is assembled

correctly to prevent the microscope from

tipping over.

FZ12 Microscope Assembly

7Fein

Assemble the Microscope Head

Loosen the head set screw (1) fully with a M4 inner

hexagon Allen key.

With the microscope head facing forward, insert the

bottom of the microscope head into the top hole

of the microscope body matching the orientation

groove (2) with the orientation pin (3) of the body.

Secure the microscope head to the microscope body

with the set screw.

Assemble the Eyepieces

Remove the eyepiece tube covers (1).

Insert the eyepieces (3) into the eyepiece

tube until the bottom of the eyepieces

touches the bottom of the eyepiece tube.

Secure the eyepieces with the set screws (2).

Assemble the Stage Plate

Place the stage plate into the well space on

the microscope stand.

To remove the stage plate, press down with

ngertips on one edge of the stage plate.

This will result in the other side of the stage

plate lifting, allowing it to be removed.

Assemble the Reticle

Unscrew the pressure ring from the eyepiece.

Clean the reticle, then install it into the

pressure ring with the scaled surface upward.

Screw the pressure ring with reticle into the

eyepiece until tight.

To remove the reticle, rst unscrew the

pressure ring from eyepiece, then remove

the reticle.

Scaled Surface

Screw-in

Screw-out

Assemble the Stage Clips

Insert the stage clips (1) into the two

holes on the base of the microscope

(2).

FZ12 Microscope Assembly

Fein

Adjust the Microscope Body Position

Loosen the lock knob (1) and rotate the

microscope body and the focusing bracket

left and right. Match the center of the zoom

body with the center of the stage plate.

Secure in place with the lock knob.

Assembling the LED Light Source

Make sure the main switch is at the“O” (o)

position.

Insert one end of the optical ber (1) into

the inner hole (2) of the power supply box

aligning the at surface with the lock screw

(3). Secure the optical ber in place with the

lock screw (3).

Insert the other end of the optical ber (1)

into the hole of the base (4), then secure in

place with the lock screw.

Insert one end of the power adapter (6) into

the inner hole (5) of the power supply box.

Insert one end of the power cable (7) into

the corresponding hole of the power adapter

(6), and the other end into the power supply

socket.

Before Use:

9Fein

Do no shake or drop the microscope

Do not expose the microscope to direct

sun, high temperatures, dust, or damp

environments. Use a at work surface. Indoor

operating temp 32°- 104°F (0°- 40°C), max

relative humidity of 85%.

When moving the microscope use both hands, holding

by the base and the back of the microscope.

Do not adjust the right and left focusing knob in

opposite directions simultaneously.

After use, cover the microscope with a dust cover and power o the light.

For a clear image, ensure you do not leave ngerprints

on the eyepieces or auxiliary lenses.

Wipe lenses gently with a soft tissue. Wipe o ngerprints from lens surfaces with

lens paper using a small amount of microscope cleaning solution or a 3:7 mixture

of alcohol and ether or dimethyl benzene. (Alcohol and ether are ammable, do

not place these chemicals near re and clean in a ventilated area.)

When cleaning other surfaces of the microscope use water only. A basic detergent

can be used to clean the surface if necessary, but ensure that all the detergent is

removed from the frame with a clean, damp cloth prior to drying the surface.
