Fantech Jetstream JCE202-3 Manual de usuario

Part No.; INST- JCE202-3 08/12 Page 1 of 3

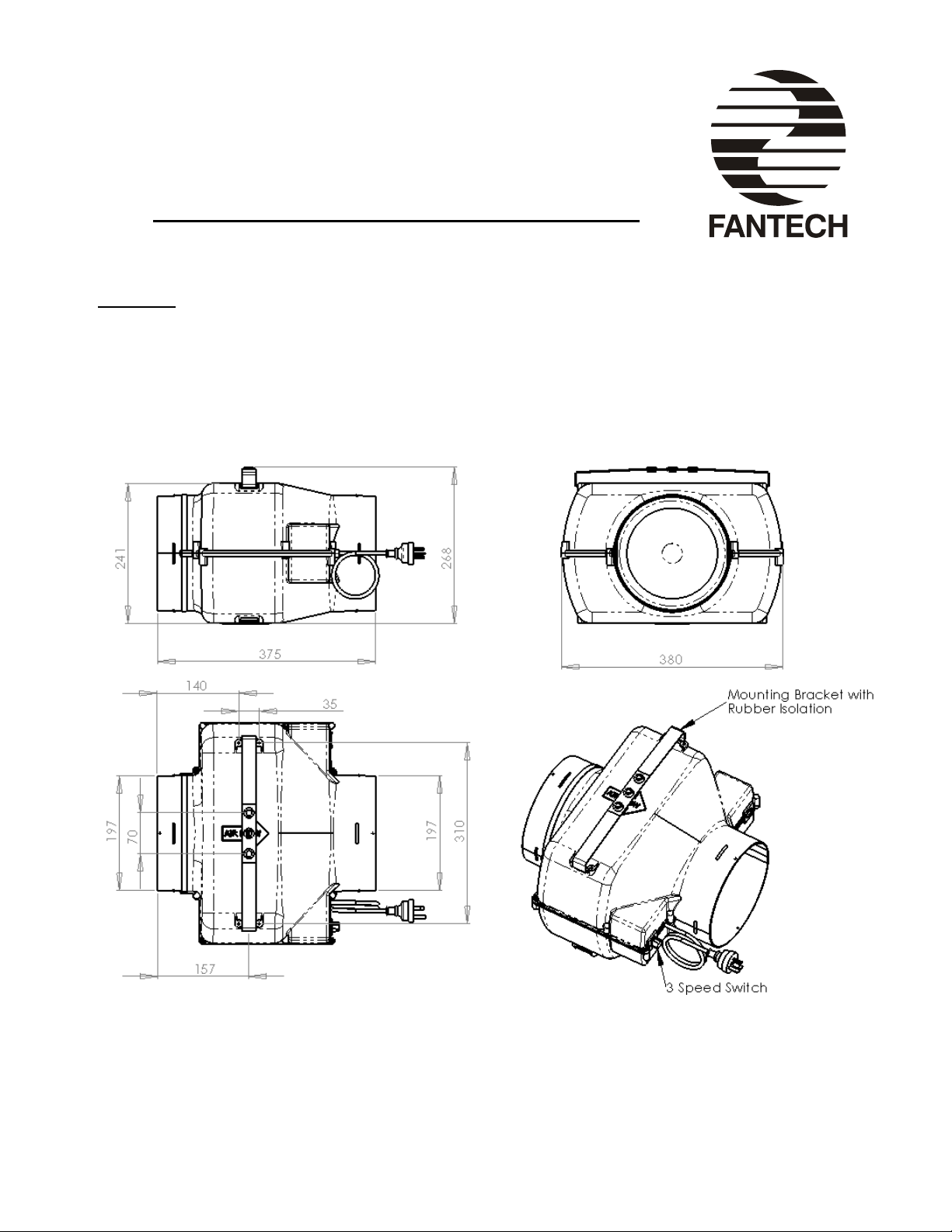

Fantech Jetstream System

Ø200mm Spigot

CONTENTS & INSTALLATION INSTRUCTIONS

Contents:

Jetstream Fan 1 off.

Mounting Bracket 1 off.

Fixing screws 4 off.

Installation Instruction 1 off.

Part No.; INST- JCE202-3 08/12 Page 2 of 3

Installation:

1. Installation of this product should be carried out be appropriately qualified persons.

2. Ensure the unit has arrived in good condition and that the impeller is free to rotate.

3. The Jetstream Fan can be installed in one of two ways:

A). Fix the mounting bracket where the fan will be installed and snap the fan into the bracket.

B). Utilise the four holes and four screws provided to fix the fan appropriately.

4. Plug fan into 240V AC power point.

Safety Considerations:

1. All connections must be in accordance with any local regulations.

2. Changing the pre-set speed or connection to a remote three speed switch must be done by a qualified

person.

3. The Licensed Electrical installer must ensure that an approved means of disconnection be

incorporated into the fixed wiring.

4. This fan has an automatic thermal cut-out switch incorporated in the motor as standard.

5. This product is not intended for use by persons (including children) with reduced sensory or mental

capabilities, or lack of experience and knowledge, unless they have been given supervision or

instruction concerning use of the product by a person responsible for their safety. Children should be

supervised to ensure that they do not play with the product.

6. For duct or partition mount, precautions must be taken to avoid the back-flow of gases into the room

from the open flue of gas or other open-fire appliances.

7. If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly

qualified persons in order to avoid a hazard.

Hole position for screws. x 4

Clipping position for

mounting bracket.

Part No.; INST- JCE202-3 08/12 Page 3 of 3
