Fantec QB-35US3R+AES Manual de usuario
Model: QB-35US3R+AES
4-BAY RAID ENCLOSURE
English
CONTENT
Self- Assembly 4-5
Important safety Instructions
6
Windows 2000 / Windows XP / Windows Vista / Windows 7 / Macintosh O.S. 10.X
Backup AES Key to encrypted file
6 - 14
Overview 1-3
Setup 15-24
RAID Modus Einstellungen / LED Anzeigen
Initialization 25-34
Windows Vista / Windows 7 / Macintosh O.S. 10.X
References 35-38
http://www.fantec.de
If you have questions or need help with this device,
please visit our Fantec Support Forum:
http://www.fantec-forum.de/
Please visit our website for more information:
DE - 01/38
DIAGRAM of FANTEC QB-35US3R + AES
FRONT PANEL
OVERVIEW
EN - 01/38
DE - 02/38
DESCRIPTION
LED INDICATION
1. Blue Power on
Orange Sleep mode
2. Rebuild
3. HDD error When any of HDD1~HDD4 has error, HDD error is on.
4. RAID 0 Spanning Mode / BIG
5. RAID 0 Striping Mode
6. RAID 1
7. RAID 3
8. RAID 5
9. RAID 10
10. Power button It needs to be pressed for 3 seconds to power off.
This design prevents accidental power off.
11. eSATA in use / access
12. USB in use / access
13.-16. HDD1 / HDD2 / HDD3 / HDD4
Blue active
Purple access
Red rebuild
17. Smart Fan automatic mode
18. Smart Fan manual mode
19. Fan speed level 1
20. Fan speed level 2
21. Fan speed level 3
22. AES
Blue Decoded
Red Encoded
23. Mode RAID mode button needs to be pressed for 3 seconds to
switch the device's mode. This design will prevent
accidental execution of this function.
24. Fanbutton Controls auto & manual modes and fan speed from
level 1 to level 3.
25. HDD1 error
26. HDD2 error
27. HDD3 error
28. HDD4 error
EN - 02/38
DESCRIPTION
1. Fan
2. RAID CONFIRMATION button
3. eSATA port
4. USB 3.0 / 2.0 port
DESCRIPTION
1. AES Key port
2. DC Jack
3. DC Power
HDD HANDLE FRONT COVER METAL FRAME
REAR PANEL
SIDE PANEL right
1
3
4
2
EN - 03/38

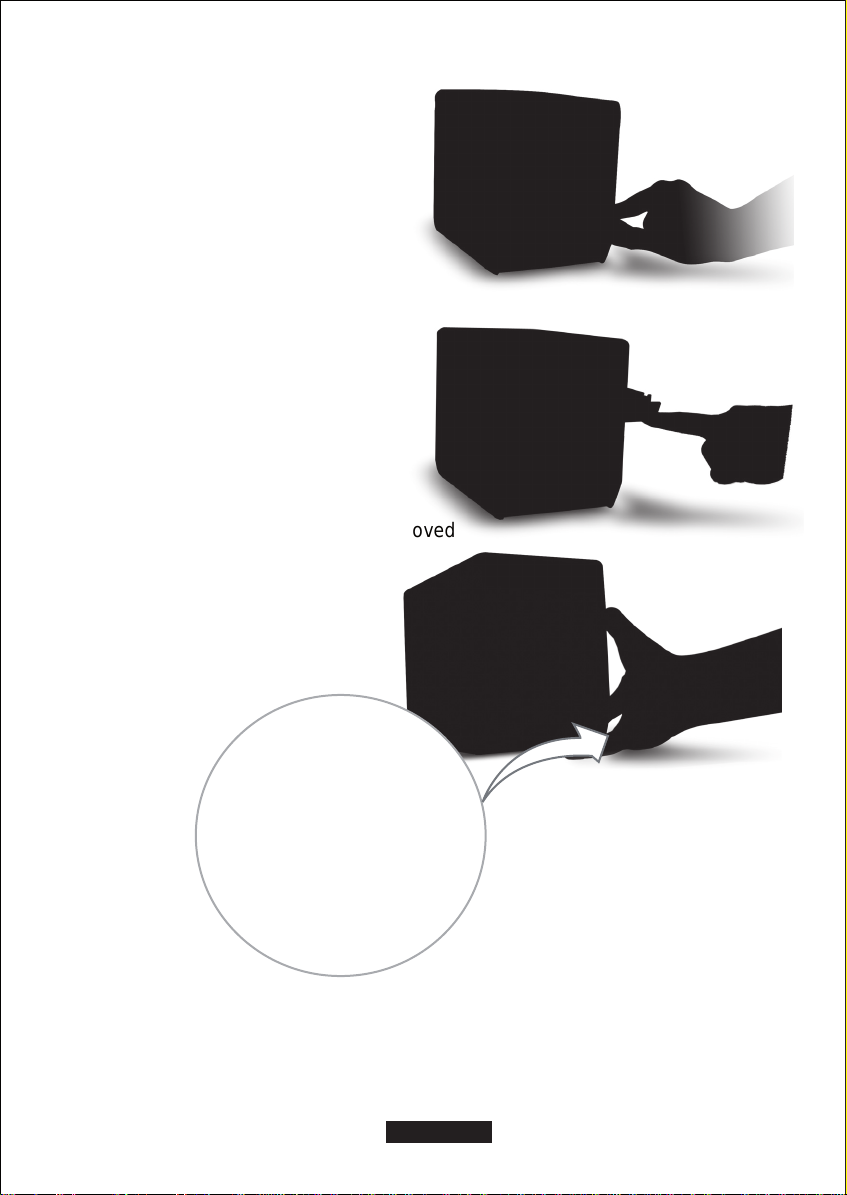

Quick installation guide
SELF-ASSEMBLY
C. Press down the rib to detach the metal
frame and remove it.
A. Please use the provided handles to
secure the 4 HDDs with screws.
B. Press the circular deepening to open
the cover.
EN - 04/38
EN - 05/38
I. Stellen Sie den gewünschten Raid Modus ein.
D. Take the transport paper
board out of the device.
E. Slide 4 HDDs into the chassis and
make sure they are securely
installed in order from up
to down.
F. Adjust the metal frame that was removed
in Step C. Please make sure the
bottom of the frame stays
inside the track before
closing the cover.
G. Connect the power supply to the device, plug in either USB or eSATA
cable in the rear panel and power on the device.
H. Plug in the AES Key Token
I. Set up RAID Mode.
EN - 06/38
J. Install the AES Key Token backup software.
K. Duplicate the AES Key Token data as a backup for safekeeping.
(please refer to the user manual, page 7-14)
Important safety instructions
1. Keep the AES Key token away from water and heat, and do not disassemble
it. If the key is defective or lost, please contact the local distributor immediately.
2. Access: Plug in the AES Key Token, use the USB or eSATA cable to connect the device
tothe PC. When the AES LED turns blue, the device is ready.
3. Lock: Unplug the AES Key Token. When the AES LED turns red, the PC will recognize
the unit as an um-formatted device and it's not possible to access the data.
4. Store the AES Key management software and the backup file in a safe place.
It will be needed to restore a new AES Key Token.
5. Do not change the RAID mode during operation, otherwise the all the data will be lost.
Please save your data before changing the RAID mode.
6. Do not use a defective AES Key Token. The AES functions may be locked down.
EN - 07/38
Back up encrypted filewith AES Key Token
Windows XP(32/64 bit) / Windows Vista(32/64 bit) / Windows 7(32/64 bit)
1. Insert the CD ROM and follow the instructions to start installing “AES Key Manager”.
3. Note: Both AES Token have the same AES code, but to go for sure, please backup both
AES Token and store the files on a safe place or burn them on CD/DVD.
2. When the installation is completed, plug in AES Key Token, use the USB or eSATA cable toconnect
the device and PC, power on the device, click on Backup Key „Backup AES Key toEncrypted File“,
Apply, and save it in the designated path.
1. Click ”OK”.
Backup AES Key to encrypted file
EN - 08/38
2. Choose a designated path and click “Save”.
3. Click ”OK”.
Note: AES Key Message if the key not plugged in
