Fanimation Zonix FP4620 Series Manual de usuario

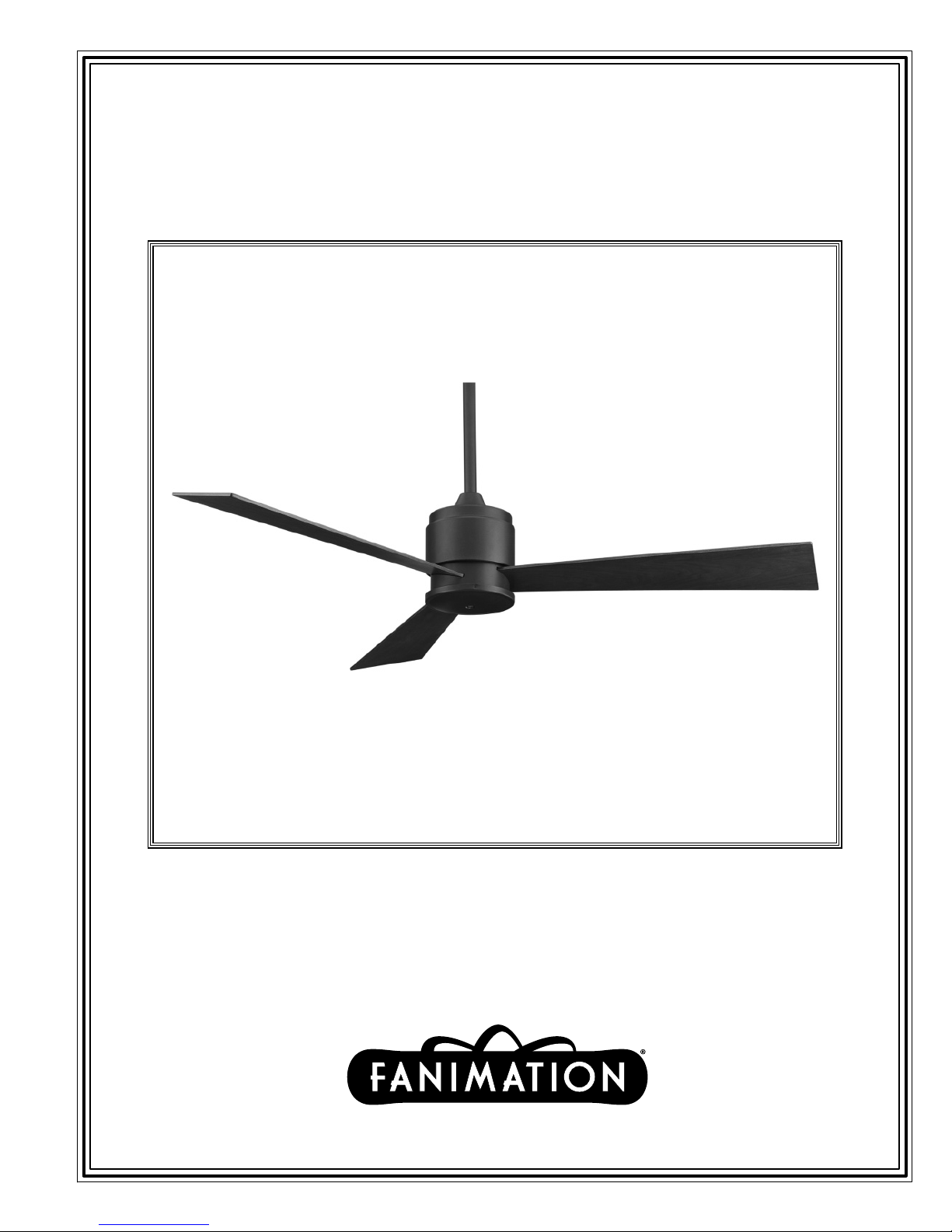

The Zonix™

FP4620 Series

SPECIFICATION SHEET

Product Speciﬁcations Subject To Change

The Zonix™Fan Assembly – FP4620**

10983 Bennett Parkway

Zionsville, IN 46077

Toll Free (888) 567-2055

FAX (866) 482-5215

Outside U.S. call (317) 733-4113

Visit Our Website www.fanimation.com

Available Finish

OB Oil-Rubbed Bronze

SN Satin Nickel

7´ min

Floor

Ceiling

Blade Sweep = 54˝dia

Net Hanging Weight: 20 lbs

6˝dia

14° Blade Pitch

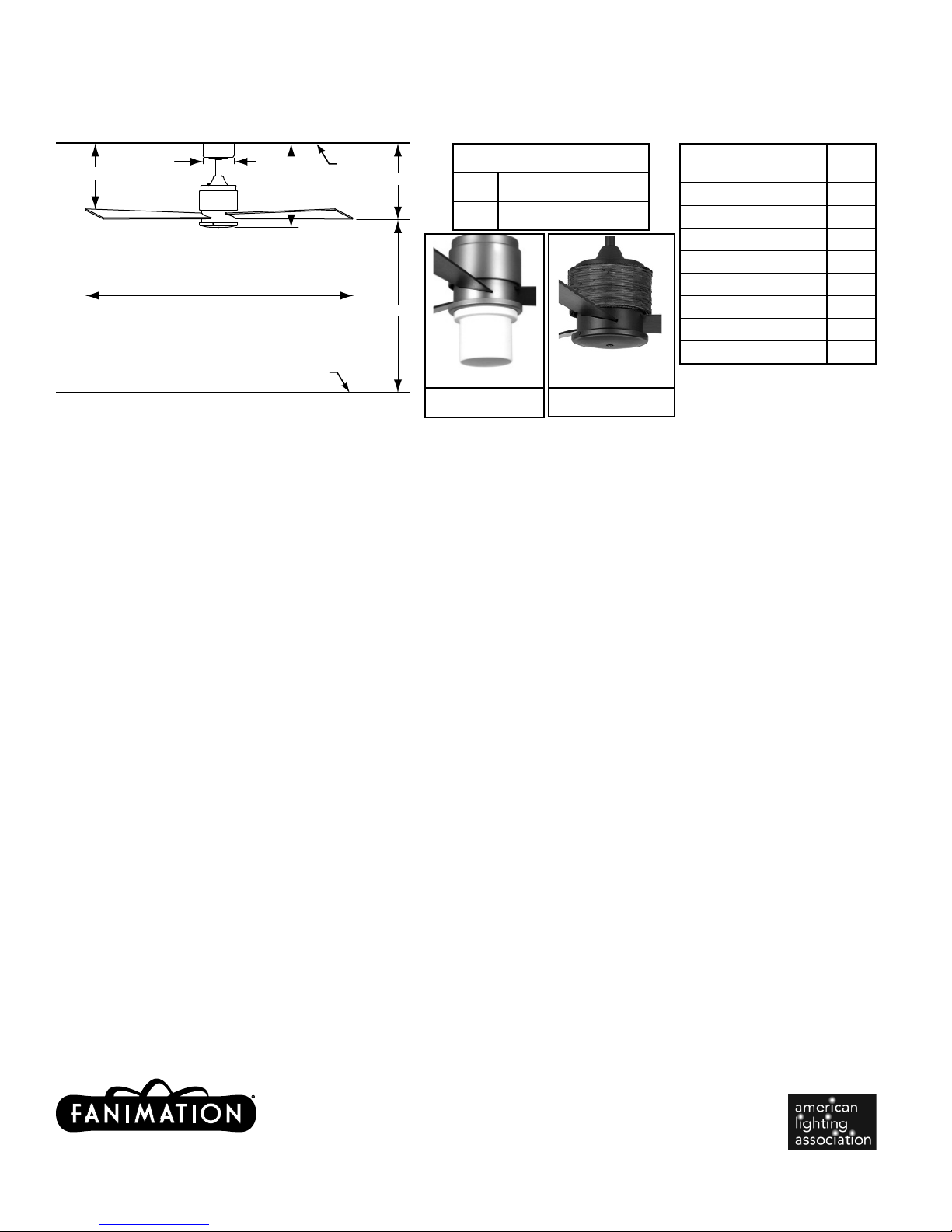

12½˝14˝

Dimensions shown in inches

Optional Light Kit

LK4620**

Optional Woven

Cherry or Walnut

Housing Accessory

HA4620CY/WA

Distance from Ceiling

to Bottom of Fan

Fan w/6˝downrod 15½˝

Fan w/12˝downrod 21½˝

Fan w/18˝downrod 27½˝

Fan w/24˝downrod 33½˝

Fan w/36˝downrod 45½˝

Fan w/48˝downrod 57½˝

Fan w/60˝downrod 69½˝

Fan w/72˝downrod 81½˝

INSTALLATION REQUIREMENTS:

Ceiling fan attaches to electrical junction box securely anchored and capable of withstanding a load of at least 50 lbs.

ELECTRICAL REQUIREMENTS:

Ceiling fan requires a grounded electrical supply line of 120 volts AC, 60 Hz, 15 amp circuit.

MOTOR SPECS:

153 x 18 motor is designed for optimal performance with this fan.

FAN SPEEDS:

4 fan speeds with reversing switch (on top of the motor). High – 150 rpm; Med High – 115 rpm; Med – 85 rpm; Low – 50 rpm

CONTROL OPTIONS:

The fan-only wall control (CW40) is included. Reversing switch located on fan housing. Installation and operating

instructions provided with control. Optional controls are: C2 wall control, C4 hand-held remote with receiver.

LIGHTING OPTION:

The optional 1-bulb downlight ﬁxture (13 watt, Energy-Efﬁcient CFL bulb included) is available and sold separately.

Maximum downlight wattage not to exceed 13 watts. NOTE: Fan supplied with fan only wall control. Light kit will require

an additional control/switch.

DOWNROD OPTIONS:

The Zonix™fan comes with a 1˝Dia. x 6˝(DR1-6) downrod. Optional downrods are available in 12”, 18”, 24”, 36”, 48”, 60”,

and 72”. For installations requiring a longer downrod, a downrod coupler is available. The Zonix™fan can be mounted

on a sloped ceiling up to 30°. Most sloped ceiling installations require a downrod longer than the standard 6˝downrod.

Optional sloped ceiling ball kits (SCB1-52) are available for up to 52°. Call tech support for more information.

BLADE SETS:

A set of three 26˝reversible (cherry/walnut) wood blades are included. Optional set of three 20˝reversible (cherry/

walnut–B4442CWR) and satin nickel (B4442SN) blades are available and sold separately. Not recommended for Damp

Location.

DAMP LOCATION:

Fan not rated for Damp Location usage.
