The Andover™

FP5220 Series

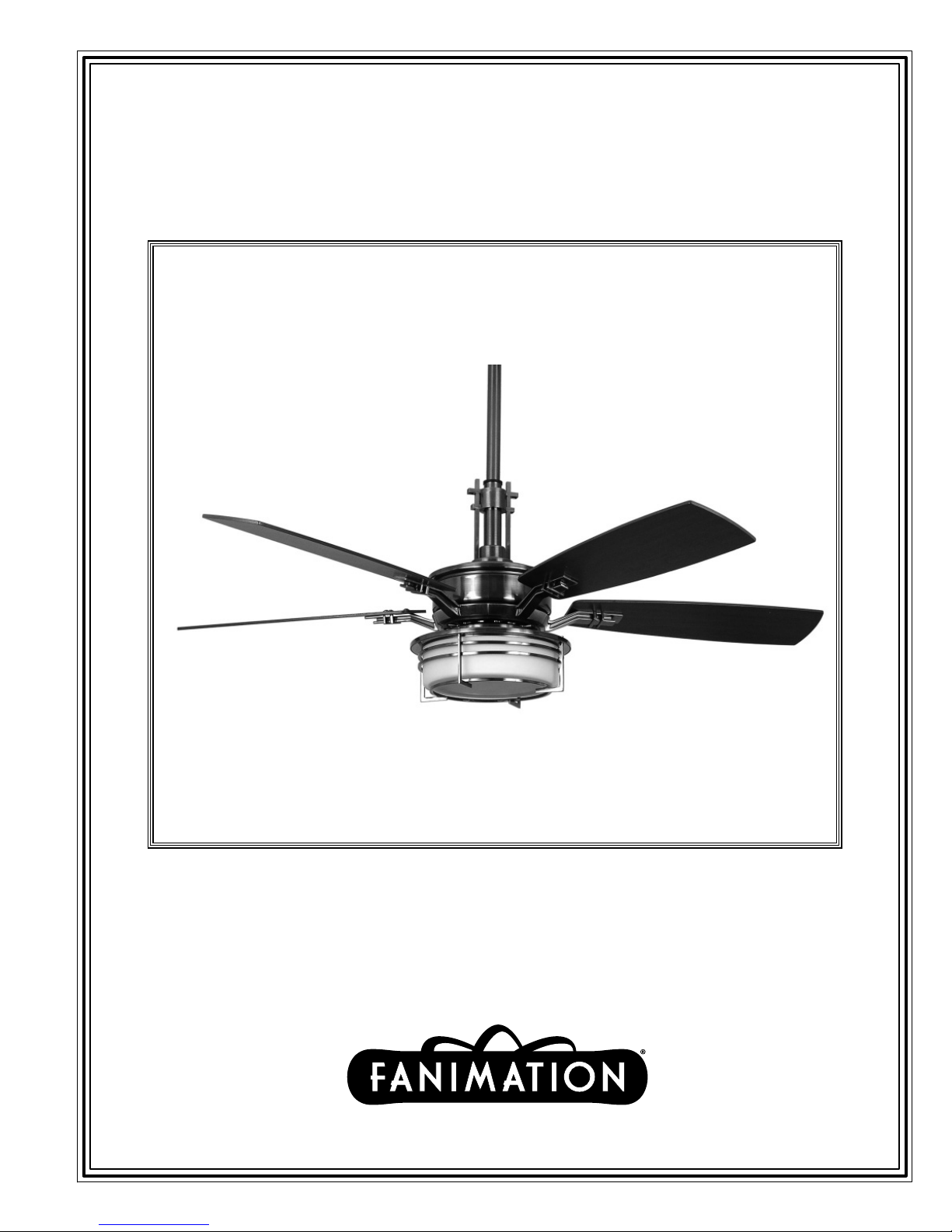

SPECIFICATION SHEET

Product Speciﬁcations Subject To Change

The Andover™Fan Assembly – FP5220¾¾

Dimensions shown in inches

10983 Bennett Parkway

Zionsville, IN 46077

Toll Free (888) 567-2055

FAX (866) 482-5215

Outside U.S. call (317) 733-4113

Visit Our Website www.fanimation.com

Fan Assembly - FP5220¾¾

Distance from Ceiling to Blade Edge

(with 6˝DR) 10.3˝

Blade Sweep / Pitch

54˝/ 14°

Down Light Diameter

12˝

Canopy Diameter

6½˝

Net Hanging Weight:

(with Light Kit) 31¼ lbs

INSTALLATION REQUIREMENTS:

Ceiling fan attaches to electrical junction box securely anchored and capable of withstanding a load of at least 50 lbs.

ELECTRICAL REQUIREMENTS:

Ceiling fan requires a grounded electrical supply line of 120 volts AC, 60 Hz, 15 amp circuit.

MOTOR SPECS:

188 x 20 motor is designed for optimal performance with this fan.

FAN SPEEDS:

3 fan speeds with reversing switch (on top of the motor). High – 145 rpm; Med – 105 rpm; Low – 70 rpm

CONTROL OPTIONS:

The hand-held remote control (C24) with canopy receiver (RECFP5220) is included. Push button remote control will

consist of 3 separate fan speeds, inﬁnite light levels, and off position. Reversing switch located on fan housing. Optional

wall control (C25) is available (to be used in conjunction with fan receiver).

LIGHTING OPTIONS:

The 3-bulb (40 watt max candelabra bulbs - not included) downlight ﬁxture is included with this fan assembly. Maximum

downlight wattage not to exceed 120 watts.

DOWNROD OPTIONS:

The Andover™fan comes with a 1˝Dia. x 6˝(DR1-6) & 12˝(DR1-12) downrods and decorative downrod sleeve.

Optional downrods are available in 18”, 24”, 36”, 48”, 60”, and 72”. For installations requiring a longer downrod, a downrod

coupler is available. The Andover™fan can be mounted on a sloped ceiling up to 30°. Most sloped ceiling installations

require a downrod longer than the standard 6˝downrod. Optional sloped ceiling ball kits (SCB1-52) are available for up

to 52°. Call tech support for more information.

BLADE SETS:

A set of 5 reversible (cherry/walnut) wood blades are included. Not recommended for Damp Location.

DAMP LOCATION:

Fan not rated for Damp Location usage.

Available Finishes

OB Oil-Rubbed Bronze with Amber Glass

PW Pewter with Opal/Frosted Glass

Distance from Ceiling to

Bottom of Downlight

Fan w/6˝downrod 18˝

Fan w/12˝downrod 24˝

Fan w/18˝downrod 30˝

Fan w/24˝downrod 36˝

Fan w/36˝downrod 48˝

Fan w/48˝downrod 60˝

Fan w/60˝downrod 72˝

Fan w/72˝downrod 84˝
