Falcon E9241 Manual
F900 SERIES
User, installation and servicing instructions
PASTA COOKER
E9241
Read these instructions before use
T100900
Published: 08.09.16
DATE PURCHASED:
MODEL NUMBER:
SERIAL NUMBER:
DEALER:
SERVICE PROVIDER:
REV 6
2
Falcon Foodservice Equipment
HEAD OFFICE
Wallace View, Hillfoots Road, Stirling. FK9 5PY. Scotland.
WEEE Directive Registration No. WEE/DC0059TT/PRO
At end of appliance life, dispose of appliance and any replacement parts in a safe
manner, via a licensed waste handler. Appliances are designed to be dismantled
easily and recycling of all material is encouraged whenever practicable.
Dear Customer,
Thank you for choosing Falcon Foodservice Equipment.
This manual can be downloaded from www.falconfoodservice.com or scan
here.
IMPORTANT: Please keep this manual for future reference.
3
SYMBOLS.
• SPANNER • SCREWDRIVER • COOKING OIL • GREASE
• SPARK IGNITION • FLAME •WARNING • VIEWPORT
•ALLEN KEY •IGNITER •C SPANNER
4
This appliance may be discoloured due to testing.
These instructions only valid if the country code appears on the appliance.
If the code does not appear on the appliance, refer to the technical
instructions for adapting the appliance to the conditions for use in that
country
Installation must meet national or local regulations. Attention must be paid
to: safety (installation & use) regulations, health and safety at work act,
local and national building regulations, fire precautions act.
To prevent shocks, this appliance must be earthed.
This unit is fitted with an equipotential connection at the rear on the base.
This appliance has been CE- marked on the basis of compliance with the
Low voltage and EMC directives for the voltages stated on the data plate.
All apparatus connected to a potable water network and including water
drain device has to be provided with an air break before its discharge to
the drainage system. Type AA.
This equipment is for professional use only and must be used by qualified
persons.
The installer must instruct the responsible person(s) of the correct
operation and maintenance of the appliance.
Unless otherwise stated, parts which have been protected by the
manufacturer must not be adjusted by the installer.
Take care when moving an appliance fitted with castors.
The appliance must be serviced regularly by a qualified person. Service
intervals should be agreed with the service provider.
Check that no damage has occurred to the appliance or power cord during
transit. If damaged has occurred, do not use this appliance.
We recommend supplementary electrical protection with the use of a
residual current device (RCD).
Ensure appliance power cord is routed free from appliance to avoid
damage.
Installation, periodic testing, repair and fixed wired connections should
only be undertaken by a competent electrician.
The Appliance has been designed and approved to use Falcon Kick plates;
non Falcon kick plates could potentially adversely affect the performance
of the appliance by restricting the air to the appliance.
5
CONTENTS
1.0 APPLIANCE INFORMATION.....................................................................................................6
2.0 OPERATION................................................................................................................................. 7
2.1 COMPONENT PARTS ...............................................................................................................7
2.2 CONTROLS............................................................................................................................... 8
2.3 USING THE PASTA COOKER..................................................................................................... 8
3.0 CLEANING AND MAINTENANCE............................................................................................9
4.0 SPECIFICATION......................................................................................................................... 9
5.0 DIMENSIONS / CONNECTION LOCATIONS......................................................................10
6.0 INSTALLATION.........................................................................................................................10
6.2 ASSEMBLY.............................................................................................................................11
6.3 SUTING OF UNITS..................................................................................................................15
6.4 COMMISIONING ...................................................................................................................15
7.1 DOOR REMOVAL ...................................................................................................................16
7.2 TEMPERATURE CONTROL & TAP REMOVAL .........................................................................16
7.3 CONTROL PANEL REMOVAL .................................................................................................. 17
7.4 SWITCH PANEL REMOVAL.....................................................................................................17
7.5 OPERATING & SAFETY THERMOSTAT REMOVAL .................................................................. 18
7.6 ELEMENT COVER REMOVAL .................................................................................................18
7.7 ELEMENT REMOVAL .............................................................................................................19
7.8 TAP REMOVAL.......................................................................................................................20
8.0 ACCESSORIES........................................................................................................................21
9.0 FAULT FINDING......................................................................................................................22
10.0 SPARE PARTS.........................................................................................................................22
11.0 SERVICE INFORMATION...................................................................................................... 23
6
1.0 APPLIANCE INFORMATION
This appliance has been CE-marked on the basis of compliance with the relevant EU
directives for the heat inputs, gas pressures and voltages stated on the data plate.
A - Serial No
B - Model No
C - Flue Type
D - Gas Category
E - Gas Pressure
F - Gas Type
G - Gas Rate
H - Total Heat Input
I - Electrical Rating
J - Total Electrical Power
K - Magnetic Field Frequency
L - Electrical Phase Loading
7
2.0 OPERATION
2.1 COMPONENT PARTS
A - DOOR B - ELEMENT ROTATING HANDLE
C - RESET SWITCH D - ON/OFF SWITCH
E - POWER NEON F -HEAT DEMAND NEON
G - TEMPERATURE CONTROL H -FILLER SPOUT
I -WATER TAP J - DRAIN HANDLE CLOSED
K -WIRE GRID L - DRAIN SHELF
M -SAFETY & OPERATIING THERMOSTAT N- ELEMENT
8
2.2 CONTROLS
1- On/Off switch
2- Power neon (red)
3- Heat demand neon .(amber)
4- Temperature control
5- Tap
6- Drain valve
2.3 USING THE PASTA COOKER
2.3.1 Before use, clean the appliance inside and out. See section 3.
2.3.2 Ensure drain valve is closed; fill with water to marked level.
2.3.3 Switch power on, 1.
2.3.4 Set temperature control 4 to desired setting.
IF THE UNIT TURNS OFF, PRESS RESET BUTTON.
2.3.5 To switch the unit off, turn temperature control 4 to `off` position.
9

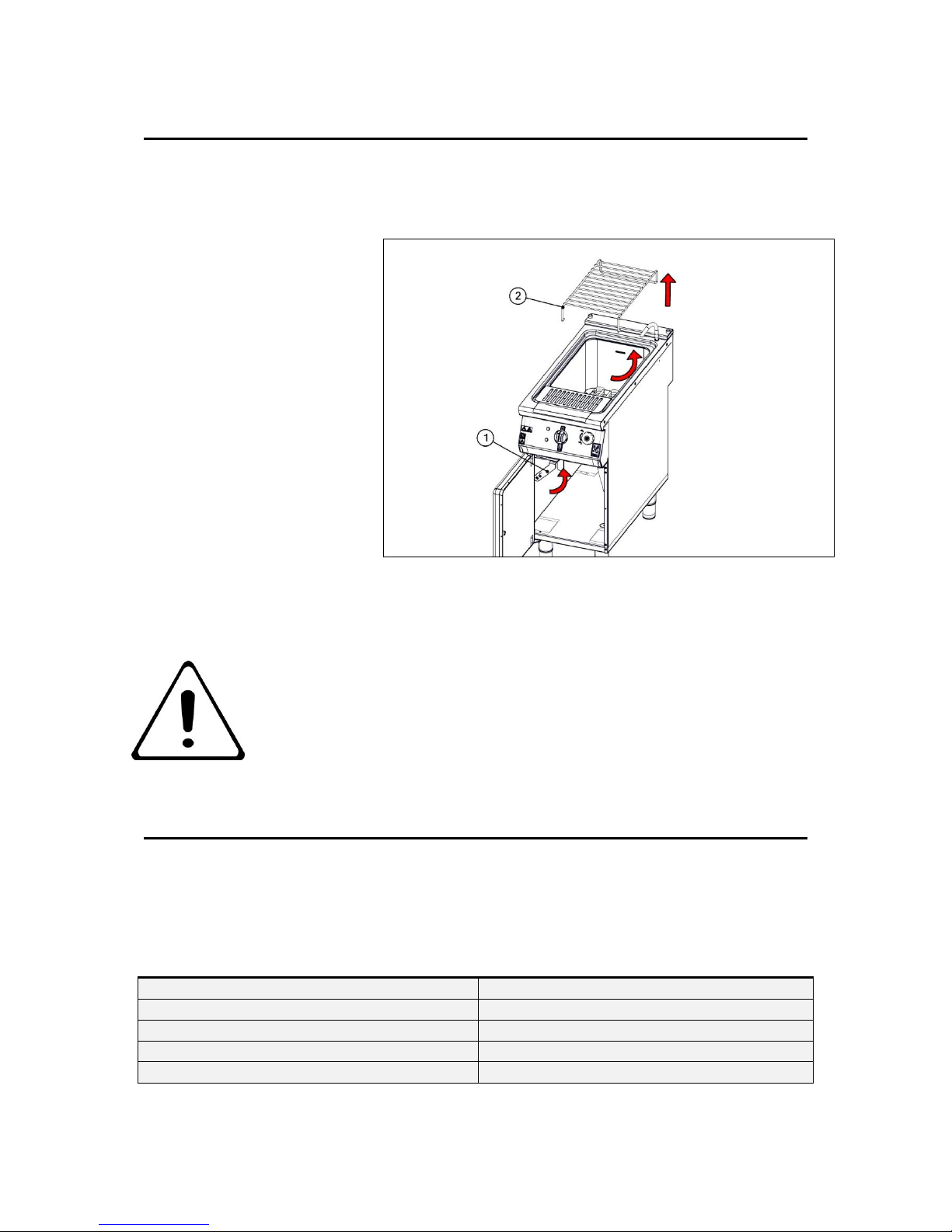

3.0 CLEANING AND MAINTENANCE
3.1 Turn off and allow cool down.
3.2 Drain water and remove grid.
3.3 Rotate element if required to clean pan.
1- Element rotating handle
2- Grid
3.4 Remove other debris using a cloth.
FAILURE DUE TO LACK OF PROPER CLEANING IS NOT
COVERED BY WARRANTY.
4.0 SPECIFICATION
4.1.1 This unit is suitable for AC supplies only
4.2.2 The standard terminal arrangements is Three phase (400V~)
THIS Appliance must be EARTHED
Live 1 ( Phase 1)
Brown
Live 2 ( Phase 2)
Black
Live 3 ( Phase 3)
Grey
Neutral
Blue
Earth
Yellow/Green
10
Phase
Min
Max
Actual (A)
L1
10.83
12.63
12.1
L2
10.83
12.63
12.1
L3
10.83
12.63
12.1
Note if any current is out with these tolerances, the cause
must be investigated and rectified
5.0 DIMENSIONS / CONNECTION LOCATIONS
