Falcon 4G COMBO Manual de usuario

Version 2

4G Amplifed Router4G Amplifed Router

12v / 24v / 240v12v / 24v / 240v

User Manual

Benutzerhanbuch

FALCON 4G COMBOFALCON 4G COMBO

CAMPERVAN/ CARAVAN/ TRUCK/ RURAL INTERNETCAMPERVAN/ CARAVAN/ TRUCK/ RURAL INTERNET

WOHNMOBIL/ WOHNWAGEN/ LKW/ LÄNDLICHES INTERNETWOHNMOBIL/ WOHNWAGEN/ LKW/ LÄNDLICHES INTERNET

What’s in the box 3

Quick Setup Guide 4

Router Inputs 4

Specication 5

connection descriptions 5

Router Custom Conguration 6

Change Admin password 7

WAN 8

Wireless 2.4G 9

Advanced Setting (set network, security & system) 9

Internet service provider (ISP) details 10

Manual Access Point Name (APN) changes 11

Troubleshooting 12

Was ist in der Box 13

Kurzanleitung zur Einrichtung 14

Router-Eingänge 14

Spezikation 15

Verbindungsbeschreibungen 15

Benutzerdenierte Konguration des Routers 16

Systemadministrator ändern 17

Weitverkehrsnetz 18

Kabellos 2.4G 19

Erweiterte Einstellungen (Netzwerk, Sicherheit & System einstellen) 19

Details des Internetdienstanbieters (ISP) 20

Manuelle Änderungen des Zugangspunktnamens (APN) 21

Fehlerbehebung 22

Other Falcon Internet Products / Andere Falcon Internet-Produkte 23

Congratulations on the purchase of your new

FALCON - 4G COMBO

CONTENTS

Included in the box:

WHAT’S IN THE BOX

User Manual 12V DC charger (2m) 12V DC UK Charger (1m)

*EU plug in Europe

4G Router (2x) Antenna’s (2x) Suction Cups

• Check for any accessories hidden behind or in the packing materials when

opening the box.

• The item colours and shapes may vary depending on the models.

Please read the manual carefully.

If further support is required please contact us

United Kingdom enquiries

Website: www.falcontechnology.co.uk

Email: support@falcontechnology.co.uk

Telephone: +44 1928 759 239

Scan the QR code below to view the website:

ROUTER INPUTS

LAN Reset Power

SIM

QUICK SETUP GUIDE

Step 1: Insert your sim card (Requires preloaded data from your provider).

Step 2: Plug in the router to a power supply.

Step 3: Use your mobile phone, tablet, or computer to search and connect to the

network “Falcon4G”:

Step 4: Enter Password: F@1con_99

Step 5: Conrm signal by checking the 2 green bars on the side of the router:

Step 6: If you are connected without internet turn to

page 10 & page 11 on how to manually set up your Access Point Network (APN).

Step 7: Enjoy your internet experience.

*SIM slot requires a standard sim card or adaptor for micro or nano sim.

SPECIFICATION

• Antenna Gain: 2.4GHz - Internal, 2 x 2, build-in 5dBi

• LTE Antenna: 2 x External 5 dBi omnidirectional Antenna, SMA type

• Data Rate: 2.4GHz - 3GPP R9 Cat. 4, Downlink/Uplink up to 150Mbps/50Mbps

• LAN: 2x 10/100

• WAN: 10/100

• Max. Power Consumption: 8.5W

• Operating System Compatibility: Windows/iOS/Android

• Operating Temperature: -10°C to 55°C

• Storage Temperature: -14°C to 80°C

• Power Input: DC 12v 1A & DC 24v 5A

• SIM Slot: 4G

• Support PoE: 24V/0.5A

• Dimensions: 78 x 42 x 313 (including antenna’s)

• Dimensions: 78 x 42 x 154 (excluding antenna’s)

• Weight: 185g (Router, antennas and suction cups)

• Weight: 400g (Boxed)

• Hardware Reset Button: Restore Factory Settings

Connector Description

DC IN DC 12V 1.0 A Power adaptor

LAN 2x 10/100M

WAN 1x 10/100M

Sim Card 4G

Reset Hard reset of router.

CONNECTION DESCRIPTIONS

ROUTER CUSTOM CONFIGURATION

Connecting to the Router:

Router default IP is 192.168.1.254 (we suggest you insert the SIM card before using

the power supply).

Open the browser and type“192.168.1.254”(note this can also be done by

connecting the ethernet cable).

Enter password as displayed below:

Basic Setting

1. System status

Display 4G, WAN, wireless 2.4G, DHCP server and system’s information

Falcon4G

CHANGE ADMIN PASSWORD

Enter old password: F@1con_admin_99

Enter new password. Click Save. Write the new password down for

future reference.

You will be redirected to login as below:

F@1con_admin_99

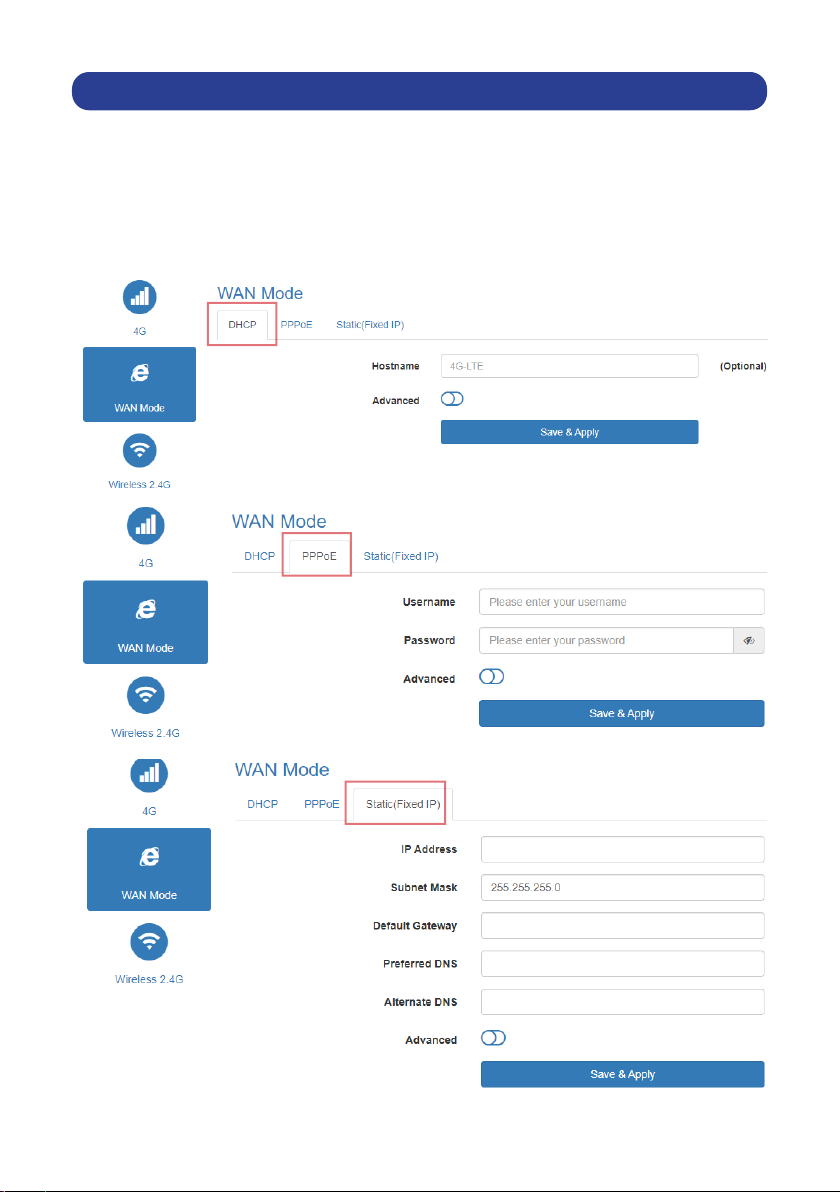

WAN

Options to choose DHCP, Static (xed IP) or PPPoE

DHCP is the standard in this router and may change over time depending on your

internet service provider (ISP). Static is xed and will never change. PPPoE allows

the modem to be a part of the network that multiple users can utilize instead of

being connected directly to the computer. We suggest not changing these settings.

WIRELESS 2.4G

Wireless SSID and Password details:

Here you can change your password.You will be logged o so you will need to log in

again. Write your password down for future reference.

ADVANCED SETTING SET NETWORK, SECURITY & SYSTEM

Network:

IP pass-through: make WAN and LAN bridge.

LAN: modify router manage address.

DHCP server: modify LAN DHCP address pool.

PPTP/L2TP: support PPTP/L2TP client mode setting connect.

VLAN: the router can be divided to several VLAN and support computer’s direct

communication.

Port mirroring: set mirroring monitor port.

QOS: set upload and download speeds, dynamic DNS, static routing, and port

forwarding.

DMZ: assign LAN IP open to WAN and host name.

CAUTION: Please do not power o the unit during a rmware update. This may create a system

malfunction.

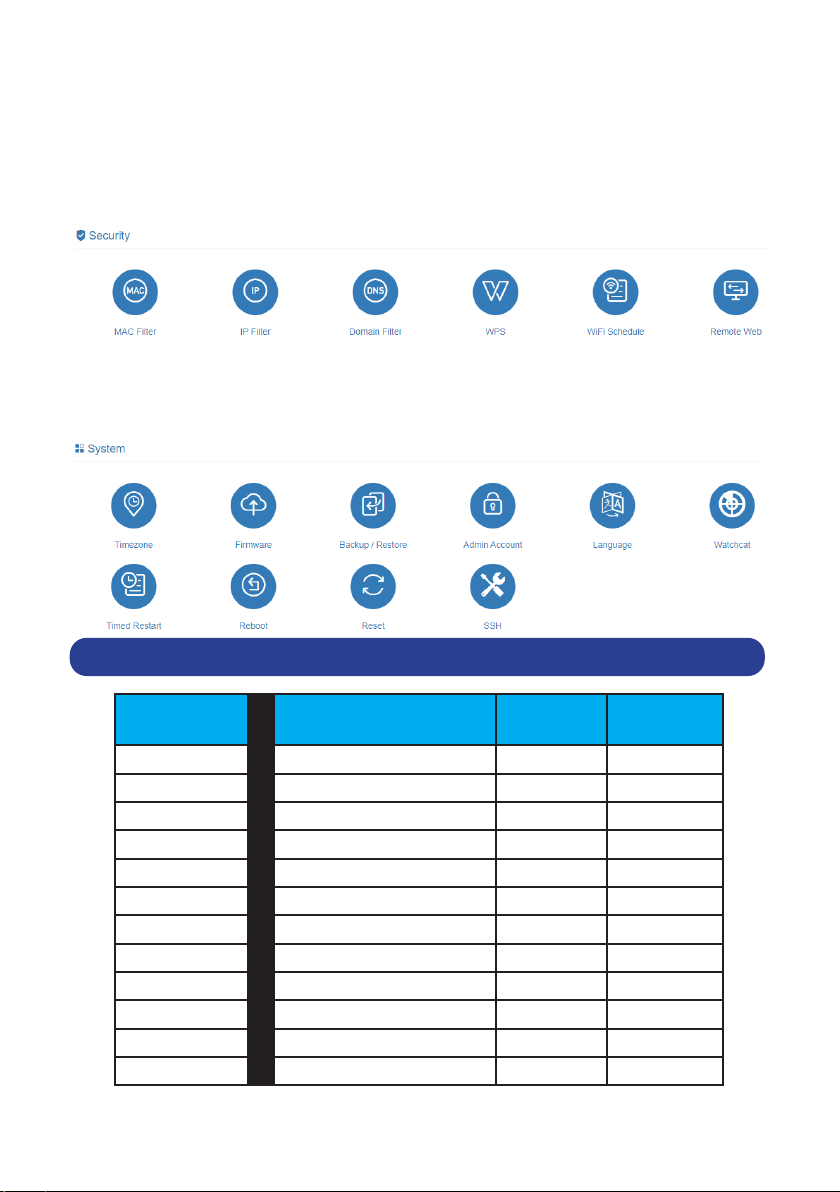

System:

Time zone, rmware update, backup/restore, router password, language (Auto,

English, and Chinese) time restarted (can set timed restart 00:23hour and

00:59miniute) reboot, reset.

Security:

MAC address lter: set client MAC to visit internet.

IP address lter: set client IP to visit internet.

Domain lter: set domain which allow visit.

WPS/WIFI schedule: Set the time to open and close the wi .

Remote web: set listen IP.

At the time of printing all details are correct but for any discrepancies please check with your provider.

Access Point Name (APN)

Username

Password

everywhere eesecure secure

giga.com gg p

mobile.o2.co.uk o2web password

mobile.sky

three.co.uk

pp.vodafone.co.uk wap wap

wap.vodafone.co.uk wap wap

talkmobile.co.uk wap wap

goto.virginmobile.uk

prepay.tesco-mobile.com tescowap password

mob.asm.net

uk.lebara.mobi wap wap

INTERNET SERVICE PROVIDER ISP DETAILS

Provider

giga

Sky Mobile

Three

Vodafone PAYG

Vodafone

Talkmobile

Virgin Mobile

Tesco Mobile

Smarty

Lebara Internet
