TECHNICAL MANUAL

GAS OVENS

HVG and HCG

NOVEMBER 2001

FAGOR

Industrial S.Coop.

INDEX

No. Description page

1 Models and dimensions 3

2 Characteristics 7

3 Location 9

4 Installation 10

Electrical

Water inlet

Drain

Gas inlet

Exhaust gas outlet

Transformation to different gases

5 Control panel 12

6 Functional diagrams 14

7 Figures 21

8 Electrical and assembly diagrams 27

9 Preventive maintenance 33

10 Anomalies 36

11 Parameters and regulations 41

12 Recommended parts 47

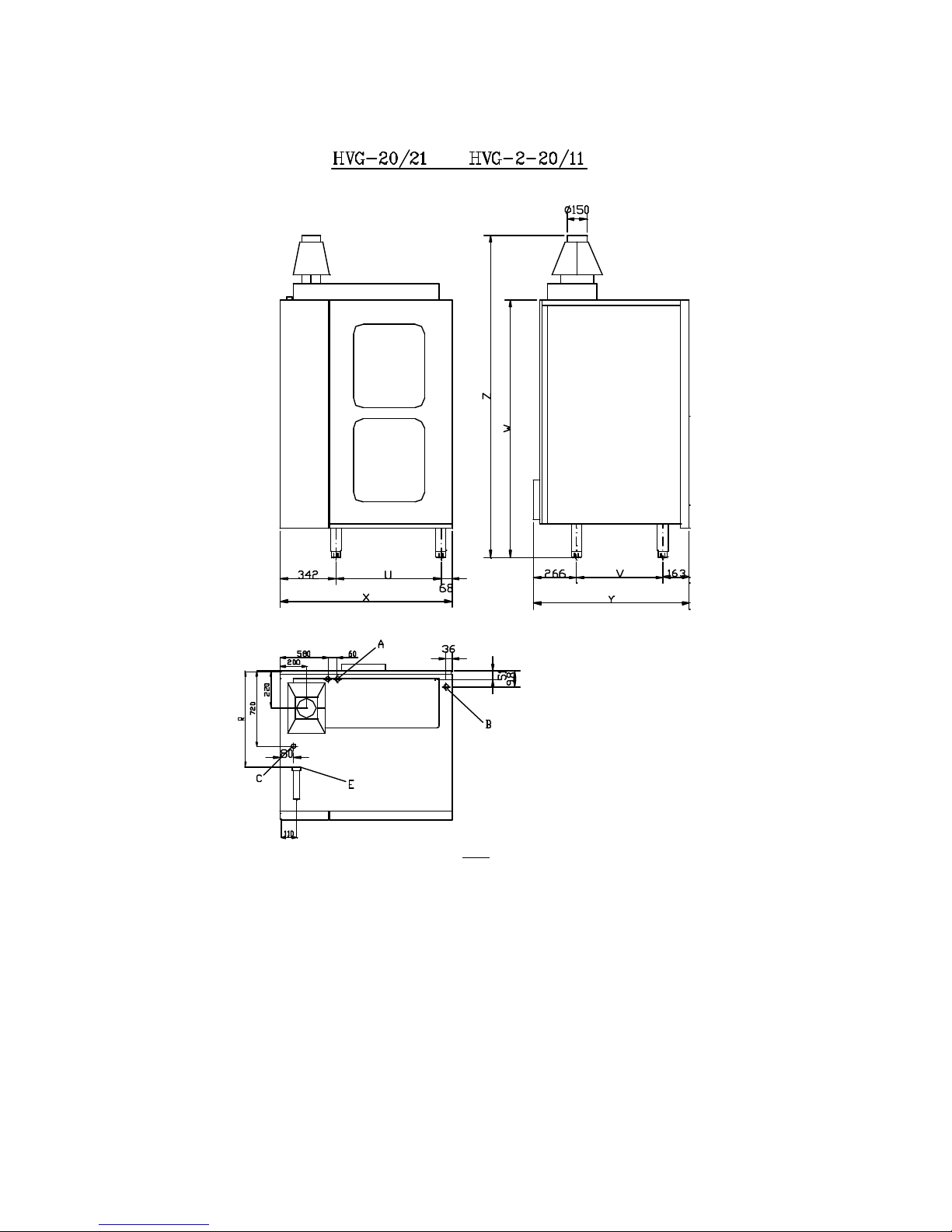

1 MODELS AND DIMENSIONS

fig 1

fig 2

fig 3

fig 4

fig 5

fig 6

A.-Soft water inlet RG ¾”.

B.-General drain RG 1”.

C.-Electrical supply inlet connector.

D.-Drain cleaning plug.

E.-Gas inlet RG ¾”.

2 CHARACTERISTICS

MODEL HVG-10/11

HVG-10/21

HVG-2-10/11 HVG-20/11

HVG-20/21

HVG-2-20/11

Width X 1060 1180 1060 1180

Depth Y 965 1170 965 1270

Height without chimney W 925 925 1635 1635

Height with chimney Z 1290 1290 2000 2000

Width U 650 770 650 770

Depth V 535 740 535 740

EXTERNAL

DIMENSIONS mm

Depth Gas R 600 800 600 900

Net weight (Kg.) 210 275 320 430

Electrical power Kw 0.4Kw 0.4Kw0.6Kw 0.6Kw

Hose

section 2x1,5+T

Fuse Int.

General 10ª

Supply

voltage 220-240V

1N 50-60Hz

Differential

Device 30Ma

Kcal/h (Hs) 34,400 39,560 44,720 72,240

BTU (Hs) 136,500 157,000 177,500 286,700

Gas power Kw. (Hi) 40,000 46,000 52,000 84,000

Kg/h (29mb)Butane (G-30) 3,330 3,830 4,330 6,990

Kg./h (37 mb) Propane (G-31) 3,280 3,770 4,265 6,890

m³./h (20 mb) Natural gas (G-20) 4,235 4,870 5,500 8,890

m³./h (25 mb) Natural gas (G-25) 4,555 5,170 5,665 9,840

m³./h (8 mb) City gas (G-110) 000 000 000 000

m³./h (8 mb) City gas (G-130) 000 000 000 000

Nominal

consumption

m³./h (8 mb) City gas (G-150) 000 000 000 000

Hot air 90 90 90 90

Performance % Steam (%) 85 85 85 85

GN 1-110 20 20 40

Max. no. trays GN 2-1-10 -20

Maximumload weight in kg 50 100 100 200

Approximate water consumption (litres/hour) 30 30 30 50

Water inlet pressure Kg/cm 0.5---8

MODEL HCG-6/11 HCG-10/11 HCG-10/21

HCG-2-10/11

HCG-20/11 HCG-20/21

HCG-2-20/11

Width X 900 900 1020 900 1020

Depth Y 965 965 1170 965 1170

Height without chimney W 695 925 925 1635 1635

Height with chimney Z 1060 1290 1290 2000 2000

Width U 650 650 770 650 770

Depth V 535 535 740 535 740

Depth Gas R 720 720 920 720 920

Depth chimney S 380 380 450 380 450

EXTERNAL

DIMENSIONS mm

Width chimney T 370 370 430 370 430

Net weight (Kg.) 135 165 225 275 380

Electrical power Kw 0.40Kw 0.40Kw 0.40Kw 0.60Kw 0.60Kw

Hose Section 2x1.5+T

Fuse Int.

General 10A

Supply voltage 220-240V

1N 50-60Hz

Differential

Device 30mA

Kcal/h (Hs) 12,000 16,340 21,500 26,660 36,120

BTU (Hs) 47,800 64,850 85,300 105,800 143,300

Gas Power Kw. (Hi) 14,000 19,000 25,000 31,000 42,000

Kg/h (29mb)Butane (G-30) 1,165 1,580 2,080 2,580 3,495

Kg./h (37 mb) Propane (G-31) 1,150 1,560 2,050 2,540 3,445

m³./h (20 mb) Natural Gas (G-20) 1,480 2,010 2,645 3,280 4,435

m³./h (25 mb) Natural Gas (G-25) 1,355 1,970 2,050 2,540 4,310

m³./h (8 mb) City Gas (G-110) 000 000 000 000 000

m. ³/h (8 mb) City Gas (G-130) 000 000 000 000 000

Nominal

consumption

m. ³/h (8 mb) City Gas (G-150) 000 000 000 000 000

Hot air 90 90 90 90 90

Performance % Steam (%) -----

GN 1-1610 20 20 40

Max. no. trays GN 2-1--10 -20

Maximum load weight in kg 30 50 100 100 200

Approximate water consumption (litres/hour) 15 15 30 30 35

Water inlet pressure Kg/cm 0.5---8

3 LOCATION

It is recommendable to install the extractor hood to expel fumes to the exterior

(see fig 7)

On the left-hand side, there must be a minimum space of 50 cm between the oven and

the next appliance HVG. (see fig 8)

Likewise, the over must not be affected by the steam or heat from other appliances. The

rear panel must be in place at all times.

fig 7

fig 8

4 INSTALLATION

Before proceeding to install the equipment, make sure that the type of gas set for the

oven coincides with the gas supplied in the distribution network.

4.1 Electrical Connection.

−The mains voltage must be the one indicated on the characteristics plate.

−REMOVE THE LEFT-HAND SIDE PANEL in HVG models.

−EXTRACT CONTROL PANEL in HCG models

−Use a polychloroprene cable or another with the same characteristics (HO5RN-F).

−Place a general switch independent of the appliance in the mains outlet with a

distance between contacts equal to or greater than 3 mm.

−A differential grounding shunt device must be installed.

−The appliance must be connected to ground.

−Access the electrical connections strip and fix the cable to the stuffing box, C (see ).

−When installing a number of appliances in a line, these must be connected together to

ground.

4.2 Water inlet.

−Only connect drinking water to the appliance.

−Make the connection to the water mains at point A (see . ), using the hose supplied.

−The water inlet pressure must be between 0.5 and 8 Kg/cm².

−Install a filter and stop cock at the water inlet.

−For water with a hardness of over 10ºF, a water softening unit is required..

−Conductivity of the water 50-2000µS, lower conductivity optional.

Minimum concentration of chlorides Cl under 150 mg./litres.

N the case of values of over 2000µS or when exceeding the limit value for chloride,

place a hydrogen ion exchanger (see fig 9)

−Redox potential 300 mV, (alternatively chlorine content (CL2) lower than 0,1

mg/litre).

In the case of values of over 300 mV Redox potential, place an activated carbon filter

(observe the filter maintenance intervals)

Sedimentation filter Un (0,08 mm) when the impurities in drinking water are high.
