FabiaTech FX5633 Manual de usuario

FabiaTech Corporation

IPC Solution

Website: http://www.fabiatech.com

Email: support@fabiatech.com

Small Cube System

Fanless Series

FX5633 User’ Manual

AUG 2011

Version: 1.1

Part Number: FX5633

be reproduced in any part or as a whole, transcribed, stored in a retrieval system,

translated into any language, or transcribed in any form or by any means,

electronic, mechanical, and magnetic… or otherwise without the prior written

permission of FabiaTech Corporation.

Disclaimer

FabiaTech makes no representation of warranties with respect to the contents of

this publication. In an effort to continuously improve the product and add features,

FabiaTech reserves the right to revise the publication or change specifications

contained in it from time to time without prior notice of any kind from time to time.

FabiaTech shall not be reliable for technical or editorial errors or omissions, which

may occur in this document. FabiaTech shall not be reliable for any indirect,

special, incidental or consequential damages resulting from the furnishing,

performance, or use of this document.

Trademarks

Trademarks, brand names and products names mentioned in this publication are

used for identification purpose only and are the properties of their respective

owners.

Technical Support

If you have problems or difficulties in using the system or setting up the relevant

devices, and software that are not explained in this manual, please contact our

service engineer for service, or send email to support@fabiatech.com.

Returning Your Board for Service & Technical Support

If your board requires servicing, contact the dealer from whom you purchased the

product for service information. You can help assure efficient servicing of your

product by following these guidelines:

A list of your name, address, telephone, facsimile number, or email address

where you may be reached during the day

Description of you peripheral attachments

Description of your software (operating system, version, application

software, etc.) and BIOS configuration

Description of the symptoms (Extract wording any message)

For updated BIOS, drivers, manuals, or product information, please visit us at

www.fabiatech.com

iii

Table of Contents

FX5633 User’ Manual .............................................................................................................i

Chapter 1 Introducing the FX5633 System ............................................................................... 1

Overview..................................................................................................................................1

Series Comparison Table.......................................................................................................2

Layout.......................................................................................................................................3

Specifications..........................................................................................................................4

Packing List..............................................................................................................................5

Chapter 2 Hardware Installation ............................................................................................... 7

Before Installation...................................................................................................................7

　Removing Covers –Installing Hardware...........................................................8

　LED Indicators (On the Front Panel)...............................................................13

　I/O Peripheral Connectors ..............................................................................14

　Connecting the DC Power and Power Button ............................................16

　Jumper Setting ..................................................................................................17

Chapter 3 BIOS Setup............................................................................................................... 19

Overview................................................................................................................................19

　BIOS Functions...................................................................................................20

Keyboard Convention ..............................................................................................21

Main Setup ............................................................................................................................22

Advanced Setup..................................................................................................................23

　CPU Configuration............................................................................................23

　IDE Configuration..............................................................................................24

　SuperIO Chipset - Configuration WIN627 Super IO Chipset.......................27

　Hardware Health Configuration.....................................................................28

　Advanced ACPI Settings.................................................................................29

　APM Configuration...........................................................................................31

　Power Management/APM..............................................................................31

　USB Configuration.............................................................................................33

PCIPnP Setup.........................................................................................................................35

Boot Setup.............................................................................................................................38

　Boot Setting Configuration..............................................................................39

　Boot Device.......................................................................................................41

　Hard Disk Drives.................................................................................................42

　Removable Drives.............................................................................................42

　CD/DVD Disk Drives..........................................................................................43

Security setup........................................................................................................................44

Chipset Setup........................................................................................................................46

　Northbridge Configuration..............................................................................47

　Southbridge Configuration..............................................................................49

Chapter 4 Software Installation ............................................................................................... 51

System Driver.........................................................................................................................51

WIN 2000/2003/XP/Vista-x64 Driver .........................................................................51

VGA Driver.............................................................................................................................52

WIN 2000/2003/XP/Vista-x64 Driver .........................................................................52

Audio Driver...........................................................................................................................52

WIN 2000/2003/XP/Vista-x64 Driver .........................................................................52

LAN Driver (Intel 82573L)......................................................................................................53

WIN 2000/2003/XP/Vista-x64 Driver .........................................................................53

BIOS Flash Utility.....................................................................................................................53

Watchdog Timer...................................................................................................................54

Watchdog Timer Setting...........................................................................................55

Watchdog Timer Enabled ........................................................................................56

Watchdog Timer Trigger ...........................................................................................56

Watchdog Timer Disabled........................................................................................57

Programming RS-485............................................................................................................58

Send out one character (Transmit).........................................................................59

Send out one block data (Transmit – the data more than two characters) ...59

Receive data..............................................................................................................59

Basic Language Example.........................................................................................59

Chapter 5 Technical Reference .............................................................................................. 61

Trouble Shooting for Post Beep and Error Messages.......................................................61

Technical Reference............................................................................................................64

Physical and Environmental.....................................................................................64

Serial Ports ...................................................................................................................65

Appendix................................................................................................................................... 69

Dimension..............................................................................................................................69

FabIATech Corporation

Chapter1IntroducingtheFX5633System

Overview

The FX5633 is a compact size embedded system with low-power CPU module

inside. This user’s manual provides information on the physical features, installation,

and BIOS setup of the FX5633.

Built to unleash the total potential of the Celeron-M or Core 2 Duo Processor, Able

to support 1.66GHz or 1.86GHz CPU, this system supports two 10/100/1000M Base –

TX LAN ports, 2GB DDR2-RAM, mini PCI socket for wireless LAN, six USB2.0 ports, one

expansion PCI slot and DVI, VGA, TV-out connector.

Each FX5633 has two ports for I/O communications. Two RS-232C ports are

available.

The FX5633 is perfect for ATM machines, KIOSK, point-of-sales/point-of- information,

gaming and infotainment, measurement technology, lotteries, banking and Thin

Client and small Embedded Control. The unit is only 190mm (D) X240mm (W)

X82mm (H).

FabIATech Corporation

SeriesComparisonTable

Model FX5633 FX5633A

Processor Celeron M 440

1.86GHz Core 2 Duo T5500

1.66GHz

N+S-Chipset QG82945GME+NH82801GBM

Memory

200 Pin-DIMM*2(Max.)

DDR2 400/533/667

2GB/4GB

Storage HDD One CF and One ATA or SATA

Watchdog Timer Yes

Multi I/O Two RS-232

USB 2.0 Six USB ports

Audio Ear-Phone/Line-In And MIC-In

RJ45 LAN port Two Intel 82573L 10/100/1000Mbps

Mini-PCI Socket One

PCI Bus Expansion One/+12V& -12V

Operating Temperature

0~+50℃(32~122℉)

Storage Temperature

-20~+60℃(4~140℉)

Dimensions (Unit: mm)

190(D) x 240(W) X 82(H)

FabIATech Corporation

Layout

POWER

SWITCH

RESET

HDD

LIGHT

POWER

LIGHT

LAN1 LIGHT

LAN2 LIGHT

USB USB

MIC

LINE IN LINE OUT

ANTENNA DC IN

12V~24VDC IN

12V~24V

TV DVI

LAN2 LAN1

USBUSB

COM2

COM1

CRT

KB/MOUSE

PCI SLOT

TV /

ANTENNA 1

DC12~24V

FabIATech Corporation

Specifications

Processor Board –

Intel Low Power C-M1.86 GHz/Core2 Duo 1.66GHz CPU with 2GB DDR2-RAM.

I/O Outlets –

Two 10/100/1000 base-TX Ethernet LAN ports.

Six USB ports (2.0) and two RS-232 serial ports.

One DVI, one CRT and one TV-Out connectors.

One PS/2 compatible keyboard/mouse port.

Three audio connectors for Earphone, Line-In and Microphone-in.

One Mini PCI Socket especially for WLAN modules with Antenna fix hole.

One free PCI slot for add-on PCI card (PCI- 2.1 Specification).

One Push button reset switch.

One DC-In jack connector/terminal block with power push button switches.

LED Indicator –

One power LED, One hard disk/CF access LED, and two LAN-Access LEDs.

Storage Bay-

Compact Flash socket for Compact Flash modules or MicroDrives.

One 2.5" PATA or SATA hard disk space

Power requirement –

FX5633: +12 ~ +24V DC, 4.37A maximum (2.63A typical) with 19V input

voltage.

FX5633A: +12 ~ +24V DC, 4.56A maximum (2.75A typical) with 19V input

voltage.

Dimensions -

190mm (D) x 240mm (W) x 82mm (H)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Panel táctil de FabiaTech

FabiaTech

FabiaTech FP8100 Series Manual de usuario

FabiaTech

FabiaTech FP8080 Series Manual de usuario

FabiaTech

FabiaTech FP8150 Series Manual de usuario

FabiaTech

FabiaTech FP8151 Series Manual de usuario

FabiaTech

FabiaTech FP8152T Series Manual de usuario

FabiaTech

FabiaTech Fanless Series Manual de usuario

FabiaTech

FabiaTech FP8081 Series Manual de usuario

FabiaTech

FabiaTech FP8082 Series Manual de usuario

FabiaTech

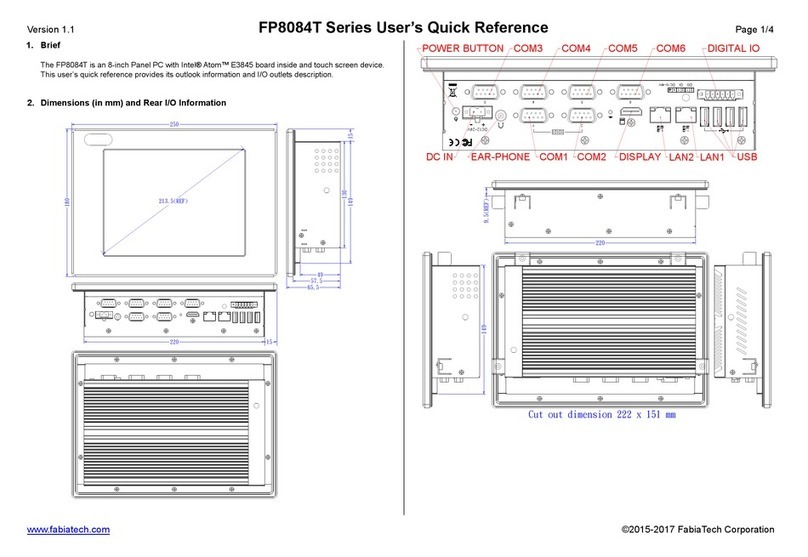

FabiaTech FP8084T Series Manual de usuario
