Faber STILO DX/SP A90 Manual de usuario

Instruction

Manual

Руководство по эксплуатации

INDEX

RECOMMENDATIONS AND SUGGESTIONS ..................................................................................................................... 3

CHARACTERISTICS ............................................................................................................................................................. 6

INSTALLATION ...................................................................................................................................................................... 8

USE ...................................................................................................................................................................................... 11

MAINTENANCE ................................................................................................................................................................... 12

КАЗАТЕЛЬ

СОВЕТЫ И РЕКО ЕНДАЦИИ .......................................................................................................................................... 14

ХАРАКТЕРИСТИКИ ............................................................................................................................................................ 17

УСТАНОВКА ........................................................................................................................................................................ 19

ЭКСПЛУАТАЦИЯ ................................................................................................................................................................ 22

УХОД .................................................................................................................................................................................... 23

RECOMMENDATIONS AND SUGGESTIONS

The Instructions for Use apply to several versions of this appliance.

Accordingly, you may find descriptions of individual features that do not

apply to your specific appliance.

INSTALLATION

•

The manufacturer will not be held liable for any damages resulting from

incorrect or improper installation.

• The minimum safety distance between the cooker top

and the extractor hood is 650 mm (some models can

be installed at a lower height, please refer to the

paragraphs on working dimensions and installation).

• Check that the mains voltage corresponds to that

indicated on the rating plate fixed to the inside of the

hood.

• For Class I appliances, check that the domestic

power supply guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum

diameter 120 mm. The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combustion

fumes (boilers, fireplaces, etc.).

• If the extractor is used in conjunction with non-

electrical appliances (e.g. gas burning

appliances), a sufficient degree of aeration must

be guaranteed in the room in order to prevent the

backflow of exhaust gas. The kitchen must have

an opening communicating directly with the open

air in order to guarantee the entry of clean air.

When the cooker hood is used in conjunction with

appliances supplied with energy other than electric, the negative pressure in

the room must not exceed 0,04 mbar to prevent fumes being drawn back

into the room by the cooker hood.

• In the event of damage to the power cable, it must be replaced by the

manufacturer or by the technical service department, in order to prevent any

risks.

2°

• If the instructions for installation for the gas hob specify a greater distance

specified above, this has to be taken into account. Regulations concerning

the discharge of air have to be fulfilled.

• Use only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in accordance with

these instructions may result in electrical hazards.

• Connect the hood to the mains through a two-pole switch having a contact

gap of at least 3 mm.

USE

•

The extractor hood has been designed exclusively for domestic use to

eliminate kitchen smells.

• Never use the hood for purposes other than for which it has been designed.

• Never leave high naked flames under the hood when it is in operation.

• Adjust the flame intensity to direct it onto the bottom of the pan only, making

sure that it does not engulf the sides.

• Deep fat fryers must be continuously monitored

during use: overheated oil can burst into flames.

• Do not flambè under the range hood; risk of fire.

• This appliance can be used by children aged from

8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards

involved. Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervision.

• “CAUTION: Accessible parts may become hot when used with cooking

appliances.”

MAINTENANCE

•

Switch off or unplug the appliance from the mains supply before carrying out

any maintenance work.

• Clean and/or replace the Filters after the specified time period (Fire hazard).

• The Grease filters must be cleaned every 2 months of operation, or more

frequently for particularly heavy usage, and can be washed in a dishwasher.

• The Activated charcoal filter is not washable and cannot be regenerated,

and must be replaced approximately every 4 months of operation, or more

frequently for particularly heavy usage.

• Clean the hood using a damp cloth and a neutral liquid detergent.

The symbol on the product or on its packaging indicates that this product

may not be treated as household waste. Instead it shall be handed over to the

applicable collection point for the recycling of electrical and electronic

equipment. By ensuring this product is disposed of correctly, you will help

prevent potential negative consequences for the environment and human

health, which could otherwise be caused by inappropriate waste handling of

this product. For more detailed information about recycling of this product,

please contact your local city office, your household waste disposal service or

the shop where you purchased the product.

CHARACTERISTICS

Components

Ref. Q.ty Product Components

1 1 Hood Body complete with: Controls, Light, Blower,

Filters

2 1 Telescopic Chimney comprising:

2.1 1 Upper Section

2.2 1 Lower Section

8 1 Directional Air outlet Grille ø 125 mm

9 1 Reducer Flange ø 150-120 mm

Ref. Q.ty Installation Components

7.2.1 2 Upper Chimney Section Fixing Bracket

11 7 Wall Plugs

12a 7 Screws 4,2 x 44,4

12c 6 Screws 2,9 x 6,5

12e 2 Screws 2,9 x 9,5

13 1 Washer

Q.ty Documentation

1 Instruction Manual

2.1

2.2

12c

12a 7.2.1 11

12a

12e

12a

Dimensions

min. 730 max. 1000

Min.

500mm

Min.

650mm

Min.

500mm

Min.

650mm

INSTALLATION

Wall drilling and bracket fixing

• Draw a vertical line on the wall on the right or on the left side depending on the hood model,

at 200 mm (90 cm hood version) or at 350 mm (120 mm hood version) taking as a reference

point the centre of the hob. Start the line from the ceiling or from other upper limit and

finish it at the 650 mm distance from the hob. This line is needed when aligning the

brackets.

• Place the 7.2.1 bracket, as indicated, at 1-2 mm from the ceiling or from other upper limit

aligning its central point on the vertical reference line.

• Draw the central points of the bracket holes.

• Place the 7.2.1 bracket, as indicated, at X mm under the first bracket (X= upper chimney

height) aligning its central point on the vertical reference line.

• Draw the central points of the bracket holes.

• Draw the reference point, as indicated, at 116 mm from the vertical reference point and at

970 mm above the hob.

• Repeat the same procedure on the opposite side.

• Draw the reference point, as indicated, at Z mm (Z= see the table) from the vertical

reference point and at 690 mm above the hob.

• Drill ø 8 mm the marked points.

• Insert the 11 plugs into the holes.

• Fix the brackets using the 12a screws (4,2 x 44,4 ) supplied with the hood.

• Screw the 2 12a screws (4,2 x 44,4), supplied with the hood, in the hood body fixing holes.

It is necessary to leave a 5-6 mm gap between the wall and the screw head.

Cappa Y Z

90 cm 200 565

120 cm 350 830

7.2.1

970

X1÷2

116

650 min.

116

12a

690

Hood body installation

• Before hooking the hood body it is necessary to tighten 2 Vr

screws placed in the fixing points of the body.

• Hook the hood body on the 12a screws.

• Tighten completely 12a support screws.

• The correct hood body position can be levelled with Vr screws.

• Fix the hood definitively by tightening the 12a screw together

with the 13 washer in the security hole.

12a

Connections

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the

chimney using either a flexible or rigid pipe ø 150 or 120 mm,

the choice of which is left to the installer.

• To install a ø 120 mm air exhaust connection, insert the

reducer flange 9on the hood body outlet.

• Fix the pipe in position using sufficient pipe clamps (not

supplied).

• Remove possible charcoal filters.

ø 120ø 150

RECIRCULATION VERSIO

N AIR OUTLET

• Cut a hole ø 125 mm in any shelf that may be positioned over

the hood.

• Insert the reducer flange 9on the hood body outlet.

• Connect the flange to the outlet on the shelf over the hood by

using a flexible or rigid pipe ø120 mm.

• Fix the pipe in position using sufficient pipe clamps (not

supplied).

• Fix the air outlet grid 8on the recirculation air outlet by using

the 2 screws 12e (2,9 x 9,5) provided.

• Ensure that the activated charcoal filters have been inserted.

ø 125

12e

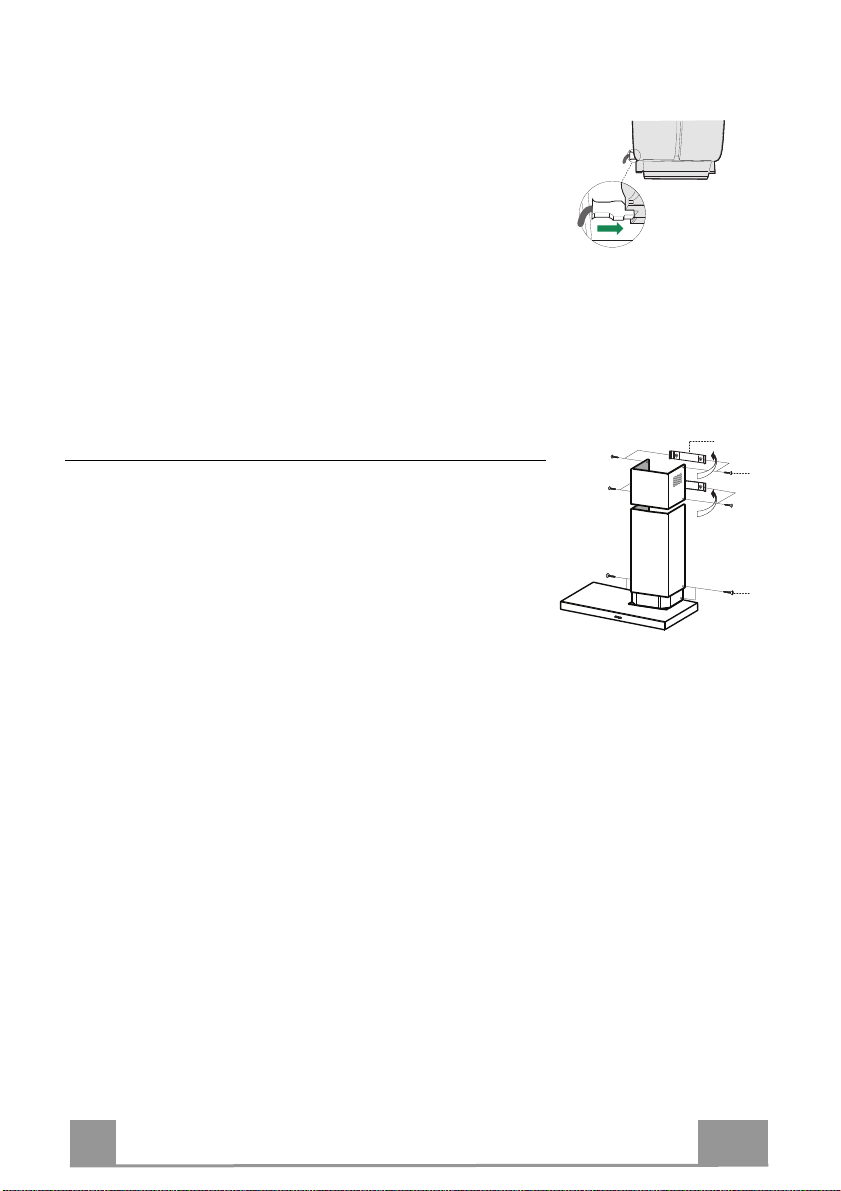

ELECTRICAL CONNECTION

• Connect the hood to the mains through a two-pole switch

having a contact gap of at least 3 mm.

• Remove the grease filters (see paragraph Maintenance) being

sure that the connector of the feeding cable is correctly inserted

in the socket placed on the side of the fan.

Chimney assembly

Upper exhaust Chimney

• Slightly widen the two sides of the upper chimney and hook

them behind the brackets 7.2.1, making sure that they are well

seated.

• Secure the sides to the brackets using the 4 screws 12c (2,9 x

9,5) supplied.

Lower exhaust Chimney

• Slightly widen the two sides of the chimney and hook them

between the upper chimney and the wall, making sure that they

are well seated.

• Fix the lower part laterally to the hood body using the 2 screws

12c (2,9 x 9,5) supplied.

2.1

2.2

7.2.1

12c
