Ezquest B40160 Guía de solución de problemas

Installation Guide & Users Manual

EZQuest, Inc. | 1051 N. Shepard Street | Anaheim, CA 92806 USA

Installation Guide & Users Manual

EZQuest, Inc. | 1051 N. Shepard Street | Anaheim, CA 92806 USA

Preface

EZQuest, Inc.

Under copyright laws, this manual may not be copied, in whole or in part, without the written consent of

EZQuest.

Every effort has been made to ensure that the information in this manual is accurate. EZQuest is not

responsible for printing or clerical errors.

EZQuest, Inc.

23311 E. La Palma Ave.

Yorba Linda, CA 92887 USA

714-694-0031

http://www.ezq.com

Limited Warranty

3-Year Manufacturer Warranty

Year Parts & Labor

90 Days Advanced Parts Replacement

Installation Guide & Users Manual

EZQuest, Inc. | 1051 N. Shepard Street | Anaheim, CA 92806 USA

Table of Contents

Chapter 1 Welcome to the Pro Studio Series Multilane

1.1 Overview

1.2 Package Included

Chapter 2 Getting Started with Pro Studio Series Multilane

2.1 Before starting

2.2 Supported Operating Systems

2.3 Configuration Diagram

Chapter 3 Feature Overview

3.1 Pro Studio-4 Front Panel and Rear View

Chapter 4 System Installation

4.1 Hardware Installation Procedures

4.1.2 Connect cables

4.2 Using under Windows XP

4.3 Using under Max OS X

Appendix

A. Certification list

Chapter 1: ProStudio Series Multilane

EZQuest, Inc. | 1051 N. Shepard Street | Anaheim, CA 92806 USA

Welcome to the Pro Studio Series Multilane

1.1 Overview

EZQuest introduces the elegant Pro Studio Series Multilane, a host card (HBA) dependent, desktop storage system

product line, developed for high resolution audio & video professionals that demand speed & reliability.

Supporting both SAS(Serial Attached SCSI) or SATA I/II hard disks, the Pro Studio Series Multilane features a new

generation multi-lane (MI) host connectivity. Constructed with aluminum material and hot-swappable cooling fan,

the Pro Studio Series is the coolest storage system on the market with a host of hot-swap components, empower-

ing you with capabilities normally found in enterprise-class SCSI systems.

1.2 Package Included

The following components are included:

1 pcs 4/8(for 8 Bay)x3.5'' SAS/SATA-II HDDs InfiniBand Desktop Disk Array Enclosure

4 pcs 8(for 8 Bay) Hot-Swap Removable HDD(Installed)

1 pcs Hot-Swap Fan Module (Installed)

1 80 Watt Power Supply (Installed)

1 Multilane PCI-E Card

Double-Box Protection

Heavy Duty Foam Protection

User Manual

Accessory Box:

4/8(for 8 Bay) Individual Keys for 4x HDD Drive Locks

1(2 for 8 Bay) Infiniband Cable (MultiLane 4 SATA in 1)

1 Standard Power Cord

1 EZQuest Utility CD

Chapter 2: Getting Started w Pro Studio

EZQuest, Inc. | 1051 N. Shepard Street | Anaheim, CA 92806 USA

2.1 Before starting

Before starting, prepare as follows.

Review the“Certification list” in Appendix A to confirm that the hardware is fully supported.

SATA Hard Drive

Multilane Host Adapter.

External Multi-Lane Cable.

2.2 Supported Operating

System Windows 95, 98/98SE, NT, 2000, Millennium, XP, 2003

Mac 9.1 and above, including OSX, OSX Server, XSERVE

Before starting any type of hardware installation, please ensure that all power

switches have been turned off and all power cords have been disconnected to

prevent personal injury and damage to the hardware.

To avoid overheating, Pro Studio Series Multilane should be operated in a well-

ventilated area and in such a way that sufficient airflow is maintained across the

controller chips.

Static electricity can damage components.To guard against such damage:

1.Work in a static-free environment

2.Wear a grounded anti-static wrist strap

3. Store uninstalled components in anti-static bags

Environmental requirements:

Temperature: 10°C to 35°C (50°F to 95°F)

Humidity: 5% to 95%, non-condensing

Chapter 2: 2.3 Configuration Diagram

EZQuest, Inc. | 1051 N. Shepard Street | Anaheim, CA 92806 USA

One Port w/One Cable for 4 Drives

Compatible with both SATA and SAS Drives

Two Ports w/Two Cables for 4 Drives on 2xSATA ML Adapters

Compatible with both SATA and SAS Drives

Chapter 3: Feature Overview

EZQuest, Inc. | 1051 N. Shepard Street | Anaheim, CA 92806 USA

3.1 Pro Studio Series 4-Bay Multi-lane

3.2 Pro Studio Series 8-Bay Multi-lane

Front View Rear View

Chapter 4: System Installation

EZQuest, Inc. | 1051 N. Shepard Street | Anaheim, CA 92806 USA

4.1 Hardware Installation Procedure

Steps to Install The PCI-E Adapter

Power down your MAC/PC and switch it off at the wall. Remove the screws holding the sides of the case on and

carefully slide off both panels.

Step 1

Wearing an anti-static wristband is preferable whenever working with sensitive electrical equipment. Keeping one

hand on a metal part of the case will have the same effect, though you may need both hands when installing

certain items of hardware.

If you are replacing an old card, you will need to remove it by loosening the screw holding the backing plate to the

case and carefully sliding the card out of the slot.You may also have to undo a clip depending on the design of your

motherboard. DO NOT FORCE THESE CLIPS

Alternatively, you may need to remove the backing plate in front of the PCI-E slot If this is a new slot you are using.

Simply remove the screw and slide the backing plate out of the case.

Step 2

Remove the new card from its anti-static bag and line the card up with the slot. PCI-E slots are longer and tend to

be black. Push down on the card until it sits firmly within its slot being careful not to force the card into the slot.

Secure the backing plate by screwing it firmly to the case. Check that the card cannot move and that the card is

clear of obstructions such as floating cables.

Step 3

Replace the sides of your case and reconnect the cable to your machine.

Boot up your MAC/PC and make sure that the POST and OS X/Windows splash screens are displayed. This indicates

that your card is installed and functioning correctly.

Chapter 4: System Installation

EZQuest, Inc. | 1051 N. Shepard Street | Anaheim, CA 92806 USA

4.1.2 Connect Cables

Please see Figure 3.1.2 and Figure 3.2.2 as reference for cable connections.

Connect power cords. (Both power cords need to be installed for redundant power supplies)

Connect External Multi-Lane cable to the host server.

4.2 Formatting and Partitioning the Pro Studio Series Multilane

Before the Pro Studio array can be fully utilized, it needs to be formatted. During this process, the array can also be

customized with partition. As you format the drive, you will have the opportunity to divide the hard drive into sections,

called partitions. A partition is a section of the hard drive’s capacity that is created to contain file and data.

4.2.1 Windows Users

After having followed the steps to install the Hard Drives, create an array by Multi-lane Host Bus Adapter and connect

the interface cable to the host computer, your Pro Studio must now be formatted and partitioned before it can be used.

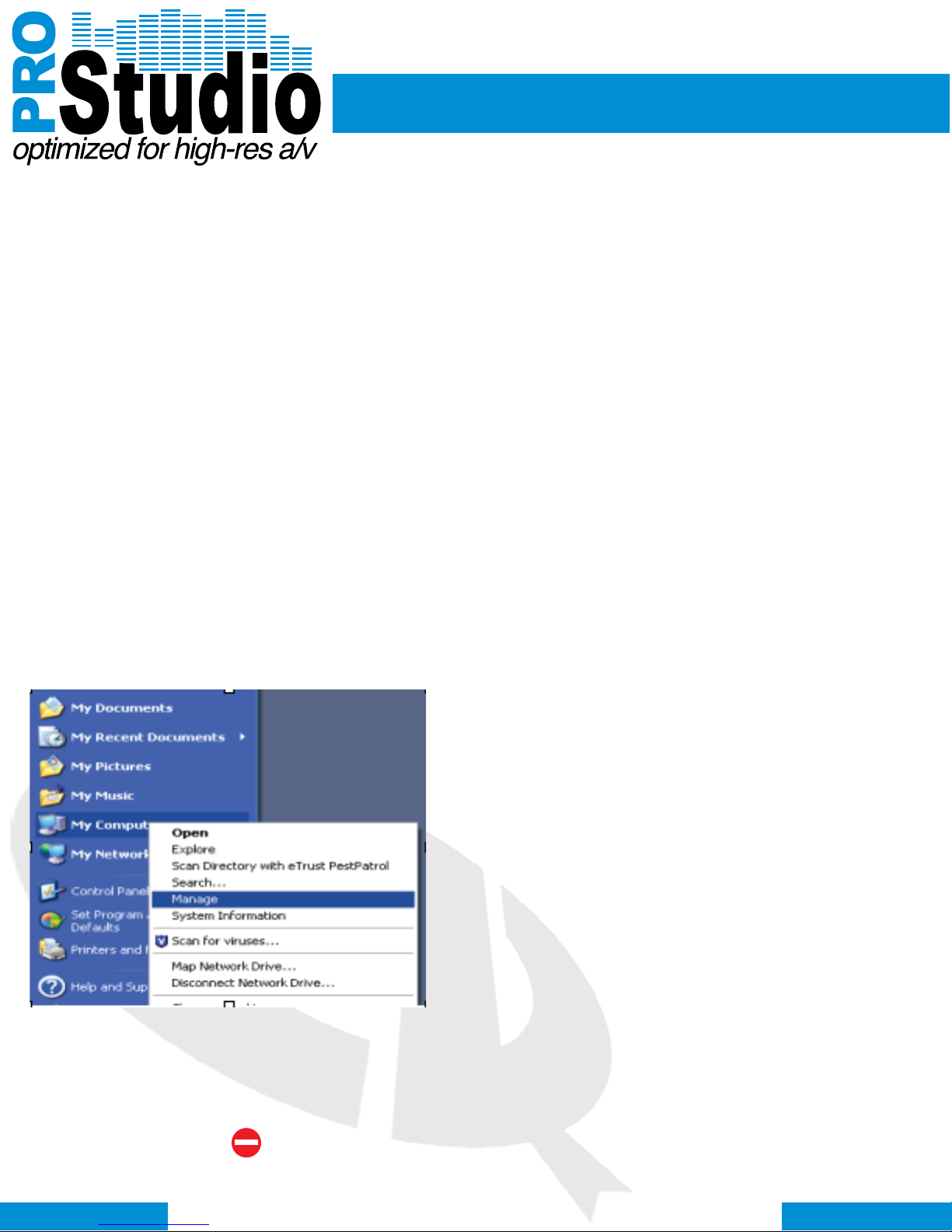

1. Right click My Computer and click Manage.

2. From the Computer Management window, select Disk Management.

3. If the Initialize and Convert Disk Wizard window appears, click Cancel.

4.Windows operation system will list all the hard drives that are installed on the system. Locate the Pro Studio drives

that are represented by the icon. Right click the icon and select Initialize.

Chapter 4: System Installation

EZQuest, Inc. | 1051 N. Shepard Street | Anaheim, CA 92806 USA

5. In the drive box to the right shows Unallocated, right click and select New Partition. (Figure 4.2.1.C)

6.The New Partition Wizard dialog box will appear, click Next to continue. (Figure 4.2.1.D)

7. After selecting partition type, specifying partition size and assigning drive letter, the Format Partition dialog

box (Figure 3.5.1.E) will appear, you have the option of selecting the Quick Format option.This allow mach fast

formatting, however, this disallow Disk Management to check the drive sector for errors. Click Next to start the

format process.
