EZ-Net ASTRA 2 at 28.2 E Manual de usuario

USER MANUAL

For ASTRA 2 at 28.2°E

(GILAT SkyEdge IIc Modem)

About EZ-Net

Congratulations on your new purchase and welcome to the world of EZ-Net

Satellite Internet, EZ-Net is the simplest touring satellite internet system to set up

and operate.

This guide will take you through the simple process required to get you online

as soon as possible.

The EZ-Net Satellite Internet Kit includes everything you need to get high speed broadband

internet on the move. Each kit includes the EZ-Net diamond dish, LNB, sturdy lightweight tripod

with ground fixings, a EZ-Net elevation and alignment kit, all the necessary leads and

connections as well as a satellite modem and WiFi router.

The product can easily be transported and stowed away in the supplied carry bag

and is quite possibly the lightest most portable product currently available on the

market,

Please note that it is important to retain your receipt or proof of purchase so that we are

able to assist and deal with any enquiries you may have.

EZ-Net is a product and brand name of Falcon Technical Ltd using our patented smart

satellite finding technology

For more information on EZ-Net and our products please visit our website:

www.ez-net.co.uk

Get in touch

EZ-Net c/o Falcon Technical Limited

Hill Farm, Northwich Road,

Dutton, Cheshire, WA4 4LE, UK

UK Enquiries: 01928 759 239

International: +44 (0) 1928 759 239

Email: contact@ez-net.co.uk

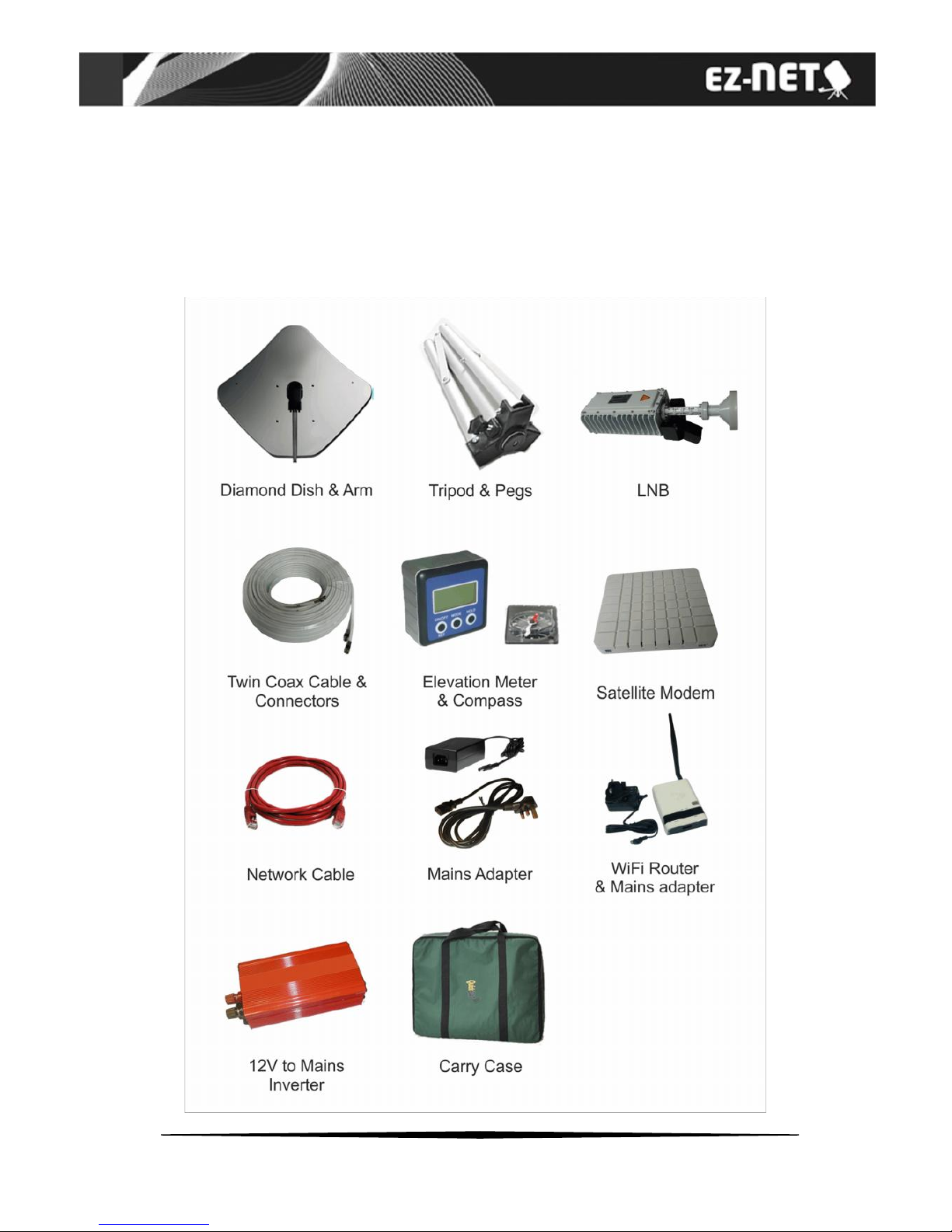

Package Contents:

Thanks for purchasing EZ-Net, the easy to use satellite internet system.

With your purchase you will find the following contents:

Getting Started:

Dish Setup

When setting up the tripod, take into account the orientation of the dish, it should be pointing in a

southeasterly direction and the dish must have a clear view towards the satellite (without any buildings, trees

etc. that may hinder the signal).

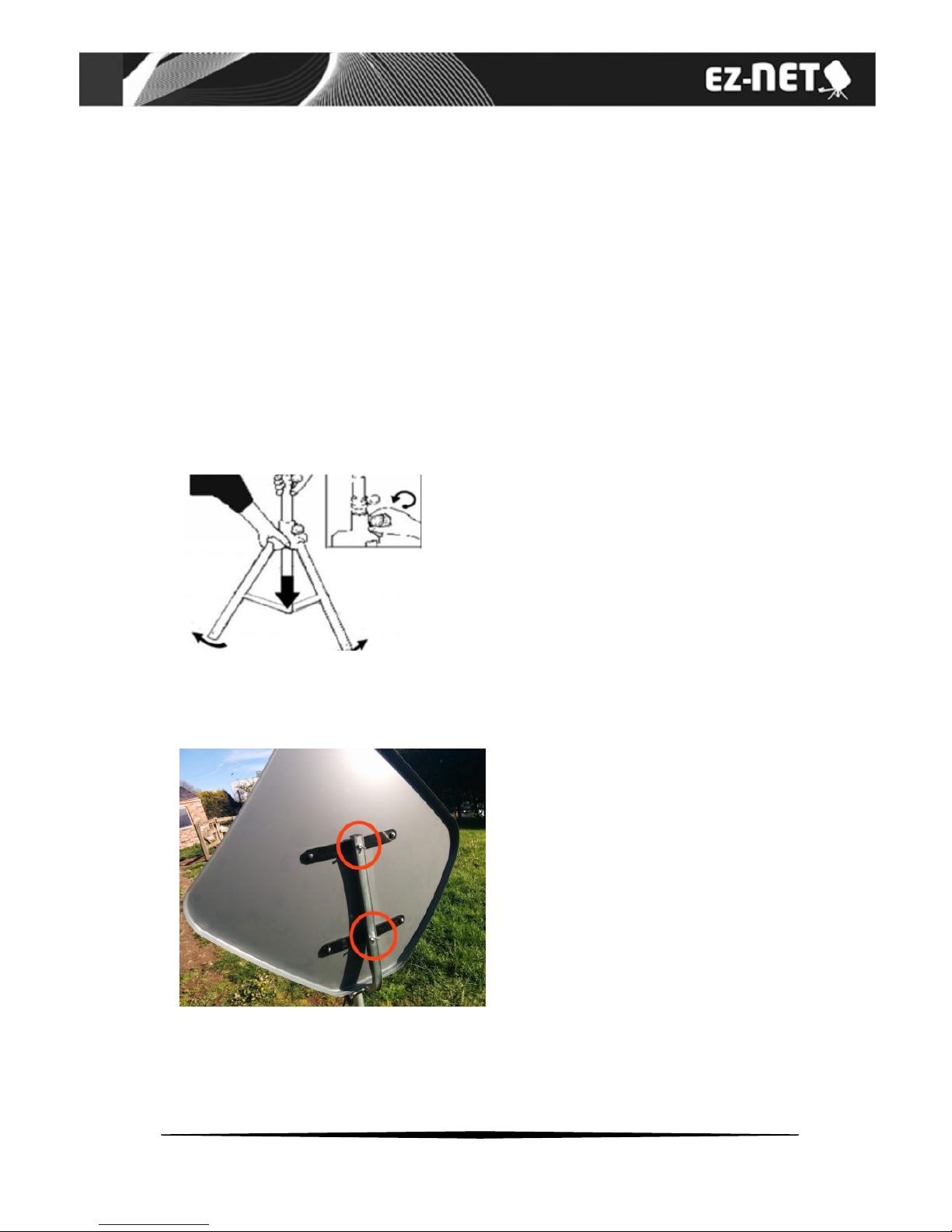

1) Loosen the fixing clamp on the tripod stand and push the legs downwards.

2) Extend the feet of the tripod stand as far as they will go for maximum stability and tighten the fixing

clamp.

3) Ideally the tripod should be placed on reasonably level ground so that the tripod is vertical, use the

ground anchor pegs to secure the tripod.

4) Attach the LNB arm to the dish using the two nuts on the rear of the dish.

5) Mount the dish on the tripod and use the compass to align one of the tripod legs so that it is in the azimuth

direction indicated by the dish pointing table included with the kit.

6) Rotate the dish so the LNB arm is pointing in the same direction and then tighten the thumbscrew.

7) Once the dish is secured on the tripod it should look like the image (FIG 3) Do not overtighten the

thumbscrew at this point as rotation will be required for the final step in tuning

Mounting the LNB

Mount the LNB on the end of the arm and insert the bolt through the bracket to secure it.

Do not connect any leads until your satellite dish is firmly on the tripod

Once assembled the dish should look like this:

Connecting the LNB

The twin coax cable is supplied with waterproof connectors on one end and standard connectors on the other

end. Make sure the waterproof connectors are used at the dish end.

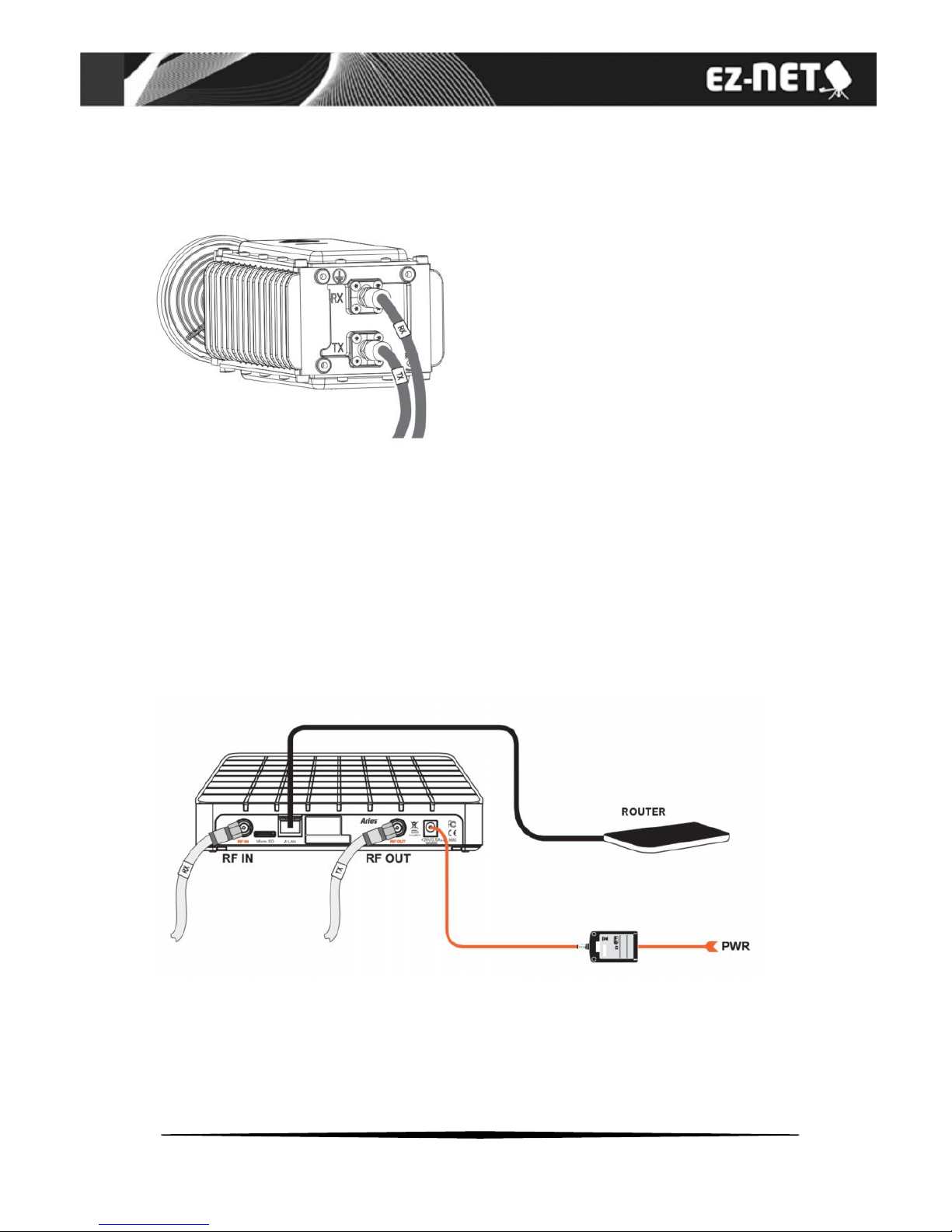

Connect the coax cable marked with the TX band to the socket marked TX on the LNB and connect the coax

cable marked with the RX band to the socket marked RX on the LNB.

Connecting the Modem

The modem and WiFi router must be installed inside in a dry location.

At the modem end connect the coax cable marked with the TX band to the socket marked RF OUT on the

modem.

Connect the coax cable marked with the RX band to the socket marked RF IN on the modem.

Connecting the WiFi Router to the modem

Attach the antenna to the WiFi router and connect the network cable from the LAN socket on the modem to

the socket on the WiFi router that is next to the antenna:

Connecting the power

Now connect the 240V mains power adapter to the modem.

Connect the 240V mains adapter to the WiFi Router.

If using 12 Volt power plug the mains adapters into the mains inverter, connect the inverter input to your 12

Volt source observing the correct polarity and switch the inverter on.

Setting the Elevation

Attach the magnetic base of the elevation meter to the black wedge on

the arm of the dish and switch the meter on.

Use the dish pointing table included with the kit to look up the elevation

angle that applies to your location, or to the city closest to your location.

Pull the dish adjustment handle outwards to allow the elevation of the

dish to be changed, with the dish face starting at vertical slowly tilt the

top of dish back until the correct elevation reads on the elevation meter

as shown on the right. Release the dish adjustment handle so that it locks the dish in position.

Now it is time to move on to the fine positioning of the dish.

Connecting to the modem web interface

To proceed you need to access the web interface of the modem.

To do this you can connect a computer to the spare RJ45 network socket on the router or use WiFi.

Make sure the modem is turned on and properly connected to the WiFi router and that the router and power

lights on both are on.

To use WiFi search for available WiFi networks and look for one named EZ-NET and connect to this network.

There is no password by default.

Once connected to the WiFi start your internet browser (Internet Explorer, Chrome, Mozilla Firefox, Opera,

Safari etc.) on your computer.

Type http://sky.manage into the address bar of the browser and press Enter.

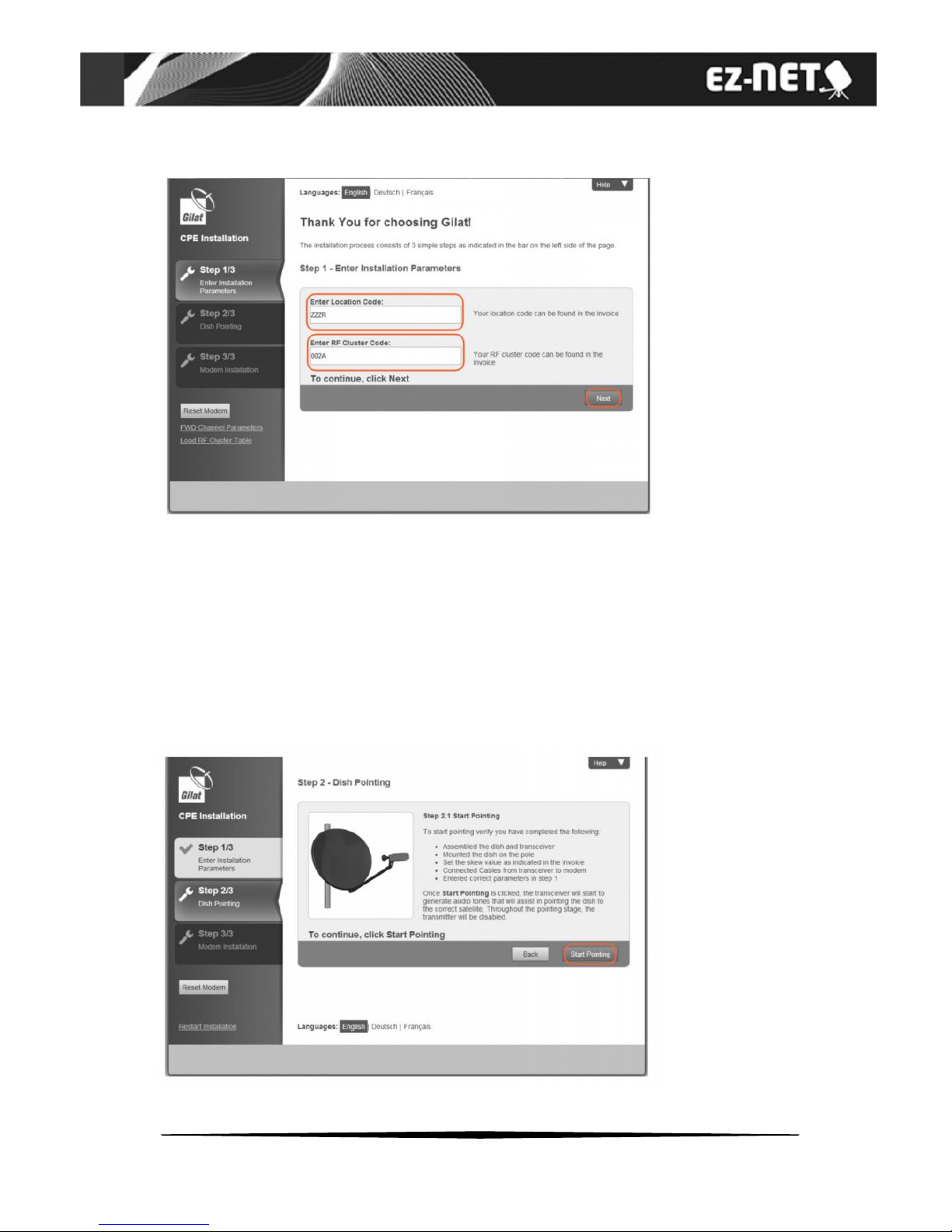

If this is the first time setting the system up the installation page automatically opens

If you are setting the dish up again after having moved location click “Reinstall CPE” at the bottom left to

restart the complete installation procedure.

Enter your location code and RF cluster code (these can be found on your invoice) and click Next.

Pointing the dish

Click Start Pointing to start the pointing procedure and proceed to the next section.
