IMPORTANT:

Go to www.extron.com for the

product specifications.

NAV E 511 • Setup Guide

CLASS 1 LASER PRODUCT, see NAV E 511 User Guide at www.extron.com.

WARNING: The NAV E 511 outputs continuous invisible light (Class 1 rated), which may be harmful to the eyes; use with caution.

• Do not look into the ber optic cable connectors or into the ber optic cables themselves.

• Plug the attached dust caps into the optical transceivers when the ber cable is unplugged.

AVERTISSEMENT : Le NAV E 511 émettent une lumière invisible en continu (équipement de classe 1) qui peut être dangereuse pour

les yeux ; à utiliser avec précaution.

• Ne pas xer directement les connecteurs optiques ou les câbles bre optique.

• Associez les bouchons anti-poussière à l’ensemble émetteur/récepteur optique lorsque le câble bre optique est débranché.

This guide provides instructions for an experienced installer to install the Extron NAV E 511 streaming encoder and to make all

connections. The Extron NAV encoder and one or more compatible decoders form an AV distribution and switching matrix on a managed

1G (1 Gbps) IP network.

NOTE:For more information on any subject in this guide, see the NAV E 511 User Guide, available at www.extron.com.

Installation

Step 1 — Mounting

Turn off or disconnect all equipment power sources and rack or furniture mount the encoder as required.

Step 2 — Rear Panel Connections

NAV 1G EXT

HDMI LOOP THRU

POWER

12V

2.0 A MAX L CONT

CTTx Rx GSG

5V/500 mA

RS-232 IRR

AUDIO

LANUSB 2.0CONTROLINPUT NAV E 511

RESET

CCCAAABBBDDDJJJEEEIIIGGGFFFHHH

Figure 1. NAV E 511 Rear Panel Features

AHDMI input port — Connect an HDMI cable between this port and the HDMI output port (or DVI port, with an appropriate adapter) of

the digital video source.

BHDMI Loop Thru port — Connect a display to this port for local loop-through monitoring of the source signal.

NOTE: See LockIt®Lacing Brackets on page 6 to securely fasten the HDMI connectors to the encoder for Aand B.

CAudio input port — Connect balanced or unbalanced stereo audio input to this 5-pole, 3.5 mm captive screw connector (see Analog

audio input on page 6 to wire the connector).

DControl Contact Closure port — Connect an Extron Show Me®cable to this port to allow the encoder to select itself as the input to

the decoder, using the control system.

EControl RS-232/IR port — Connect a serial RS-232 signal, a modulated IR signal, or both to this 3.5 mm, 5-pole captive screw

connector for bidirectional RS-232 and unidirectional IR communication with connected remote controlled devices using an Extron

control system (see Control connector on page 6 to wire the connector).

FUSB 2.0 port — Connect a USB Type-C cable from a USB host or a USB device. See LockIt®Lacing Brackets on page 6 to securely

fasten the USB connector to the encoder.

NOTE: This connector is limited to supplying 500 mA in USB device mode.

IMPORTANT:

Go to www.extron.com for the complete

user guide, installation instructions, and

specifications before connecting the

product to the power source.

GNAV 1G port (see figure 1 on page 1) — Use a pair of fiber cables to connect to a LAN on which one or more decoders also reside for

streaming and control.

NOTE: Ensure that you use the proper ber cable for your encoder. Typically, singlemode ber has a yellow jacket and multimode

cable has an orange or aqua jacket.

HExtension port — If desired, connect another networked device to this port. The port acts as a networked 1G switch to the NAV 1G

port (see EXT connector on page 6 to wire the connector).

IReset button and LED — This button initiates three modes of reset (see the NAV E 511 User Guide, available at www.extron.com,

for details).

JPower connector — Plug the included external 12 VDC power supply into this 2-pole connector (see Power connector on page 6 to

wire the connector).

Step 3 — Front Panel Configuration Port Connection

NAV E 511

INPUTS

HDCP

HDMI

CONFIG

USB

STREAM

ACTIVE

HOST -LNK-

-ACT-

NAVEXT

ANALOG

AUDIO

HDMI AUDIO

NAV LAN IDUSB

EEECCC

AAABBBDDDFFFGGG

Figure 2.NAV E 511 Front Panel Features

AConfiguration port — Connect a PC to the encoder via this front panel USB mini-B connector for configuration of the unit. The

port uses IP over USB technology; the IP address is always 203.0.113.22 and CANNOT be changed. The CONFIG port is also

discoverable via Toolbelt (see the NAV E 511 User Guide). The guide and Toolbelt are available for download at www.extron.com).

Indicators

BPower LED — Indicates power and startup status.

• Blinking — The unit is receiving power and is booting up.

• Lit steadily — The unit is receiving power and is operational.

CInput LEDs — Indicate status of the signal inputs.

• HDMI — The encoder is detecting an HDMI input.

• HDCP — The HDMI signal is HDCP encrypted.

• HDMI Audio — The embedded HDMI audio input is selected.

• Analog Audio — The analog audio input is selected.

DNAV LEDs — Indicate the output status of the AV and USB streams, as follows:

• Stream

• Lit steadily – The encoder is actively streaming a NAV output consisting of video, audio, or both.

• Blinking – The encoder is actively streaming a NAV output, but network errors are present.

• Unlit - The encoder is not actively streaming a NAV output consisting of video, audio, or both.

• USB

• Lit steadily – The encoder is actively sending and receiving a NAV USB stream.

• Blinking – The encoder is unable to establish a NAV USB stream.

• Unlit — The encoder is not actively sending and receiving a NAV USB stream.

NAV E 511 • Setup Guide (Continued)

EUSB LEDS (see figure 2 on page 2 — Indicate the status of the USB stream, as follows:

• Host

•Lit steadily – The encoder is in USB host mode, the default condition.

• Unlit – The encoder is in USB device mode.

• Active

•Lit steadily – A host or USB device is connected to the rear panel USB port.

• Unlit – No host or USB device is connected to the rear panel USB port.

• Blinking – A USB device or hub is connected to the encoder and is drawing more power than the USB port can supply.

FLAN LEDs — Indicate status of the network connection.

• NAV LED —

• Link LED — Lit steadily indicates that a network link is established at 1G.

• Act LED — Blinking indicates network traffic. The blink rate corresponds to activity.

• Ext LED —

• Link LED — Lit steadily indicates that a network link is established at 1G. Blinking indicates a link speed less than 1Gbps.

• Act LED — Blinking indicates network traffic. The blink rate corresponds to activity.

GID button and LED — The recessed ID button identifies the encoder to the NAVigator and decoder when pressed. The LED blinks

when the encoder is in pairing mode (see Pairing devices via front panel on page 5 for details).

Operation

Power

When power is applied, the encoder runs a series of self-tests that blink the front panel Power LED and all other indicators. The encoder

then boots the NAV operating system. It can take approximately 45 seconds for self-test and system startup to complete. When the

process is complete, the Power LED lights steadily.

NOTE: The encoder is NOT operational until the boot process is complete (the Power LED is lit steadily).

System Operation

The encoder can be congured and controlled using embedded web pages or Extron Toolbelt (see the NAV E 511 User Guide available at

www.extron.com and the Toolbelt Help ﬁle).

NOTE: The Connection via web pages (see page 4), Connection settings, and Pairing devices via front panel procedures (see

page 5) may NOT be necessary if your system includes a NAVigator System Manager.

Connection via web pages

Connection to the encoder and its embedded web pages can be made via either the front panel Conguration (USB) port (using IP over

USB technology) (see ﬁgure 2, Aon page 2) or the rear panel NAV 1G port (see figure 1, Fon page 1).

Access the encoder using HTML pages as follows:

1. Open a web browser.

NOTES:

• Suggested browsers to fully support the NAV system are: Google Chrome™, Mozilla™Firefox™, and Microsoft®Edge™.

• The network must be properly congured for multicasting (IGMP). Failure to do so may result in degraded performance.

2. Enter the IP address of the encoder in the browser Address field.

NOTES:

• Default settings:

Port DHCP IP address Subnet mask

Conﬁg (USB)*203.0.113.22

NAV 1G (Fiber)On

* For the CONFIG port, the address for IP over USB

CANNOT be changed.

If the unit does not receive a DHCP address, a self-

assigned Link Local Address, is assigned in the range

169.254.X.X.

• If you use IP over USB, Extron recommends waiting a minute after plugging in the cable for your PC to identify the USB

connection as a valid Ethernet port.

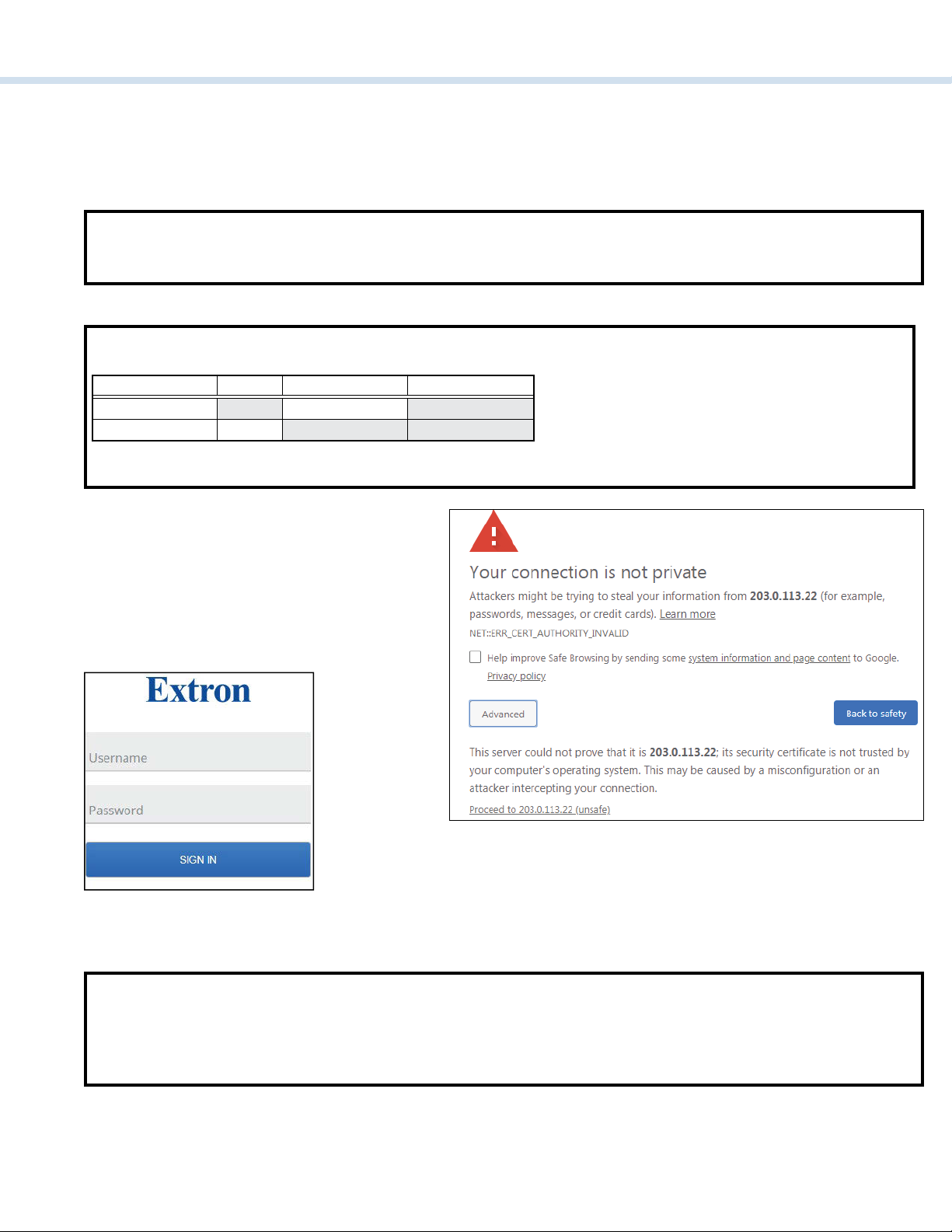

3. Press the keyboard <Enter> key. The browser

displays a privacy error message (see figure 3 at right

for an example in the Chrome browser).

4. Click Advanced (see figure 3, 1). The button changes

to Hide Advanced and explanatory text and a link

appear below the button.

5. Click Proceed to <IP address>(unsafe) (2).

The browser opens to the Login dialog box (see

figure 4).

11111111111111

22222222222222

3333

33333333

Figure 4. Login Dialog Box

6. Enter the Username (see figure 4, 1) and Password (2) and click SIGN IN (3). The browser opens to the embedded web pages

(see figure 5 on page 5).

NOTES:

• The default Username is admin.

• The factory congured passwords for all accounts on this device have been set to the device serial number. If the password

is reset, the encoder reverts to the default password, which is extron.

• Usernames and passwords are case sensitive.

1111111111

1111

2222222222

2222

Figure 3. Privacy Error Message (in Chrome Browser)

NAV E 511 • Setup Guide (Continued)

1111111111

1111

2222222222

2222

Figure 5. HTML Page

NOTE: Detailed descriptions of communication, conguration, and monitoring are provided in the NAV E 511 User Guide,

available at www.extron.com.

Connection settings

View and change connection settings as follows:

1. On the home page, click Settings (see figure 5, 1) > Networking.

2. Click the Network Connection drop-down list (2). The Network

Connection pane opens (see figure 6), showing protected views of the

network connection settings.

NOTE: Editing of connection settings is disabled when the device is

assigned to an Extron NAVigator System Manager.

3. To change the settings, click Edit (see figure 6, 1). The Edit button

changes to Save.

4. Click in the desired field (2) and edit it as necessary.

5. Repeat step 4 as necessary for other values.

6. Click Save.

Pairing devices via front panel

AV E 511

Pair devices as follows:

1. Use a Tweeker or other small screwdriver to press

and hold the encoder front panel ID button for

approximately 3 seconds, until the ID LED blinks. The

encoder enters pairing mode, which allows decoders to

receive the AV and USB streams from encoders.

2. One at a time, use a Tweeker or other small screwdriver to press and hold

the decoder front panel ID button for approximately 3 seconds, until the ID

LED blinks three times. The decoder is now paired to the encoder.

1111111111

1111

2222222222

2222

Figure 6. Network Connection Pane

68-3605-50 Rev. B

03 22

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the

Extron Safety and Regulatory Compliance Guide on the Extron website.

All trademarks mentioned are the property of their respective owners.

Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876

3. Repeat step 2 for each decoder.

4. Use a Tweeker or other small screwdriver to press and release the encoder front panel ID button. The encoder exits pairing mode.

5. Repeat steps 1 through 4 to pair decoders to other encoders.

After all devices are connected, powered on, and paired, the system is fully operational.

Operation in a System with a NAVigator

The Extron NAVigator is a system manager that easily congures and controls the NAV System. The NAVigator supports 16 endpoints by

default, but a LinkLicense can upgrade its capabilities to support up to 240 endpoints.

See the NAVigator User Guide, available at www.extron.com for details.

Connection Details

LockIt®Lacing Brackets

1. Plug the HDMI or USB cable into the panel connection (see 1, at right for an HDMI example).

333

111

555

444

222

2. Loosen the connection mounting screw from the panel enough to allow the LockIt lacing bracket

to be placed over it (2). The screw does not have to be removed.

3. Place the LockIt lacing bracket on the screw and against the connector (3), then tighten the

screw to secure the bracket.

ATTENTION:

• Do not overtighten the connector mounting screw. The shield it fastens to is very thin

and can easily be stripped.

• Ne serrez pas trop la vis de montage du connecteur. Le blindage auquel elle est

attachée est très n et peut facilement être dénudé.

4. Loosely place the included tie wrap around the connector and the LockIt lacing bracket as shown (4).

5. While holding the connector securely against the lacing bracket, use pliers to tighten the tie wrap, then remove any excess length (5).

Analog audio input EXT connector

Unbalanced Stereo Input Balanced Stereo Input

Do not tin the wires!

Tip

Ring

Tip

Ring

Sleeves

Tip

Sleeve

Tip

Wire color

White-green

Green

White-orange

White-blue

Orange

White-brown

Brown

Blue

TIA/EIA T568B

TP Wires

12345678

Pins:

Control connector Power connector

TxRx

RxTx Gnd

IR Device

Tally out

Contact

Show Me Cable

RS-232

Device

RS-232

Tx Rx GSG

IRCONT

CONTROL

Power Supply

Output Cord

Ridges

Smooth

Captive

Screw

Connector

16 (5 mm) MAX

SECTION A–A

Otros manuales para NAV E 511

Tabla de contenidos

Otros manuales de Convertidor de medios de Extron electronics

Extron electronics

Extron electronics RGB to DVI Scaler RGB-DVI 300 Manual de usuario

Extron electronics

Extron electronics Converter CVC 200 Manual de usuario

Extron electronics

Extron electronics SDI to Analog Video Converter SDI-AVR 100 Manual de usuario

Extron electronics

Extron electronics QGE 100 Manual de usuario

Extron electronics

Extron electronics IN1804 Series Manual de usuario

Extron electronics

Extron electronics IN1404XT Manual de usuario

Extron electronics

Extron electronics VSC 500 Manual de usuario

Extron electronics

Extron electronics USP 507 Manual de usuario

Extron electronics

Extron electronics Sync Converter/Stabilizer SCS 300 Manual de usuario

Extron electronics

Extron electronics 3G-AE 100 Manual de usuario

Extron electronics

Extron electronics Emotia Xtreme MX Manual de usuario

Extron electronics

Extron electronics II Manual de usuario

Extron electronics

Extron electronics DSC 301 HD Manual de usuario

Extron electronics

Extron electronics SME 100 Manual de usuario

Extron electronics

Extron electronics CVC 100 Manual de usuario

Extron electronics

Extron electronics Two InpuT VIdeo Scaler IN1502 Manual de usuario

Extron electronics

Extron electronics DVS 150 Manual de usuario

Extron electronics

Extron electronics DVS 605 Manual de usuario

Extron electronics

Extron electronics VN-Matrix 300 Manual de usuario

Extron electronics

Extron electronics VSC 900 Manual de usuario

Extron electronics

Extron electronics Balanced and Unbalanced Audio Converter BUC... Manual de usuario

Extron electronics

Extron electronics DVS 204 Manual de usuario

Extron electronics

Extron electronics DSC HD-3G A Manual de usuario

Extron electronics

Extron electronics DSC 3G-HD A Manual de usuario

Manuales populares de Convertidor de medios de otras marcas

SoundTraxx

SoundTraxx Blunami BLU-2200 Manual de usuario

SPROLINK

SPROLINK VA1 Manual de usuario

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manual de usuario

Nikon

Nikon AF-S TC-20E III Manual de usuario

Axis

Axis AXIS Q7406 Manual de usuario

Omega

Omega TAC80B-J Manual de usuario

Zoom

Zoom Thunderbolt TAC-2R Manual de usuario

OST

OST iConverter 10/100M Manual de usuario

Vertiv

Vertiv Netsure Manual de usuario

birddog

birddog MINI Manual de usuario

Roland

Roland GI-10 Manual de usuario

Wallenstein

Wallenstein WX310 Manual de usuario

Pace

Pace MSS 200-1 Manual de usuario

Solar Converters

Solar Converters EQ 12/24-50 Manual de usuario

CYP

CYP EL-7400V Manual de usuario

TIE

TIE MIDI 1i1o Manual de usuario

DCS

DCS Vivaldi Upsampler Manual de usuario

Westermo

Westermo MCW-211 SERIES Manual de usuario
