Cable Cubby®100 • Installation Guide

This guide provides instructions for an experienced installer to install and connect the

Extron Cable Cubby 100.

he Cable Cubby 100 is a compact furniture-mounted enclosure for cable

access and connections. It can be installed quickly by using a common

4 inch (102 mm) hole saw.

Planning

Check with local and state regulations before starting the

installation:

Ensure that the planned installation complies with building and electrical codes.

Ensure that the planned installation complies with the Americans with Disabilities Act or other accessibility requirements.

Check all parts and equipment before installation:

Ensure that all parts are present in each kit.

Ensure that necessary tools and equipment are available for the installation.

Kit Contents

Tools Required for Installation

Safety Glasses

Phillips Screw Driver

Vacuum Cleaner

Marking Pen

Drill 4" (102 mm) hole saw

Grommet Plugs

(2) 3/8", (1) 1/4"

Connectivity Bracket

Cable Grommet Plate

#4-40 MAAP

Screws (4)

Cable Cubby 100

with top bezel

#4-40 Plate

Screws (4)

#6-32 Bracket Screws

with Washers (2)

#6 Mounting

Screws (4)

Cable Cubby 100 • Installation Guide (Continued)

Step 1 - Prepare the Furniture

Follow the instructions below to cut a hole in the surface where the enclosure will be installed. Read the following information

before making a cut.

Step 1a - Determine the best location for the enclosure.

Ensure that the location where the Cable Cubby is to be installed is convenient for as many users as possible.

Ensure that there is ample space under the furniture for cables. Allow at least 36 inches of cable loop for each cable (see

Step 4 –Route and Connect Cables on page 5).

Step 1b - Choose a method for cutting the hole in the furniture, and cut the hole.

CAUTION: Wear safety glasses when operating power equipment. Failure to comply can result in eye injury.

ATTENTION: Portez des lunettes de sécurité lorsque vous utilisez l’équipement électrique. Ne pas respecter cela peut

conduire à une blessure à l’oeil.

ATTENTION: The opening in the furniture for the Cable Cubby should be cut only by licensed and bonded

craftspeople. Exercise care to prevent scarring or damaging the furniture.

ATTENTION : L’ouverture dans la meuble pour le CableCubby devrait être coupée seulement par des artisans

autorisés et qualiés. Faites attention à ne pas faire de marques sur le meuble et à ne pas l’endommager.

Choose one of the following methods for cutting the hole:

Power Drill with 4 inch (102 mm) Hole Saw Jigsaw and Paper Cut-Out Template CNC Wood Router

Dimensions and cut-out templates are

available online on the product page at

www.extron.com.

Cut-Out Template forthe Extron

Cable Cubby 100

1. Confirm the product to be installed.

2. Remove the surface cut-out area

(gray) from the template.

3. Measure the cutout and template.

4. Mark the position on the

furniture where the Cable Cubby 1200

will beinstalled.

5. Cut the opening.

TrimRing

Lip

Cut-OutRadius:

0.25"(0.6cm)

0.00” (0.00 cm)

0.02 (0.05 cm)

P/N 68-2472-01 Rev.A

PageSize: 11" x 17"

Print Scale 1:1

Do not Shrink

Jigsaw

Cut-Out

Out Tem

Cabl

If using a CNC wood router

or other precise machinery,

use the exact cut-out

dimensions.

Cut-Out Dimensions:

4 inch (102 mm) round

diameter

NOTE: Insert the Cable Cubby 100 into the hole to test the t. If necessary, carefully enlarge the opening.

Step 1c - Drill the pilot holes into the furniture.

Follow these steps to drill the pilot holes for the Cable Cubby 100, then proceed to the next section.

Insert the Cable Cubby into the hole.

Position the Cable Cubby as you wish it to be installed on the furniture.

With the Cable Cubby in place, mark the four outermost holes

on the top surface.

Remove the Cable Cubby and drill

four pilot holes at the marked locations

on the furniture.

Step 2 - Install Connectivity Bracket and the MAAPs

Follow the steps below to populate the Cable Cubby enclosure.

Step 2a — Assemble and Install the Connectivity Bracket

Follow the steps below to assemble and install the connectivity bracket with the included cable grommet plate or optional

two-space MAAP module.

Insert cables into

the holes of the

grommet plate.

Use the #4-40 plate screws

to secure the grommet plate

on the connectivity bracket.

Snap the included hole

plugs into any unused

holes.

Insert the assembled module

into the bottom opening of the

enclosure.

Secure the module at the desired

height using the included #6-32

bracket screws.

Use the included #4-40 MAAP screws

to secure the two-space MAAP on the

enclosure.

USB CHARGER

Insert wires through

the opening shown

at the right and

wire the MAAP.

NOTE: Using the cap screws that

are not included with the MAAP

may not allow the bezel to t

properly.

Insert cables into

the holes of the

grommet plate.

Use the #4-40 plate screws

to secure the grommet plate

on the connectivity bracket.

Snap the included hole

plugs into any unused

holes.

Insert the assembled module

into the front opening of the

enclosure.

Secure the module at the desired

height using the included #6-32

bracket screws.

Use the included #4-40 MAAP screws

to secure the two-space MAAP on the

enclosure.

USB CHARGER

Insert wires through

the opening shown

at the right and

wire the MAAP.

NOTE: Using the cap screws that

are included with the MAAP may

Insert cables into

the holes of the

grommet plate.

Use the #4-40 plate screws

to secure the grommet plate

on the connectivity bracket.

Snap the included hole

plugs into any unused

holes.

Insert the assembled module

into the bottom opening of the

enclosure.

Secure the module at the desired

height using the included #6-32

bracket screws.

Use the included #4-40 MAAP screws

to secure the two-space MAAP on the

enclosure.

USB CHARGER

Insert wires through

the opening shown

at the right and

wire the MAAP.

NOTE: Using the cap screws that

are not included with the MAAP

may not allow the bezel to t

properly.

Step 2b — Install the MAAP plate(s) on the MAAP Opening on

applicable models

Follow the steps at the right to install a double-space

MAAP or two single-space MAAPs of your choice

(see www.extron.com for MAAP options and wiring

instructions). Install the MAAP in the MAAP opening as

shown at right.

To assemble the Cable Grommet Plate (included):

To assemble an optional MAAP module:

Wire the MAAP

Use the #4-40 cap scr

ews (included

with the MAAP) to secur

e the MAAP

on the connectivity bracket.

USB CHARGER

Step 3 - Mount the Cable Cubby in the Furniture

Follow the steps below to mount the Cable Cubby on the furniture.

CAUTION: The anged edges of the top of the surface enclosure are sharp. These edges are also soft and may be easily

nicked or bent. Exercise caution when handling the enclosure to prevent personal injury or damage to the enclosure.

ATTENTION: Les extrémités à brides du haut de la surface du boîtier sont aiguisées. Ces extrémités sont aussi lisses

et peuvent facilement être coupées ou pliées. Soyez prudents lorsque vous manipulez le boîtier an d’éviter de

l’endommager ou de vous blesser.

Insert the assembled

Cable Cubby 100

carefully into the

opening on the furniture.

Ensure that the Cable Cubby is fully seated on the

furniture surface.

Drive four mounting screws (included) through the

outer holes on the bezel and into the pilot holes

on the furniture to secure the enclosure.

nsert t

e assem

able

ubby 100

care

ully into the

opening on the

urnitu

n t

USB CHARGER

Snap the top bezel on the Cable Cubby.

Snap

the

top

bezel

the

Cable

ubb

USB CHARGER

Cable Cubby 100 • Installation Guide (Continued)

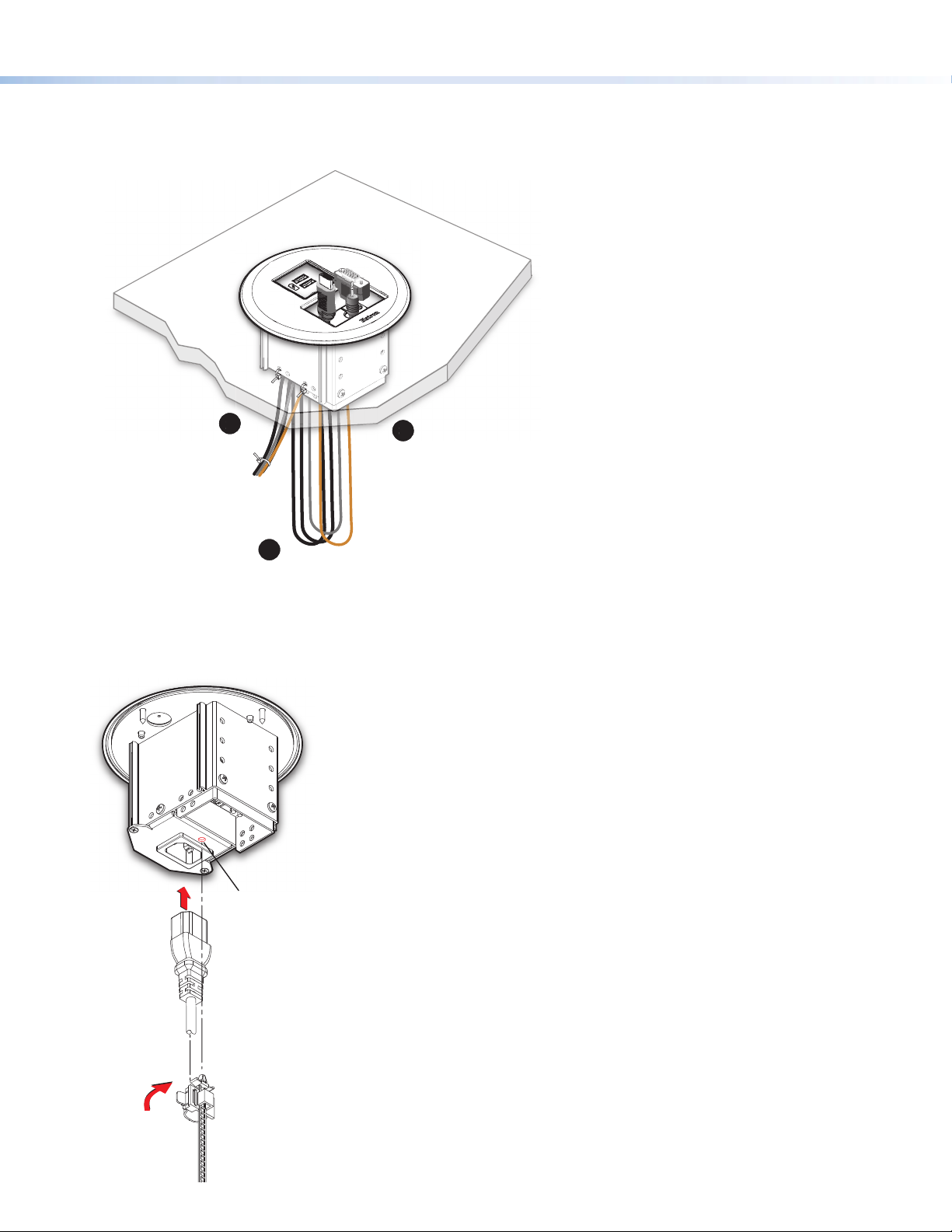

Step 4 - Route and Connect Cables

Follow the steps below to route and connect cables under the furniture.

Secure cables with zip ties

to the holes on the side of

the Cable Cubby.

For cable pass-through applications,

allow at least 36 inches (0.9 m) of cable

loop for each cable.

Connect cables to the AV system.

Step 5 - Connect AC Cord to Non-US Powered Models

Follow the steps below to connect the AC Cord to the Non-US Powered Models.

AC Power Cord

Retainer

If applicable, secure the AC

power supply cord with the

included cable retainer.

68-2797-01

Rev. B

09 16

Extron Headquarters

+800.633.9876 Inside USA/Canada Only

Extron USA - West Extron USA - East

+1.714.491.1500 +1.919.850.1000

+1.714.491.1517 FAX +1.919.850.1001 FAX

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+65.6383.4400

+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Extron China

+86.21.3760.1568

+86.21.3760.1566 FAX

Extron Middle East

+971.4.299.1800

+971.4.299.1880 FAX

Extron Korea

+82.2.3444.1571

+82.2.3444.1575 FAX

Extron India

1800.3070.3777

(Inside India Only)

+91.80.3055.3777

+91.80.3055.3737 FAX

Installation Checklist

Planning (page 1)

Check with local and state regulations before starting the installation

Check all parts and equipment before installation

Prepare the Furniture (page 2)

Determine the best location for the enclosure

Choose a method for cutting the hole in the furniture

Drill the pilot holes into the furniture

Install the Connectivity Bracket and the MAAPs (page 3)

Assemble and Install the Connectivity Bracket

Install a MAAP plate(s) on the MAAP Opening

Mount the Cable Cubby in the Furniture (page 4)

Mount the Cable Cubby ush with the furniture

Route and Connect Cables (page 5)

Connect AC Cord to Non-US Model (page 5)

Tabla de contenidos

Otros manuales de Cables y conectores de Extron electronics

Extron electronics

Extron electronics MHR-6 Manual de usuario

Extron electronics

Extron electronics CTL Cable Manual de usuario

Extron electronics

Extron electronics STP24LC Manual de usuario

Extron electronics

Extron electronics DVID SL/15 Manual de usuario

Extron electronics

Extron electronics CTL Manual de usuario

Extron electronics

Extron electronics HSA 802 Manual de usuario

Extron electronics

Extron electronics M59-5 BNC/100 Manual de usuario

Extron electronics

Extron electronics Audio Cable M59-6 BNC Manual de usuario

Extron electronics

Extron electronics STP Series Manual de usuario

Extron electronics

Extron electronics SPK Series Manual de usuario

Extron electronics

Extron electronics MHR-2 Manual de usuario

Extron electronics

Extron electronics RG59-3MHR-3 Manual de usuario

Extron electronics

Extron electronics RG6-5 Manual de usuario

Extron electronics

Extron electronics MHR-5STP-2 Manual de usuario

Extron electronics

Extron electronics WP 120 Manual de usuario

Extron electronics

Extron electronics STP24LC-2 Manual de usuario

Extron electronics

Extron electronics HDMI M-M Series Manual de usuario

Extron electronics

Extron electronics 13W3-to-VGA Cables and Adapters Manual de usuario

Extron electronics

Extron electronics High Performance DVI Digital Video Cables... Manual de usuario

Extron electronics

Extron electronics Skew-Free UTP23SF-4/100 Manual de usuario

Extron electronics

Extron electronics Mini High Resolution Halogen-Free Cable... Manual de usuario

Extron electronics

Extron electronics MHRHF-5 Manual de usuario

Extron electronics

Extron electronics MHRVGA Manual de usuario

Extron electronics

Extron electronics Cable Cubby 100 Manual de usuario

Manuales populares de Cables y conectores de otras marcas

Philips

Philips SWA6310 Manual de usuario

StarTech.com

StarTech.com CRJ4550PK Manual de usuario

Nohau

Nohau EMUL-IP2K-PC Manual de usuario

Foxun

Foxun SX-SP144E-HD4K2K Manual de usuario

Philips

Philips SWA3305W Manual de usuario

opticis

opticis Stretch DVIM1-1P0x Manual de usuario

Volkswagen

Volkswagen VAS 6558A Manual de usuario

NEXIBO

NEXIBO N-13 Manual de usuario

CYP

CYP PU-1H3HBTL Manual de usuario

Allen-Bradley

Allen-Bradley 1784-u2dhp Manual de usuario

Global Caché

Global Caché Flex Link Blaster Manual de usuario

Hauppauge

Hauppauge USB-Live2 Manual de usuario

Fenix

Fenix MPSV 15 Manual de usuario

BEGA

BEGA 71 085 Manual de usuario

Tesla

Tesla HPWC Manual de usuario

GAMERON

GAMERON LUXURY TV CABLE Manual de usuario

molex

molex Milli-Grid Dual row 87568 Series Manual de usuario

Burndy

Burndy Continental Industries thermOweld CRE-7 Manual de usuario
