Extech Instruments IRC350 Manual de usuario

User Guide

Infrared Calibrator

Model IRC350

Model IRC350 Version 4.0 06/08

Introduction

Congratulations on your purchase of the Extech IRC350 Infrared Calibrator. This easy to

use portable calibrator can be used to accurately calibrate Infrared (IR) thermometer

devices. This instrument is shipped fully tested and calibrated and, with proper use, will

provide years of reliable and accurate calibration of temperature sensors and devices.

Features

2.3” (58mm) diameter target assembly and dry-well temperature system controlled

by microcomputer

Metal cone external reference thermometer with nominal heat-conducting ability

Oxide film, surface thermometer with an Emissivity of 0.95.

Class-A, platinum 100 ohm (PT100) RTD temperature sensor

Rapid heating and cooling (fan) functions

°C /°F selectable units

Calibration temperature range of 122°F to 662°F (50°C to 350°C).

0.1° temperature display and stability resolution

Warranty

EXTECH INSTRUMENTS CORPORATION (A FLIR COMPANY) warrants this instrument

to be free of defects in parts and workmanship for one (1) year from date of shipment (a

six month limited warranty applies to sensors and cables). If it should become necessary to

return the instrument for service during or beyond the warranty period, contact the

Customer Service Department at (781) 890-7440 ext. 210 for authorization or visit our

website www.extech.com for contact information. A Return Authorization (RA) number

must be issued before any product is returned to Extech. The sender is responsible for

shipping charges, freight, insurance and proper packaging to prevent damage in transit.

This warranty does not apply to defects resulting from action of the user such as misuse,

improper wiring, operation outside of specification, improper maintenance or repair, or

unauthorized modification. Extech specifically disclaims any implied warranties or

merchantability or fitness for a specific purpose and will not be liable for any direct, indirect,

incidental or consequential damages. Extech's total liability is limited to repair or

replacement of the product. The warranty set forth above is inclusive and no other

warranty, whether written or oral, is expressed or implied.

Model IRC350 Version 4.0 06/08

Safety

•BURN HAZARD – Use extreme caution when the unit is powered on. Do not touch the

IR target surface; the IR target surface temperature is the same temperature as that

shown on the display.The sheet metal at the top of the instrument may also exhibit

extreme temperatures for areas close to the IR target surface

•DO NOT turn off the instrument at temperatures higher than 212°F (100°C).

•DO NOT connect and operate this unit without a properly grounded, properly polarized

power cord

•HIGH VOLTAGE is used in the operation of this equipment. Severe injury or death

may result if personnel fail to observe safety precautions. Before working inside the

equipment, turn the power off and disconnect the power cord

•DO NOT place this instrument under a cabinet or other structure. Overhead clearance

is required

•DO NOT operate near flammable materials

•DO NOT leave this instrument unattended when in use

•This instrument is intended for indoor use only

•DO NOT use this instrument for any applications other than those described in this

User Guide

Cautions

•Components and heater lifetime can be shortened by continuous high temperature

operation

•DO NOT use liquids to clean the target surface

•DO NOT adjust the values of the calibration constants from the factory set values. The

correct setting of these parameters is important to the safety and proper operation of

the calibrator. Call the Customer Care department if inadvertent changes to the

programming have been made

•Operate the instrument between 5 and 35°C (41 to 95° F)

•Allow at least 6 inches of space between the instrument and nearby objects

•Avoid vibrations in the calibration environment

Environmental conditions

Although the instrument has been designed for optimum durability and trouble-free

operation, there are some precautions that should be taken. The instrument should not be

operated in an excessively dusty or dirty environment. Maintenance and cleaning

recommendations can be found in the Maintenance section of this User Guide.

Model IRC350 Version 4.0 06/08

Specifications

Range 122 to 662°F (50 to 350°C)

Accuracy 122 to 250°F (50 to 121°C) ±1.2°F/0.5°C

251 to 500°F (122 to 260°C) ±2.0°F/1.0°C

501 to 662°F (261 to 350°C) ±3.0°F/1.5°C

Stability 122 to 250°F (50 to 121°C) ±0.2°F/0.1°C

251 to 500°F (122 to 260°C) ±0.4°F/0.2°C

501 to 662°F (261 to 350°C) ±0.6°F/0.3°C

Target Emissivity 0.95 fixed

Resolution 0.1°

Heating Time 30 minutes to maximum temperature

Cooling Time 30 minutes from maximum to 212°F (100°C)

Aperture Diameter 2.3” (58mm)

Power 115VAC (±10%), 3A

Operating Ranges

Temperature 41 to 95° F (5 to 35°C)

Relative Humidity 15 to 80%

Altitude Less than 2,000 Meters

Aperture Diameter 2.3” (58mm)

Size 7.1 x 4.5 x 9.2” (180 x 114 x 233 mm)

Weight 6.6 lbs. (3 kg)

Temperature differences between the IR surface and the reference probe are calculated as

shown in the graph below:

IRC-350 Gradient between probe and IR surface

50 100 150 200 250 300 350

-0.1

-0.2

-0.3

-0.4

-0.5

-0.6

DTC

C (reference Probe)

Model IRC350 Version 4.0 06/08

Instrument Description

Front Panel

AT OUT

UPDOWN

SET

1. The top display (red LED digits) shows the actual temperature

2. The bottom display (green LED digits) shows the desired (set-point)

temperature value

3. Status LEDs:

•AT – This is a factory-only diagnostic function and will not switch on during

normal operation

•OUT – Illuminates when the instrument is actively heating

•ALM1 - Overload Alarm No. 1 illuminates when the target assembly

temperature exceeds the set point temperature by the programmed value

(default = 9ºF / 4.5ºC). The fan will increase to maximum velocity when the

alarm limit is reached

•ALM2 – Unused

•°C - Unit of measure temperature indicator (Celsius)

•°F - Unit of measure temperature indicator (Fahrenheit)

4. Controller Keypad – For setting the desired temperature (set-point)

and for selecting the unit of measure

•SET – Used to enter into the programming mode, enter the

temperature set points or to store the ºF or ºC selection.

•- Used to scroll through the programming selections.

•DOWN –Used to decreases the set-point value and also to select

the desired unit of measure (ºF or ºC)

•UP – Used to increases the set-point temperature and also to

select the desired unit of measure (ºF or ºC)

5. Target assembly

6. Test aperture for placing a temperature sensor.

Model IRC350 Version 4.0 06/08

Back Panel

OFF

FUSE FUSE

1. Fan

2. Fuse for heater

3. Fuse for temperature control system

4. Power input

5. Power switch

Note: The fan inside the calibrator has two speeds and runs continuously when the

unit is being operated to provide cooling for the instrument. The fan runs slow for

heating and maintaining operation and runs fast for rapid cooling. Slots are provided for

airflow. The area around the calibrator must be kept clear to allow adequate ventilation.

The airflow is directed out the front and can be extremely hot.

Model IRC350 Version 4.0 06/08

Operation

Setup

1. Place the calibrator on a flat surface with at least 8 inches of free space around the

instrument.

2. Plug the power cord into a grounded 115V outlet.

3. Turn on the power to the calibrator by toggling the power switch on. The fan will begin

quietly blowing air through the instrument and the instrument will display a brief self-

test. If the unit fails to operate please check the power connection.

4. The heater will begin operating to bring the temperature of the calibrator to the set-

point temperature.

Changing Display Units

NOTE: When changing the display units or when adjusting the set-point value, do not

adjust factory-only programming parameters. If a factory menu is inadvertently

accessed, press the ‘SET’ button to return to the main display screen.

The IRC-350 can display temperature in degrees Celsius (C) or Fahrenheit (F). To change

the display units:

1. Unlock the unit by pressing and holding the "SET" and “ ” buttons at the same time.

2. When the display changes, release both buttons. The top display line (red LED digits)

will display " ", and the bottom display line (green LED digits) will display "(ºF

or ºC)”.

3. Use the Up and Down arrow buttons to select the desired temperature units. The

temperature unit letter will flash at a fast rate while programming.

4. Press the “SET” button to store the change. The green LED display will stop flashing.

5. Press “SET” again if both temperature displays are not present.

Model IRC350 Version 4.0 06/08



Support line (781) 890-7440

Technical support: Extension 200; E-mail: [email protected]m

Repair & Returns: Extension 210; E-mail: [email protected]

Product specifications subject to change without notice

For the latest version of this User’s Guide, Software updates, and other

up-to-the-minute product information, visit our website: www.extech.com

Extech Instruments Corporation, 285 Bear Hill Rd., Waltham, MA 02451

Setting the Temperature

The temperature set-point can be set to any value within the instrument’s specified range.

Do not, for any reason, exceed the specified temperature range.

1. Use the up and down arrow buttons to change the set-point value (shown on the

bottom, green LED digit display). The display will flash at a fast rate when the set-point

is changed.

2. Press "SET" and the digits will stop flashing. The calibrator will automatically adjust the

target assembly’s temperature to match the set-point temperature. The red LED

display will indicate the temperature of the target assembly.

3. When the set-point temperature is changed the controller switches the well heater on

or off to raise or lower the temperature. The displayed well temperature gradually

changes until it reaches the set-point temperature. The well may require 5 to 10

minutes to reach the set-point. Another 5 to 10 minutes is required to stabilize within

the stated limits of the set-point. Ultimate stability may take an additional 15 to 20

minutes.

4. Reduce the temperature to a value below 212°F (100°C) before turning the instrument

off.

Warning: Turning off the power at higher temperatures can damage the instrument.

Maintenance

With proper care the instrument should require very little maintenance.

If the outside of the instrument becomes soiled, it may be wiped clean with a damp cloth

and mild detergent. Do not use harsh chemicals or compounds.

Do not clean the surface of the well with liquids. Simply wipe with a dry cloth.

The calibrator should be handled with care. Avoid dropping or bumping the calibrator.

Calibration and Repair Services

Extech offers repair and calibration services for the products we sell. Extech also

provides NIST certification for most products. Call the Customer Care Department for

information on calibration services available for this product. Extech recommends that

annual calibrations be performed to verify meter performance and accuracy.

Tabla de contenidos

Otros manuales de Equipo de prueba de Extech Instruments

Extech Instruments

Extech Instruments PRT200 Manual de usuario

Extech Instruments

Extech Instruments TK32 Manual de usuario

Extech Instruments

Extech Instruments prc20 Manual de usuario

Extech Instruments

Extech Instruments 412300 Manual de usuario

Extech Instruments

Extech Instruments PRC15 Manual de usuario

Extech Instruments

Extech Instruments ET60 Manual de usuario

Extech Instruments

Extech Instruments CG204 Manual de usuario

Extech Instruments

Extech Instruments 480400 Manual de usuario

Extech Instruments

Extech Instruments FT10 Manual de usuario

Extech Instruments

Extech Instruments 381285 Manual de usuario

Extech Instruments

Extech Instruments BR146 Manual de usuario

Extech Instruments

Extech Instruments CG304 Manual de usuario

Extech Instruments

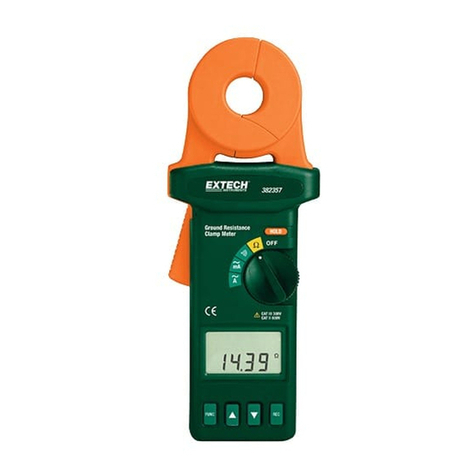

Extech Instruments 382357 Manual de usuario

Extech Instruments

Extech Instruments ExStik CL200 Manual de usuario

Extech Instruments

Extech Instruments MS6100 Manual de usuario

Extech Instruments

Extech Instruments ET40 Manual de usuario

Extech Instruments

Extech Instruments PRC30 Manual de usuario

Extech Instruments

Extech Instruments ET15 Manual de usuario

Extech Instruments

Extech Instruments ET25 Manual de usuario

Extech Instruments

Extech Instruments 380395 Manual de usuario

Extech Instruments

Extech Instruments 380366 Manual de usuario

Extech Instruments

Extech Instruments MG320 Manual de usuario

Extech Instruments

Extech Instruments ET10 Manual de usuario

Extech Instruments

Extech Instruments 422123 Manual de usuario

Manuales populares de Equipo de prueba de otras marcas

SMART

SMART KANAAD SBT XTREME 3G Series Manual de usuario

Agilent Technologies

Agilent Technologies BERT Serial Manual de usuario

Agilent Technologies

Agilent Technologies N3280A Manual de usuario

Vernier

Vernier Go Direct Voltage Manual de usuario

Lifeloc

Lifeloc R.A.D.A.R. Manual de usuario

Fluke

Fluke T5-600 Instrucciones de funcionamiento e instalación

Mercury

Mercury TSL01 Manual de usuario

MAHA

MAHA MBT Series Manual de usuario

Fuji Electric

Fuji Electric P-61 Manual de usuario

ETC

ETC SealerAtor Manual de usuario

Skyfine

Skyfine ETHYWAY V2 Manual de usuario

Appion

Appion G5 Twin Manual de usuario

PCB Piezotronics

PCB Piezotronics 8159-0112A Manual de usuario

BW Technologies

BW Technologies MicroDock II Manual de usuario

Sun Nuclear

Sun Nuclear 1027 Manual de usuario

Biomark

Biomark HPR LITE READER Manual de usuario

Hioki

Hioki 3169-20 Manual de usuario

Ashcroft

Ashcroft ATE-100 Manual de usuario
