Exsys EX-45362IS Manual de usuario

Congratulation on your purchasing this high performance 2-Port

RS232/422/485 3-in-1 Serial PCIe Host Adapter. The adapter is high speed PCIe

bus based and plug-and-play compliant. Its serial ports are fully 16C550 UART

compatible with most of the RS232, RS422 and RS485 devices available from

the market.

Features:

✓Fully PCI Express Specifications Revision 1.0a/1.1 Compliant

✓256-byte deep FIFO per transmitter and receiver

✓Supports 5V or 12V on its DB25 connector, provides an option to supply

power to all DB9 Connectors via the octopus cable

✓16C550 UARTs, Baud Rate up to 921.6Kbps

✓Supports 2 serial ports with RS232, RS422, RS485-2wire and RS485-4wire

modes (each port can be independently set) over one single PCIe slot

✓Automated in-band flow control using programmable Xon/Xoff in both

directions

✓Supports Windows 2000, XP, 2003, Vista, Win7, 8.x, 10 and Linux

EX-45362IS

2S RS232/422/485 3-in-1 Serial PCIe Card

1. Introduction

2. Board Layout

JP1: Aux Power

Source Selector

J1: DB25 Male

External

Connector

S1_PWR:

Pin 9 Power

Selector for S1

S1_MODE:

MODE Switches

for S1

S2_PWR:

Pin 9 Power

Selector for S2

S2_MODE:

MODE Switches for S2

2S RS232/422/485 3-in-1 Serial PCIe Card

1. S1_PWR, S2_PWR: Pin-9 Power Setting Jumpers for S1, S2 Respectively: The

design of each DB9 male connector has an option to supply DC power to

its Pin-9. Pin number 9 of the DB9 connector was defined for RS232 RI (Ring

Indicator) signal. Since some applications do NOT use this signal, in that

case, Pin-9 can be used to deliver DC power for the serial devices. This

product provides 2 settings for the power, +5V and +12V. The default

factory setting was set at “RI”, i.e. no power supplied on the DB9M

connector’s pin-9.

Pin-9 Power Setting Table:

S1_PWR, S2_PWR

Jumper Settings

No Power Supplied on Pin-9

(Default)

+5V DC on Pin-9

+12V DC on Pin-9

AUX. POWER Source Selector:

JP1

Settings

3. Jumper and DIP Switch Settings

2-port fan out

octopus cable

2S RS232/422/485 3-in-1 Serial PCIe Card

External 5V: Power source is +5VDC,

from J2 AUX power connector.

(Default)

External 12V: Power source is +12VDC,

from J2 AUX power connector.

Internal 12V: Power source is +12VDC,

from PCIe golden finger

(motherboard’s PCIe slot)

Internal 5V: Power source is +5VDC,

from onboard step-down regulator

2. Mode DIP Switch Settings –S1_MODE, S2_MODE:

There are two 8-pin DIP switches S1_MODE and S2_MODE for the settings of

serial Port S1 and Port S2 respectively. It is used for changing the operating

modes, enable/disable terminator and enable/disable the bias for transmitter

and receiver signals.

⚫Mode Settings:

Each DIP switch has 8 pins, the first 3 pins (M0, M1, M2) are for mode settings

(RS232, RS485-2wire, RS485-4wire or RS422 modes), pin 4 (TERM) is to enable or

disable terminator. Pin 5 and 6 (T+, T-) is for biasing TX+ and TX- signals. Pin 7

and 8 (R+, R-) is to enable or disable bias for RX+ and RX- signals.

2S RS232/422/485 3-in-1 Serial PCIe Card

Note: Pin 4 to 8 are designed for RS422 and RS485 only and

should be set to OFF when you are setting the port to RS232 mode.

Modes

Settings

(ON)→

RS232

(Default)

RS485-2W

RS485-4W

2S RS232/422/485 3-in-1 Serial PCIe Card

RS422

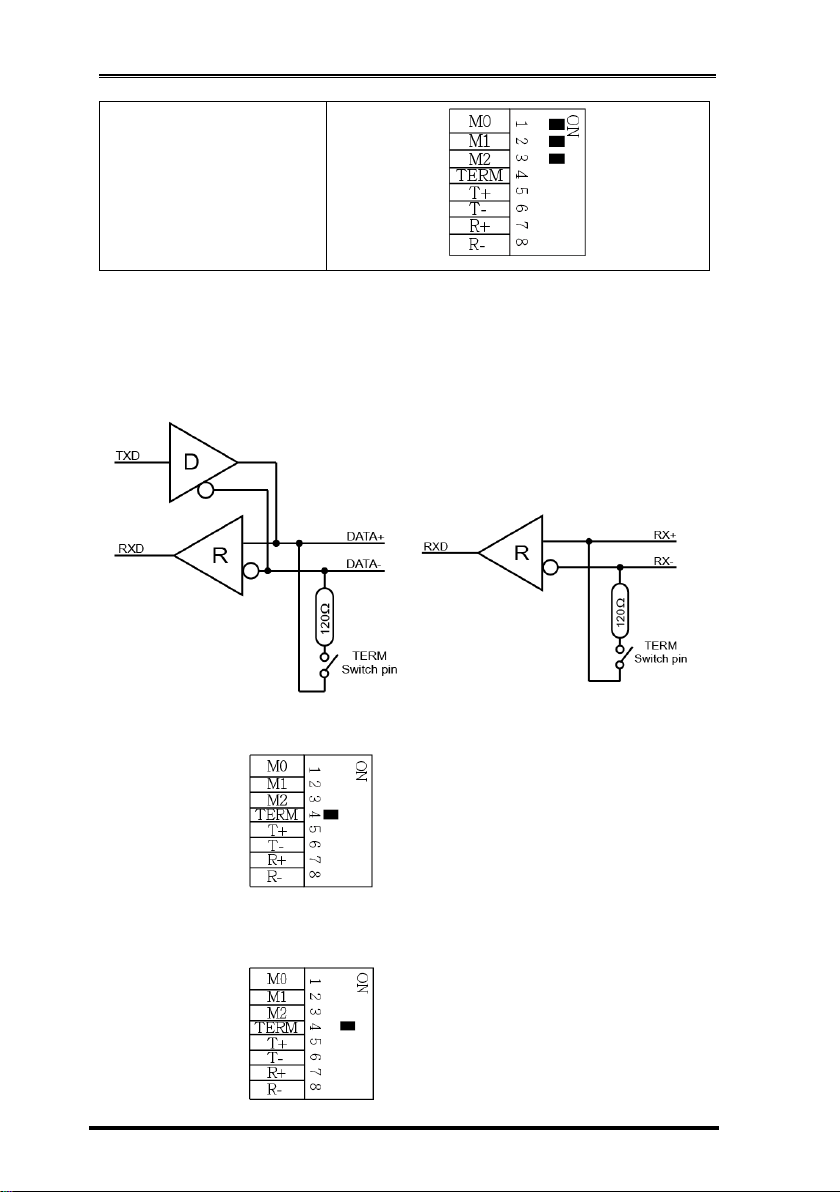

⚫Termination Resistor Settings:

The pin 4 of the DIP switch is to enable the 120 Ohm termination resistor

between RX+ and RX- signals.

Terminator disabled (OFF, default):

Terminator enabled (ON):

DIP Switch Pin 4

RS485-2wire mode:

RS485-4wire or RS422 mode:

2S RS232/422/485 3-in-1 Serial PCIe Card

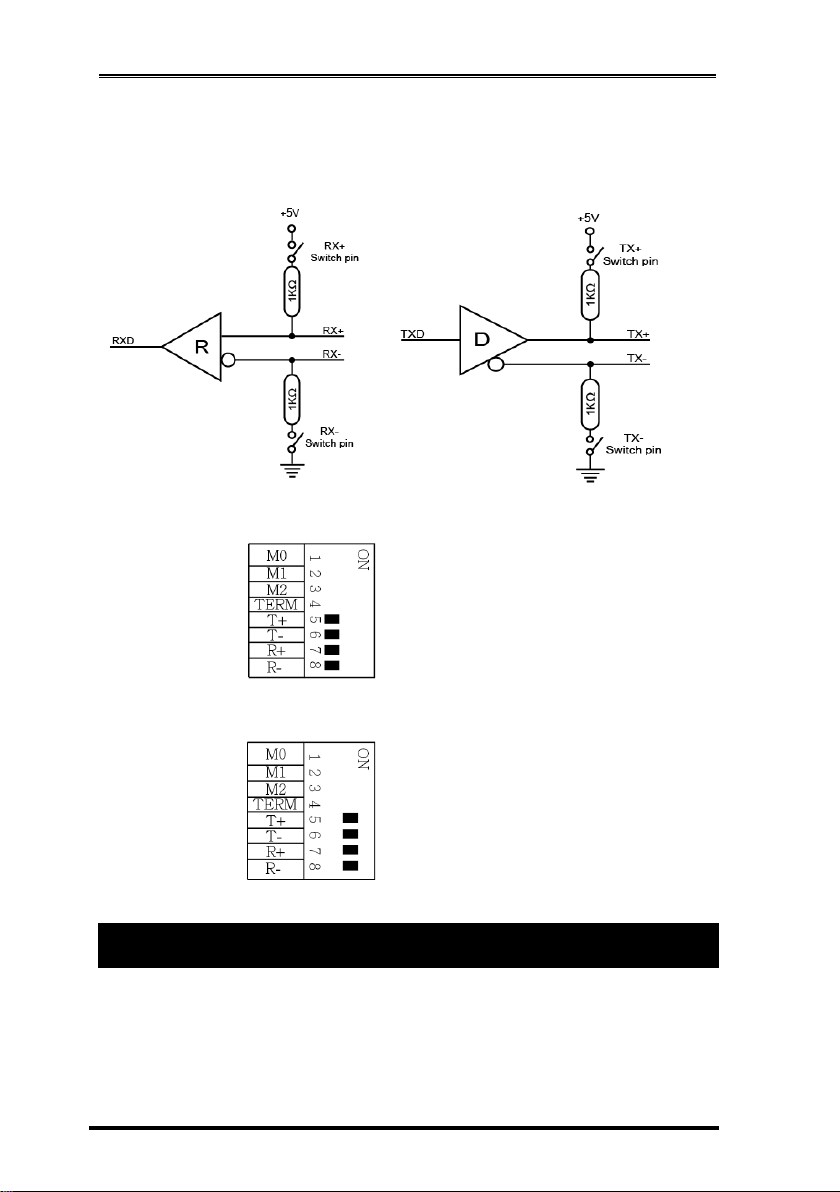

⚫Bias Resistors Enable/Disable:

Pin 5 to 8 of the DIP switch are to enable (ON) or disable (OFF) the 4 bias

resistors for TX+, TX-, RX+, RX- signals respectively. Please note that you have to

set them to OFF if you are setting the port to RS232 mode.

Disable (default) all 4 Bias resistors for TX+, TX-, RX+ and RX-:

Enable all 4 Bias resistors for TX+, TX-, RX+ and RX-:

1. To install the Windows drivers, there are two methods, one is to

run the setup utility (StnSetup.exe) in each corresponding folder.

The other one is by the Windows’driver installation Wizard. We

recommend you run the setup utility. It will be simpler. However,

PLEASE REFRESH HARDWARE OR REBOOT THE SYSTEM IN CASE

DIP Switch Pin 5

DIP Switch Pin 6

DIP Switch Pin 7

DIP Switch Pin 8

4. Software Installation

2S RS232/422/485 3-in-1 Serial PCIe Card

YOUR DRIVER DID NOT TAKE EFFECT AFTER RUNNING THE SETUP

UTILITY.

The drivers are shipped in the following folders on the driver CD:

E:\IO\MOSCHIP\MCS99xx

In some cases, you may want to uninstall the drivers. To remove the

drivers that already installed for Windows, there are two methods:

1. Run (double click) the uninstall program (for example

MOSCHIP_StnUninst.exe) in each Windows’folder on the

supplied driver CD, it is usually in the same folder as the

StnSetup.exe utility:

Drivers are in each

corresponding folder

Driver Uninstalling Program

Driver Installing Program

5. Uninstalling the Software Drivers

2S RS232/422/485 3-in-1 Serial PCIe Card

2. Go to Windows’Control Panel’s Add/Remove Program to

remove the drivers.

The pin assignment of the DB9 male connector of the Module Box is

dependent on its operation modes. Please refer to the following

figure for the corresponding mode:

1. RS232 Pin Assignment:

RS232 DB9(Male) to DB9(Male) Wiring:

6. Connector Pin Assignments

DB9(RS232 PCIe Card) DB9(Serial Device)

1 DCD 1 DCD

2 RXD 2 RXD

3 TXD 3 TXD

4 DTR 4 DTR

5 GND 5 GND

6 DSR 6 DSR

7 RTS 7 RTS

8 CTS 8 CTS

2S RS232/422/485 3-in-1 Serial PCIe Card

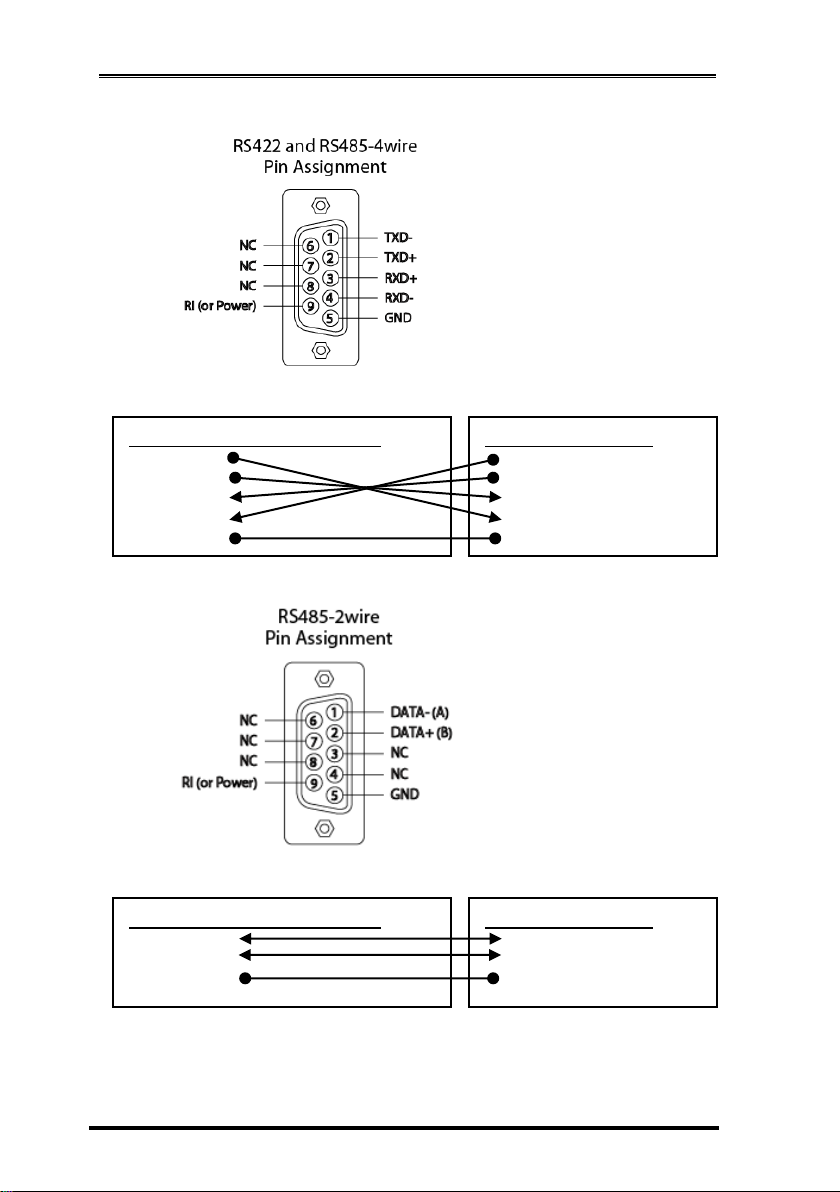

2. RS422 and RS485-4wire Pin Assignment:

RS422 Cable Wiring:

3. RS485-2wire Pin Assignment:

RS485-2wire Cable Wiring:

DB9 (RS422 PCIe Card)

1 TXD-

2 TXD+

3 RXD+

4 RXD-

5 GND

(RS422 Device)

1 TXD-

2 TXD+

3 RXD+

4 RXD-

5 GND

DB9 (RS485 PCIe Card)

1 DATA-

2 DATA+

5 GND

(RS485 Device)

1 DATA-

2 DATA+

5 GND

2S RS232/422/485 3-in-1 Serial PCIe Card

Type

Specifications

Connectors

Cable

Bus Interface

Number of Ports

RS-232 Signals

RS422 Signals

RS485-4wire Signals

RS485-2wire

Baud Rate

Data Bits

Stop Bits

I/O address/IRQ

Parity

Flow Control

Power Requirement

Operating Temperature

Operating Humidity

Storage Temperature

DB25 Male

DB25F-to-DB9MX2 Octopus type

PCI Express x1

TXD, RXD, RTS, CTS, DTR, DSR, DCD, GND

TXD+, TXD-, RXD+, RXD-, GND

DATA+(B)/DATA-(A)

110 bps to 921.6Kbps

5,6,7,8

1, 1.5, 2

Plug-and-Play (various)

None, Even, Odd

RTS/CTS, XON/XOFF

3.3V/500mA

0 to 55C(32 to 132F)

5 to 95% RH

-20 to 85C (-4 to 185F)

7. Specifications
