Fasten the Mounting Plate to the saw’s table using
the bolts* (see Fig. 1A) from the previously removed
extension wing or other appropriate fasteners to fit
your saw’s table.
Rail Assembly Fig. 1B
Steps 1B to 6B are for Model EX60 ONLY
Caution! When using ratchets, wrenches and other
leveraged tools for tightening screws and/or bolts, be
careful not to over-tighten.
NOTE: In these instructions the ‘front’ of the
machine always refers to where the operator normally
stands.
Step 1B Fig. 1B
Table Saw Installation: There are two possible ways
to install the EX40 Sliding Table for use with a table
saw.
3. You can attach the Mounting Plate (#3A) to
the lip of the left hand extension wing by
drilling two holes in the lip of the wing, or
4. by first removing the extension wing and
attaching the Mounting Plate to the edge of
the saw’s table.
If your work consists of cutting panels with a
Melamine finish, it is suggested to minimize
vibration in the work piece, that the Mounting Plate
be attached as close to the saw blade as possible by
first removing the left hand extension wing.
NOTE: The left hand end of the front and rear guide
rails for the saw’s rip fence cannot project to the left
of the saw’s table to which the Mounting Plate is to
be attached. The rails must be moved to the right or
be cut off accordingly.
Position the Mounting Plate so that it is more or less
centered on the saw blade arbor. Attach the Mounting
Plate approximately 1/8” below the top surface of the
saw’s table.
Check the alignment of the boltholes. If the existing
holes in the Mounting Plate do not fit your table saw,
drill the necessary holes in the Mounting Plate, or in
the edge of the saw’s table.
NOTE: When bolted to the saw the Mounting Plate
must be at 90°to the table surface of the machine. If
the edge of the machine’s table is not square, the
Mounting Plate must be shimmed.

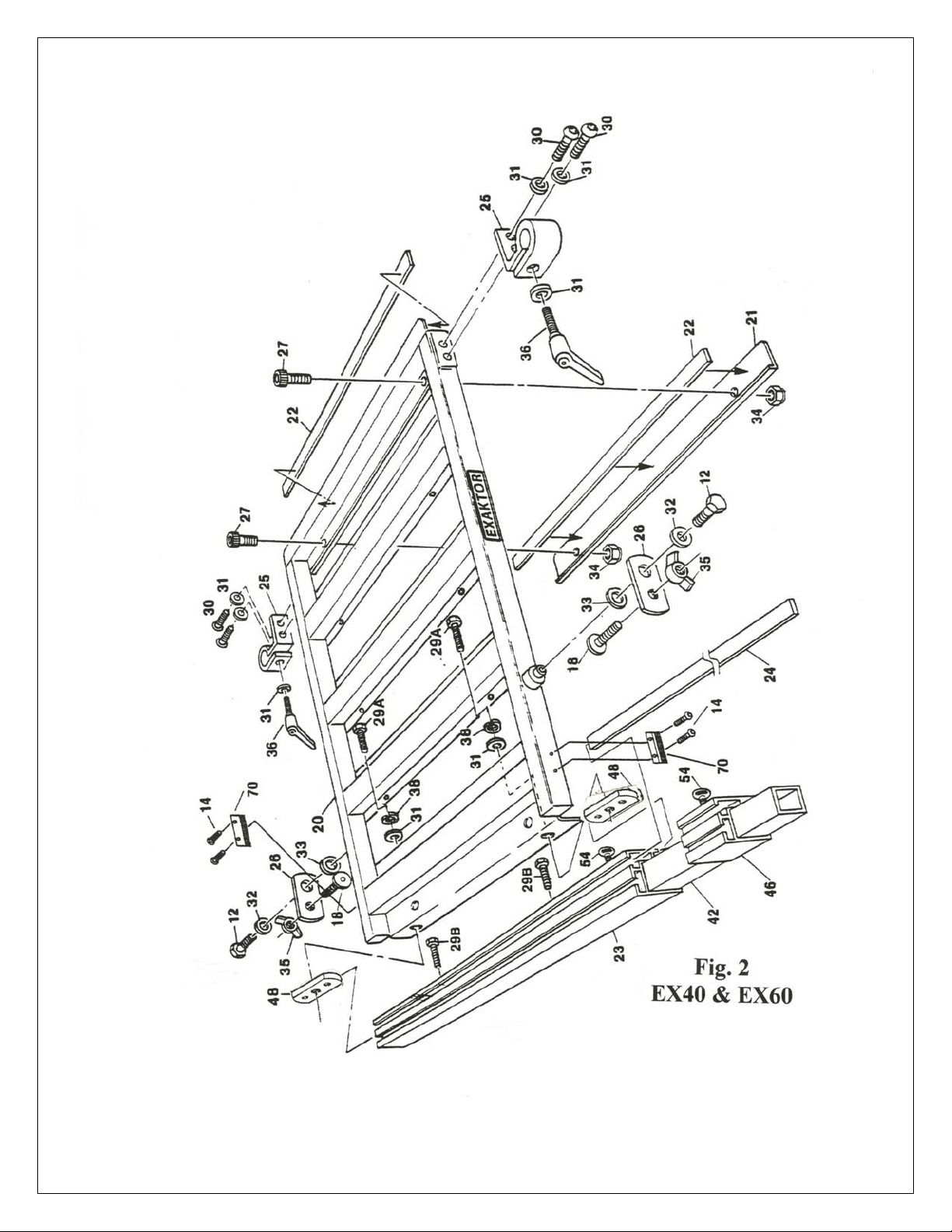

Guide Rail Assembly
IMPORTANT! Refer to Fig. 1B
Note that the mounting surface ‘steps up’ from the
triangular surface on part #4 and ‘steps down’ on part
#5. These parts are not interchangeable. Do not
confuse them.
Step 2B Fig. 1B
Fasten the Rear Inner Leg Mount (#4), using the row
of holes closest to the bend in the mount, to the
underside of the Inner Rail Tube (#1) with ¼-28x½”
Hex head bolts (#10). Insert a Leg (#7) into the Leg
Mount and temporarily snug the Set Screws (#11).
Step 3B Fig. 1B
Matching the six holes in the mounting Bracket
(#3B) with the six holes in the underside of the Inner
Rail Tube, Use ¼-28 x ½” Hex Head Bolts (#10) to
fasten the Bracket to the Rail Tube.
