Ewheels EW-52 Manual de usuario

EW-52

Owner’s Manual

www.ewheelsdealers.com

(888) 305-0881 Customer Service

(888) 571-2845 Service

Table of Contents

1. Instrument Panel………………………………………………. 2

2. Music system operation……………………………………. 3

3. Before you operate your scooter…………………..….. 4

4. Scooter initial operation………………………….…...….. 4

5. Technical specification……………………………….…….. 5

6. Cruise Control…………………………………………………… 6

7. Mirror Assembly……………………………………………….. 6

8. Variable Speed Control……………………………………… 7

9. Twist Throttle……………………………………………………. 8

10. Emergency Brake handle ………………………………….. 9

11. Seat Latch Release ……………………………………………. 10

12. General /Safety Instruction…………….………………… 11

13. Environment Condition……………………………………… 12

14. Seat Adjustment……………………………………………….. 13

15. Trunk………………..………………………………………………. 13

16. Key Fob…………………………………………….………………. 14

17. Clock Adjustment……………………………………………... 14

18. Batteries and Charger………………………………………. 15-16

19. Charger use…………………………………………………….…16

Turn Signal Indicator Hazard lights Clock Function Speed (KPH) Turn Signal Indicator

Temperature

Battery Indicator Cruise Control Reverse

Bright Light Indicator

Left Turn Signal

Horn

High Bean Light Horn

Right Turn Signal

Slow Speed

Low Beam

Drive 1

Drive 2

Drive 3

LED Indicator indicating Radio is on Volume up

Volume Down

Previous Song / Previous Station

Play / Pause Song

Next song or station

Power

Before you operate the scooter

Locate the below listed materials in rear cargo box:

Set of mirrors

Electric charger

Scooter Key (1: In Charger Box 2: Underneath seat)

Owner’s manual

IT IS VERY IMPORTANT TO READ OWNER’S MANUAL BEFORE SCOOTER

OPERATION

Scooter Initial Operation

Read Owner’s manual

Insert key into ignition (or activate the scooter’s remote start)

Set digital speed D1 to lowest setting

Turn lights on

Adjust mirrors to desired positions

Place both hands on black hand grips

Twist the throttle slowly with your right hand

Enjoy the ride!

Turn off scooter by simply turning key to off position

Technical Specifications

Model

EW-52 Scooter

Weight Capacity

500Lbs.

Speed:

Up to 15mph

Distance:

43 miles per charge (distance varies on terrain, riders

weight and road surface etc.)

Front Seat: Type

Adjustable chair with backrest

Front seat: Size

22 ½”x17 ½”x23” (LxWxH)

Front Seat:

27” From Ground

Rear Seat: Type

N/A

Rear Seat: Size

N/A

Steering Height

41” from Ground

Rear Foot Rest:

N/A

Power:

Electric

Watts:

700 Watt

Motor Type:

Transaxle differential brushless

Amps:

20 AH

Volts:

60 Volts

Dimensions:

72” x 27” x 45” (LxWxH)

Floor Clearance:

5”

Front Basket:

N/A

Batteries:

(5) Sealed Lead Acid Maintenance Free

Forward/Reverse switch:

Yes

High/ Low Speed switch:

(3) Speed switch

Front tire size:

13” Tire Type: 90/65-8

Rear tire size:

15” Tire Type: 120/50-9

Charger:

60-volt Smart Charger included

Throttle Type:

Variable Speed Control –Twist throttle

Key Start:

Yes

Braking System:

Front and Rear drum brakes

Drive System:

700 Watt Brushless Motor

Headlight:

12V Bulb

Rear lights:

12V Bulb

Carton Size:

Shipped Fully assembled on Pallet –80”x36”x73” (LxWxH)

Scooter Weight:

312lbs. with batteries

Battery Indicator:

Yes

Front:

Front Shock Absorbers

Rear:

Rear Shock Absorbers

Reflectors:

Yes

Warranty:

Limited –3 Year Warranty

Cruise Control

The Cruise control is located just under the digital dash, indicated by the

“Cruise” button. Simply reach your desired speed while driving the scooter

and press the “Cruise” button and the scooter speed will be fixed at your

current speed until the brake pedal is pressed.

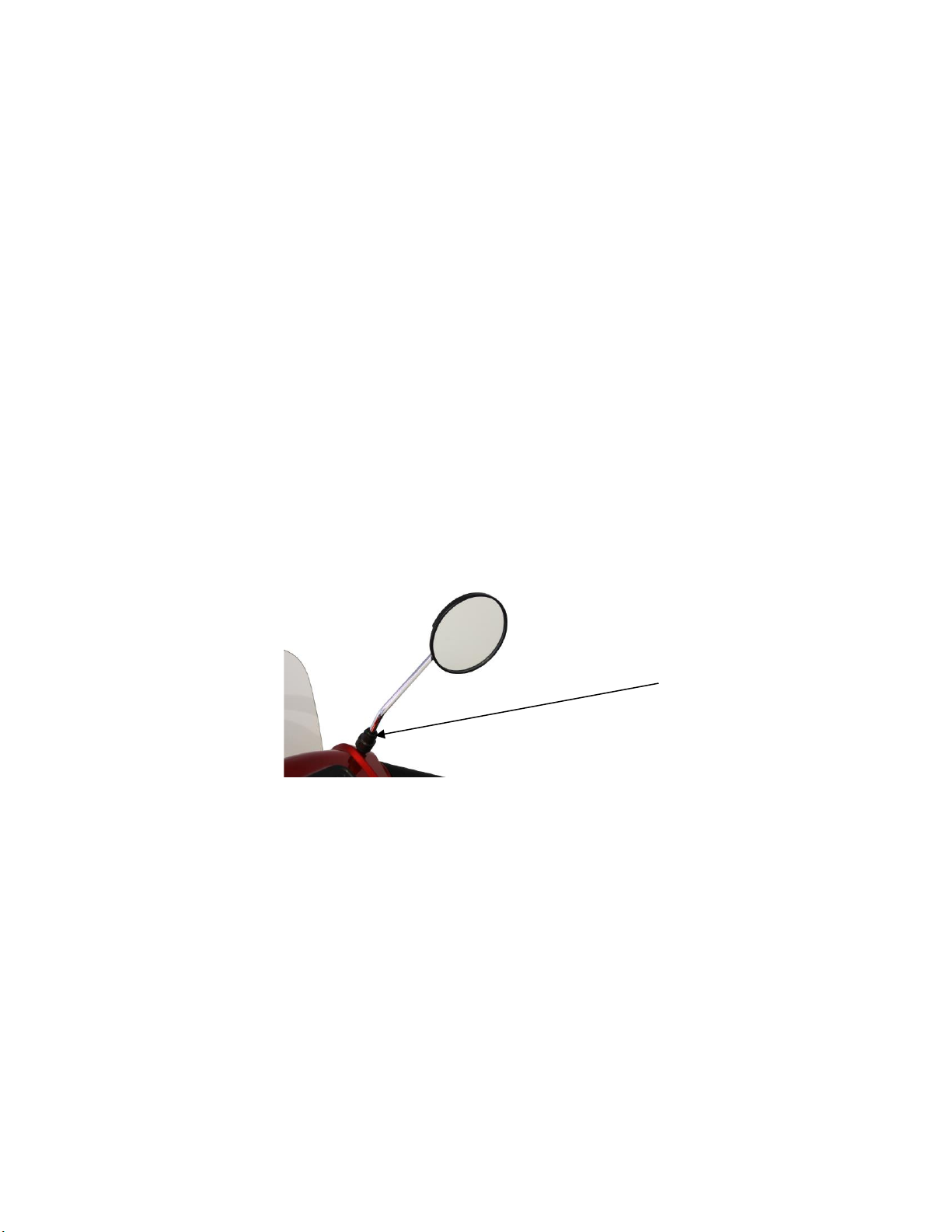

Mirror Assembly

Your power scooter is shipped partially disassembled for protection during

shipping. After unpacking, please check whether you have received the

following main components as our standard specification (See Fig 1)

1. Mirrors

Mirror Post

Fig 1

To attach the mirrors simply place each mirror threaded end into the mirror

post. Turn mirror clockwise and fasten mirror to scooter.

Operation of Scooter:

1. To prevent injury to yourself or others, always ensure that the power

is switched off when getting on or off the scooter and the emergency

brake is on.

Always check that the variable speed control is set to the desired speed

setting.

Variable Speed Control

The EW-52 has several speed setting capabilities:

1. The “S” button located just under the digital dash can be pressed and

the scooter will function at a slow speed.

2. The “D” button located just under the digital dash can be pressed to

set 3 different speed functions.

-Press once for D1: Slow speed function

-Press twice for D2: Moderate speed function

-Press three times for D3: Fastest speed function

3. Always check you have selected the correct forward or reverse button

when about to drive. The reverse button is located below the dash.

When the reverse button is pressed the reverse light will iluminate

and the scooter will sound.

4. Always reduce your speed when making sharp turns.

5. Do not switch off the power when the scooter is still moving forward

Twist Throttle

To operate the twist throttle simply place your hand on the throttle and

twist the throttle towards you. The scooter speed is determined by how

much you turn the throttle.

Twist Throttle

Ramps and Curbs

1. Check that ramp surface is roughened to prevent slipping. Never drive

across a slope or turn sharply on a slope.

2. When driving up curbs, always check the height of the curb to ensure

that it does not exceed 4” height.

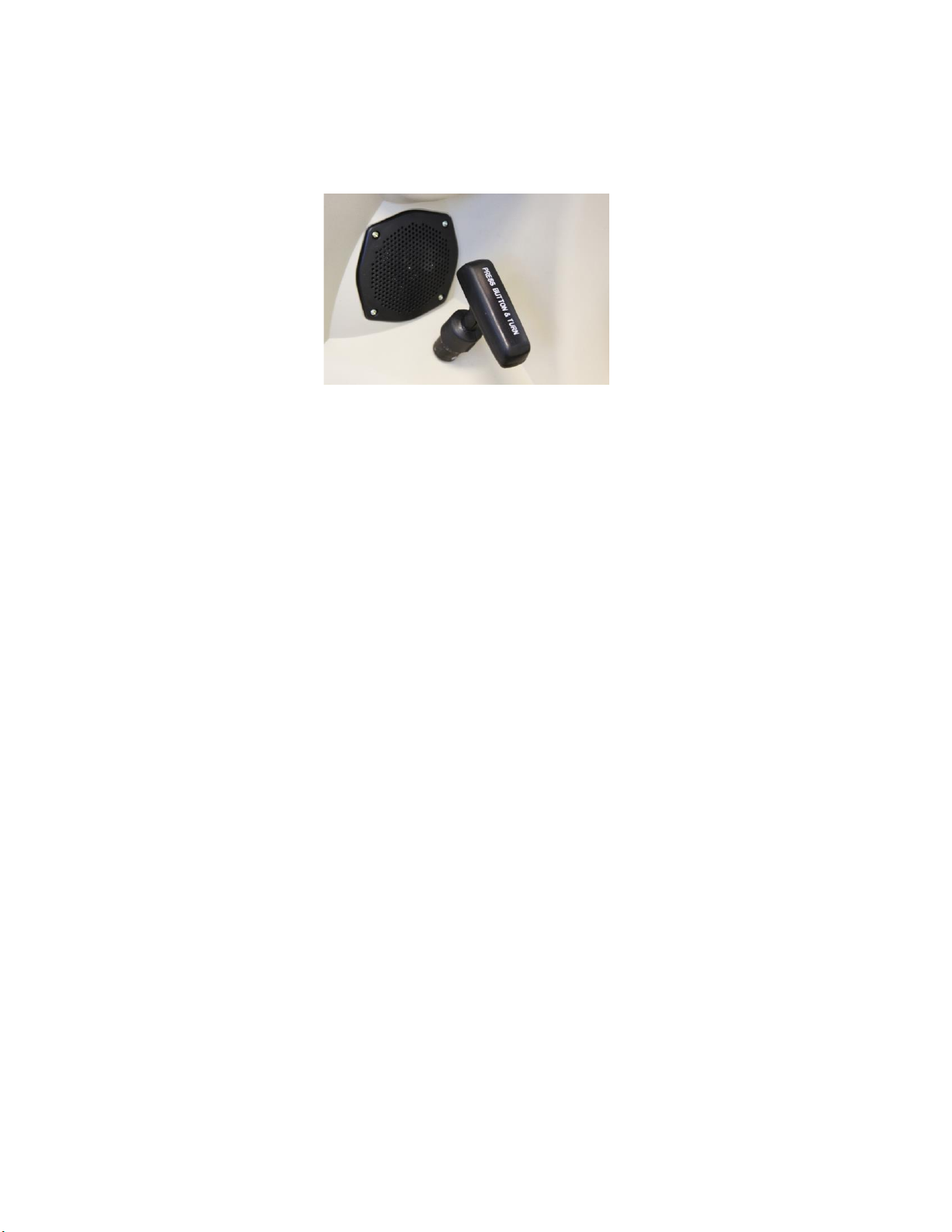

Emergency Brake Handle

To activate the emergency brake, first start by depressing the foot pedal to

alleviate tension from the brake lines. Keep the brake pedal depressed

while activating or releasing the emergency brake. Pull the handle out

towards you while the handle is in the vertical position to activate.

To deactivate, push the foot brake down again, and follow the instructions

on the handle "Push Button and Turn" while pushing the handle pack into

its housing.
