EVGA Z270 Stinger Manual de usuario

EVGA Z270 Stinger (111-KS-E272)

-1 -

User Guide

EVGA Z270 Stinger

Specs and Initial Installation

EVGA Z270 Stinger (111-KS-E272)

- 2 -

Table of Contents

User Guide ............................................................................................................... - 1 -

EVGA Z270 Stinger .................................................................................................. - 1 -

Specs and Initial Installation..................................................................................... - 1 -

Before You Begin… ................................................................................................. - 4 -

Parts NOT in the Kit ................................................................................................. - 5 -

Intentions of the Kit .................................................................................................. - 5 -

Motherboard ............................................................................................................. - 6 -

Motherboard Specifications...................................................................................... - 6 -

Unpacking and Parts Descriptions ........................................................................... - 9 -

Intel Z270 STINGER Motherboard LED reference ................................................ - 10 -

Intel Z270 STINGER Motherboard Component Legend ........................................ - 12 -

PCI-E Slot Breakdown ........................................................................................... - 21 -

M.2 and U.2 Slot Breakdown ................................................................................. - 21 -

Preparing the Motherboard .................................................................................... - 22 -

Installing the CPU .................................................................................................. - 22 -

Installing the CPU Cooling Device ......................................................................... - 23 -

Installing System Memory (DIMMs) ....................................................................... - 24 -

Installing the I/O Shield .......................................................................................... - 25 -

Installing the Motherboard...................................................................................... - 25 -

Securing the Motherboard into a System Case ..................................................... - 26 -

Installing M.2 devices ............................................................................................. - 28 -

Tested CPU and Memory ....................................................................................... - 31 -

Tested U.2 .............................................................................................................. - 33 -

Tested M.2 Key-M .................................................................................................. - 34 -

EVGA Z270 Stinger (111-KS-E272)

- 3 -

Tested M.2 Key-E .................................................................................................. - 34 -

Connecting Cables ................................................................................................. - 35 -

Clear CMOS Button ............................................................................................... - 44 -

First Boot ................................................................................................................ - 45 -

M.2 SSD, PCI-e SSD, and NVMe SSD Installation steps ...................................... - 47 -

Internal RAID Controller ......................................................................................... - 49 -

Fan Header DC and PWM setup ........................................................................... - 84 -

Realtek HD Audio Manager ................................................................................... - 88 -

Installing Drivers and Software ............................................................................ - 111 -

Windows 10/8/7 Driver Installation ....................................................................... - 111 -

Warranty and Overclocking .................................................................................. - 112 -

Troubleshooting ................................................................................................... - 113 -

Replacing a BIOS chip ......................................................................................... - 113 -

SSD / HDD is not detected................................................................................... - 116 -

Have a question not covered above, or want some online resources? ............... - 118 -

EVGA Glossary of Terms ..................................................................................... - 119 -

Compliance Information ....................................................................................... - 122 -

EVGA Z270 Stinger (111-KS-E272)

- 4 -

Before You Begin…

EVGA welcomes you to the next generation of Intel performance: the Z270

STINGER! The Z270 platform supports the newest Kaby Lake-S processors

and is backwards-compatible with existing Socket-1151 Skylake

processors. EVGA Z270 motherboards further refine high-performance with

multiple options for all the latest SSD options with support for U.2, M.2 and

PCI-E drives and is Intel®Optane™ Memory Ready – a revolutionary higher-

density memory interface, based on 3D Xpoint Technology, delivers a new

generation of SSDs designed to obliterate loading times for gamers. However,

the Z270 platform also supports all the features you’ve come to expect from

EVGA, including up to 32GBs of Dual-channel DDR4 memory at a maximum

memory speed of up to 3600MHz+ (OC), Gigabit-NIC support, USB 3.0 and

USB 3.1 Type-A and Type-C support, Intel HD Graphics, an updated

UEFI\BIOS GUI, PWM fan control to fit everyone’s needs. The Z270

STINGER is built with a 10-layer PCB, featuring a CPU socket with 150%

higher Gold content powered by an Advanced 5+1-phase Digital VRM (5

Phase VCore, 1 Phase Memory PWM), providing industry-leading stability for

all your applications.

Furthermore, this board is designed not ONLY for overclockers, but also for

SFF gamers with a x16slot for blazing-fast video, integrated Intel WiFi, an Intel

i219 NIC, M.2 type M, U.2, and much more!

Lastly, a motherboard is only as good as its BIOS, and the EVGA Z270

STINGER features an updated UEFI\BIOS GUI with a focus on overclocking

and functionality in a lean, straight-forward package. You won’t need to be an

expert to configure your motherboard, but if you are, you’ll find features

unavailable anywhere else. Combining the best of current technology with the

latest innovations, EVGA is further refining motherboard performance!

EVGA Z270 Stinger (111-KS-E272)

- 5 -

Parts NOT in the Kit

This kit contains all the hardware necessary to install and connect your new

EVGA Z270 STINGER Motherboard. However, it does NOT contain the

following items, which must be purchased separately in order to make the

system fully-functional and install an Operating System:

 Intel Socket 1151 Processor

 DDR4 System Memory

 CPU Cooling Device

 PCI Express Graphics Card

 Power Supply

 Hard Drive or SSD

 Keyboard / Mouse

 Monitor

 (Optional) Optical Drive

EVGA assumes you have purchased all the necessary parts needed to allow for

proper system functionality. For a full list of supported CPUs on this

motherboard, please visit www.evga.com/support/motherboard

Intentions of the Kit

When replacing a different model motherboard in a PC case, you may need to

reinstall your operating system, even though the current HDD/SSD may

already have one installed. Keep in mind, however, you may sometimes also

need to reinstall your OS after a RMA even if your motherboard remains the

same due to issues that occurred prior to replacing the motherboard.

EVGA Z270 Stinger (111-KS-E272)

- 6 -

Motherboard

Motherboard Specifications

 Size:

m-ITX form-factor of 6.7 inches x 6.7 inches (170.18x170.18mm)

 Microprocessor support:

Intel Socket 1151 Processor

 Operating Systems:

Supports Windows 10 / 8* / 7*

(*Dependant upon CPU support for Windows. Kaby Lake-S CPUs

**ONLY** support Windows 10. Skylake CPUs support Windows 10/8/7)

 Contains Intel Z270 chipset

 System Memory support:

Supports Dual channel DDR4 up to 3600MHz+ (OC).

Supports up to 32GB of DDR4 memory.

 USB 2.0 Ports:

2x from Intel Z270 PCH –2x internal via 1 FP headers

Supports hot plug

Supports wake-up from S3 mode

Supports USB 2.0 protocol up to a 480 Mbps transmission rate

 USB 3.0 Ports:

8x from Intel Z270 PCH –6x external, 2x internal via 1 FP header

Supports transfer speeds up to 5Gbps

Backwards compatible USB 2.0 and USB 1.1 support

 USB 3.1 Ports:

2x from Intel Z270 PCH –2x external, 1x Type C, 1x Type A

Supports transfer speeds up to 10Gbps

Backwards compatible USB 3.0, USB 2.0 and USB 1.1 support

*Type C will require a Type A adapter for backwards compatibility

EVGA Z270 Stinger (111-KS-E272)

- 7 -

 SATA Ports:

Intel Z270 PCH Controller

4x SATA 3/6G (600 MB/s) data transfer rate

- Support for RAID 0, RAID 1, RAID 5, AND RAID 10

- Supports hot plug

 Onboard LAN:

1x Intel i219v Gigabit (10/100/1000) Ethernet

 Onboard WiFi:

1x AzureWave AW-CB210NF-P WiFi with BT4.1

 Onboard Audio:

Realtek Audio (ALC1150)

Supports 8-channel (7.1) audio

Supports Optical Output

 PCI-E 3.0 Support:

Low power consumption and power management features

 Power Functions:

Supports ACPI (Advanced Configuration and Power Interface)

Supports S0 (normal), S3 (suspend to RAM), S4 (Suspend to disk - depends

on OS), and S5 (soft - off)

 PCI-Express Expansion Slots:

1x PCI-E x16 slot

 Additional Expansion Slots:

1x M.2 Key-M 80mm slot (on the back of the board) from PCH

1x M.2 Key-E slot from PCH

1x U.2 slot

 Integrated Video Out:

1x DP 1.2

1x HDMI 1.4

- Both driven by Intel HD Video integrated in the CPU

EVGA Z270 Stinger (111-KS-E272)

- 8 -

 Fan Headers:

1x 4-pin PWM controlled

2x 4-pin DC\PWM headers

- Each fan header can be selected in BIOS to share PWM profiles, or be

controlled by DC.

ALL FAN HEADERS HAVE A MAXIMUM POWER

LIMIT OF 1 AMP @ 12 VOLTS (12 WATTS)

EXCEDING THIS LIMIT WILL CAUSE

IRREPARABLE DAMAGE TO THE BOARD.

EVGA Z270 Stinger (111-KS-E272)

- 9 -

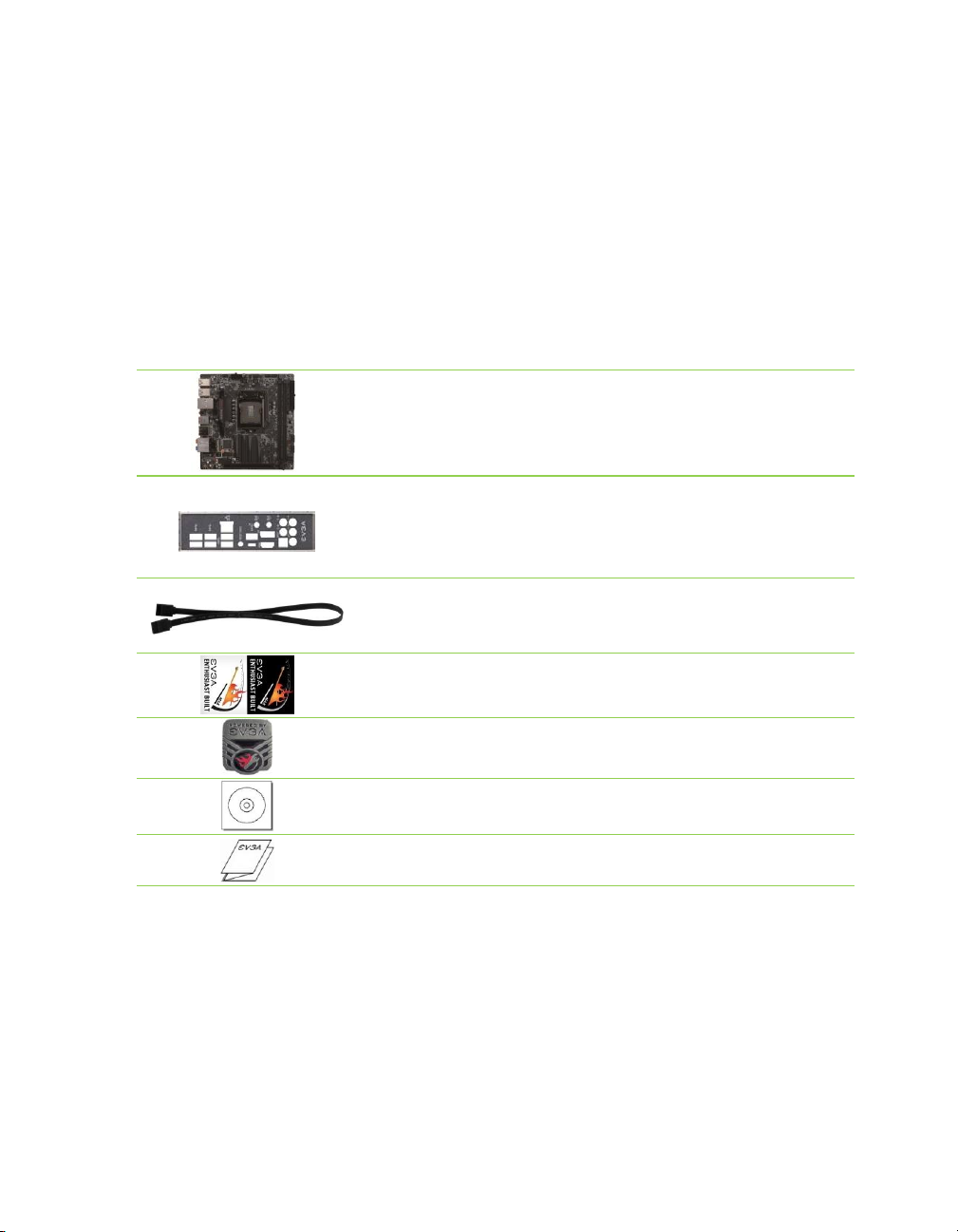

Unpacking and Parts Descriptions

The following accessories are included with the EVGA Z270 STINGER

Motherboard:

The EVGAZ270 Stinger Motherboard

This motherboard contains the Intel Z270 chipset.

I/O Shield

Installs in the system case to block radio frequency transmissions,

protect internal components from dust, foreign objects, and aids

in proper airflow within the chassis.

2x SATA 3G/6G Data Cables

Used to support the SATA protocol and each one connects a

single drive to the motherboard.

Labels and Decals

The included stickers and decals for EVGA Products*

Case Badge

EVGA enthusiast Case Badge*

Installation DVD

Contains drivers and software needed to setup the motherboard.

User Manual

The user manual you are reading right now!

* Decals, labels and case badges MAY vary over time, and the

images used are merely reflective of the decal/label/badge

designs typically included.

EVGA Z270 Stinger (111-KS-E272)

- 10 -

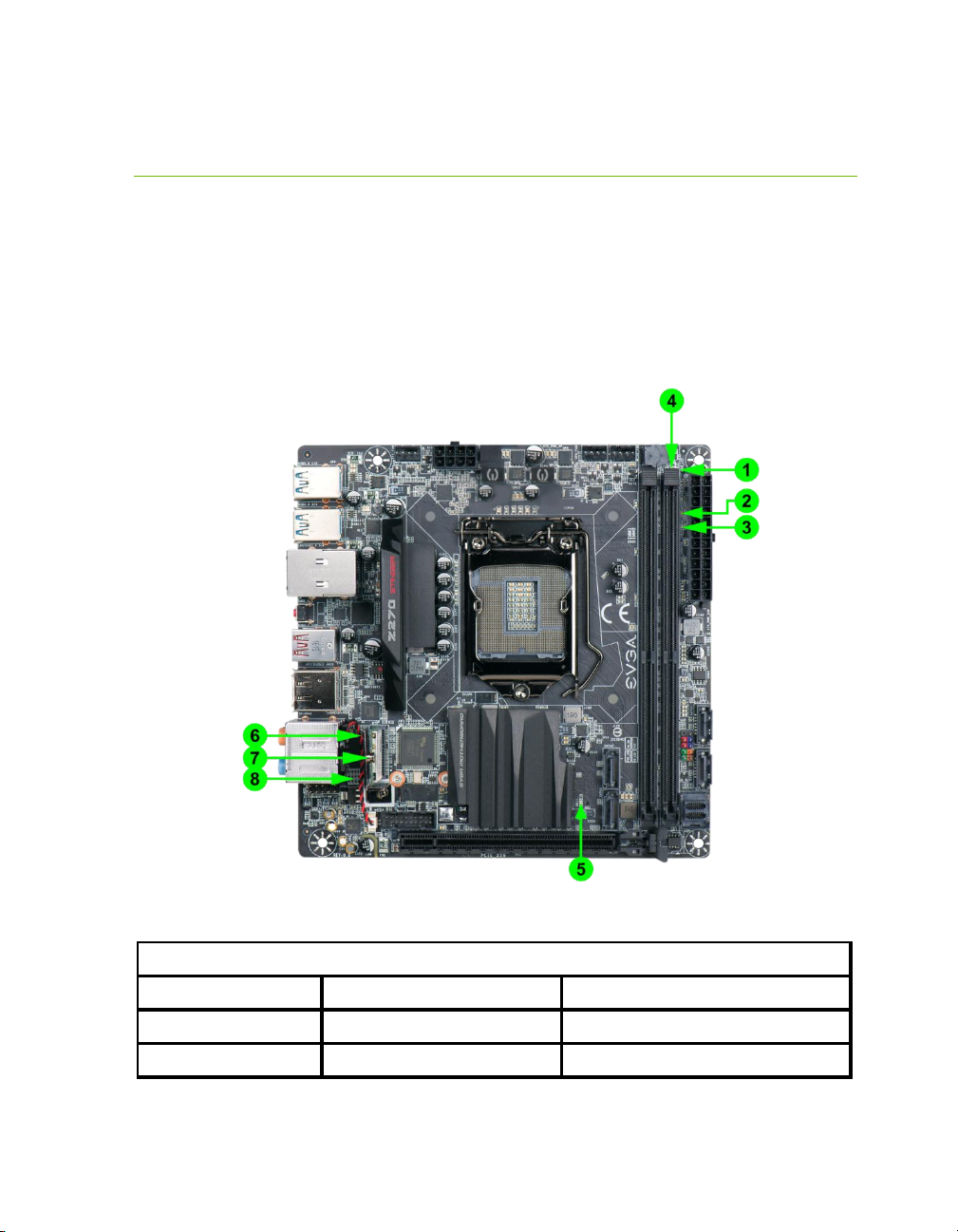

1. Remo vable BIOS LED 4. VSM 7. M .2 Key-E Activity (WiFi)

2. 5VSB 5. M .2 Key-M Activity 8. Backlit/Shielded Audio Trace

3. VCC 6. M .2 Key-E Activity (B luetooth) 9. Backlit/Shielded Audio Trace (BACK)

LED Legend

Intel Z270 STINGER Motherboard LED

reference

The EVGA Z270 STINGER Motherboard has several LEDs indicating power,

connectivity, and activity. Below is the location of the LEDs and their function.
