EVGA X58 SLI LE Manual de usuario

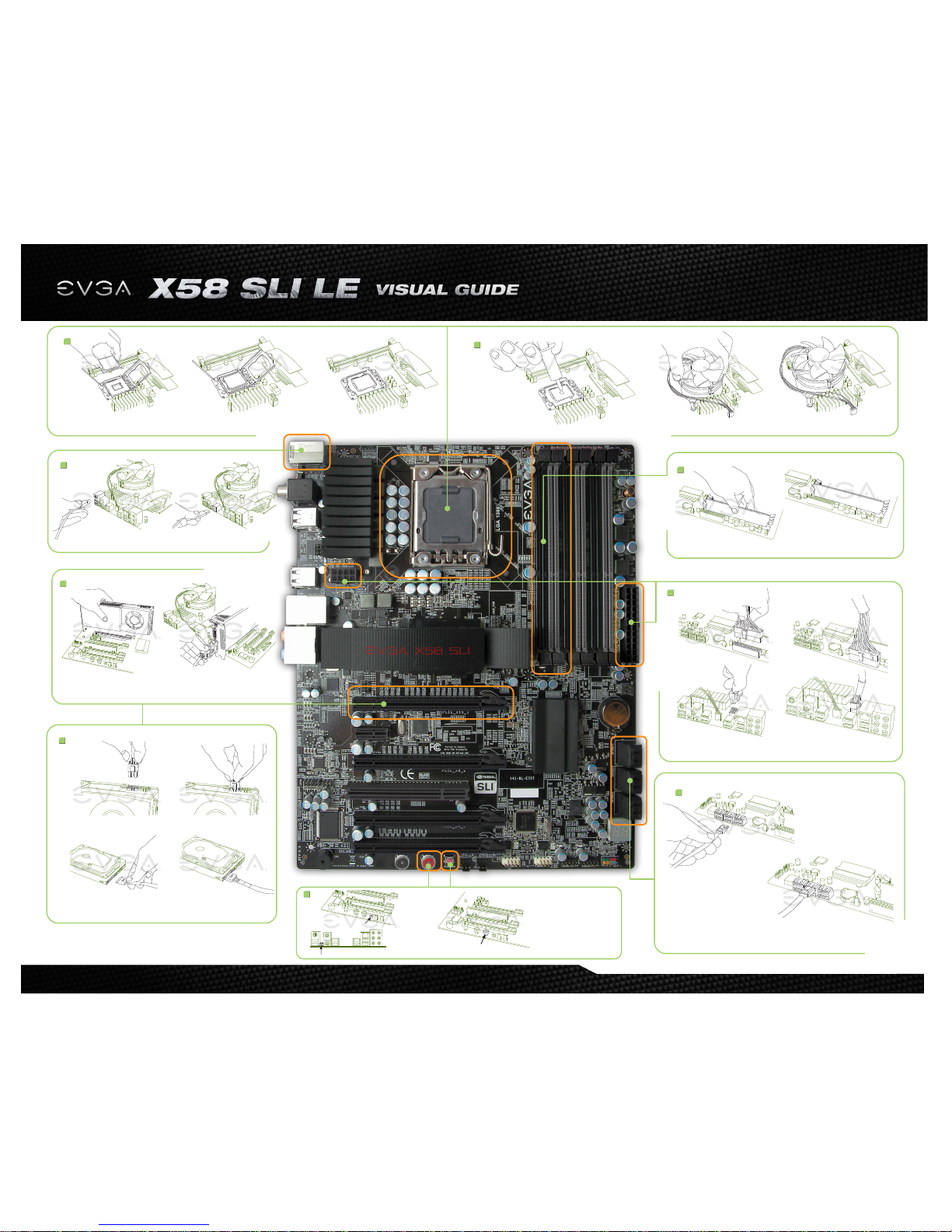

The following quick steps will guide you through testing the absolute bare minimum essentials of your motherboard

before installing it into a system chassis. Visual aids are provided to assist you during the following procedures.

To reduce the risk of fire, electric shock, and injury always follow basic safety precautions. It is recommended that you use

electrostatic discharge (ESD) countermeasures such as an ESD wrist strap or anti-static mat when handling computer components.

After removing the EVGA X58 SLI®LE from its packaging, place it on to a nonconductive surface. For example: wood, cardboard box,

or an anti-static mat.

Unhook the socket lever and lift up the load plate. Remove the 1366 protective cover and carefully install your Intel processor making sure to properly align the notches.

Close the load plate and with light pressure, lower the socket lever back in to its original position.

a. b.

a. b. c.

a. b.

c. d.

Apply a small, pea-sized drop of thermal paste on to the middle of the processor. Install your processor heatsink and fan.

Install one stick of system memory (DIMM) into the appropriate DIMM slot (see other side).

Plug in one keyboard into a USB port or PS/2 port.

Make sure your power supply’s power switch is in the OFF position then connect your 24-Pin ATX Power Connector

and 8-Pin CPU Power Connector to the motherboard.

On the power supply, flip the power

switch to the ON position. LEDs will

now be lit on the motherboard. Press

the onboard Clear CMOS button once

then press the red Power Button to

begin powering up the system.

Press the onboard Clear CMOS button Press the red Power Button

At this final stage, you should now be

greeted with the POST screen on

your monitor.

Connect one hard drive disk to either one of the SATA Connectors.

SATA Connection

a. b.

c. d.

Insert your graphics card into either the PCI-E 2.0 slot or the PCI slot. The type of slot depends on the graphic card

bus type. Connect a monitor to the output connector of the graphics card.

Plug in power connectors to both the graphics card and the hard disk drive. Power connector types will vary

depending on the hard disk drive and graphic card’s power requirements.

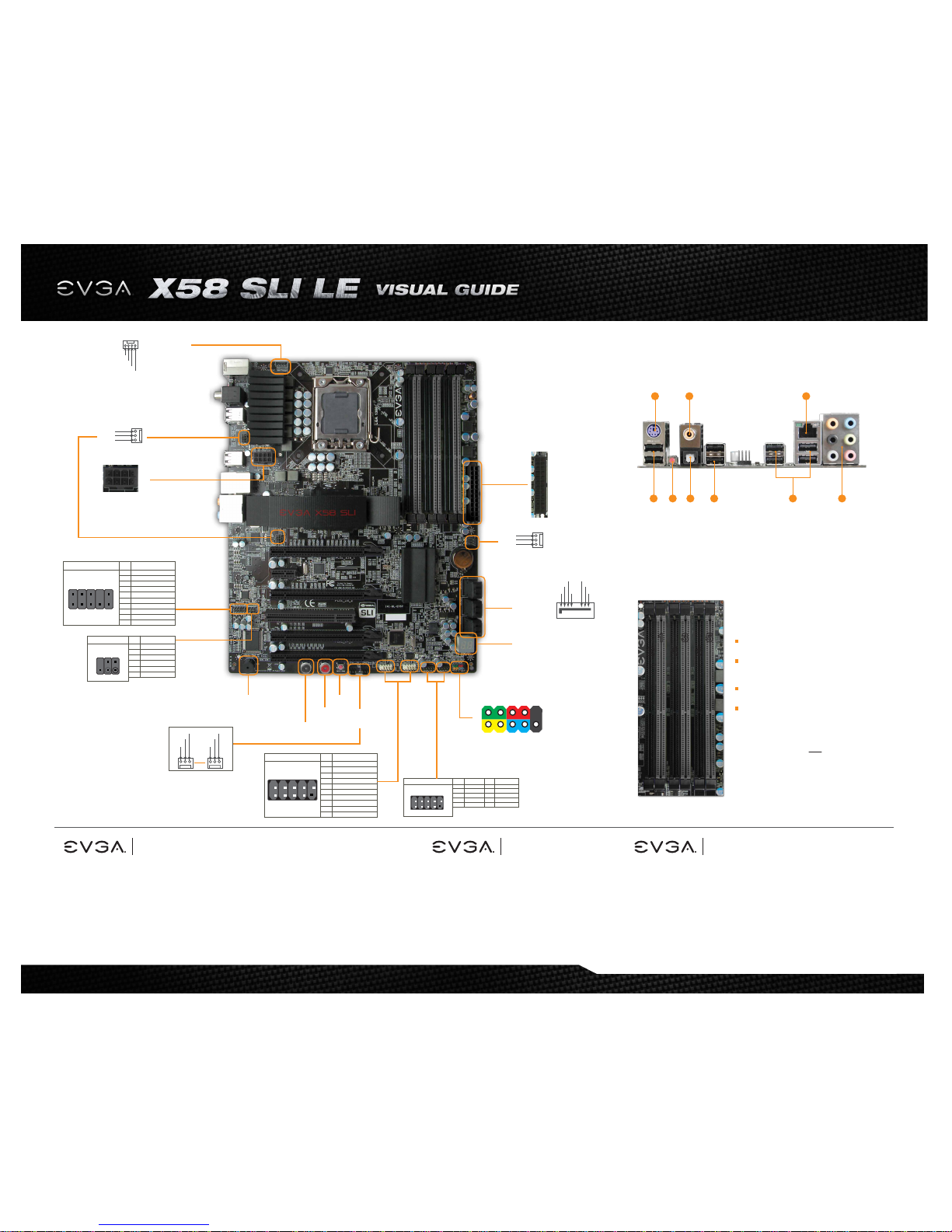

24 Pin ATX Power

Post LED

Fan Header

SATA Ports

GND GND GND

RX+

TX-

TX+

RX-

PC Speaker CMOS

Reset

Button

Power

Button Fan

Header

8 Pin 12v Power

CPU Fan Header

EVGA Corp. 2900 Saturn Street, Suite B Brea, CA 92821

Connector

USB 2.0 Header Connector

SignalPin

5V_DUAL

D-

D+

GND

Empty

5V_DUAL

D-

D+

GND

No Connect

SignalPin

Connector

Front Audio Connector

SignalPin

PORT1_L

AUD_GND

PORT1_R

PRECENCE J

PORT2_R

SENSE1_RETURN

SENSE_SEND

Empty

PORT2_L

SENSE2_RETURN

Connector

IEEE 1394a Connector

SignalPin

TPA+

TPA-

GND

TPB+

TPB-

+12V

Empty

GND

Connector

SPDIF

DefinitionPin

Power

No Pin

SPDIF

SPDIFI

GROUND

2 4

1 3

Please see the manual for more details.

ATTENTION:

EVGA recommends applying 1.65V or less when

setting the DIMM Voltage. This will support long

term stability.

PWRLED PWRSW Blank

HD_LED RESET No

Connect

+ -

1. PS/2 Keyboard Port

2. USB 2.0 Ports

3. Clear CMOS

4. Coaxial SPDIF Output

5. Optical SPDIF Output

6. LAN Ports (10/100/1000)

7. Audio Ports

2 4

One DIMM: If using 1 DIMM (Single Channel),

install into: DIMM slot 1.

Two or Four DIMMs: If using 2 DIMMs (Dual Channel),

install into: DIMM slots 1 and 3. If using 4 DIMMs

(Dual Channel), install into: DIMM slots 2, 1, 4, and 3.

Three DIMMs: If using 3 DIMMs (Triple Channel),

install into: DIMM slots 1, 3, and 5.

Six DIMMs: If using more than 4 DIMMs, use:

DIMM slots 2, 1, 4, and 3 then proceed to occupy

the following DIMM slots in this order: 5 and 6.

Ground

12V

Sense

Ground

12V

Sense

Control

Ground

12V

Sense

Ground

12V

Sense

Ground

12V

Sense

24/7 Support

888 ●881●EVGA *27/7 North America only

www.evga.com/24-7

Thank you for purchasing an EVGA product.

Please remember to register your product at:

www.evga.com/register

For the latest drivers and updates for your

product please visit:

www.evga.com/support/drivers

To visit and search our knowledge base and

product FAQ please visit:

www.evga.com/FAQ

To visit the EVGA community message

boards please visit:

forums.evga.com

For more information about these services

as well as our terms and conditions please visit

www.evga.com

SupportPremium Services Software

Advanced RMA:

Protect yourself and accelerate the RMA process.

www.evga.com/EAR

1+1 Warranty:

2 year warranty.

www.evga.com/warranty

MODS RIGS:

Show off your rig, post your specs, submit your score,

and win big.

www.modsrigs.com

E-LEET:

Easily push the boundaries of your hardware with this

exclusive tuning utility.

www.evga.com/eleet

2 3 5 2 7
