ENVR8304D-8CH

8-Channel Plug & Play NVR

Quick Installation Guide

Release Date: November, 2013

Notice: This content is subject to be changed without notice.

ENVR8304D-8CH

1. Introduction

EverFocus all new NVR Solution, targeting small-scale installations such as homes and small

businesses, will also be placed under the spotlight. With true plug-and-play setup and real-time

local display up to Full HD resolution, the Linux-embedded solution works just like a NVR but

without the need for those complicated network settings that would be otherwise required

with conventional NVR systems.

Featuring a standalone network video recorder up to 8 channels, along with a series of NVR

EverFocus megapixel cameras, the NVR Solution offers a complete system kit that can be easily

installed in a matter of minutes. There is no need to purchase extra computers or software to

operate the system.

When paired with our powerful EverFocus PowerVideo Plus CMS, the ENVR8304D-8CH can be

used in complex multi-site installations with centralized management. The ENVR8304D-8CH is

also fully supported by the EverFocus MobileFocus remote viewer on iOS and Android devices,

which help extend video surveillance from fixed locations to mobile environments.

System Requirements

Before installing, please check that your computer meets the following system requirements.

Operating System

Windows XP (32-bit) / Win7 (32 and 64-bit)

CPU

Intel Core 2 Duo, 2.6GHz

RAM

2GB

VGA

AGP or PCI-Express, 800x600 (1280x1024 recommended), 32-bit

color

LAN Speed

10 / 100 / 1000 Mbps (RJ45)

Web Browser

Windows (IE 8, 9, 10, Chrome, Firefox, Safari), MAC (TBD)

Other Remote

Application

1. EverFocus’ CMS: Power Video Plus (Windows AP)

2. EverFocus’ mobile app: MobileFocus for iOS and Android devices

MobileFocusHD for iPad

ENVR8304D-8CH

IP Camera Support List

Model Camera NVR

Firmware Codec Audio PTZ

Multi-s

tream Type Power Consumption

Firmware 12 VDC PoE PoE Type

EAN3300 V.1.2.2 V1.0.0 H.264

O X O Box 5W 5.36W

802.3af

Class 3

EAN3220 V.1.2.2 V1.0.0 H.264

O X O Box 5W 5.22W

802.3af

Class 3

EAN3120 V.1.2.2 V1.0.0 H.264

O X O Box 5W 6.21W

802.3af

Class 3

EDN3340 V.1.2.2 V1.0.0 H.264

O X O Indoor Dome

7.44W 8.45W

802.3af

Class 0

EDN3260 V.1.2.2 V1.0.0 H.264

O X O Indoor Dome

8.7W 9.73W

802.3af

Class 0

EDN3160 V.1.2.2 V1.0.0 H.264

O X O Indoor Dome

8.16W 9.22W

802.3af

Class 0

EHN3340 V.1.2.2 V1.0.0 H.264

O X O

Outdoor

Dome 10.08W 12.28W

802.3at

Class 4

EHN3260 V.1.2.2 V1.0.0 H.264

O X O

Outdoor

Dome 11.1W 13.76W

802.3at

Class 4

EHN3160 V.1.2.2 V1.0.0 H.264

O X O

Outdoor

Dome

10.56W 13.11W

802.3at

Class 4

EDN1320 V.1.2.2 V1.0.0 H.264

O X O Mini Dome 12W 4.8W

802.3af

Class 3

EDN1220 V.1.2.2 V1.0.0 H.264

O X O Mini Dome 12W 5.28W

802.3af

Class 3

EDN1120 V.1.2.2 V1.0.0 H.264

O X O Mini Dome 12W 4.32W

802.3af

Class 3

EHN1320 V.1.2.2 V1.0.0 H.264

O X O

Mini Rugged

Dome

7.5W

(10-36 VDC) 5.9W

802.3af

Class 3

EHN1220 V.1.2.2 V1.0.0 H.264

O X O

Mini Rugged

Dome

7.5W

(10-36 VDC) 6.2W

802.3af

Class 3

EHN1120 V.1.2.2 V1.0.0 H.264

O X O

Mini Rugged

Dome

7.5W

(10-36 VDC) 4.8W

802.3af

Class 3

EMN2320 V.1.0.1 V1.0.0 H.264

O X O Mini Dome

7.5W

(10-36 VDC)

5.9W

802.3af

Class 3

EMN2220 V.1.0.1 V1.0.0 H.264

O X O Mini Dome

7.5W

(10-36 VDC)

6.2W

802.3af

Class 3

EMN2120 V.1.0.1 V1.0.0 H.264

O X O Mini Dome

7.5W

(10-36 VDC) 4.8W

802.3af

Class 3

EZN3340 V.1.2.2 V1.0.0 H.264

O X O Bullet 8W 11.5W

802.3af

Class 3

EZN3260 V.1.2.2 V1.0.0 H.264

O X O Bullet 9W 12.85W

802.3af

Class 3

EZN3160 V.1.2.2 V1.0.0 H.264

O X O Bullet 9W 12.25W

802.3af

Class 3

ENVR8304D-8CH

EPN4222 V.1.0.9 V1.0.0 H.264

O O O Speed Dome

37.12W

(24 VAC) X X

EPN422i V.1.0.9 V1.0.0 H.264

O O O Speed Dome

37.12W

(24 VAC)

X X

EPN4222p V.1.0.9 V1.0.0 H.264

O O O Speed Dome X 24W

802.3af

Class 4

EPN4222pi V.1.0.9 V1.0.0 H.264

O O O Speed Dome X 24W

802.3af

Class 4

EPN4220 V.1.0.9 V1.0.0 H.264

O O O Speed Dome

30W

(24 VAC) X X

EPN4220i V.1.0.9 V1.0.0 H.264

O O O Speed Dome

30W

(24 VAC) X X

EPN4122 V.1.0.9 V1.0.0 H.264

O O O Speed Dome

30W

(24 VAC) X X

EPN4122i V.1.0.9 V1.0.0 H.264

O O O Speed Dome

30W

(24 VAC) X X

ENVR8304D-8CH

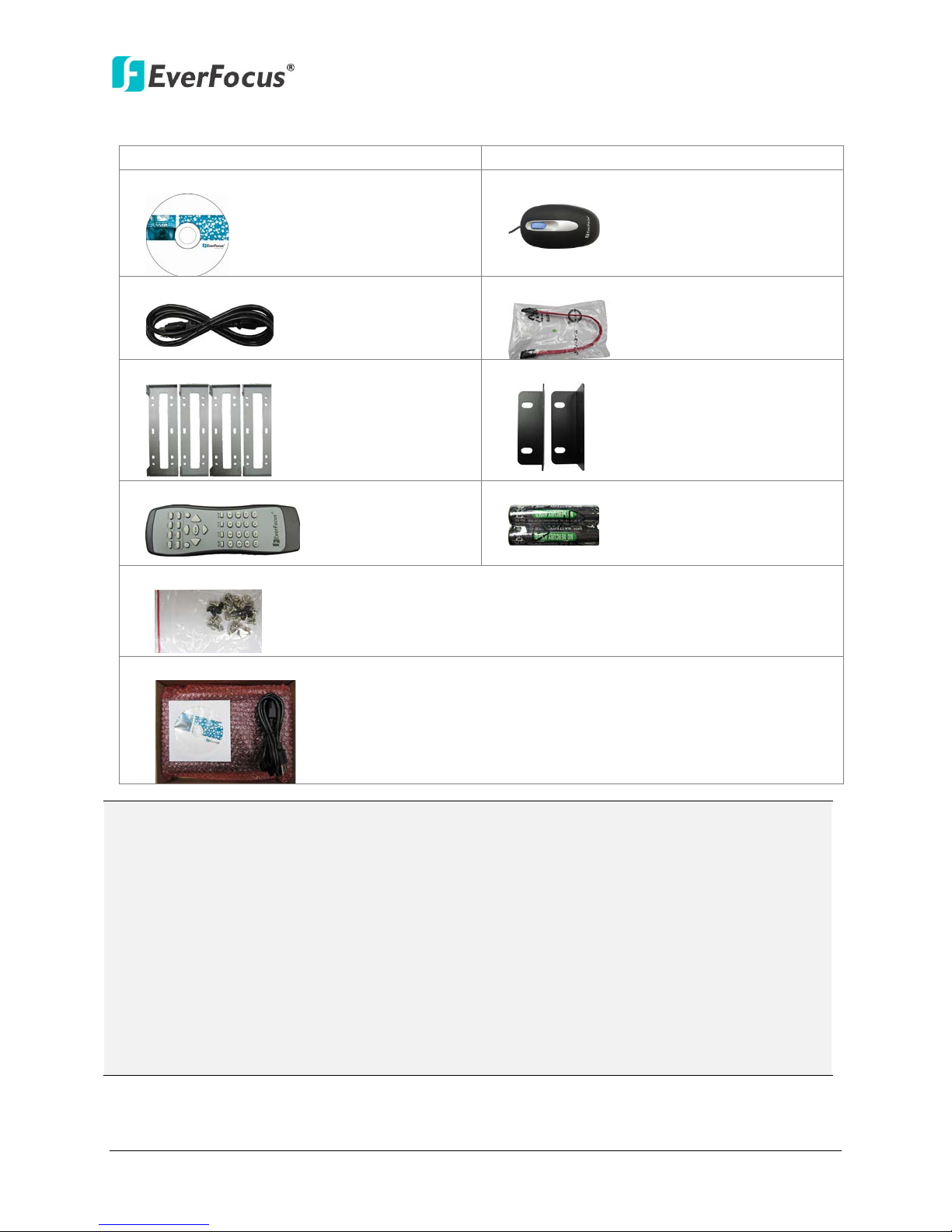

Packing List

•

ENVR8304D-8CH x 1

•

User Manual x 1

•

CD x 1 (Please see Note 3.)

•

Mouse x 1

•Power Cord x 1

•SATA Cable x 4

•

HDD Bracket x 4

•

Rack Ear x 2

•IR Remote Control x 1

•AAA Battery x 2 (Please see Note 4.)

•

Sliver Screw x 16, Washer Head Screw x 8, M3 (φ6.8) Screw x 4

•

NVR Smart Switch x 1, Power Cord x 1, CD x 1 (Please see Note 5.)

Note:

1. Equipment configurations and supplied accessories vary by country. Please consult your

local EverFocus office or agents for more information. Please also keep the shipping

carton for possible future use.

2. Contact the shipper if any items appear to have been damaged in the shipping process.

3. The CD contains the IP Utility software, User Manual and Quick Installation Guide.

4. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries

according to the instructions.

a. Use only two AAA dry cell batteries.

b. Do not dispose of the batteries in a fire as it may explode.

5. These three items are packed in a box, and the CD contains the User Manual of the NVR

Smart Switch.

ENVR8304D-8CH

Optional Accessories

•

EKB200 (USB controller keyboard: connect

to the PC to control the PTZ cameras

connected to the NVR).

•

EKB500 (RS-485 keyboard: connect to the

RS-485 port to control the PTZ cameras

connected to the NVR).

•

EDA450 (eSATA Storage Device: connect to

the eSATA port of the ENVR8304D-8CH).

Front Panel

1678

234

No. Name Description

1 Power Indicates the power is on.

2 REC Indicates the NVR is recording.

3 LAN Indicates the NVR is connected to the network.

4 Alarm Indicates an alarm input is triggered.

5 HDD1~4 Separately indicates the internal HDD 1~4 is activating.

6 eSATA Indicates the external HDD is activating.

7 IR Receiver Receiver for signals from the IR remote control.

8 USB1 / USB2 USB2.0 ports for connecting to a mouse, external storage device,

or EKB200 keyboard.

ENVR8304D-8CH

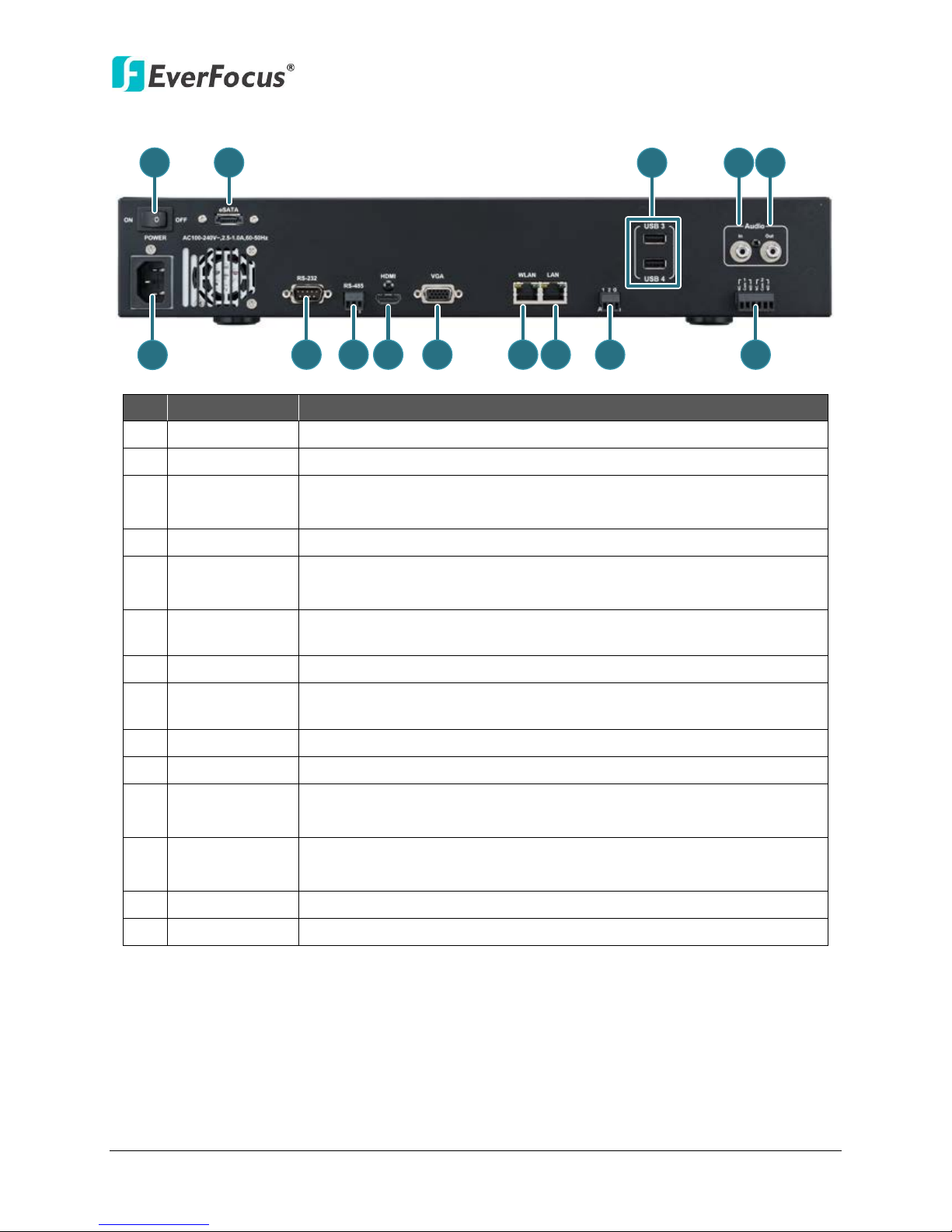

Rear Panel

12345

678910 11 13 14

No. Name Description

1 Power Press to turn On / Off the NVR.

2 eSATA Port Connects to an external eSATA storage device. (EDA450)

3 USB3 / USB4 The USB2.0 ports for connecting to a mouse, external storage

device or EKB200 keyboard.

4 Audio Input Connects to the audio input devices.

5 Audio Output Connects to the audio output devices, such as speakers. Note that

the speakers with amplifier are required.

6 Power Port

Connects to the 100-240 VAC~ power using the supplied Power

Cord.

7 RS-232 Port Connects to the RS-232 device.

8 RS-485 Port

Connects to the RS-485 device, such as EverFocus’ EKB-500

keyboard.

9 HDMI Port Connects to the Main monitor using a HDMI cable.

10 VGA Port Connects to the Main monitor using a VGA cable.

11 WLAN Connects to the network using a standard RJ-45 CAT5 10/100Mb

Ethernet cable.

12 LAN Connects to a PoE device using a standard RJ-45 CAT5 10/100Mb

Ethernet cable.

13 Alarm Input Connects up to 2 alarm inputs.

14 Alarm Output Connects to 2 alarm output devices.

ENVR8304D-8CH

2. Installation

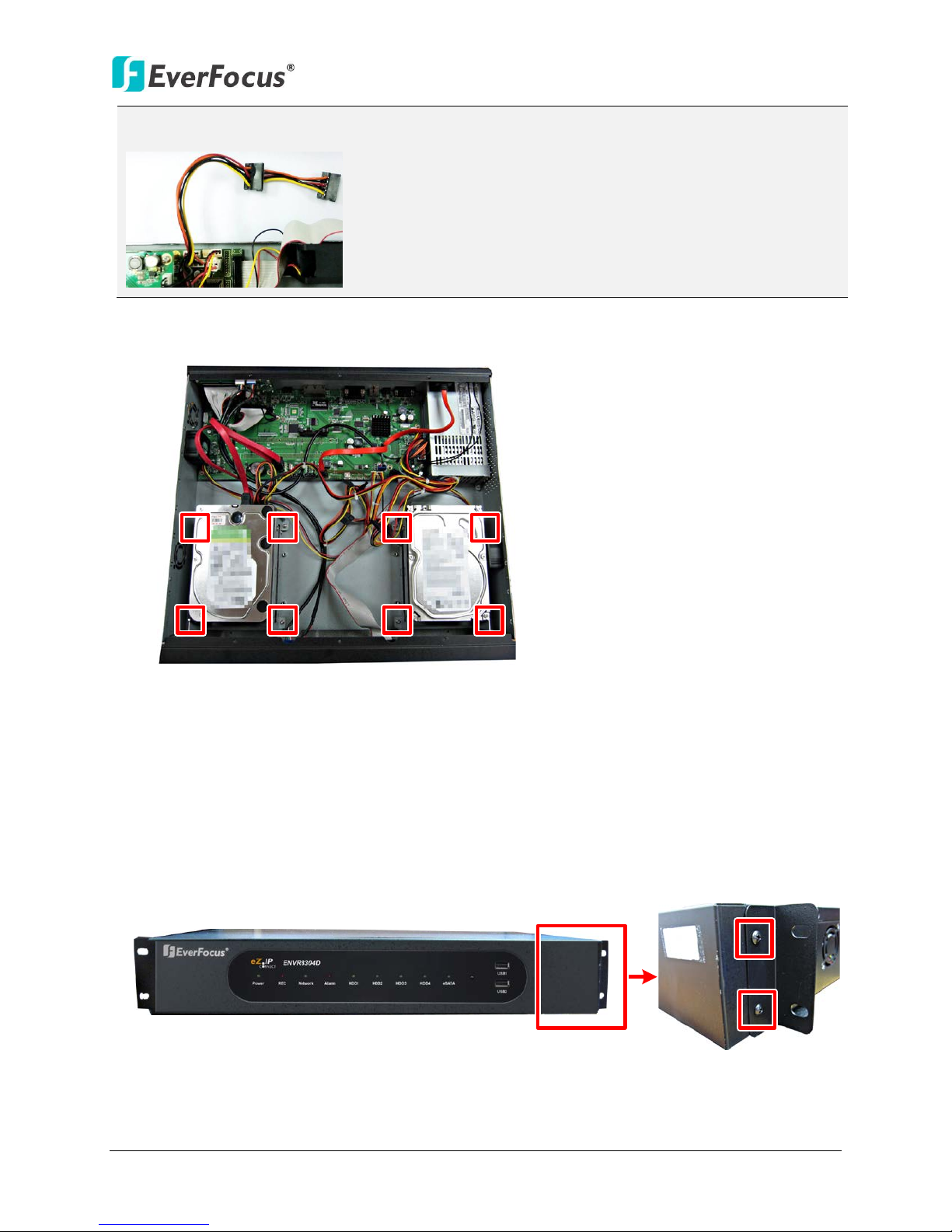

2.1 Hard Disk Drive Installation

1. Make sure the NVR is power-off.

2. Unscrew the ten housing screws on the NVR, and open the housing.

3. Screw two HDD brackets on both sides of the HDDs using the Sliver Screws.

Silver Screw

HDD Bracket

4. Use the SATA Cable, and connect one end to the SATA port on the small PCB inside the

NVR, and the other end to the SATA port on the HDD.

5. Connect the internal power cable to the HDD.

ENVR8304D-8CH

Note: The internal power cable is connected to the Main board inside the NVR. The power

cable features two connectors, which can be used to connect to two HDDs.

6. Screw the HDDs with the brackets inside the NVR using the Washer Head Screws.

7. Screw back the housing to the NVR.

2.2 Rack Mount

To install rack ears on the NVR, use the supplied two Rack Ears and the four M3 (φ6.8) Screws

for rack mount installation on both side.

ENVR8304D-8CH

3. Basic Connection

The instructions below describe the basic connection for ENVR8304D-8CH

Power Supply

Line Level

Audio In

Line Level

Audio Out

Main Monitor

(HDMI)

Main Monitor

(VGA)

Web Remote

Client

PowerVideo Plus

(CMS)

NVR Smart Switch

Mouse &

EKB200 Keyboard

IP Cameras 1 ~ 8

Network

EVNR8304D-8CH

1. Using the supplied Power Cord, connect one end to the 100-240 VAC~ port on the NVR and

the other end to the 100-240 VAC~ power outlet.

2. To view videos, connect a monitor to the HDMI or VGA port using the HDMI or VGA cable

supplied by the monitor manufacturer.

3. To manage the NVR over network, use a standard RJ-45 CAT5 10/100Mb Ethernet cable to

connect the WLAN port of the NVR to the network. Please refer to 2.5 Connecting the NVR to

the Network of your User’s Manual.

4. Connect the LAN port of the NVR to a PoE device using a standard RJ-45 CAT5 10/100Mb

Ethernet cable. Please see 2.3.1 Camera Connection of your User’s Manual for more details.

5. Connect the IP cameras to the 1~8 camera ports at the rear of the PoE switch using Ethernet

cables without separate power sources. Please see 2.3.1 Camera Connection of your User’s

Manual for more details.

6. Optionally connect a mouse or a keyboard (EKB200) to the NVR to control the system. You

can also control the system using the supplied IR Remote Controller.

7. Connect the audio input devices to the NVR.

8. To listen to audio of video source, connect speakers to the Audio Out port. Note that

speakers with amplifier are required.
