EverFocus EDSR400M Manual de usuario

EDSR400M

INSTRUCTION MANUAL

Mobile Digital 4-Channel Video Recorder

About this manual

Before installing and using this unit, please read this Manual carefully.

Be sure to keep it handy for later reference.

V1.0

WARNING

TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Note:

This equipment has been tested and found to comply with the limits for a Class A digital device,

The changes or modifications not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment.

Notice:

The information in this manual was current when published. The manufacturer

reserves the right to revise and improve its products. All specifications are

therefore subject to change without notice.

Safety Warning

Note:

This is a class A product. In a domestic environment this product may cause radio interference

In which case the user may be required to take adequate measures.

Refer all work related to the installation of this product to qualified service

personnel or system installers.

Do not block the ventilation opening or slots on the cover.

Do not drop metallic parts through slots.This could permanently damage

the appliance. Turn the power off immediately and contact qualified service

personnel for service.

Do not attempt to disassemble the appliance.To prevent electric shock,

do not remove screws or covers. There are no user-serviceable parts

inside. Contact qualified service personnel for maintenance. Handle the

appliance with care. Do not strike or shake, as this may damage the

appliance.

Do not expose the appliance to water or moisture, nor try to operate it in

wet areas. Do take immediate action if the appliance becomes wet.

Turn the power off and refer servicing to qualified service personnel.

Moisture may damage the appliance and also cause electric shock.

Do not use strong or abrasive detergents when cleaning the appliance

body. Use a dry cloth to clean the appliance when it is dirty. When the

dirt is hard to remove,use a mild detergent and wipe gently.

Do not overload outlets and extension cords as this may result in a risk of

fire or electric shock.

Do not operate the appliance beyond its specified temperature, humidity

or power source ratings. Do not use the appliance in an extreme

environment where high temperature or high humidity exists. Use the

appliance at temperature within indoor type DVR for 0oC ~ +40oC / outdoor

type DVR for 0oC ~ +50oC.

The input power source for this appliance is DC12~24V

Safety Precautions

The exclamation point within an equilateral triangle is

intended to alert the user to presence of important operating

and maintenance(servicing)instructions in the literature

accompanying the appliance.

Warning :

To prevent fire or shock hazard, do not expose units not

specifically designed for others use to rain or moisture.

Safety Precautions

The lightning flash with an arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the presence

of uninsulated ” dangerous voltage” within the product’s enclosure

that may be of sufficient magnitude to constitute a risk of electric

shock to persons

Attention:

Installation should be performed by qualified service personnel only

in accordance with the National Electrical Code or applicable local codes.

Power Disconnect:

Units with or without ON-OFF switches have power supplied to the unit

whenever the power code is inserted into the power source; however, the

unit is operational only when the ON-OFF switch is in the ON position.

The power cord is the main power disconnect for all units.

External Power Supplies

Use only the recommended power supplies.

Power supplies must comply with the requirement of

the latest version of IEC 60065/CNS 13439. Substitutions

may damage the unit or cause a fire or shock hazard

DC12~24V Power Cords

DC12~24V power cords

Warning:

Electrostatic-sensitive device. Use proper

CMOS/MOSFET handing precautions to avoid

electrostatic discharge.

Safety Precautions

Do not place on uneven or unstable work surfaces.

Seek servicing if the casing.

Important Safeguards

Read Instruction---All the safety and operating instructions should be read before the init is operated

Retain Instructions---The safety and operating instructions should be retained for future reference.

Heed Warnings—All warnings on the unit and in the operating instructions should be adhered to.

Follow Instructions—All operating and use instructions should be followed

Cleaning—Unplug the unit from the outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.

Use a damp cloth for cleaning

Attachments—Do not use attachment not recommended by the product manufacturer as they may cause hazards.

Water and Moisture—Do not use this unit near water, in a wet basement may result in a risk of fire or electric shock.

Servicing—Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous

voltage or other hazards. Refer all servicing to qualified service personnel or with the technician of the vehicle-related

Before installation.

Power Cord Protection—Power supply cords should be routed so that they are not likely to be walked on or pinched by

items placed upon or against them, playing particular attention to cords and plugs, convenience receptacles, and the point

where they exit from the appliance.

Object and Liquid Entry—Never push objects of any kind into this unit through openings as they may touch dangerous

voltage points or short-out parts that could result in a fire or electric shock, Never spill liquid of any kind on the unit.

Important Safeguards

Important Safeguards and Warnings before Installation

For Mobile Digital Single Channel Video Recorder (single HDD)

While the DVR is connected to the 12VDC battery of the vehicle, the limited electric current is 3.0 amps with a normal

electric current between 1.5~1.0 amps.

While the DVR is connected to the 24VDC battery of the vehicle, the limited electric current is 1.5 amps with a normal

electric current between 0.7~1.0 amps.

For Mobile Digital Four Channel Video Recorder (single HDD)

While the DVR is connected to the 12VDC battery of the vehicle, the limited electric current is 3.5 amps with a normal

electric current between 1.5~2.0 amps.

While the DVR is connected to the 24VDC battery of the vehicle, the limited electric current is 1.6 amps with a normal

electric current between 0.7~1.0 amps.

During installation, it is important to note that the power supply for the DVR should be directly connected to the

vehicle battery. Utilize a 5 - 10 amp fuse and only qualified power material designed specifically for the vehicle for best

results.

Never connect the unit directly to the power source as a high voltage surge may damage both the DVR and the vehicle.

The EP2026A is equipped with electronic surge protection (up to 470V) to help protect the unit from damage.

It is advised to operate the DVR while the car is running to minimize the power drain on the vehicle battery. Inspect the

vehicle battery prior to installation to ensure maximum performance of your DVR.

Please use 160G Maxtor Hard Disk Drives with 3.5" Hard Disk DVRs

Please use 40G or 60G HITACHI Hard Disk Drives with 2.5" Hard Disk DVRs

To minimize the risk of an electrical fire, it is very important to monitor the power range and electrode,

while the LCD monitors and cameras are both connected to the DVR.

Important Safeguards

Support

Suspend

Interface

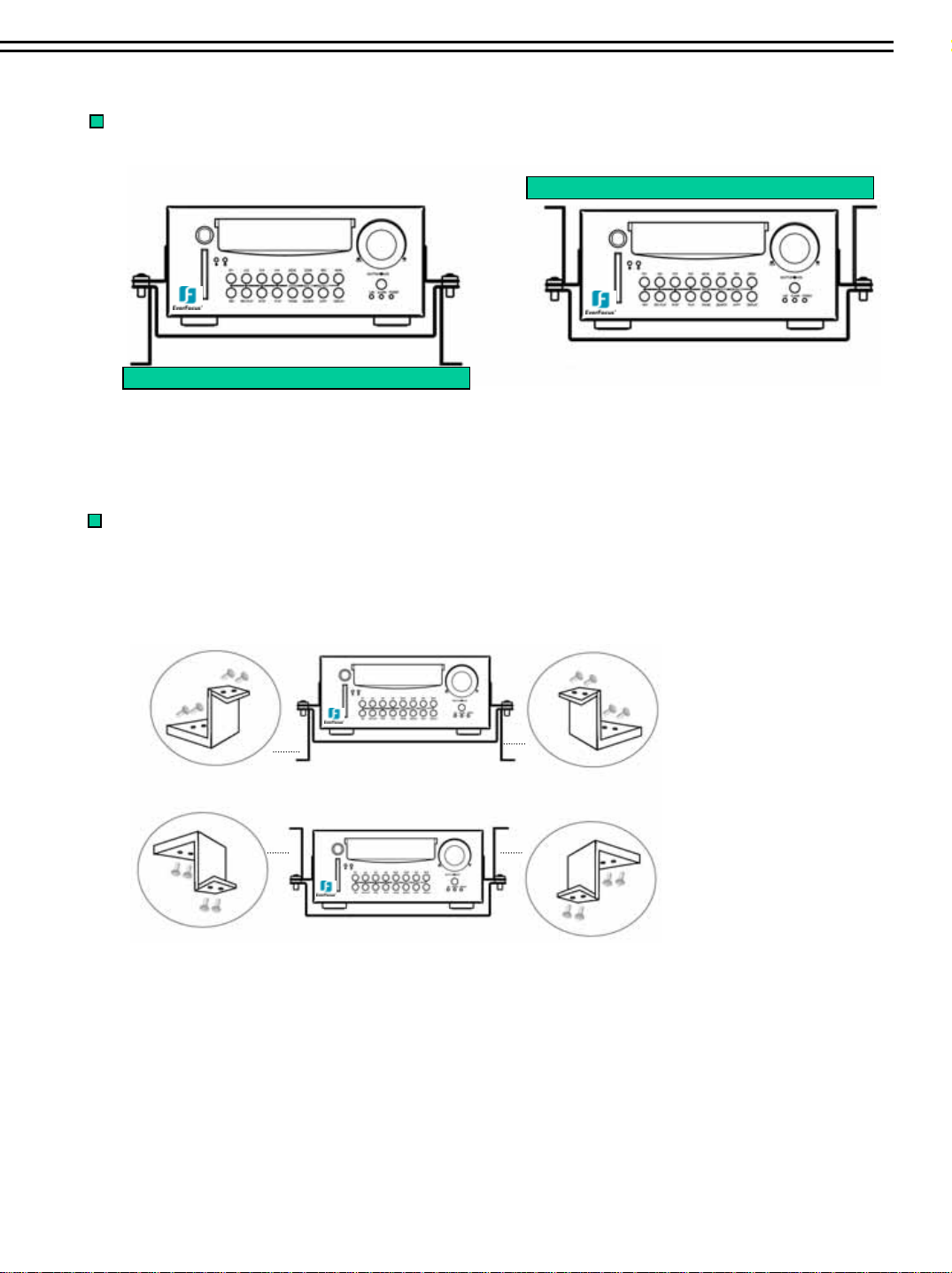

The DVR can be mounted horizontally (suspend or support mounted).

Support

Suspend

Show all the possible ways to mount the DVR.

Use the two Z-brackets supplied to mount it in any ways shown.

Quick Install Guide

EDSR400M EDSR400M

EDSR400M

Quick Install Guide

Quick Install Guide :

1.Unpack Everything

Make sure you have everything you need before you begin the installation.

2.Equipment Required

The following tools may help you to complete the installation:

•Drill

•Screwdrivers

•Wire cutters

3. Choosing the Location

Choose a location for installation that:

•Provide convenient access for installing or removing the hard drive

•Allows air to flow around the fan vents. Inadequate or improper air flow can impede proper operation of the unit.

Avoid any location for installation:

•That is subject to high vibration

•That is subject to high sunlight levels

•That is subject to drenched of the rain

•Where passengers can interfere with unit

•Next to a heater duct

As following table lists recommended location options.

Location Convenient operation Easy to install Low vibration Good air flow

Bottom of glove box- horizontal mount

Bottom of passenger seat next to the driver

Underneath bulkhead-horizontal mount

Front of bulkhead-horizontal mount

Beside deriver seat-horizontal mount

Yes

Yes Yes

Caution: Do not install the DVR on the floor or on the transmission access hatch. These locations have the highest levels of vibration and may

be subject to water damage.

Drive seat ( between seat and wall)

Truck

( Suggest user “ suspend” for mounting option)

Glove box (inside or underneath)

Passenger seat (underneath)

Possible Installation Locations Inside the Automobile Vehicle: TOYOTA CAMRY

Generator

Vehicle battery

(+12V or +24V)

DVR

Fuse(5A or 10A)

Key start

Spilt filter

Car body

On/Off switch

Vehicle body

Show the wiring on the wiring harness that connects to the electrical system.

Quick Install Guide

Truck

Drive seat ( between seat and wall) or Passenger seat (underneath)

( Suggest user use “ support” for mounting option)

Glove box (inside or underneath)

Generator

Vehicle battery

(+24V)

DVR

Fuse(5A)

Key start

Spilt filter

Car body

On/Off switch

Vehicle body

Show the wiring on the wiring harness that connects to the electrical system.

Possible Installation Locations Inside the Automobile Vehicle:

Quick Install Guide
