THANK YOU
USE AND CARE GUIDE
18 IN. UNDERMOUNT RUNNER
Questions, problems, missing parts? Before returning to the store,
call Everbilt Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-800-305-1726
HOMEDEPOT.COM
Item #
Model #
1002 782 617
9236060
924 395 700
9236060_924395700-18in_UndermountRunner_600x195.indd 1 04.05.18 10:37
2
Table of Contents
Table of Contents ...................................2
Safety Information ..................................2
Warranty ..........................................2
Pre-Installation.....................................3
Planning Installation ...............................3
Tools Required ....................................3
Hardware Required ................................3
Package Contents .................................3
Installation Options .................................3
Dimensions ........................................4
Cabinetry Dimensions ..............................4
Mounting Dimensions ..............................4
Drawer Catch Dimensions ...........................5
Frameless Installation ...............................5
Face Frame Installation ..............................6
Drawer Installation and Removal ......................7
Safety Information
Please read and understand this manual before installing this product.
CAUTION: Always be cautious when using power tools.
Warranty
Subject to the terms of this warranty, the Manufacturer warrants to the original consumer purchaser that the product will be free from
defects in material and workmanship. If the product does not comply with this warranty, the Manufacturer will repair or replace the product
or, at the Manufacturer’s option, refund the purchase price. Repair, replacement, or refund of the original purchase price is your sole remedy
under this or any other warranty on the product, whether expressed or implied.
For additional details and questions, please contact Everbilt Customer Service at 1-800-305-1726.
9236060_924395700-18in_UndermountRunner_600x195.indd 1 04.05.18 10:37
3 HOMEDEPOT.COM
Please contact 1-800-305-1726 for further assistance.
Pre-Installation
PLANNING INSTALLATION
Ensure all parts listed in the Package Contents section are included and that you have the listed Tools and Materials Required on hand.
TOOLS REQUIRED
Pencil Drill Measuring Tape Phillips
screwdriver
HARDWARE REQUIRED
#6 x 1/2 in. screws #6 x 3/4 in. Screws
PACKAGE CONTENTS
A
B
C D
Part Description Quantity
A Left Drawer Slide 1
B Right Drawer Slide 1
C Drawer Catch 2
D Face Frame Bracket 2
Installation Options
These slides can be installed in frameless and face frame cabinetry. Instructions for both options are provided in this manual.
Frameless Face Frame
9236060_924395700-18in_UndermountRunner_600x195.indd 1 04.05.18 10:37
4
Dimensions
Please review these diagrams and measure and mark your installation location before you begin the installation procedures.
CABINETRY DIMENSIONS
Inside cabinet width (ICW)
Cabinet opening height
30 mm (1-3/16")
IW
Drawer height
37 mm
(1-15/32")
Outside drawer width
Inside drawer width
Drawer side thickness
5/8"
26 mm (1")
7 mm
(9/32") ø 6 mm (1/4")
depth 10 mm (3/8")
11 mm (7/16")
max.
max. 12.7 mm (1/2")
IW=Installation width 13/16 in. (21 mm)
Drawer side thickness 1/2 in. (13 mm) 5/8 in. (16 mm)
Outside drawer width=ICW minus 5/8 in. (16 mm) 3/8 in. (10 mm)
Inside drawer width=ICW minus 1-21/32 in. (42 mm)
Maximum drawer height = cabinet opening height minus 13/16 in. (20 mm)
Minimum cabinet opening height = drawer height plus 13/16 in. (20 mm)
Dimensions in millimeters (inch approximations as noted)
MOUNTING DIMENSIONS
Cabinet front edge
Setback 2 mm (3/32")
Front gap 1.5 mm (1/16"
)
10 mm (3/8")
37 mm (1-7/16")
28 mm (1-3/32")
261 mm (10-1/4")
453 mm (17-3/16")
224 mm (8-13/16")
32 mm (1-1/4")
9236060_924395700-18in_UndermountRunner_600x195.indd 2 04.05.18 10:38
5 HOMEDEPOT.COM
Please contact 1-800-305-1726 for further assistance.
Dimensions (continued)
DRAWER CATCH DIMENSIONS
10 mm
3/8"
80 mm
(3-9/16") 48 mm
(1-7/8")
26 mm
(1-1/32")
Frameless Installation
1 Installing the drawer slides
ƑAttach the left and right drawer slides (A and B) to the inside of the cabinet using #6 x 1/2 in. screws.
Ensure you leave a 1/16 in. (2 mm) space between the face of the cabinet and the start of the drawer slides.
Ƒ
#6x1/2
"
2 mm
1/16"
B
A
9236060_924395700-18in_UndermountRunner_600x195.indd 2 04.05.18 10:38
6
Face Frame Installation
1 Preparing the slides
ƑSlide the notch on the left and right drawer slides (A and B)
forward, as shown.
A/B
2 Installing the drawer slides
ƑAttach the face frame brackets (D) to the back of the
cabinet using #6 x 1/2 in. screws.
ƑSlide the left and right drawer slides (A and B) onto the
face frame brackets (D).
A
B
D
3 Securing the drawer slides to the
cabinet
ƑSecure the front of the drawer slides (A and B) onto the
cabinet using #6 x 1/2 in. screws.
ƑProceed to Drawer Installation and Removal.
A
B
9236060_924395700-18in_UndermountRunner_600x195.indd 2 04.05.18 10:38
7 HOMEDEPOT.COM
Please contact 1-800-305-1726 for further assistance.

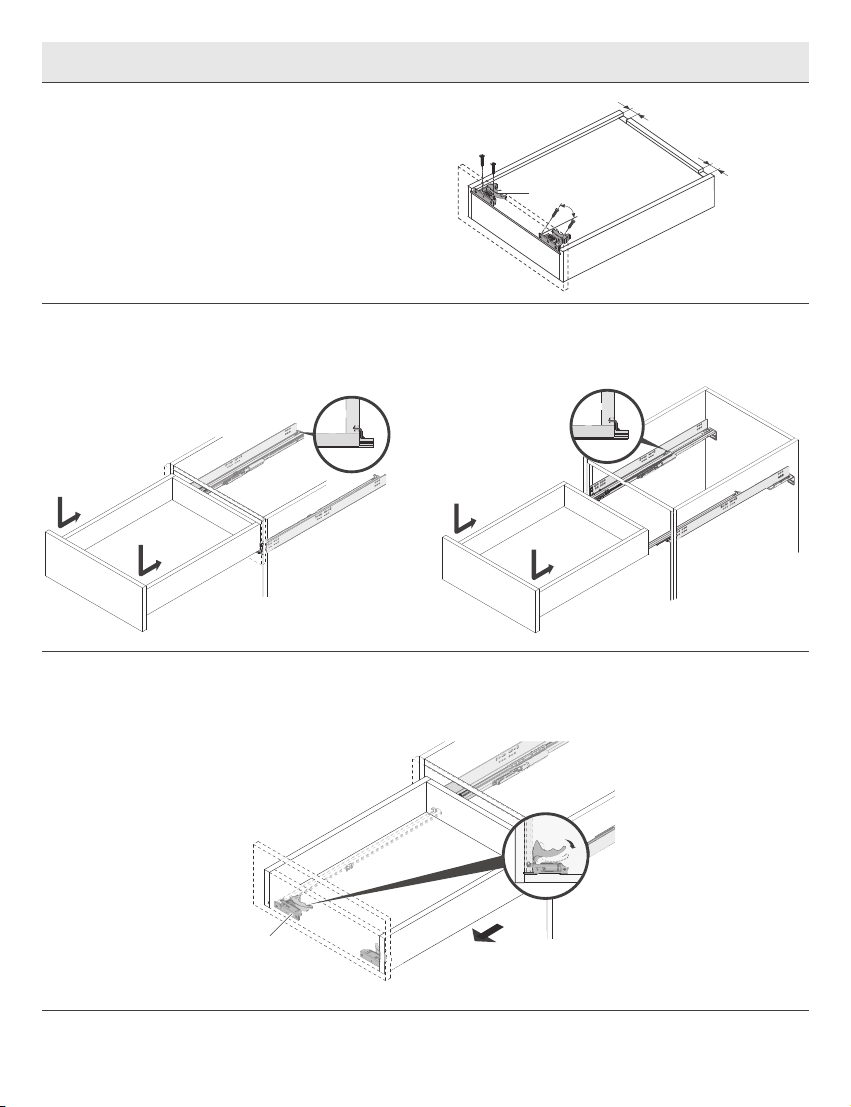

Drawer Installation and Removal
1 Installing the drawer catches
ƑInstall each drawer catch (C) into the two front corners of the
drawer using #6 x 3/4 in. screws. If you need to install the
screws at an angle, do not angle the screws more than 30°.
2 Installing the drawer
ƑInsert the drawer onto the glides inside the cabinet and push inside until the drawer catches click.
Face FrameFrameless
3 Removing the drawer
ƑGently pull each drawer catch lever and slide the drawer out to remove.
C
≤ 30°
30 mm (1-3/16")
30 mm (1-3/16")
C
9236060_924395700-18in_UndermountRunner_600x195.indd 2 04.05.18 10:38
Questions, problems, missing parts? Before returning to the store,
call Everbilt Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-800-305-1726
HOMEDEPOT.COM
Retain this manual for future use.
9236060_924395700-18in_UndermountRunner_600x195.indd 1 04.05.18 10:37
