Evenflo PIVOT Manual de usuario
Stroller/Travel System
Poussette/Système de déplacement
Carriola/Sistema de viaje
Read all instructions before assembly and use of product.
KEEP INSTRUCTIONS FOR FUTURE USE.
Lire les instructions avant l’assemblage et l’utilisation du produit.
CONSERVER CES INSTRUCTIONS POUR RÉFÉRENCE ULTÉRIEURE.
Lea todas las instrucciones antes de ensamblar y usar el producto.
GUARDE LAS INSTRUCCIONES PARA USO FUTURO.
© 2022 Eveno Company, Inc. 25701737 07/22
STROLLER
Up to 50 lbs (22.6 kg)
Up to 38 in (96 cm)
POUSSETTE
Jusqu’à 22,6 kg (50 lb)
Jusqu’à 96 cm (38 po)
CARRIOLA
Hasta 22,6 kg (50 lb)
Hasta 96 cm (38 in)
ENGLISHESPAÑOL FRANÇAIS
Warnings.................................................................................................. 4
Important Information ............................................................................. 7
Identification of Parts.............................................................................. 8
Choosing Mode of Use ........................................................................... 9
Assembling Your Stroller...................................................................... 10
Using Your Stroller ............................................................................... 15
Using Your Stroller with the Recommended Infant Car Seats
on Your Stroller Frame......................................................................... 21
Using Your Stroller with the Recommended Infant Car Seats
on Your Toddler Seat ........................................................................... 23
Care and Maintenance......................................................................... 25
Limited Warranty .................................................................................. 25
• www.evenflo.com • USA: 1-800-233-5921 8 AM – 5 PM E.T.
• Canada: 1-937-773-3971 •México: 800-706-1200
Table of Contents
ENGLISH
1.
Canopy
2.
Parent Handle
3.
Fold Latch
4.
Cupholder
5.
Toddler Seat
Release Button
6.
Swivel Wheel
7.
Footrest
8. Harness
Buckle
9.
Harness Cover*
10.
Bumper Bar
11.
Child Tray
12. Shoulder Straps
1
2
3
8
9
6
7
10
12
13
14
15
16
17
5
4
11
Holds Evenflo SafeMax™ or LiteMax™ Infant Car Seats Only
*Not available on all models. Styles may vary.
Features
13.
Multi-Position
Recline Lever
14.
Multi-Position
Recline Strap
15.
Side Frame Lock
16.
Storage Basket
17.
Brakes
4
WARNING! DEATH or SERIOUS
INJURY can occur.
• Only use Evenflo SafeMax™ and LiteMax™ infant car seats
with this stroller.
Other infant car seats or carriers are not designed to fit the
stroller frame unless specified in the instructions. Any car seats
used with this stroller that are not specified in the instructions may
result in serious injury to your child.
• NEVER leave child unattended. ALWAYS keep child in view
while in the stroller.
• Adult assembly required. Take care when unpacking and
assembling; contains small parts and some items with sharp
edges.
• To prevent a possible choking hazard, remove and discard
packing material before using this product.
•To avoid serious injury from child falling or slipping out of stroller,
ALWAYS use the internal harness system in Toddler Seat Mode
and Carriage Mode.
• DO NOT carry or roll stroller on stairs or escalators with child in it.
• DO NOT hang items on handle bar or place them on the canopy
as they can tip stroller over and injure child.
•Be sure stroller is fully assembled and locked in unfolded position
before using.
• ALWAYS exercise care when going over curbs or steps, and
never use stroller for anything other than transporting your child.
Push stroller at a normal walking pace only; faster strolling can
cause a loss of control and injury to the child.
• DO NOT place hot liquids in cup holder. Spills can burn you or
your child.
• To avoid serious injury from child falling out of stroller, DO NOT
raise or recline seat with child in stroller.
• DO NOT use stroller if any parts are missing or broken.
• DO NOT allow child to climb on, into, out of, or around stroller.
• DO NOT allow child to stand on the footrest. Stroller may tip over
and injure child.
READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS!
FAILURE TO DO SO COULD RESULT IN
SERIOUS INJURY OR DEATH!
5
READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS!
FAILURE TO DO SO COULD RESULT IN
SERIOUS INJURY OR DEATH!
• DO NOT carry additional children, goods, or accessories in or on
this stroller except as advised in these instructions. The stroller
is intended for use with one child and to accommodate only the
additional weights in storage as listed in these instructions.
• Care must be taken when folding or unfolding stroller to prevent
finger injury to you or your child in hinge areas. Make sure child is
not in the seat or near the stroller when folding or unfolding.
• NEVER leave stroller on a hill or incline, even with brakes set.
Stroller may tip, injuring the child.
• To avoid accidental rolling, ALWAYS set brakes when stroller is
not being pushed.
• AVOID STRANGULATION:
–DO NOT suspend strings or toys from the canopy.
–DO NOT place stroller anywhere near cords from window
blinds, draperies, phone, etc.
– DO NOT place items with a string around your child’s neck
such as hood strings or pacifier cords.
– If not properly secured, the child may slip into leg openings
and strangle.
•When making adjustments to the stroller, ALWAYS ensure that
all parts of the child’s body are clear of any moving parts of the
stroller.
• The canopy is not intended to provide UV protection.
• Sharp or heavy objects placed in pockets may cause damage to
the stroller, or injury to the child.
• To ensure safety for your baby, please refer to the manufacturer’s
instructions for the use of your recommended infant car seats and
keep all instructions available for reference.
• DO NOT lift stroller by using the infant car seat handle when
installed on stroller.
• If unable to securely attach the infant car seat to this stroller,
remove the car seat and contact Evenflo ParentLink at
1-800-233-5921 (USA), 1-937-773-3971 (Canada),
or 800-706-1200 (México).
ENGLISH
WARNING! DEATH or SERIOUS
INJURY can occur.
6
READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS!
FAILURE TO DO SO COULD RESULT IN
SERIOUS INJURY OR DEATH!
• Some Evenflo SafeMax™ and LiteMax™ infant car seats have
a blanket/boot option that must be removed for proper attachment
to the stroller.
• To avoid stroller instability and tip-overs, DO NOT load cup holder
with over 1 lb (0.45 kg) , and the main cargo basket with over 10
lbs (4.5 kg).
• NEVER use the toddler seat without the canopy attached.
• NEVER lift or carry the toddler seat by the bumper bar.
• NEVER use the stroller frame without the toddler seat or car seat
attached.
• NEVER use toddler seat in a motor vehicle or use it as a booster
seat.
• To avoid falls, never remove toddler seat from the stroller with
child in it.
• To avoid falls, always make sure the toddler seat or car seat
is securely attached into the seat mounts on both sides of the
stroller before placing child in the seat.
• When stroller is in Carriage Mode, it is intended for a child from
birth up to 6 months of age OR who is incapable of sitting upright
unassisted. ONLY use the stroller in the upright position with a
child who is capable of sitting upright unassisted.
• NEVER use seat in the Carriage Mode position unless the straps
under the seat are unbuckled and the seat is set up in Carriage
Mode as per the instructions.
• NEVER use the multi-position recline lever to recline seat when
installing the infant car seat into the toddler seat (see pg. 23).
WARNING! DEATH or SERIOUS
INJURY can occur.
7
Child Requirements - When stroller is in Carriage Mode, it is
intended for a child up to 6 months of age
OR who is incapable of
sitting upright unassisted
. Only use the stroller in the upright position
with a child who is capable of sitting upright unassisted.
• Maximum weight:
- 50 lbs (22.6 kg) in toddler seat
• Maximum height:
- 38 inches (96 cm) in toddler seat
IMPORTANT:Read instructions carefully before use. Save these
instructions for future reference. It is very important to assemble the
stroller according to these instructions. If you are missing parts, do
not use stroller and call
Evenflo ParentLink at 1-800-233-5921
(U.S.A.)
, 1-937-773-3971 (Canada), or 800-706-1200 (México) to
order replacement parts.
For future reference, record the Model Number and Date of
Manufacture below. You can find this information on one of
the rear stroller legs.
Model Number: _____________________________
Date of Manufacture: ________________________
Registration Information
Please register this product so we can reach you if there is a safety
alert or recall. We will not sell, rent, or share your personal
information. To register your product, please complete and mail the
card that came with it or visit our online registration at
www.evenflo.com/registerproduct.
ENGLISH
Important Information
8
Cupholder (1)
Front Wheel Assembly (2)
Rear Wheel (2)
Frame
Toddler Seat
Bumper Bar/Child’s Tray Basket Assembly
Bar
Identication of Parts
9
YOUR STROLLER SEAT CAN BE USED IN TWO DIFFERENT
MODES:
TODDLER SEAT MODE OR CARRIAGE MODE.
Your stroller seat is shipped in Carriage Mode with the buckles
unfastened under the toddler seat. You will need to follow the
instructions completely to make sure you set up your stroller in
your preferred mode of use.
After the frame and the wheels have been assembled, you can
choose to set the stroller up in Carriage Mode or Toddler Seat
Mode by following instructions on pages 12 - 15.
Toddler Seat Mode Carriage Mode
ENGLISH
Choosing Mode of Use
10

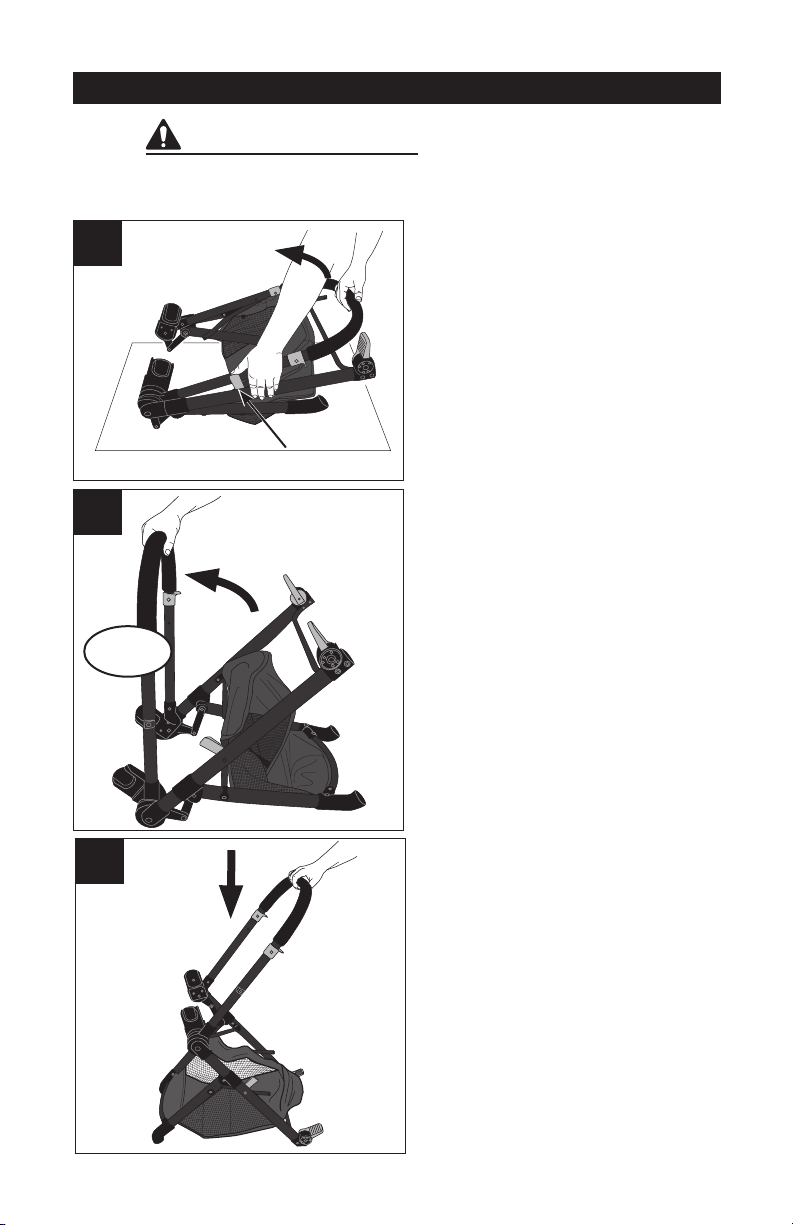

Grab the parent’s handle and
pull upward until the stroller
opens fully with an audible
click.
Make sure the stroller is
locked in the open position by
pushing down on the parent’s
handle.
2
3
1To protect ooring, place a
protective covering (carton)
beneath the stroller during
assembly.
Unlatch side frame lock.
Continue holding the lock
open while unfolding the
stroller.
CLICK!
Side Frame Lock
Care must be taken when folding or unfolding stroller
to prevent finger injury in hinge areas.
WARNING! DEATH or SERIOUS
INJURY can occur.
Assembling Your Stroller - Frame
Otros manuales para PIVOT
2
Tabla de contenidos
Idiomas:
Otros manuales de Paseante de Evenflo
Evenflo
Evenflo Snugli Manual de usuario
Evenflo
Evenflo Pivot Vizor Manual de usuario
Evenflo
Evenflo Porta Manual de usuario
Evenflo
Evenflo AERO Manual de usuario
Evenflo
Evenflo Pivot Xpand Manual de usuario
Evenflo
Evenflo Folio3 Stroll & Jog Manual de usuario
Evenflo
Evenflo Charleston Manual de usuario
Evenflo
Evenflo LUX 24 Manual de usuario
Evenflo
Evenflo Folio3 Stroll & Jog Manual de usuario
Evenflo
Evenflo AERO Manual de usuario
Evenflo
Evenflo Loft 245404225 Manual de usuario
Evenflo
Evenflo INVIGOR8 Manual de usuario
Evenflo
Evenflo Reversi Manual de usuario
Evenflo
Evenflo Reversi Manual de usuario
Evenflo
Evenflo Pivot Troop Manual de usuario
Evenflo
Evenflo Pivot Xpand Manual de usuario
Evenflo
Evenflo PIVOT XPLORE All-Terrain Stroller Wagon Manual de usuario
Evenflo
Evenflo Omni Plus Manual de usuario
Evenflo
Evenflo CLOVER Manual de usuario
Evenflo
Evenflo journey 100 Manual de usuario
