EVAC 910 WALL TOILET
TECHNICAL INFORMATION
EVAC reserves the right to make alterations to this specication without prior notice.
© Copyright Evac Oy. All rights reserved.
TECHNICAL DATA
Date: Doc.
VACUUM TOILET
1
6543418 EVAC 910, WALL MODEL, PRESTIGE SILENT, WHITE
6543419 EVAC 910, WALL MODEL, MOSAIK, WHITE
6547226 EVAC 910, WALL MODEL, PRESTIGE SOFT CLOSING, WHITE
09 Dec 2010 001991-3
* Prestige seat and cover fulll ANSI Z124.5 - 1997 [Plastic Toilet ( Water closet ) Seats] requirements.
** See available colours in document 002003-7
Materials Bowl: White vitreous china**
Seat; *Prestige and Prestige Soft Closing: UF-S**, Mosaik: PP**
Cover; *Prestige and Prestige Soft Closing: UF-S **, Mosaik: PP**
Pneumatic push button: White plastic, ABS
Discharge valve; plastic parts: PP, rubber parts: NR
Operating data Water pressure: 3 - 10 bar
Operating vacuum: -0.3 ... - 0.6 bar
Water consumption: ~1.2 ±0.15 litres/ush ( water pressure: 4 bar, vacuum: -0.4 bar )
Air consumption: ~60 ±10 litres/ush (normal atmospheric air)
Connections Water supply: 1/2” MPT, exible hose
Discharge: Discharge connection Ø50, connection sleeve includes two hose clamps
to O.D. 48 - 52mm pipes
Shipping data P/N 6543418 Evac 910, wall model, Prestige Silent and
P/N 6547226 Evac 910, wall model, Prestige Soft Closing:
Net weight: 20.8 kg
Shipping weight: 23.1 kg
Shipping volume: 0.168m3
P/N 6543419 Evac 910, wall model, Mosaik:
Net weight: 17.7 kg
Shipping weight: 19.7 kg
Shipping volume: 0.168m3

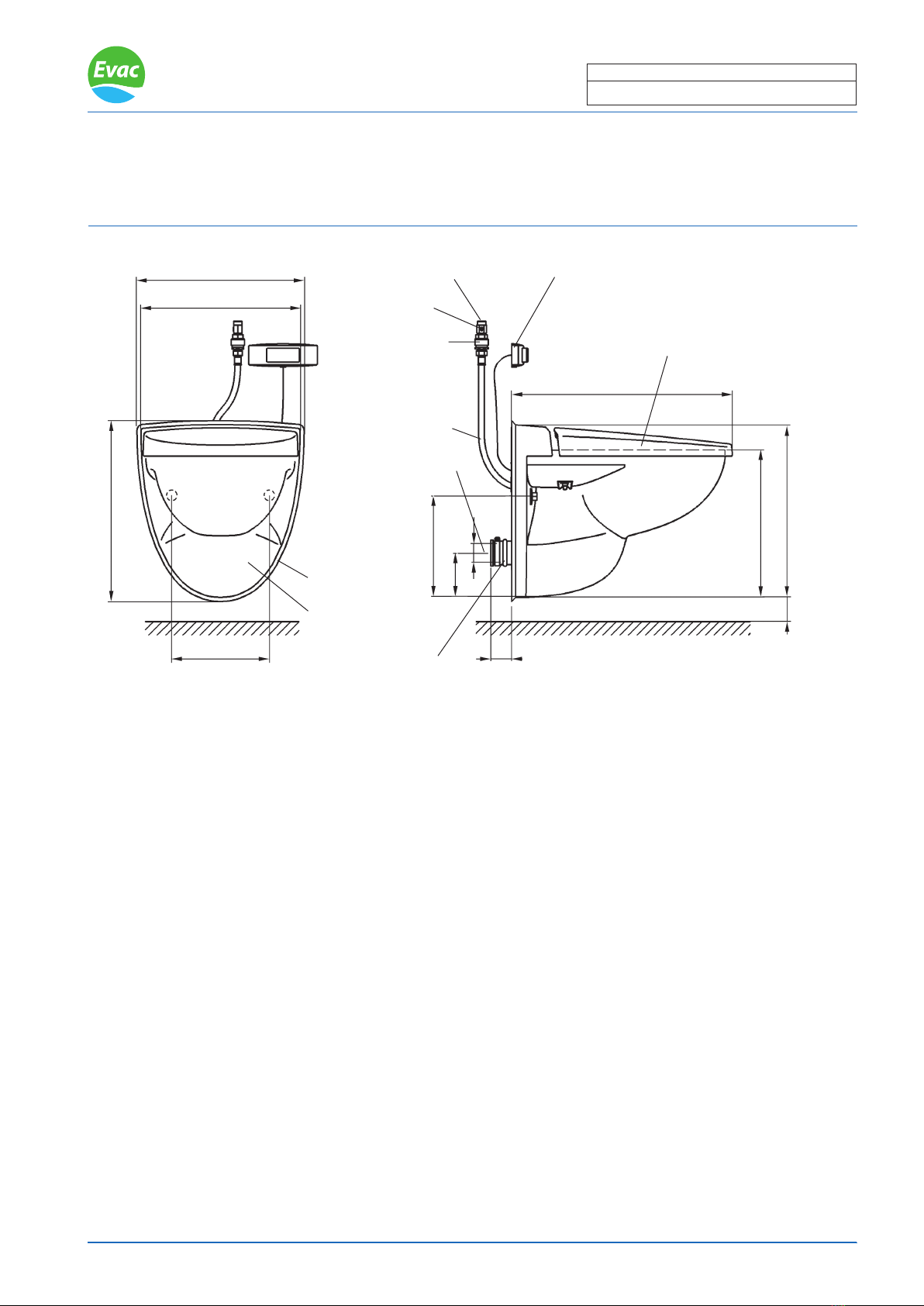

Water supply 1/2”
Shut-off valve
Vacuum breaker
P/N 6541458 Pneumatic push button, white
Max. 420
230
550
Max. 450
110
365
50 430
Seat and cover:
*Prestige, Mosaik or Prestige Soft Closing
Bowl
Connection sleeve
Discharge connection
250
400
Flexible water
connection hose
45
Edge strip
Ø50
EVAC reserves the right to make alterations to this specication without prior notice.
© Copyright Evac Oy. All rights reserved. 1
VACUUM TOILET
TECHNICAL DATA
Date: Doc.
09 Nov 2010 1:01005G
6541458 PNEUMATIC PUSH BUTTON, WHITE
Materials Cover: ABS, white
Button: PBT, white
Bottom plate: POM, natural
Connections Hose nipple Ø4
Shipping data Net weight: 0.2kg
40
58
170
60
Ø 4.5
EVAC reserves the right to make alterations to this specication without prior notice.
© Copyright Evac Oy. All rights reserved.
TECHNICAL DATA
Date: Doc.
VACUUM TOILET
1
09 Dec 2010 002003-7
STANDARD COLOURS, EVAC 910, WALL MODELS AND FLOOR MODELS
Product
no. Toilet name
Toilet bowl Seat and cover
Standard colour code Standard colour code Additional
colours*
min. 250
pcs / order
min. 1000
pcs / order
min. 1000
pcs / order
6543418 Wall model, Prestige Silent 01 white 01 white X
6543419 Wall model, Mosaik 01 white 01 white
6543420 Wall model USPH, Prestige Silent 01 white 01 white X
6543421 Wall model USPH, Mosaik 01 white 01 whitw
6544766 Wall model USPH, Open front 01 white 01 white
6544791 Wall model USPH, Prestige Silent, autoush 01 white 01 white X
6544792 Wall model USPH, Prestige Silent, autoush
10 Light grey 10 Light grey
X
30 Light green 30 Light green
68 Pregamon,
light beige
68 Pergamon,
light beige
6544793 Wall model, Prestige Silent
10 Light grey 10 Light grey
X
30 Light green 30 Light green
68 Pregamon,
light beige
68 Pergamon,
light beige
6544794 Wall model USPH, Prestige Silent
10 Light grey 10 Light grey
X
30 Light green 30 Light green
68 Pergamon,
light beige
68 Pergamon.
light beige
6545030 Wall model, B15, Prestige Silent 01 white 01 white X
6545031 Wall model USPH, B15, Prestige Silent 01 white 01 white X
6545818 Wall model USPH, Prestige Silent, autoush 01 white 01 white X
6546081 Wall model USPH, Prestige Silent, autoush
10 Light grey 10 Light green
X
30 Light green 30 Light green
68 Pergamon,
light beige
68 Pergamon,
light beige
6547226 Wall model, Prestige Soft Closing 01 white 01 white X
6547227 Wall model USPH, Prestige Soft Closing 01 white 01 white X
Product
no. Toilet name
Toilet bowl Seat and cover
Standard colour code Standard colour code Additional
colours*
min. 250
pcs / order
min. 1000
pcs / order
min. 1000
pcs / order
6545825 Floor model, Silent 01 white 01 white X
6545826 Floor model, Trevi 01 white 01 white
6545827 Floor model USPH, Silent 01 white 01 white X
6545828 Floor model USPH, Trevi 01 white 01 white
6545829 Floor model USPH, Open front 01 white 01 white
COLOURS FOR FLOOR MODEL TOILETS
COLOURS FOR WALL MODEL TOILETS
EVAC reserves the right to make alterations to this specication without prior notice.
© Copyright Evac Oy. All rights reserved.
TECHNICAL DATA
Date: Doc.
VACUUM TOILET
2
09 Dec 2010 002003-7
STANDARD COLOURS, EVAC 910, WALL MODELS AND FLOOR MODELS
Bowl, seat and cover are available in white and in standard colours. Standard colours are shown in the standard
colour palette.
! NOTE: Evac 910 vacuum toilets with the Mosaik, Trevi or Open front seats and covers are available only in
white colour.
When you order a toilet in standard colour you must give the toilet’s part number, the name and the standard
colour code. Example: 6544794 Wall model USPH, Prestige Silent, 30 Light green.
* You can order the Prestige and the Silent seats and covers in additional colours only in large series. When you
order seat and cover in additional colours you must give an international colour code like the Muncell or RAL.
01 White 10 Light grey 68 Pergamon,
light beige
30 Light green
Standard colour palette
EVAC reserves the right to make alterations to this specication without prior notice.
© Copyright Evac Oy. All rights reserved. 1
VACUUM TOILET
INSTALLATION
Date: Doc.
09 Dec 2010 001998-5
6543418 EVAC 910, WALL MODEL, PRESTIGE SILENT
6543419 EVAC 910, WALL MODEL, MOSAIK
6547226 EVAC 910, WALL MODEL, PRESTIGE SOFT CLOSING
220 330
140160 220
*(Water supply hose)
! NOTE: Recommended place for the button.
If place is changed, consult EVAC.
A
A
U-beam
(Not included in EVAC supply)
Fasten the beam to a solid structure.
130
P/N 5433572
Straight connection hose
Pneumatic push button
50
Seat and cover:
Prestige or Mosaik or
Prestige Soft Closing
110
45
Ø50
Shut-off valve
1/2” MPT
Flexible water hose
Vacuum breaker
Discharge pipe
alignment
tolerance
to be ±3.0 mm
P/N 6544769
Rubber elbow 90°,
optional connection
* The vacuum breaker air inlet must be located at a minimum of
150mm (6”) above the overow point of the toilet.
*150
! NOTE: Overow point is inside the toilet bowl
Overow point
Vacuum breaker installation,
see doc. 002017-3
EVAC reserves the right to make alterations to this specication without prior notice.
© Copyright Evac Oy. All rights reserved. 2
VACUUM TOILET
INSTALLATION
Date: Doc.
09 Dec 2010 001998-5
6543418 EVAC 910, WALL MODEL, PRESTIGE SILENT
6543419 EVAC 910, WALL MODEL, MOSAIK
6547226 EVAC 910, WALL MODEL, PRESTIGE SOFT CLOSING
Installation kit 6540972 consists of:
Plastic nut M12 2 pcs
Guiding nut 2 pcs
Edge strip 1 pc
Mounting instruction 1 pc
Straight connection hose 1 pc
Hose clamp 2 pcs
Toilet supporting beams for wall models
Cross section A - A
Edge strip
Total length of bolt = T + 65 ± 2
T65±2
Beam Toilet bowl
Bolt M12 (not EVAC supply) to be welded.
! NOTE: Thread on the bolt must be full length.
Ø13
230
Dimensions of toilet service opening through the wall
370
210
200
90
R20
Bolt M12 to be welded
(not EVAC supply)
Length according to
the space available
230
220
380
200
U-beam 50x30x2 (not EVAC supply)
09 Dec 2010 002017-3
6543418 EVAC 910, WALL MODEL, PRESTIGE SILENT
6543419 EVAC 910, WALL MODEL, MOSAIK
6547226 EVAC 910, WALL MODEL, PRESTIGE SOFT CLOSING
• Connect the water connection hose (A) to the water valve.
• Install the back plate assembly on the wall using the bowl fastening bolts (B) (M12, not included) and the
guiding nuts (C) (M12). The guiding nuts are necessary.
• Connect the hose (D) from the ushing ring to the water valve. Do not use any kind of grease during
installation! Secure with hose clamps. Tighten the hose clamps with pliers.
! NOTE: Install the hose (D) from the ushing ring in the toilet bowl to the right side of the discharge valve and
below all other hoses.
• Lift bowl onto the fastening bolts and tighten the securing nuts (E). Tightening torque is 15-20 Nm.
! NOTE: Check hoses through the toilet service opening in the wall that the hoses run smoothly. The hoses
shall not have any kinks.
• Fit the edge strip as shown in gure 1. Place the joint of the strip to the bottom side of the bowl.
• Install the seat and the cover. See the installation of the Prestige Soft Closing (document
002503-2).
• Connect the discharge connection. Secure with the hose clamps.
• Connect the shut-off valve/vacuum breaker assembly to the water supply. The shut-off valve must be installed
to the water supply piping’s side to ensure the correct ow direction in the vacuum breaker. Note the vacuum
breaker must be installed vertically as shown.
• Connect the water connection hose (A) to the shut-off valve/vacuum breaker assembly.
• Install the pneumatic push button (See document 002002-3).
E
Hose A (EPDM) L=400,
braid of stainless steel
wire
D
Water valve
B
Pneumatic push button
Edge strip
Mosaik
Prestige
Fig.1
C
Vacuum breaker
Shut-off valve,
1/2” MPT BSP
Shut-off valve /
vacuum breaker
assembly
Discharge valve (See notes!)
Hinge
Washer
Wing nut
Hingebody
or
Fresh water
connection
Back plate
assembly
Pipe Ø12
Washer
or
Prestige
Soft Closing
or
or
Nut Wing nut
Washer
Hinge
EVAC reserves the right to make alterations to this specication without prior notice.
© Copyright Evac Oy. All rights reserved.
INSTALLATION
Date: Doc.
VACUUM TOILET
1
EVAC reserves the right to make alterations to this specication without prior notice.
© Copyright Evac Oy. All rights reserved. 1
VACUUM TOILET
INSTALLATION
Date: Doc.
09 Dec 2010 002503-2
6546819 PRESTIGE SOFT CLOSING, SEAT AND COVER
002503-2
Screw
Washer (metal)
Bushing (plastic)
Washer
(metal and plastic)
Wing nut
Bowl
Hinge, left
(blue mark)
Hinge, right
(yellow mark)
Seat
Cover
2. Push the hinges into the hole of the seat and the cover.
1. Install the parts of the installation kit. Note the installation
order.
! NOTE: Do not open the seat (with the hinges
inserted) hinges before assembly. The opening angle
must not exceed 110°.
Installation
EVAC reserves the right to make alterations to this specication without prior notice.
© Copyright Evac Oy. All rights reserved. 2
VACUUM TOILET
INSTALLATION
Date: Doc.
09 Dec 2010 002503-2
6546819 PRESTIGE SOFT CLOSING, SEAT AND COVER
3. Install the seat and the cover with the hinges on
the installation screws on the bowl.
Installation
screws
4. Tighten the retaining screws by the hex wrench.
(The installation kit includes two hex wrenches.)
Hex wrench
Maintenance
The seat is easy to clean, with just a few simple directions for you to observe.
• Use mild soap solution or biological cleaners.
• Rince the seat and cover and the hinges with water and dry with a soft cloth.
• Do not use abrasive scouring powders for the seat and cove and the hinges.
• Be careful with chemicals and cosmetics. Some of them may damage the seat at last.
• When you use abrasive, corrosive or chlorine based cleaners for the bowl, avoid contact with
the seat and cover and the hinges. Therefore, when you clean the bowl and ush cleaner
away, make sure that the seat and the cover are in an upright position.
! NOTE: Do not use too much force.
Do not use force when closing, this may cause
irreparable damage to the device.
Tabla de contenidos
Manuales populares de Baño de otras marcas
Better Bathrooms
Better Bathrooms BUN/BeBa 27555/78725 Manual de usuario
American Standard
American Standard CONCEPT Cube TF-2704 Manual de usuario
BIOLAN
BIOLAN ECO Manual de lista de piezas
Thetford
Thetford C260 Series Manual de usuario
KELISS
KELISS T162A Series Manual de usuario
Kohler
Kohler K-22241K Instrucciones de montaje
