Compact-Pro 70

Réf. 30960

User manual

Edition of 16/12/2021

More information on www.euromair.com

User manual - Compact-Pro 70 202007-461A-ENGP2

You just acquired one of our

machines and all the team

of Europe Projection thanks

you for the condence

you have granted us.

Manufacturer of professional

equipments for paint and

llers, we have put our

know-how for 25 years

at the service of the

users of our machines.

Our technical & commercial

team is at your disposal

for any further information

you may need about the

machine you just acquired.

EUROPE PROJECTION

228, avenue Olivier Perroy

13790 ROUSSET

Tél : +33 (0)4 42 29 08 96

contact@euromair.com

SUMMARY

1. USER MANUAL............................................................. p. 3

1.1. Importance of the manual .........................................p. 3

1.2. Receivers of the manual............................................p. 3

2. WARNING .................................................................... p. 4

2.1. Safety .....................................................................p. 4

2.2. Transport ................................................................p. 6

2.3. End-of-life of the product ..........................................p. 7

3. YOUR MACHINE ........................................................... p. 8

3.1. Description..............................................................p. 8

3.2. Technical characteristics ...........................................p. 8

3.3. Identication of the components ................................p. 9

4. USE OF THE MACHINE ................................................. p.11

4.1. Machine prerequisites...............................................p.11

4.2. Machine starting up .................................................p.12

4.3. High pressure washer prerequisites ............................p.13

4.4. High pressure washer starting up ...............................p.14

4.5. Water doser.............................................................p.15

5. DEFECTS AND REMEDIES............................................. p.16

6. MAINTENANCE............................................................. p.17

7. SAFETY CARD RUNNING............................................... p.18

8. VOLUME SCHEME ........................................................ p.21

9. ELECTRICAL SCHEMES................................................. p.22

10. DECLARATION OF CONFORMITY ................................. p.29

11. WARRANTY CONDITIONS............................................ p.30

202007-461A-ENG User manual - Compact-Pro 70 P3

1. USER MANUAL

1.1. IMPORTANCE OF THE MANUAL

This manual is a key part for the use of your machine. It summarizes the procedures of starting-up, cleaning

and maintenance of the device and also the safety instructions you need to observe.

Read carefully all the working and safety instructions and the warnings included in this manual before

starting your machine.

Most of the accidents are caused by the non-compliance of the safety standards and rules.

This manual must be kept near the machine, within reach of the user and held in good condition until the

nal destruction of the machine.

In case of loss or deterioration of the manual, you can ask the machine manufacturer mentioned on page

4 for a copy at any moment.

1.2. RECEIVERS OF THE MANUAL

This manual is intended to any staff which will manipulate the machine :

- people in charge of the transport of the machine

- people in charge of the use of the machine

- people in charge of the cleaning and maintenance of the machine

- people in charge of the nal destruction of the machine

User manual - Compact-Pro 70 202007-461A-ENGP4

2. WARNING

2.1. SAFETY

Using the machine in an incorrect way or in non-compliance of the safety instructions indicated in

this manual can cause death or serious injuries.

Read carefully all the working and safety instructions and the warnings contained in this manual

before starting your machine.

• Respect all the safety standards before running the equipment.

• Use the equipment only for the applications specied in the manual.

• Always remain alert when using the equipment.

• Transport the machine using the handles or the appropriate grips.

• During the breaks, disconnect electrically the machine.

• Run the equipment to its nominal voltage.

• Let at least 50 cm of free space between the equipment and any obstacle so that the air ow

is not blocked.

• Know how to quickly stop the equipment in case of necessity.

• Never use the equipment while it is running abnormally or it is defective.

• Do not direct a water jet or ammable liquid on the machine.

• Never direct an air jet or product jet on a person or an animal.

• Do not touch warm surfaces of the equipment.

• Always wear adequate body protections (glasses, gloves, overall and mask) and pay attention

to long hair.

• Never touch moving parts.

• Do not insert any object or the hands inside the protection grids to avoid any accident or

damage to the machine.

• For any outside job, only use appropriate extension cords.

• Maintain the equipment carefully and clean it properly after every use.

• Disconnect the equipment before any intervention.

• Avoid absolutely to unscrew any connection while the machine is under pressure.

• Check the damaged parts.

• Do not clean the plastic parts with solvant.

• In case of needed After-Sale Service, always specify the machine model and its serial number.

• For any replacement of parts, only use genuine parts.

• Do not modify the machine.

• Do not cut or dismantle the protection grids.

• Do not open the electric box.

202007-461A-ENG User manual - Compact-Pro 70 P5

IN CASE OF NECESSITY, WE SAVE OURSELVES THE RIGHT TO MAKE ANY USEFUL

MODIFICATION WITHOUT ADVANCED NOTICE.

2. WARNING (continued)

2.1. SAFETY (continued)

WORKSPACE

• Maintain the workspace clean and clear.

• Ambient operating temperature must be from 5°C and 35°C.

• Do not use the equipment in a potentially explosive area.

• Do not place any potentially inammable objects in close proximity to the machine.

• Take away every not qualied person from the working area of the machine, as well as children and

animals.

• Do not install the equipment on an inclined surface to avoid the risks of unexpected moves or falls.

HOSES

• Always use hoses and connections adapted to the used product (genuine parts), do not try to x it.

• Do not walk on the hoses, do not bend them.

• Do not use the hoses to pull the machine.

STORAGE

• Keep the equipment in a clean and clear area in which the temperature does not exceed +35°C.

• After every use, necessarily grease the pump with a mixture of water + storage liquid to avoid it blocking

up. The storage of a not greased pump can damage it seriously.

User manual - Compact-Pro 70 202007-461A-ENGP6

IN CASE OF NECESSITY, WE SAVE OURSELVES THE RIGHT TO MAKE ANY USEFUL

MODIFICATION WITHOUT ADVANCED NOTICE.

2. WARNING (continued)

2.1. SAFETY (continued)

SAFETY SYSTEMS

This machine has been designed to allow working with the maximum safety.

So safety sensors and emergency stop has been setted on your machine without complicating your work.

We are insisting on your caring to maintain them in good condition and above all not to remove them.

In case of malfunction, please contact immediately your dealer.

HYDRAULIC

This machine is equipped with high pressure hydraulic circuits (200 bar).

The following insctructions are essential for your safety:

• Never tighten a hydraulic connection while the machine is working.

• Never try to wipe an oil drop on a hose or hydraulic component with your nger while the machine

is working.

• Take care of the good condition of the plumbing (a damaged or blistered rubber must be changed

immediately).

• Check regularly if the circuit does not have any leak.

• In any case, do not touch hydraulic parts (even when the machine is not working) because the

components shall be hot and there is a burn risk.

SAFETIES AND PROHIBITIONS

• The mixer grid rising up causes the mixer movement stop.

• The hopper grid rising up causes the screw movement stop.

• Stop of the projection stops compressed air consumption and pump rotation.

• As soon as the work is recovered, air release allows the pump restart.

• Emergency stop is located on the machine hood. Do not hesitate to use it if needed, this will immediately

stop the motor. To restart the machine after emergency stop button pushed, follow this procedure:

- Put the command handles in central position.

- Rearm emergency stop.

- Place the contact key on the ON position.

- Command panel lights must be lighted-up (green = correct / red = default).

- Resume sraying procedure.

202007-461A-ENG User manual - Compact-Pro 70 P7

2. WARNING (continued)

2.2. TRANSPORT

• This machine was the object of a road homolagation (n°e2*2007/46/0673). As such, it must be

registered and can be thus dragged normally on the road network.

• The adjustable jockey wheel easily allows you to x the helm to the harness of your vehicle.

• The adjustable helm gives you the possibility of adjusting the machine horizontally.

• An electric cable provided with a grip allows you to link the device of lighting of the trailer with the

tractor truck.

• A cable of break allows to bind the device of harness of your vehicle with the machine in case of hanging

problem of the helm during a travel.

It is imperative to collide this cable on the harness of the vehicle.

Before any road travel:

• Check the pressure of the pneumatics which has to be 2.8 bar max.

• Check the tightening of the nuts of wheels.

• Check the tightening of the nuts of the articulated helm and the presence of pins.

• Clean reectors.

• Clean and check the functioning of the device of lighting.

• Collide the cable of break.

2.3. END OF LIFE OF THE PRODUCT

At its end-of-life, the machine must not be eliminated with the other household waste. The

uncontrolled elimination of waste can harm the environment or human health. Individuals are

invited to contact the distributor which sold them the product or to inquire with their city hall

to know where and how to get rid of the product so it can be recycled while respecting the

environment.

For any further information, please contact our hotline +33 4 42 29 08 96 or conseil@euromair.com.

Only are exempted from the obligation of brakes the only trailers under the double condition

that their total weight authorized in load does not exceed 750 kg nor half of the pure weight

of the truck tractor.

Compact-Pro 70 is not a transport trailer, it is strictly forbidden to transport people or

products related to the application of the machine.

User manual - Compact-Pro 70 202007-461A-ENGP8

3. YOUR MACHINE

3.1. DESCRIPTION

Compact-Pro 70 is equipped with an electrical engine that drives a double gear pump that provides the

hydraulic ows required by the equipment.

The 400 L/min, 4 bar compressor is positioned on a plate for easy adjustment of the drive belt tension.

The screw and mixer rotation drives are driven by two orbital type motors and the hydraulic distribution by

industrial components whose controls are manual.

The components have been selected according to strict quality criteria.

The safety devices comply with the standards in place and the hydraulic circuits are protected against

possible blockages of the rotating elements. An air cooler ensures that the oil temperature is maintained

within the correct range.

3.2. TECHNICAL CHARACTERISTICS

Noise level 95 Lwa

Motorization 15 kW - 400 V - 32 A - 50 & 60 Hz

Hydraulic reservoir capacity 28 L

Screw pressure 200 bar

Mixer pressure 150 bar

Washer pressure 150 bar

Lifting jack pressure 60 bar

Mixer

capacity 200 L

hydraulic drive with two directions of rotation

mixer stop safety at grid opening

loading height of 87 cm

Hopper

hydraulic drive with two directions of rotation

screw stop safety at the grid opening

drain plug for cleaning

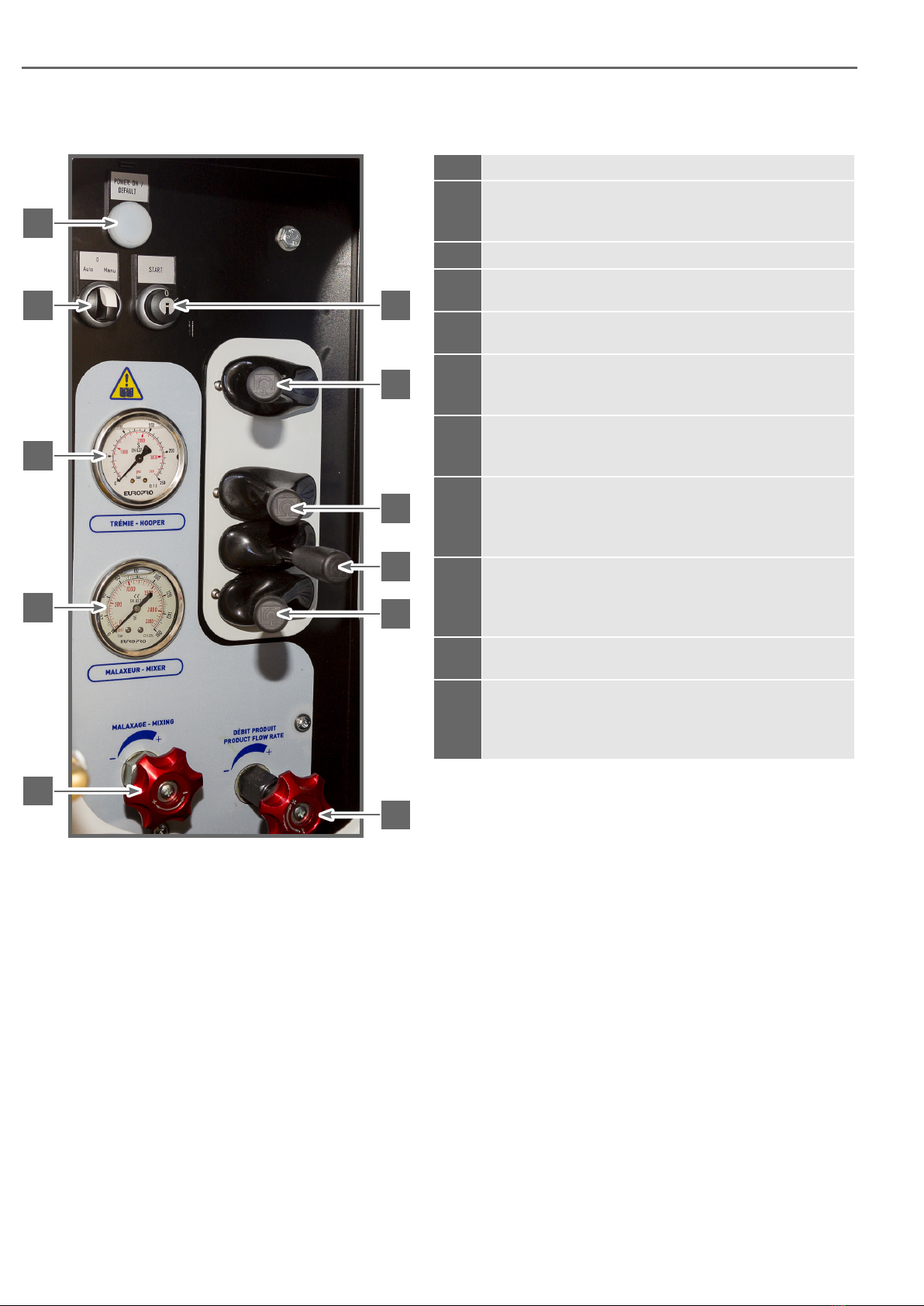

Centralized control panel includes starting up of the various functions (pump, mixer, lift)

adjustment of pump and mixer speeds

Compressor with pistons set at 4 bar

Compressor ow-rate 400 L/min

Screw pump standard : from 0 to 60 L/min max. at 40 bar max.

optional: up to 167 L/min

High pressure washer 11 L/min at 140 bar

Weight 700 kg

Delivered with

- a MAP 11 pump

- a Ø35 x 13,30 m product hose M50 x F35

- a Ø35 x 13,30 m product hose M35 x F35

- a Ø25 x 5 m hose M35 x M25

- a Ø10 x 33 m air hose

- a spraying lance

- eight nozzles (Ø8, 10, 12, 14, 16, 18, 20 & 22)

- three grouting nozzles (Ø10, 12 & 14)

- two Ø30 cleaning balls and two Ø50 cleaning balls

- a greasing pump with a grease cartridge

- a pressure controller with adapter

- a complete high pressure washer lance

- a 10 m high pressure washer hose

- a storage carry-case

- a suspension strap

2 3

4 5 6 7

8 10 11 14

202007-461A-ENG User manual - Compact-Pro 70 P9

3. YOUR MACHINE (continued)

3.3. IDENTIFICATION OF THE COMPONENTS

1Hydraulic oil level 8Cylinder shaft lubricator

2Compressor oil level 9Jockey wheel

3Electric circuit breaker 10 Product pressure control manometer

4Hopper bearing lubricator 11 Pump outlet

5Mixer bearing lubricator 12 Hood clips

6Motor bearing lubricator 13 Emergency stop

7Mixer grid roller lubricator 14 Air valve

User manual - Compact-Pro 70 202007-461A-ENGP10

3. YOUR MACHINE (continued)

3.3. IDENTIFICATION OF THE COMPONENTS (continued)

15 ON / OFF contact key

Power-on indicator light

Green = undervoltage

Red = fault

17 AUTO / MANU switch

18 Screw hopper circuit pressure manometer

Maximum pressure 200 bar.

19 Mixer circuit pressure manometer

Maximum pressure 150 bar.

Mixer rotation speed controller

Clockwise rotation: increase speed.

Counter-clockwise rotation: decrease speed.

Hopper screw speed controller

Clockwise rotation: increase speed.

Counter-clockwise rotation: decrease speed.

Product pump rotation control handle

Reverse: left position with spring return to the centre.

Stop: centre position.

Forward: right position maintained.

Mixer lifting handle

Rising: left position with spring return to the centre.

Stop: centre position.

Descent: right position with spring return to the centre.

24 Handle On (right position) / Off (left position) HP

washer

Mixer rotation control handle

Reverse: right position maintained.

Stop: centre position.

Forward: left position maintained.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Pistola pulverizadora de pintura de EUROPRO

EUROPRO

EUROPRO Compact-Pro 120 Manual de usuario

EUROPRO

EUROPRO MIXPRO 14 Manual de usuario

EUROPRO

EUROPRO Compact-Pro 30 Manual de usuario

EUROPRO

EUROPRO Compact-Pro 55 Manual de usuario

EUROPRO

EUROPRO Mini-Sandblaster 10L Manual de usuario

EUROPRO

EUROPRO EUROHVT1 Manual de usuario

EUROPRO

EUROPRO 4P Manual de usuario

EUROPRO

EUROPRO Jetmix 100-70 Manual de usuario

EUROPRO

EUROPRO COMPACT-PRO 60 Manual de usuario

EUROPRO

EUROPRO Compact-Pro Joint 20 Manual de usuario

EUROPRO

EUROPRO EUROPROPULVE V5 Manual de usuario

EUROPRO

EUROPRO JETPRO 100-7 Manual de usuario

EUROPRO

EUROPRO X-PRO E70 Manual de usuario

EUROPRO

EUROPRO 4P Manual de usuario

EUROPRO

EUROPRO 150TH-V Manual de usuario

EUROPRO

EUROPRO DropPro 30P Manual de usuario

EUROPRO

EUROPRO Compact-Pro Joint 10 Manual de usuario

EUROPRO

EUROPRO AC-65-G Manual de usuario

EUROPRO

EUROPRO Minijet 80 110 V Manual de usuario

EUROPRO

EUROPRO MINIJET 80 Manual de usuario

EUROPRO

EUROPRO JETPRO 80 Manual de usuario

EUROPRO

EUROPRO AC-50-G Manual de usuario

EUROPRO

EUROPRO Eurospray S Manual de usuario

EUROPRO

EUROPRO JETPRO 100-7 Manual de usuario

Manuales populares de Pistola pulverizadora de pintura de otras marcas

SNOWJOE

SNOWJOE Sunjoe 24V-GS-LTW-RM Manual de usuario

Graco

Graco 246737 Manual de uso y cuidado

Binks

Binks SV100 Manual de usuario

Fimco

Fimco LG-4-3-1 Manual de usuario

AG SPRAY

AG SPRAY FS-ATV-25BL Manual de usuario

Nordson

Nordson MicroMax 2 Manual de usuario

Bonide

Bonide 051 Manual de operación

zogics

zogics Z-DAS Manual de usuario

KISANKRAFT

KISANKRAFT KK-KBS-165 Manual de usuario

Matrix

Matrix SG 650 Manual de usuario

Anest Iwata

Anest Iwata SGA-3 Guía de inicio rápido

paasche

paasche VV Hoja de datos

Carlisle

Carlisle DeVilbiss JGA-510 Manual de usuario

Gardena

Gardena 11120 Manual de usuario

Conrad

Conrad Hobby Airbrush K3 Manual de usuario

wiwa

wiwa 14025 R/F Manual de usuario

Graco

Graco EM 390 Manual de operación

DeVilbiss

DeVilbiss LUNA2i Manual de usuario
