Euromaid IRI6SE1 Manual de usuario
User Manual
IRI6SE1
FP
Integrated
Rangehood - S/S
IRI9SE1 FPIntegrated Rangehood - S/S
CONTENTS
For You Safety.......................................................................................................................... 3
Safety Precautions....................................................................................................... 3
Before Connecting...................................................................................................... 3
Warnings....................................................................................................................... 4
Use and Care .......................................................................................................................... 6
LED Lamps.................................................................................................................... 6
Operating Instructions.................................................................................................
Cleaning your rangehood..........................................................................................
Installing the carbon filter ..........................................................................................
Installation .............................................................................................................................
Electrical Connection ...............................................................................................
Instructions for Installation.........................................................................................
Troubleshooting .........................................................................................................
Disposal ......................................................................................................................
Warranty.....................................................................................................................
2
For Your Safety
Carefully read the following important information regarding
installation safety and maintenance. Keep this information booklet
accessible for future reference.
This appliance has been designed for use in Ducted or
Recirculated installation.
Optional extras: Carbon filters for recirculated installation.
Part CF260
Safety Precautions
Take care when the Range Hood is operating simultaneously with
an open fireplace or burner that depend on natural ventilation as
the Range Hood removes air from the room, which a burner or
fireplace may need for combustion.
Provide adequate ventilation for safe operation of the Range
Hood. Follow any local laws that apply to external air evacuation.
Before connecting to the electricity network:
Look at the data plate (located inside the appliance) to ascertain
that the voltage and power correspond to the available power
supply and the power outlet is suitable. If in doubt ask a qualified
electrician.
If the appliance is used intensively for a long period of time, you
may need to opening a window to improve airflow.
3
For Your Safety
WARNINGS!
·Do not check the status of the filters while the Range Hood
is operating.
·Do not touch bulbs or adjacent areas, during or straight
after use.
·CAUTION: Accessible parts may become hot when used
with cooking appliances.
·Do not flambé under the Range Hood.
·Avoid free flame, as it is damaging to the filters and can
cause fire hazard.
·Constantly check food frying, overheated oil may become a
fire hazard.
·Disconnect the electrical plug prior to any maintenance.
·This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
·Children should be supervised to ensure that they do not
play with the appliance.
·There shall be adequate ventilation in the room when the
Range Hood is used at the same time as appliances
burning gas or other fuels.
·There is a fire risk if cleaning is not carried out in
accordance with the instructions.
·WARNING: DO NOT penetrate any screws into the range
hood as this may result in electrical hazards.
·WARNING: Failure to install the screws or fixing device in
accordance with these instructions may result in electrical
hazards.
4
WARNINGS!
·If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
·The air must not be discharged into a flue that is used for
exhausting fumes from appliances burning gas or other
fuels.
·The minimum distance between the cooktop hob and the
lowest part of the range hood shall be at least 60cm. If the
instructions for installation of the gas hob specify a
greater distance, this has to be taken into account.
·Regulation concerning the discharge of air has to be
fulfilled.
For Your Safety
·565cm rangehoods can only be installed above hobs with
4 or less burners / elements.
·865cm rangehoods can only be installed above hobs with
6 or less burners / elements.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR
DAMAGES CAUSED BY BREACHING THE ABOVE
WARNINGS.
5
Operating Instructions
OPERATING THE RANGEHOOD
Turn the rangehood on by pushing the POWER button.
To start the rangehood on its 1st speed, push the LOW SPEED button. An indicator light
surrounding the button will illuminate. Push the LOW SPEED again to turn the motor off.
To operate the 2nd and 3rd speed of the rangehood, push either the MEDIUM SPEED or HIGH
SPEED buttons
To operate the lights, push the LIGHT button. To switch off, push the LIGHT button again.
The rangehood can be switched off by pushing the POWER button once to firstly cease
operation of the motor and then a second time to power down the unit.
,WLVUHFRPPHQGHGWRVWDUWWKH5DQJH+RRGSULRUWRFRPPHQFLQJWRFRRNDQGOHDYHWKH
5DQJH+RRGLQRSHUDWLRQIRUPLQXWHVDIWHUFRRNLQJLVILQLVKHGLQRUGHUWRFRPSOHWHO\
HOLPLQDWHFRRNLQJYDSRXUVDQGRGRXUV

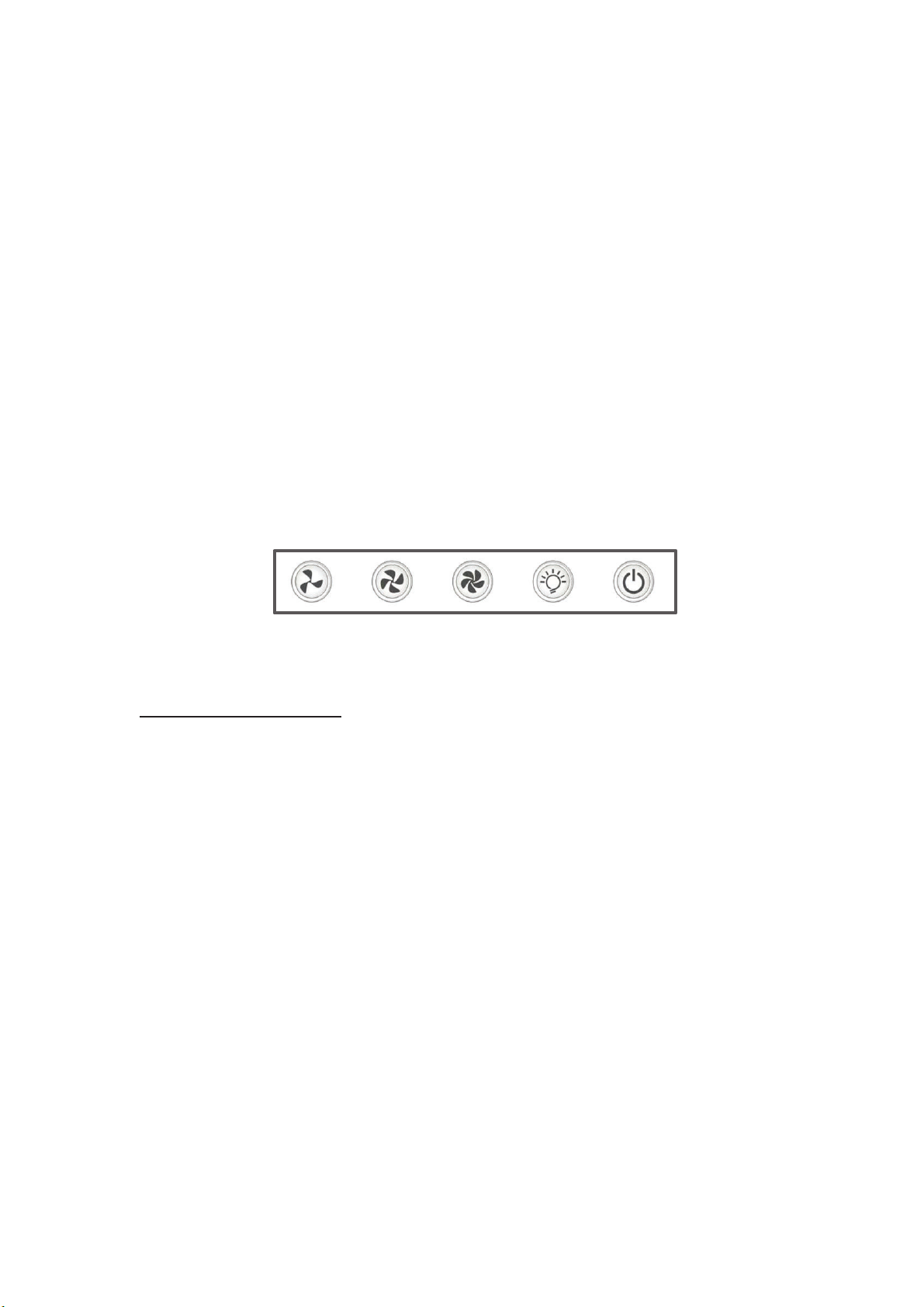

LOW MEDIUM HIGH LIGHT POWER
SPEED SPEED SPEED
LED Lamps
LED lamp assemblies are a spare part and are not repairable or
replaceable by the customer.
If an LED lamp fails, it must be replaced by a suitably qualified
technician.
Please call Glen Dimplex after sales service.
6
Cleaning your rangehood
The proper function of the rangehood requires regular
maintenance operations.
The anti-grease filters capture the grease particles suspended in
the air, and are therefore subject to clogging according to the
frequency of the use of the appliance.
In order to prevent fire hazard, it is recommendable to clean the
filter at a minimum of every 2 months by carrying out the following
instructions:
- Remove the filters from the cooker hood and wash them in a
solution of water and neutral liquid detergent, leaving to soak.
- Rinse thoroughly with warm water and leave to dry.
- The filters may also be washed in the dishwasher.
The aluminum panels may alter in color after several washes. This
is not cause for customer complaint nor replacement of panels.
Clean the fan and other surfaces of the cooker hood regularly
using a cloth moistened with denatured alcohol or non abrasive
liquid detergent.
Keep motor and other parts free from water as this will cause
damage to the appliance.
Use and Care

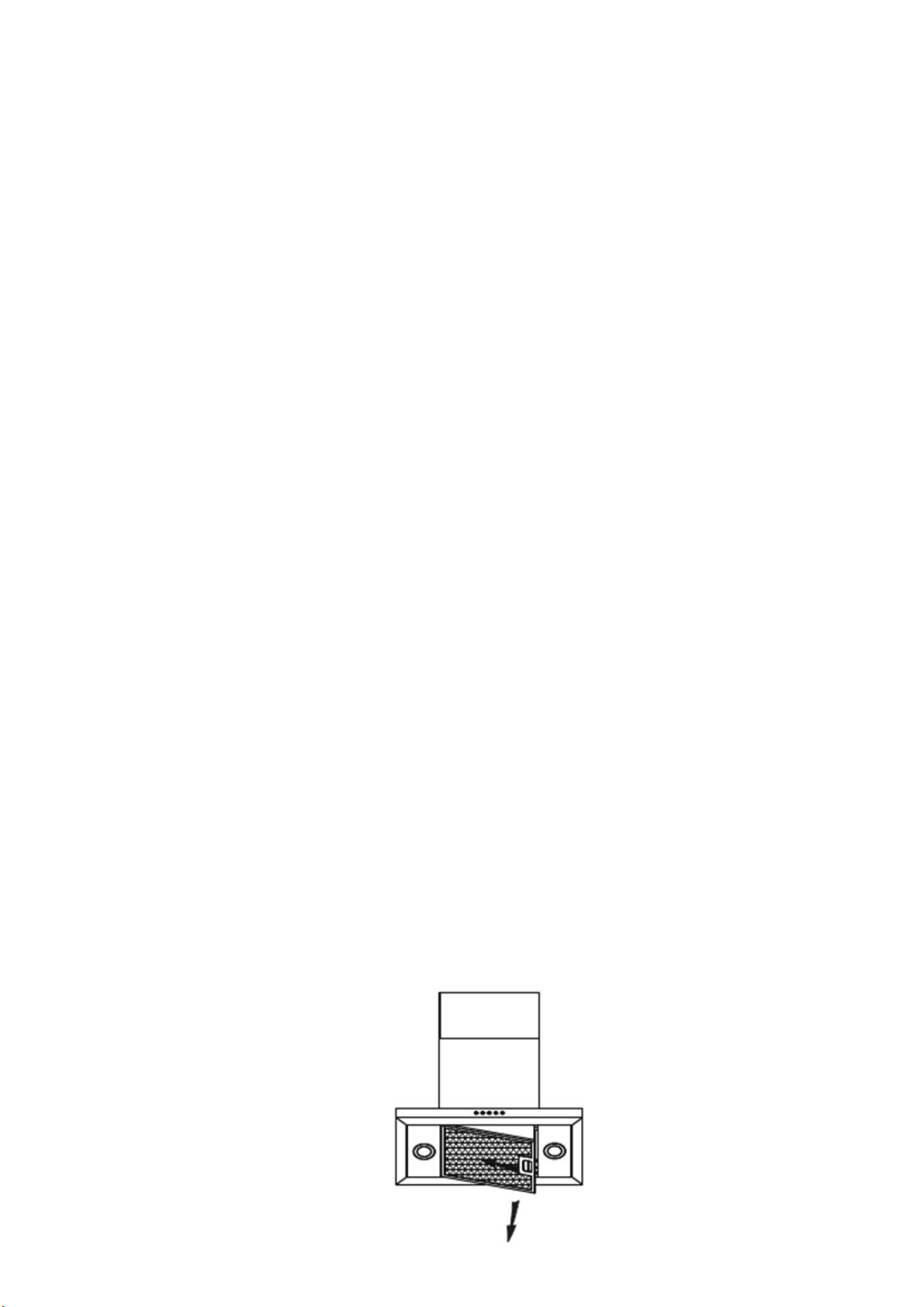

Removing the anti grease filters:
2. Slide the plastic filter handle inwards and pull the filter down.
To refit the filters:
1. Angle the tabs on the filter into slots at one end.
2. Slide plastic filter handle inwards and push the filter into place.
7
Installation
Assembly and electrical connections must be carried out by
authorised personnel.
Electrical Connection
The Range Hood is fitted with a power cord and 3 pin plug. Install
the Range Hood so that the plug is easily accessible. Plug the 3-
pin plug into a properly earthed, 10A general purpose power
outlet.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard.
The appliance has been manufactured as a class I, therefore
earth cable is necessary.
The connection to the mains is carried out as follow:
If not provided, connect a plug for the electrical load indicated on
the description label. Where a plug is provided, the cooker hood
must be installed so that the plug is easily accessible after
installation.
An omnipolar switch with a minimum aperture of 3mm between
contacts, in line with the electrical load and local standards, must
be placed between the appliance and the network in the case of
direct connection to the electrical network.
IEC227 North America
L = Live Brown Black
N = Neutral Blue White
E = Earth Green/Yellow Green
8
Instructions for Installation
WARNING: DO NOT penetrate any screws into the range hood
as this may result in electrical hazards.
WARNING: Failure to install the screws or fixing device in
accordance with these instructions may result in electrical
hazards.
If a connection flue composed of two parts is used, the upper part
must be placed outside the lower part.
Exhaust air must not be discharged into a flue which is used for
exhausting fumes from appliances burning gas or other fuels.
Installation must comply with any local regulations concerning the
discharge of exhaust air.
Before proceeding with the assembly, remove the anti-grease filter
so that the unit is easier to handle. Prepare the hole in the ceiling
or wall for the evacuation of the air.

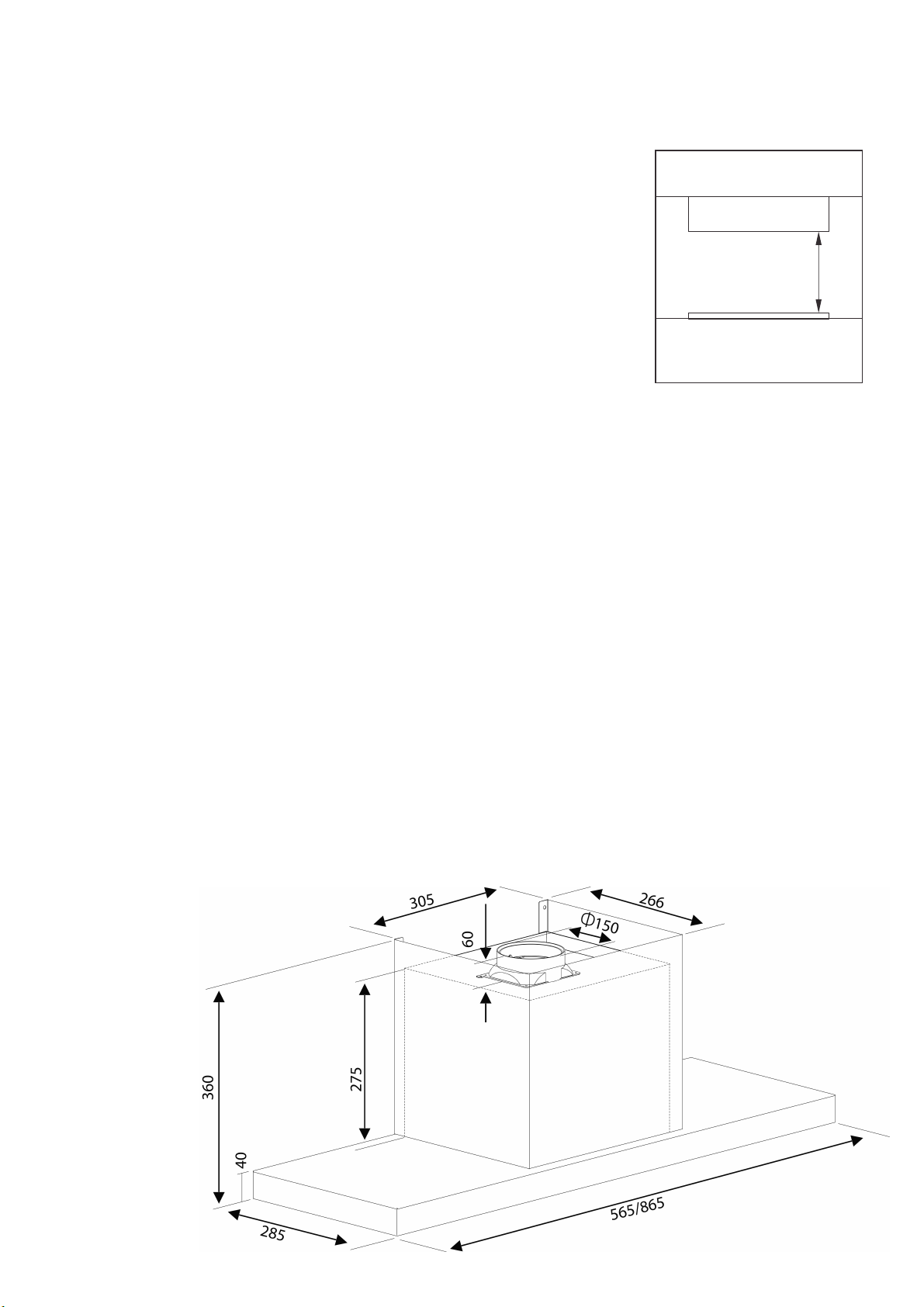

Installation
650-750
Rangehood
Cooking Surface
Recommended Clearances
Install Range Hoods in accordance
with the manufacturer’s instructions.
For optimum performance, we
recommend that all Range Hood
clearances be a minimum of 650mm
to a maximum of 750mm between
the top of the cooking surface to the
underside of the Range Hood. The
distance may be reduced to 600mm
to align with AS/NZS 5601.
9
Installation
The IRI6WE3, IRI9WE3, IRI6SE1 & IRI9SE1 are designed to
be
installed fully integrated into an overhead cupboard as
pictured below. The IRI6WE3& IRI6SE1 are suited for a
600mm cupboard and the IRI9WE3 & IRI9SE1 are suited for
a 900mm cupboard.
Installation of the IRI9WE3Integrated rangehood in an overhead cupboard
The Integrated Rangehood is mounted to the rear of the
overhead cupboard. Supplied with the rangehood is a
mounting bracket (Fig. 2)
Fig. 2
10
