EUNORAU BC280 PRO Manual de usuario

Manual

BC280 PRO Model

Version: CH-20220223

www.eunorau-ebike.com. BC280PRO Manual

EUNORAU E-MOBILITY USA CORP www.eunorau-ebike.com.

Contents

Product Description and Specifications...............................................................3

Parts Description ......................................................................................3

Function introduction ....................................................................................4

Features.................................................................................................4

Buttons Functions .....................................................................................5

Operation ...................................................................................................5

Power on/off ...........................................................................................5

Cycling interface ......................................................................................6

Assist level switch .....................................................................................7

Error Code ..............................................................................................7

User Menu...............................................................................................8

Connect to APP (only for Bluetooth version) ....................................................12

Attentions .................................................................................................13

www.eunorau-ebike.com. BC280PRO Manual

EUNORAU E-MOBILITY USA CORP www.eunorau-ebike.com.

Product Description and Specifications

DTK3 Button BC281 Display

Parts Description

Display Dimensions

www.eunorau-ebike.com. BC280PRO Manual

EUNORAU E-MOBILITY USA CORP www.eunorau-ebike.com.

DTK3 Button Dimensions

Function introduction

Features

BC281 provides the display function of common riding data and statistical results, as well as some

practical functions:

Real-time speed, Max speed, Average speed

Real time motor power

Battery indicator

Assistant level

Odometer, trip

Trip time

Calorie consumption

Light indicator

Metric(km/h)/Imperial(mph) switching

Error code indicator

Auto headlights, Brightness adjustment, automatic backlight

Auto Power-off

USB Port（5V/500mA）

In addition, the Bluetooth version also supports the following functions:

APP connection

Data synchronization

Cycling ranking

Cycling track record

Buttons Functions

www.eunorau-ebike.com. BC280PRO Manual

EUNORAU E-MOBILITY USA CORP www.eunorau-ebike.com.

Buttons

Name

Functions

[Power]

1、Power on/off

2、Setting confirmation

[+]

1、Parameter adjustment

2、Menu operation

[-]

1、Parameter adjustment

2、Pedestrian mode on/off

3、Menu operation

Operation

Power on/off

In the off state, long press the [Power] button to enter the boot logo interface, and enter the riding interface

after 1.5s:

In any interface of startup, long press the [Power] button to enter the shutdown logo interface, and shut

down after 2s:

Cycling interface

BC281 provides various styles of riding interface, you can switch the display by clicking the [Power] button:

www.eunorau-ebike.com. BC280PRO Manual

EUNORAU E-MOBILITY USA CORP www.eunorau-ebike.com.

1. Simple mode

2. Sports Mode

3. Statistical Mode

Battery indicator

Light indicator

Real-time speed

Speed Unit

Real-time motor

power

Trip

Assist

Battery indicator

Real-time speed

Real-time

speed

Speed Unit

Trip

Assist

Real-time motor power

Calorie burnt

Cycling time

Average Speed

Trip time

Max speed

Odometer

www.eunorau-ebike.com. BC280PRO Manual

EUNORAU E-MOBILITY USA CORP www.eunorau-ebike.com.

Assist level switch

Click [+]/[-] to switch assist levels;

Press and hold the [-] button to activate the boost mode, and release the [-] button to exit the

pedestrian mode.

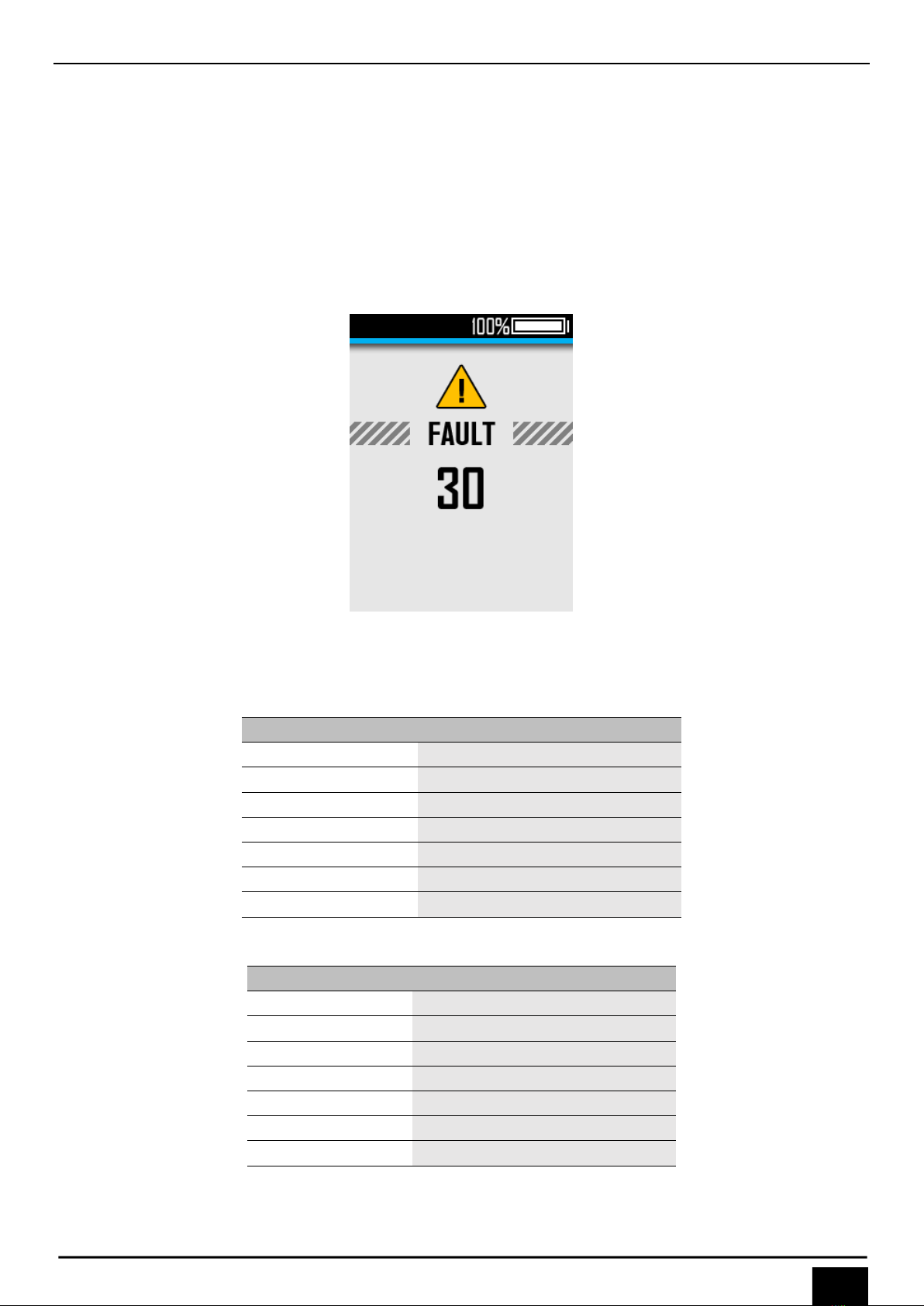

Error Code

Common error codes (errror codes are related to other accessories of the ebike, the following information

is for reference only):

KM5S protocol Error Code

Error Code

Meaning

Current or Mos Error

Throttle Error

Motor Phase Error

Motor Hall Error

Brake Error

Low-voltage protection

Communication Error

Li2 protocol Error Code

Error Code

Meaning

Brake Error

Low-voltage protection

Motor Phase Error

Throttle Error

Current or Mos Error

Motor Hall Error

Communication Error

www.eunorau-ebike.com. BC280PRO Manual

EUNORAU E-MOBILITY USA CORP www.eunorau-ebike.com.

User Menu

In the static state, long press the [+] and [-] combination button for 2s on the cycling interface to enter the

user menu interface.

To ensure user safety, the user menu can only be accessed when the ebike is stationary (speed 0). In this

interface, you can switch the submenu by clicking the [+] / [-], and click the [Power] to enter the selected

submenu interface.

1、Clear Data

（1）Clear Trip Data

Select "Trip Distance", click the [Power] button, select Yes according to the interface prompts and

click the [Power] button again to confirm, you can clear the single mileage:

www.eunorau-ebike.com. BC280PRO Manual

EUNORAU E-MOBILITY USA CORP www.eunorau-ebike.com.

[Note] Clearing Trip Dist will also clear the Trip time, average speed, ma speed, and calories

burnt.

2、Setup

（1）Auto Headlight

Select Auto Headlight submenu and click the [Power] button to enter, you can set whether to

enable the automatic headlight function:

www.eunorau-ebike.com. BC280PRO Manual

EUNORAU E-MOBILITY USA CORP www.eunorau-ebike.com.

（2）Set Unit

Select Set Unit and click the [Power] button to enter, you can select the speed unit:

（3）Set Brightness

Select Set Brightness and click the [Power] button to enter, you can use the [+] / [-] to adjust the

backlight brightness level, the adjustment range is 0-5:
