ETC Echo Dual Tech Wall-mount Vacancy Sensor Manual de usuario

ETC Installation Guide

Echo Dual Tech Wall-mount Vacancy Sensor

Corpora te He adqua rte rs Middleton, WI, USA +1 608 831 4116

London, UK +44 (0)20 8896 1000 Holzk irche n, DE +49 (80 24) 47 00-0

Rome , IT +39 (06) 32 111 683 Hong Kong +852 2799 1220 Pa ris, FR +33 1 4243 3535

We b etcconnect.com Support support.etcconnect.com

Product information and specifications subject to change. ETC intends this document

to be provided in its entirety. Trademark and patent info:etcconnect.com/ip

7186M2186 Rev B Released 2020-11

Overview

The Echo Dual Tech Wall-mount Vacancy Sensor uses passive infrared (PIR)

technology and acoustic detection to provide reliable vacancy sensing for

lighting control. The sensor relies on local station control for manual on and

provides auto off functionality upon detection of vacancy.

The wall-mount unit offers up to 140 degree field of

detection with optimized lens options to

accommodate wide or narrow angle spaces.

Wall-mount - Wide Angle Lens - coverage

•

18.3 m (60 ft) at mounting height of 2.1-3m

(7-10ft)

•

140 degree field of detection

Wall-mount - Narrow Angle Lens - coverage

•

4.9 x 22.9 m (16 x 75 ft) at mounting height of

1.8-2.1 m (6–7 ft)

•

40 degree field of detection

See

Sensor Coverage on page 11

Custom Configuration

This document guides you through the installation and local DIP switch setup

of the sensor. For more detailed information about custom configuration

options available using EchoAccess, see the EchoAccess Mobile App

integrated help system.

Note:

To use the configuration settings applied using EchoAccess,

DIP switch 2 must be enabled. See DIP Switches on page7.

ETC Installation Guide

Dual Tech Wall-mount Vacancy Sensor

Prepare for Installation

Echo Dual Tech Wall-mount Vacancy Sensors ship with electronics, a

decorator style wall plate, and a termination kit. The sensor may be installed

into an industry standard back box (provided by others) or surface mounted

back box (sold separately and available from ETC).

Compliance

•

cULus Listed

•

CE compliant

For use with ETC Echo Control Systems, powered by an Echo station power

supply.

Environment

Ambient

For indoor, commercial controls use only. Operating temperature 0-40°C

(32-104°F), humidity maximum 90%(non-condensing).

Location

ETC recommends paying special attention to the installation environment:

•

When operating in PIR only modes, the sensor must have an

unobstructed view of the room. Do not mount behind or near tall

cabinets, shelves, hanging light fixtures, etc.

•

Do not install the sensor within eight feet from an HVAC airflow

duct/vent.

•

Install the sensor where it cannot easily sense movement in areas

outside of the intended space, such as hallways, glass partitions, or

adjacent rooms.

Note:

In areas of increased noise activity, enabling PIR only mode

may allow for better occupancy detection results. See DIP Switches on

page 7.

Dual Tech Wall-mount Vacancy Sensor Page 2 of 12 ETC

ETC Installation Guide

Dual Tech Wall-mount Vacancy Sensor

Wire Specification

The Dual Tech Wall-mount Vacancy Sensor connects to the EchoConnect

communication bus. EchoConnect is a bi-directional protocol that uses one

pair of wires (data+ and data-) for both data and power. ETC recommends

using Belden 8471 Class 2 wire (or approved equal - see the ETC cable cross

database etcconnect.com/Support/Cable-Cross-Database for equal

alternatives). The total combined length of an EchoConnect wire run using

Belden 8471 may not exceed 500m (1,640ft), with a maximum distance of

400 m (1,312 ft) between any two devices.

Note:

All control wiring should be installed and terminated by a

qualified installer and should follow standard wiring installation

practices. Leave approximately 25.4cm (10in) of wiring in the back

box for connection and to allow slack for future service needs.

Note:

ETC requires that all stations and devices be grounded for

ESDprotection. Pull an additional 2.5 mm2(14AWG) wire for

grounding when control wires are not installed in grounded metal

conduit.

Note:

When using Category 5 (or equivalent) cable on the

EchoConnect communication bus, please note the following:

•

Cat5 wiring must be terminated using EchoConnect Cat5

Termination Kit and must be installed using a bus topology.

Refer to the installation guide that is provided with the Cat5

Termination Kit (7186A1207) for information to terminate

Cat5 wiring.

•

Not all topologies are supported using Cat5; careful planning

is required to ensure the proper termination kits are available

and the wire is pulled appropriately.

Supplies

The following supplies are provided with the sensor:

•

mounting bracket with pre-routed EchoConnect and ground wires

•

2 each mounting screws, 6-32 x 3/4" and 6-32 x 1 3/4"

•

WAGO connectors (wire termination connectors)

•

decorator style wall plate

Dual Tech Wall-mount Vacancy Sensor Page 3 of 12 ETC

ETC Installation Guide

Dual Tech Wall-mount Vacancy Sensor

Installation

Note:

NEC Class 2 product to be wired in accordance to NEC Article

725 and local jurisdiction requirements.

The wall-mount sensor is provided with a mounting bracket with pre-routed

wires that can be mounted to a back box. Follow the detailed instructions for

installation.

1. Pull the Belden 8471 (or equivalent) and one 2.5 mm2(14 AWG)

ground wire to the mounting location (back box or surface mounted

back box) and strip each wire 11 mm (7/16 in).

2. Connect the EchoConnect pigtail wires from the mounting bracket to

the installed wall wires.

a. Connect the data- (typically black) EchoConnect wire from

mounting bracket to the incoming data- (typically black) wire

using a WAGO wire termination connector (provided).

b. Repeat the above steps for the data+ (typically white)

EchoConnect wire and for the ESD ground wire, using a new

WAGO connector for each termination type.

3. Orient the mounting plate to the back box with the directional arrows

in the upright position and secure it in place using the screws

provided.

Dual Tech Wall-mount Vacancy Sensor Page 4 of 12 ETC

ETC Installation Guide

Dual Tech Wall-mount Vacancy Sensor

4. Install the wall plate to the

mounting plate.

a. Align the top of the wall

plate to the mounting plate,

angling the bottom slightly.

b. Hook the top of the wall

plate to the tabs located on

the mounting plate.

c. Swing the wall plate down,

ensuring the neck of the

sensor extension and wires

feed through the opening,

until the magnets engage.

d. If the wall plate does not fully attach, wiggle the bottom of the

plate until all of the magnets are seated properly.

5. Attach the sensor

head.

a. Slide the

removable

cover off the

sensor head.

b. Route the

three-position

connector with

wiring pigtail

through the

sensor head.

c. Loosen the set

screw on the

sensor

retaining ring.

d. Slide the sensor onto the ball socket, and then tighten the set

screw until secure.

6. Connect the three-position connector to the receptacle on the sensor

electronics.

Dual Tech Wall-mount Vacancy Sensor Page 5 of 12 ETC

ETC Installation Guide

Dual Tech Wall-mount Vacancy Sensor

Settings

MODE AUX

The Echo Dual Tech Wall-mount Vacancy

Sensor participates in an Echo control

system using the configured Space and

Address, which are selectable using the

rotary switches on the sensor electronics

located behind the removable cover.

DIPswitches, also located on the sensor

electronics, set the sensor functionality.

Note:

The [MODE] and [AUX] buttons, and their related LEDs, are

not used and have no functionality on the Dual Tech Wall-mount

Vacancy Sensor.

Set Space and Address

Two rotary switches on the controller provide for assignment of the sensor

Space and Address. By default, these switches are set to Space 1, Address 1.

Commands are shared by all devices within a given space.

1. Set the Space rotary switch to the desired number (1 through 16) for

the space you want the sensor to control.

2. Set the Address rotary switch to desired address (1 through 16) for the

sensor identification in the selected space.

Note:

Do not duplicate a device Address within the same Space.

Dual Tech Wall-mount Vacancy Sensor Page 6 of 12 ETC

ETC Installation Guide

Dual Tech Wall-mount Vacancy Sensor

DIP Switches

DIP switches on the sensor electronics provide for additional configuration

options including Use Custom Config, Vacancy Timeout, Enable/Disable

detection LEDs, PIR Only, and the ability to restore the sensor to its factory

defaults.

Switch # Use

1Unused

2Enable/Disable Custom Config Mode

•

When “Custom Config” is set to Off (also known as Basic

configuration mode), local DIP switch settings for Vacancy

Timeout, Enable PIR LED, and dual technology features are

used. See

Configuration on page 8

•

When “Custom Config” is set to On, all other local DIP

switch settings are ignored. Instead, the settings made by

the EchoAccess Mobile App are used.

3 and 4 Vacancy Timeout

•

5 min = Switches 3 and 4 are Off

•

15 min = Switch 3 is Off and Switch 4 is On (default)

•

30 min = Switch 3 is On and Switch 4 is Off

•

Auto = Both switches are On

5Detection LEDs

•

When set to On (default), the occupancy detection LEDs

illuminate when movement is detected.

•

When set to Off, the occupancy detection LEDs are

disabled unless the unit is in Walk Test mode.

6PIR Only Mode

•

When set to On, acoustic detection technology is disabled

for the sensor.

•

When set to Off (default), both PIR and acoustic detection

technologies are used by the sensor.

7Unused

8Restore to Defaults at boot

•

When set to On and power is cycled to the sensor, the

unit restores to its factory default settings.

•

Off is the default setting.

Dual Tech Wall-mount Vacancy Sensor Page 7 of 12 ETC

ETC Installation Guide

Dual Tech Wall-mount Vacancy Sensor

Power Up

All EchoConnect terminations in the system must be made before applying

power to the system and sensor. When the sensor is powered up, the PIR and

acoustic detection LEDs illuminate for one minute for calibration and warm-

up, and then return to normal operation according to the configuration.

Both the PIR and acoustic detection features of the sensor will automatically

adjust sensitivity threshold to eliminate nuisance tripping. During this time,

sensor configuration is not allowed and no events are triggered.

Operation

Dual Technology

When both PIR and acoustic detection are used, the following logic is used:

•

When the space is vacant, only manual control can switch the state to

occupied.

•

When the space is occupied, PIR, acoustic detection, and manual

control can reset the vacancy timeout.

•

When the vacancy timeout in the space has only been reset by acoustic

detection for 60 minutes, acoustic detection is disabled until the next

PIR detection event.

PIR (only) Detection

When acoustic detection is disabled (DIP switch 6 set to On), the following

logic is used:

•

When the space is vacant, only manual control can switch the state to

occupied.

•

When the space is occupied, PIR detection and manual control can

reset the vacancy timeout.

Configuration

Basic

When the sensor is in Basic configuration mode (DIP switch 2 set to Off), the

sensor will activate a Space Off command when vacancy is detected.

Dual Tech Wall-mount Vacancy Sensor Page 8 of 12 ETC

ETC Installation Guide

Dual Tech Wall-mount Vacancy Sensor

Custom

When functionality other than Space Off is required, place the sensor in

Custom configuration mode (DIP switch 2 set to On). Customization of the

sensor and all actions are configured using the EchoAccess Mobile App.

For more detailed information about custom configuration options available

using EchoAccess, see the EchoAccess Mobile App integrated help system.

Vacancy Timeout

Vacancy timeout is the amount of time the sensor waits to take action after

no movement is detected. By default, vacancy timeout is set to 15 minutes

(indicated by DIP switch 3 set to Off and 4 set to On; see

DIP Switches on

page 7

). When the vacancy timeout ends, the grace period begins.

When the sensor detects vacancy, the vacancy timeout period begins. If the

sensor does not detect occupancy again during the vacancy timeout period,

the lights turn off and a 30 second grace period begins.

Grace Period

The sensor features a 30 second grace period after a vacancy timeout occurs.

During this grace period, if the sensor detects occupancy, it will turn on or

restore the previous lighting condition.

Auto Vacancy Timeout

The “Auto” vacancy timeout setting varies the vacancy timeout between

5 and 30 minutes depending on how often it identifies an occupancy trigger

after a vacancy timeout occurs (during the grace period).

Dual Tech Wall-mount Vacancy Sensor Page 9 of 12 ETC

ETC Installation Guide

Dual Tech Wall-mount Vacancy Sensor

Walk Test

The sensor offers a Walk Test mode, which shortens the vacancy timer to ten

seconds and allows for simple and quick verification of the sensor’s coverage

and range in the installed space.

[Walk Test]

button

1. Prepare the site for configuration.

a. Make certain the sensor and lighting loads are powered and

connected for control by the Echo control system.

b. You will need direct access to the sensor in order to place it into

Walk Test mode.

2. Press the [Walk Test] button on the bottom of the sensor to enable

the Walk Test feature. A green LED will flash, indicating Walk Test is

enabled and the vacancy timer will be shortened to ten seconds.

3. Move throughout the space including corners and areas that may be

obscured from line of sight to the sensor. Each time the sensor detects

movement, the lens illuminates red. If acoustic detection is enabled,

any sound detected will illuminate the lens green.

4. As needed, adjust the angle of the sensor head to obtain optimal

detection in the space.

5. Walk Test mode automatically exits and the sensor returns to normal

operation after five minutes. You can also manually terminate by

pressing the [Walk Test] button again.

Dual Tech Wall-mount Vacancy Sensor Page 10 of 12 ETC

Tabla de contenidos

Otros manuales de Accesorios de ETC

ETC

ETC echoflex OWS-IR-UW-120/277 Manual de usuario

ETC

ETC Sasquatch Manual de usuario

ETC

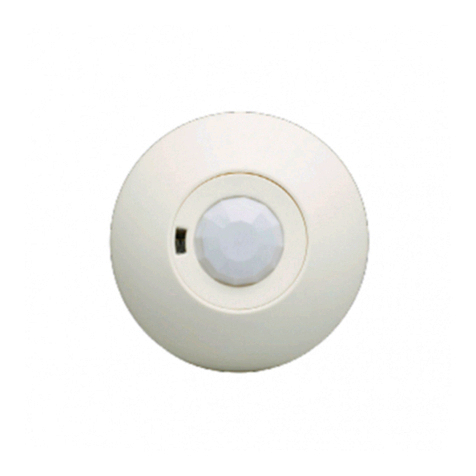

ETC Echo Dual Tech Ceiling-mount Vacancy Sensor Manual de usuario

ETC

ETC Echoflex Elaho Manual de usuario

ETC

ETC echoflex MOS-IR A Series Manual de usuario

ETC

ETC Unison Aero SimpleTap Cubicle Station Manual de usuario

ETC

ETC Unison Heritage Manual de usuario

ETC

ETC Echoflex Dual Tech Manual de usuario

ETC

ETC Aero SimpleTap Occupancy Sensor Manual de usuario

ETC

ETC echoflex ERUSB-C Manual de usuario

ETC

ETC Echoflex Manual de usuario

ETC

ETC echoflex MOS-MT Series Manual de usuario

ETC

ETC Unison Echo E-OCC-SR Manual de usuario

ETC

ETC SR12D Manual de usuario

ETC

ETC Unison Aero Manual de usuario

ETC

ETC Unison Echo Dual Tech Switch-mount Occupancy... Manual de usuario

ETC

ETC echoflex Elaho E-LS Manual de usuario

ETC

ETC Echoflex UWLDU-3 Manual de usuario

ETC

ETC echoflex RCT Manual de usuario

ETC

ETC P-OCC-SR Manual de usuario

ETC

ETC echoflex RCT Manual de usuario

ETC

ETC Echoflex Elaho Manual de usuario

ETC

ETC Sohrana Dual Tech Manual de usuario

ETC

ETC Unison Aero Manual de usuario

Manuales populares de Accesorios de otras marcas

Hillco

Hillco 2810 Manual de usuario

Siemens

Siemens QSA2700D Manual del operador

Contours

Contours ZY024 Manual de usuario

Saivod

Saivod VS621 Manual de usuario

Virtuox

Virtuox VirtuCLEAN 2.0 Manual de usuario

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manual de usuario

Z-Wave

Z-Wave HSD-200Z Manual de usuario

turck

turck FMX-IM-2UPLI63FX Manual de usuario

Decagon Devices

Decagon Devices 10HS Manual de usuario

UPPAbaby

UPPAbaby Cup Holder Manual de usuario

Elko

Elko SmartSensor Leakage Wireless Manual de usuario

Grizzly

Grizzly H8371 Manual de usuario

Panasonic

Panasonic HG-T Series Manual de usuario

IFM Electronic

IFM Electronic Efector 250 Series Guía de referencia

DigiDesign

DigiDesign 888/24 I/O Manual de usuario

PROZIS

PROZIS QUAY Manual de usuario

patagonia

patagonia PSI Vest Manual de usuario

SFC Energy

SFC Energy EFOY GO! Manual de usuario
