Et system EAC/AFV Manual de usuario

ET System electronic GmbH

Telefon 06205 3948-0

Fax 06205 37560

Hauptstraße 119-121

[email protected]

68804 Altlußheim

www.et-system.de

EAC/AFV

Software version:

January 2015


Table of Contents

Info & Contact Addresses............................................................................................................................................1
Technical Specifications ..............................................................................................................................................1
Ambient Conditions........................................................................................................................................................1
Display............................................................................................................................................................................2
Input Specifications ........................................................................................................................................................2
Output Specifications .....................................................................................................................................................2
Total Power ....................................................................................................................................................................2
Technical Drawing ..........................................................................................................................................................3
Important Safety Instructions .....................................................................................................................................4
Initial Operation .............................................................................................................................................................4
Unpacking.......................................................................................................................................................................4
Setting Up.......................................................................................................................................................................4
Visual Inspection ............................................................................................................................................................4
Mains Operation ............................................................................................................................................................4
Functional Description ................................................................................................................................................5
Block Diagram.................................................................................................................................................................5
Structure of the Main Control Unit ................................................................................................................................6
Description of cable connections ...................................................................................................................................6
Cable Wiring ...................................................................................................................................................................6
General Settings..........................................................................................................................................................7
Initial State & Splash Screen...........................................................................................................................................7
Main Menu .................................................................................................................................................................7
Application.................................................................................................................................................................7
System .......................................................................................................................................................................7
Event..........................................................................................................................................................................7
Menu “APP“ ...................................................................................................................................................................8
Mode “General“ ........................................................................................................................................................8
Mode “Step“..............................................................................................................................................................9
Mode “Gradual“ ......................................................................................................................................................10
Mode “Meas.“ .........................................................................................................................................................11
Error Message..........................................................................................................................................................12
Menu “SYSTEM“ ...........................................................................................................................................................12
Date & Time.............................................................................................................................................................13
System Setting .........................................................................................................................................................13
Language Setting .....................................................................................................................................................13
Menu ”EVENT“ .............................................................................................................................................................13
RS 485 Interface ........................................................................................................................................................14
Command Format ........................................................................................................................................................14
Commands of Functions...............................................................................................................................................14
Answer Commands ......................................................................................................................................................14
Protocol Examples........................................................................................................................................................15
CRC Check Sum.............................................................................................................................................................18
Error Messages..........................................................................................................................................................19
Maintenance.............................................................................................................................................................19
Notes ........................................................................................................................................................................20










Info & Contact Addresses

ET System electronic GmbH 1

INFO & CONTACT ADDRESSES

ET System electronic GmbH was founded in 1986 in the heart of the Rhine-Neckar-Triangle. As a subsidiary of a leading

electricity utility group, the company quickly took on a leading role in the area of laboratory power electronics and

associated electrical measurement. The existing know-how in power technologies in the 90s gave rise to the “Power

Solutions” product division as a strong extension of the historical “Test & Measurement” range.

Since 1997, we have been working successfully as an independent, privately held company with customers in all lines

of business from industry, medical care, railway technology and automotive electronics.

By means of our high vertical range of manufacture and our ever expanding development division we can fast and

flexibly adjust to our customers’ requirements. Necessary approvals such as CSA, UL, VDE, TÜV etc. are flexibly carried

out by qualified personnel. The approval procedures are performed within the scope of development planning and thus

do not negatively impact the start of manufacturing. Permanent manufacturing control through accredited laboratories

and an ISO 9001 compliant quality management system guarantee a constant high-level series-production quality.

We offer repairs and adjustment for units outside of our warranty period. Please contact your local distributor for fur-

ther information:

Place of Business: Altlußheim, Germany

VAT Identification Number: DE 144 285 482

Managing Director: Dipl.-Ing. Eric Keim

Sales Manager: Roland Kosmowski

Development Leader: Hermann Amtsberg

TECHNICAL SPECIFICATIONS

AMBIENT CONDITIONS

Operating Temperature

0 - 45 °C

Operating Height

< 1.500 m

Insulation Resistance

≥ 500 V DC 10 MΩ

Insulation Test Voltage

AC 1.800 V 10 mA/1 min

Cooling

Fan

Humidity

< 90 %

Germany

ET System electronic GmbH

Hauptstraße 119-121

68804 Altlußheim

Germany

Phone: +49 (0) 6205 39480

Fax: +49 (0) 6205 37560

em@il: info@et-system.de

web: www.et-system.de

Technical Specifications

2 ET System electronic GmbH

DISPLAY

Display

Touch screen

Voltage

Display: 0 - 300 V, Resolution: 0.1 V, Accuracy: 0.5 % FS + 4COUNT

Current

Display: 0 - 999,9 A, Resolution: 0.1 A, Accuracy: 0.5 % FS + 4COUNT

Frequency

Display: 0 - 999,9 Hz, Resolution: 0.1 Hz, Accuracy: ± 0.1 Hz

INPUT SPECIFICATIONS

Number of Phases

Voltage

230/400 V

Voltage Fluctuation

230/400 V ± 15 %

Frequency Fluctuation

50/60 Hz ± 3 Hz

Power Factor

0.9

Max. permitted current under full load

140.3 A

OUTPUT SPECIFICATIONS

Number of Phases

Wave Form

Sine

Low Voltage

0 - 150 V (L - N)

High Voltage

150.1 - 300 V (L - N)

Frequency

45 - 500 Hz

Frequency Stability

±≤ 0.01 %

Max. high voltage current

LO: 83.3 A

Max. low voltage current

HI: 41.7 A

TOTAL POWER

Output Power (kVA)

Circuit Mode

IGBT/PWM (pulse width modulation)

Voltage Control

≤ 1 %

Load Control

± 1 %

Wave Form Distortion (THD)

≤ 2 %

Efficiency

≥ 90 %

Reaction Time

≤ 2 ms

Crest Factor

3:1

Protective Devices

Input: fuse switch, Output: overvoltage/undervoltage, overcurrent, overload Input:

overvoltage/undervoltage, countercurrent protection, overtemperature, short circuit protec-

tion, conduct fast protection and lock fault protection , error display

Technical Specifications

ET System electronic GmbH 3

TECHNICAL DRAWING

Touchscreen

AC Output terminal row: U, V, W, Nu, Nv, Nw

Emergency stop button

Door handle

Input air switch

Maintenance socket

AC input terminal row: R, S, T, N, G

Parallel operation

Important Safety Instructions

4 ET System electronic GmbH

IMPORTANT SAFETY INSTRUCTIONS

Please read this manual thoroughly before putting the device

into operation. Pay regard to the following safety instructions

and keep this manual nearby for future purpose.

This operating manual is based on the state of technology at the time of printing. However, it is possible that despite

regular control and correction, the present document contains printing errors or deficiencies. ET System electronic

GmbH assumes no liability for any technical, printing or translational errors within this manual.

INITIAL OPERATION

UNPACKING

Please make sure that the shipping carton and the packaging is free of damage. If external damage is found, it is im-

portant to record the type of damage. Please keep the original packaging to ensure the device is adequately protected

in case it needs to be transported in the future or claims for compensation need to be asserted.

SETTING UP

To avoid electric shocks and product failure, the device should be installed in a temperature and humidity controlled

indoor environment. The ambient temperature must not exceed 50 °C. The device must never be exposed to liquids or

extreme humidity.

VISUAL INSPECTION

The unit must be examined immediately for defects or damages in transit. Damages caused during transport may be

loose or broken control knobs and bent or broken connectors. Do not use the device if any physical damage is apparent.

Please inform the carriers and a representative of ET System electronic immediately.

MAINS OPERATION

Make sure to verify the model number and voltage stated on the nameplate. Damages due to wrong power feed are

not covered by guarantee conditions.

The unit must only be operated when connected directly to the

mains. To avoid damage, do not connect the unit to

isolating transformers, auto -transformers, magnetic current

limiters or similar devices.

Functional Description

ET System electronic GmbH 5

FUNCTIONAL DESCRIPTION

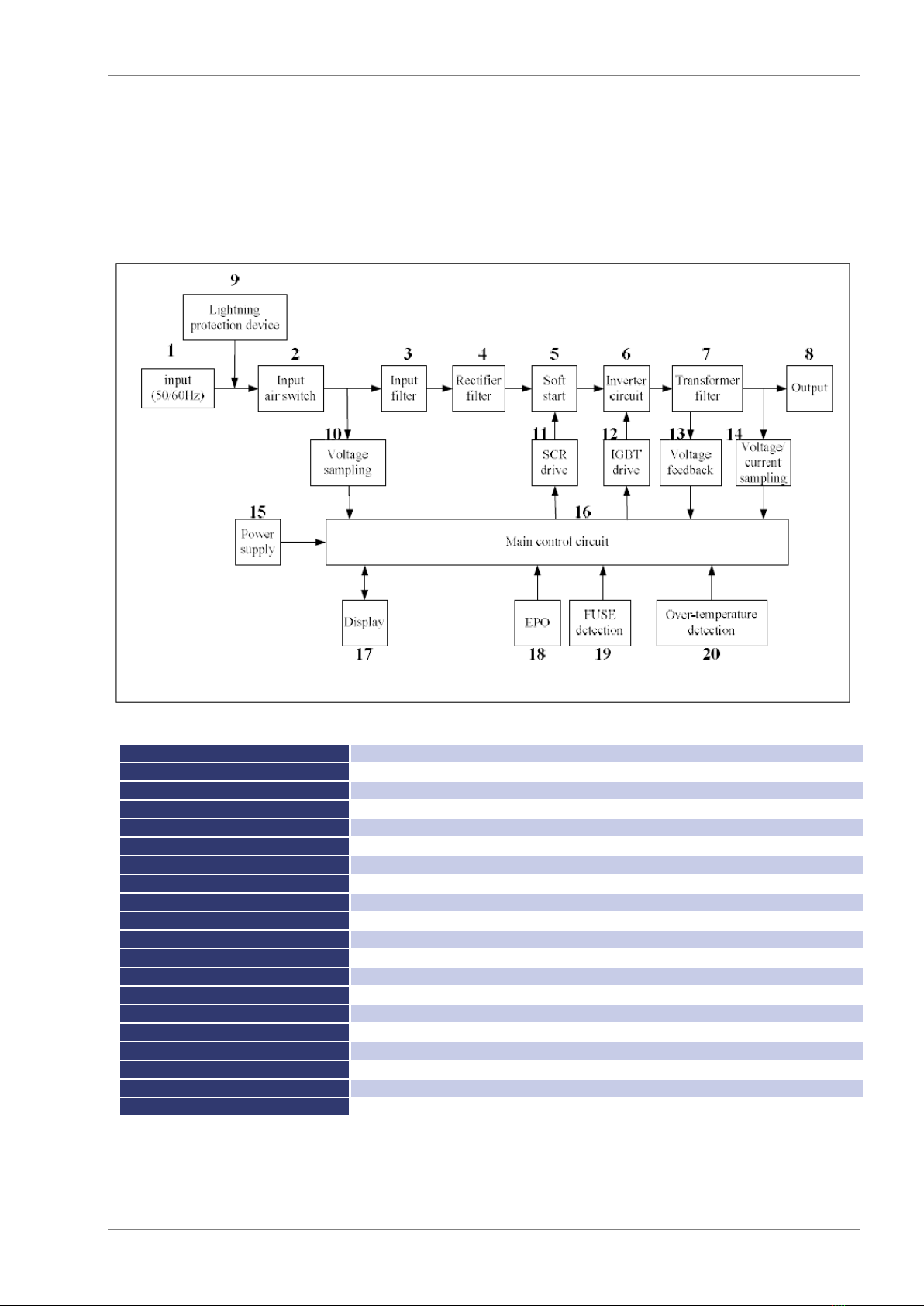

BLOCK DIAGRAM

The following block diagram gives information about the various adjustment options.

Description:

1 Input

connection between power supply endpoint and input terminal disk

2 Input Air Switch

power input control

3 Input Filter

input inductor and capacitor filter

4 Rectifier Filter

converts input alternating current into direct current

5 Soft Start

D.C. capacitor is charged slowly to reduce impulse current

6 Inverter Circuit

converts direct current into PWM waveform

7 Transformer Filter

boosts the output voltage of IGBT and outputs the voltage after LC filter

8 Output

output voltage is transferred to the output terminal disk through the contactor

9 Lightning Protection Device

overvoltage protection, lightning protection, restraining surge current, absorbing spike pulse, etc.

10 Voltage Sampling

input voltage sampling conditioning circuit

11 SCR Drive

drives the control circuit of soft start SCR

12 IGBT Drive

amplifies PWM signals to drive IGBT power components

13 Voltage Feedback

steady output voltage amplitude

14 Voltage/Current Sampling Circuit

samples conditioning circuit of output voltage and current

15 Power Supply

power supply of all PCB

16 Main Control Circuit

processes all input and output signals

17 Display

touch screen display

18 EPO

emergency stop signal

19 Fuse Detection

transmits the fuse power-off signal to the control circuit for trip protection

20 Over-temperature Detection

transmits the over-temperature signal to the control circuit for trip protection

Functional Description

6 ET System electronic GmbH

STRUCTURE OF THE MAIN CONTROL UNIT

The main control unit is divided into three modules: protection sampling, main control, display control.

DESCRIPTION OF CABLE CONNECTIONS

The following picture gives an overview about the cable connections of the main circuit:

Before installing the equipment, all switches need to be disconnected. The circuit cables must be connected according

to the diagram above.

CABLE WIRING

Use the voltmeter to confirm whether there is no voltage output in the distribution lines. Confirm whether all switches

of the variable frequency power supply are in the position “OFF”. The input and output cables can be selected according

to the cables recommended in the following tables.

Input distribution cables:

Input Current (A)

Input live wire (mm²)

Input zero line (mm²)

Input ground wire (mm²)

70.8 A

25 mm²

16 mm²

Output distribution cables:

Output Current (A)

Output live wire (mm²)

Output zero line (mm²)

Output ground wire (mm²)

LO: 83.3 A - HI: 41.7 A

25 mm²

16 mm²

The above recommended reference cables are multi-core flexible copper cables which can be selected by the user ac-

cording to the present input and output current situation. If the length of the input or output lines exceeds 20 meters,

it is recommended that the wire diameter of the cable should be doubled. Successively connect the input distribution

lines to the corresponding wiring terminals at the input and the output distribution lines to the corresponding wiring

terminals at the output.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Fuente de alimentación de Et system

Et system

Et system ELP/DCH Series Manual de usuario

Et system

Et system EAC-4Q-GS Manual de usuario

Et system

Et system LAB-HP/E Series Manual de usuario

Et system

Et system LAB-SMS/E Series Manual de usuario

Manuales populares de Fuente de alimentación de otras marcas

Monacor

Monacor PS-12CCD Manual de usuario

VOLTIMA

VOLTIMA MagicBox 15 Manual de usuario

Agilent Technologies

Agilent Technologies 6032A Manual de usuario

Miller

Miller Auto Deltaweld 452 Manual de usuario

BCP

BCP PUOUBK Hoja de instrucciones

HC 2210 Manual de usuario

Puls

Puls CT5.241 Manual de usuario

OCZ

OCZ ZX1250W Manual de usuario

iseg

iseg ECH 238 Manual de usuario

Power

Power XXL A Series Manual de usuario

Agilent Technologies

Agilent Technologies 6631B Manual de usuario

Renogy

Renogy PHOENIX 300 Manual de usuario

HP 6200B Manual de servicio

Epson

Epson Stylus Scan 2500 Manual de funcionamiento

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Manual de usuario

Puls

Puls MiniLine ML50.100 Manual de usuario

Puls

Puls AS-Interface SLA4.100 Manual de usuario

Kenwood

Kenwood PS-60 Manual de usuario
