System Cab ing

All system cabling (excluding mains 240vAC supply) has been tested with Cat5E UTP PVC cable.

Part Number - A8NFORCE5EUTP

Find this product online:

elandcables.com | Cables & Accessories | LAN Cable | Cat 5E UTP PVC Cable

Contents

System Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

System Connections Example 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

System Connections Example 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Lock Connections Example 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Lock Connections Example 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Door Station Programming Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

User Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Installer’s Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

APKITKP Manual.q p_Layout 1 28/01/2016 11:45 Page 2

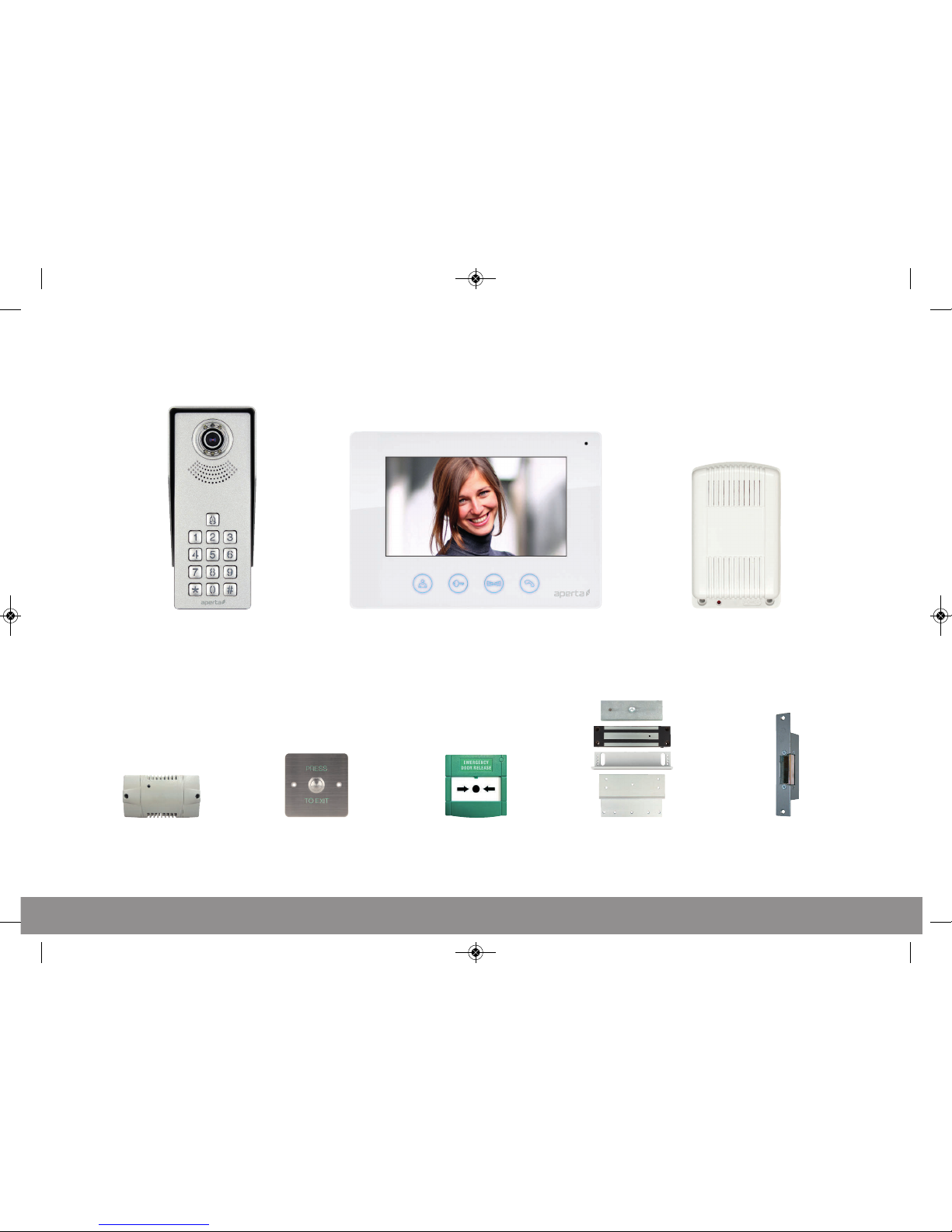

System Components

APDSSWKP

Door Station

APMONW

Monitor

APPOWSW

System Power Supply

EVBPSBB

Lock Power Supply

EV-EXIT

Push To Release

EV-EBG

Emergency Release

EV-ML-250/500XT

Electro-magnetic Lock

ENTERD

Electric Lock

Optiona Accessories

APKITKP Manual.q p_Layout 1 28/01/2016 11:45 Page 3

。

1.2 m 1.5 m～

Site the door station a

recommended 1.5 meters from

the ground, or to suit application.

Avoid areas of high sunlight

and noise levels.

Surface mount the sunshield of the door station and

connect the system cabling. Mount the camera to the

sunshield by fixing with the supplied hex screw.

The camera needs to point in

the direction of where a visitor

will stand during operation.

Site the indoor monitor to suit application.

Monitor

1-Gang Mount Box

(if required, not supplied)

Surface mount the bracket of the monitor or if required onto a 1-gang mount box (not supplied).

Make the system connections to the back of the monitor and then slide the monitor onto the

bracket using the hooks to hold firmly in place.

Monitor Mounting

Bracket

Insta ation

APKITKP Manual.q p_Layout 1 28/01/2016 11:45 Page 4

BUS

240vAC

INPUT

POWER

SUPPLY

Set dipswitch 6 to ON

All other switches set to OFF

Power supply to be

with-in 100 meters

of monitor

No cable

or connection

polarity

Ensure the Address ID switches are both set to OFF

Address ID

Total cable run

should not exceed

150 meters between

door station and monitor

MASTER

System Connections Examp e 1

APKITKP Manual.q p_Layout 1 28/01/2016 11:45 Page 5

The system power supply can support up to 5 devices

MASTER=

OFF

Only one monitor is set as the MASTER:

All other monitors set as SLAVE:

SLAVE=

OFF

Power supply to be

with-in 100 meters

of monitor

No cable

or connection

polarity

Total cable run

should not exceed

150 meters between

door station and monitor

BUS

Address ID

BUS

POWER

SUPPLY

240vAC

INPUT

The dipswitches are accessable

on the rear of the door station

Address ID

MASTER

SLAVE

When using multiple

door stations ensure

that each unit has a

seperate Address ID

Refer to instructions supplied when

using different version of monitor

for MASTER/ SLAVE configuration

System Connections Examp e 2

APKITKP Manual.q p_Layout 1 28/01/2016 11:45 Page 6

Please refer to the operation guide

for release instructions

Electro-magnetic lock Electronic lock

BUSSystem Wiring

LOCK1

VCC

Lock -release time

N.C for Electro-magnetic lock

N.O for Electronic lock

Image of

jumper link

123

N.O

N.C

N.O

Volt-free

12vDC300mA

MAX

N.O

N.C

N.O

Volt-free

12vDC300mA

MAX

123

Image of

jumper link

The jumpers on the rear of the door station

offer different types of release modes for

alternative applications dependent on the

jumper link settings. LOCK1 options;

The door station has a secondary

switch. LOCK2 options;

At the rear of the door station ensure

that the jumper links cover pins 1 and

2, on both J3 and J2 positions

Lock Connections Examp e 1 Lock Connections Examp e 2

APKITKP Manual.q p_Layout 1 28/01/2016 11:45 Page 7

Door Station Programming Guide

Enter

Administration

Mode

Continue

Press

For code

location number

Enter 4 digit code

required for

door release

Press Press

2 tones

will sound

2 tones

will sound

Input administrator

code

(Default: 123456)

2 tones

will sound

2 tones

will sound

Press

Setting a lock release code

The Administrator

code will not

release the door.

A lock release code

is required to be

programmed

Administration

Mode has been

entered

Press Re-enter 4 digit

code required for

door release

Press

to exit and

complete setup

A long tone

will sound

Press

Entering Administration Mode

APKITKP Manual.q p_Layout 1 28/01/2016 11:45 Page 8

Enter

Administration

Mode

Re-enter new

6 digit

Administration Code

Deleting a lock release code

2 tones

will sound

Press

Changing the Administrator code

Enter code

Location Number

A long tone

will sound

Press Press

Press

to exit and

complete setup

Press

to exit and

complete setup

A long tone

will sound

Press

Enter

Administration

Mode

Enter new 6 digit

Administration

Code

APKITKP Manual.q p_Layout 1 28/01/2016 11:45 Page 9

User Guide

Using the lock release code

Press once to view

door station image

Preview

Press once

to release lock

Press once

to release lock 2

Press once

to talk to visitor

Lock Gate Talk

Chime Volume: Slide switch for High, Medium and Low setting

Chime Selection: Press button to select chime melody

Monitor Brightness: Adjustment for brightness levels

Monitor Chroma: Adjustment for the intensity of colour

Talking Volume: Adjust the volume level of the monitor

Press the

‘Talk’ button

to end call

Press the ‘Lock’ button

to release lock and

press ‘Talk’ to end call

Press the ‘Gate’ button

to release lock 2 and

press ‘Talk’ to end call

The visitor

presses the

call button

A chime will sound The visitor’s image will

appear on the monitor

Press the ‘Talk’

button and

begin conversation

AB C D Then choose between these 3 options

Enter

4 digit lock

release code

Press

The lock

will release

APKITKP Manual.q p_Layout 1 28/01/2016 11:45 Page 10
