Ericsson KPC-300 Manual de usuario

Portable Radio Unit

KPC-300/400

Operator’s Manual

This manual is published by Ericsson Inc., without any warranty. Improve-

ments and changes to this manual necessitated by typographical errors,

inaccuracies of current information, or improvements to programs and/or

equipment, may be made by Ericsson Inc., at any time and without notice.

Such changes will be incorporated into new editions of this manual. No part

of this manual may be reproduced or transmitted in any formor by any means,

electronic or mechanical, including photocopying and recording, for any

purpose, without the express written permission of Ericsson Inc.

NOTICE!

The software contained in this device is copyrighted. Unpublished rights

are reserved under the copyright laws of the United States.

NOTICE!

Repairs to this equipment should be made only by an author-

ized service technician or facility designated by the supplier.

Any repairs, alterations or substitution of recommended parts

made by the user to this equipment not approved by the

manufacturer could void the user’s authority to operate the

equipment in addition to the manufacturer’s warranty.

NOTICE!

This manual covers Ericsson and General Electric products

manufactured for and sold by Ericsson Inc.

TABLE OF CONTENTS

INTRODUCTION . . . . . . . . . . . . . . . . . . 5

CONTROLS . . . . . . . . . . . . . . . . . . . . . 10

INDICATORS . . . . . . . . . . . . . . . . . . . . 13

STATUS INDICATORS . . . . . . . . . . . . . . 14

ALERT TONES . . . . . . . . . . . . . . . . . . 15

Power-up Self-test . . . . . . . . . . . . . . 15

Carrier Control Timer . . . . . . . . . . . . . 16

Channel Busy Lock-out . . . . . . . . . . . 16

Type 99 Alert Tone . . . . . . . . . . . . . . 16

ANI Alert Tone . . . . . . . . . . . . . . . . 17

Scan Alert Tone . . . . . . . . . . . . . . . 17

Priority-One (P1) Scan . . . . . . . . . . . . 17

Radio/Channel Failure . . . . . . . . . . . . 17

OPERATION . . . . . . . . . . . . . . . . . . . . 18

RECEIVING A MESSAGE . . . . . . . . . . . . 18

SENDING A MESSAGE . . . . . . . . . . . . . 19

SQUELCH ADJUST (FRONT PANEL) . . . . . . 20

TYPE 99 OPERATION . . . . . . . . . . . . . . 20

Type 99 Selective Call Receiving

and Sending . . . . . . . . . . . . . . . . . 21

SCAN OPERATION . . . . . . . . . . . . . . . . 22

Starting Or Stopping Scan . . . . . . . . . . 23

Receiver Scan Rate . . . . . . . . . . . . . 23

Adding Channels To Scan List . . . . . . . . 26

Deleting Channels From Scan List . . . . . . 26

Using The Radio With Scan . . . . . . . . . 27

The Selected Channel . . . . . . . . . 27

Scanning With Channel Guard . . . . . 28

TELEPHONE INTERCONNECT CALLS

(KPC-400 ONLY) . . . . . . . . . . . . . . . . . 28

Pre-programmed Number . . . . . . . . . . 29

Placing A Manually Dialed Call . . . . . . . 30

EMERGENCY OPERATION . . . . . . . . . . . 30

BATTERY INFORMATION . . . . . . . . . . . . . 31

CHARGE BEFORE USING . . . . . . . . . . . 31

RECHARGING THE BATTERY . . . . . . . . . 31

CONDITIONING THE BATTERY . . . . . . . . . 32

INSTALLING THE BATTERY PACK . . . . . . . 32

REMOVING THE BATTERY PACK . . . . . . . . 33

BATTERY CARE & MAINTENANCE . . . . . . . 33

BATTERY RECYCLING . . . . . . . . . . . . . 34

OPERATING TIPS . . . . . . . . . . . . . . . . . 34

EFFICIENT RADIO OPERATION . . . . . . . . 35

ANTENNA CARE AND REPLACEMENT . . . . 35

ELECTRONIC DEVICES . . . . . . . . . . . . 36

AIRCRAFT . . . . . . . . . . . . . . . . . . . . 36

BLASTING AREAS . . . . . . . . . . . . . . . 36

POTENTIALLY EXPLOSIVE

ATMOSPHERES . . . . . . . . . . . . . . . . . 36

ACCESSORIES . . . . . . . . . . . . . . . . . . 37

INTRINSICALLY SAFE USAGE . . . . . . . . . . 39

BATTERY PACKS . . . . . . . . . . . . . . . . 39

ACCESSORIES . . . . . . . . . . . . . . . . . 40

SWIVEL MOUNT REMOVAL AND

REPLACEMENT . . . . . . . . . . . . . . . . . . 41

WARRANTY . . . . . . . . . . . . . . . . . . . . 42

NICKEL-CADMIUM BATTERY WARRANTY . . . 43

INTRODUCTION

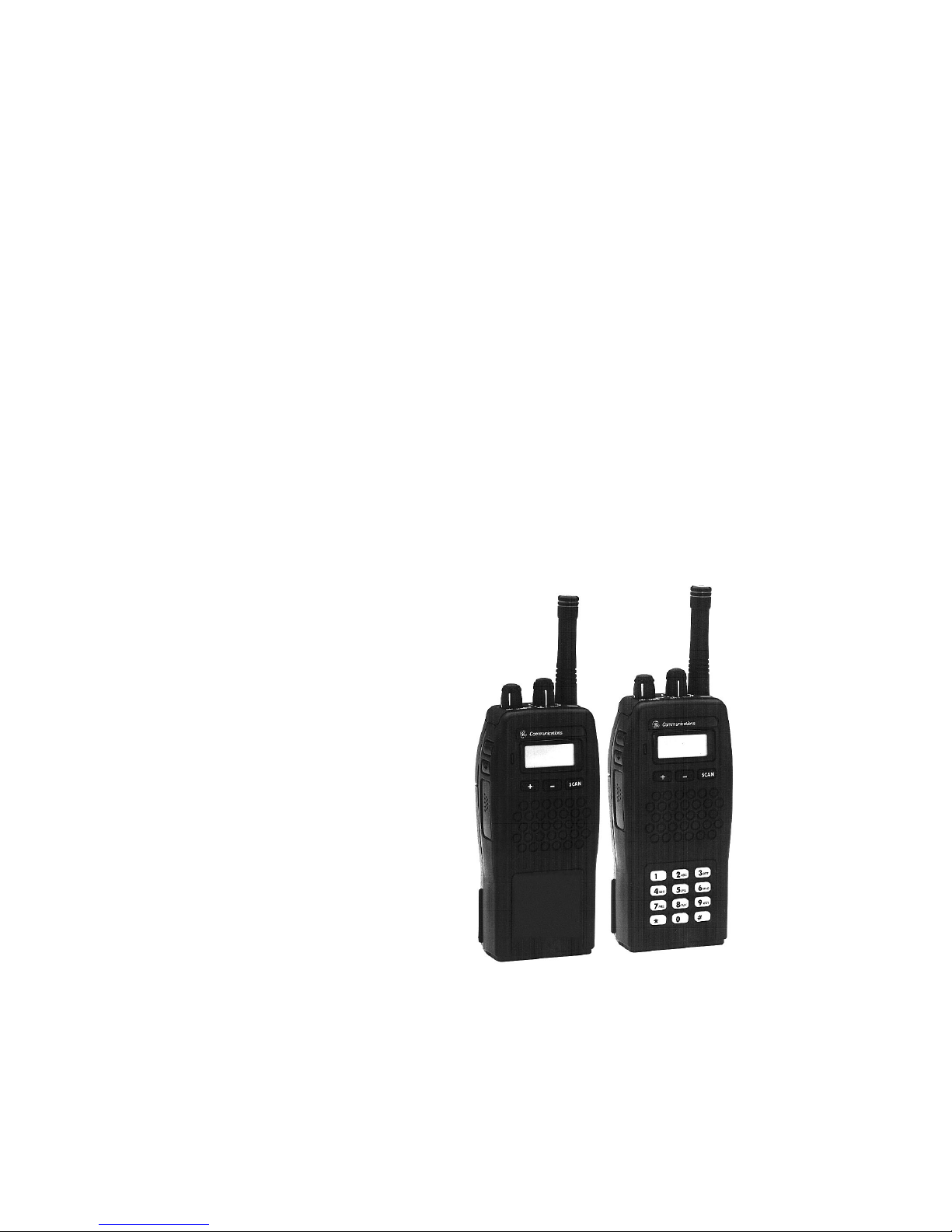

The KPC-300 (Scan) and KPC-400 (DTMF) portable

radios are lightweight, full-featured radios that provide

reliable two-way communications on 1 to 16 channels.

The KPC-300 radio contains three (3) buttons on the

front panel. The KPC-400 contains three (3) buttons

along with a twelve (12) button DTMF pad on the front

panel. The scan function allows monitoring of any or all

channels. Any channel may be scanned with or without

a priority level. One channel can be programmed for

Priority 1 (P1) and another for Priority 2 (P2), with any or

all remaining channels programmed as non-priority

channels (S). There is also Emergency mode transmis-

sion capability. A LCD display provides status display of

the radio functions along with the display of the selected

channel number.

The Universal Device Connector (UDC), located on

the side of the radio, provides connections for external

audio accessories. This connector also allows the radio

system personnel to connect programming equipment

and program the per-channel and overall radio features.

Consult the radio dealer to determine the programmed

features of your radio. Features that are programmable

on a per-channel basis include:

•Receive Frequency

•Transmit Frequency

•Channel Busy Lock-Out

•Squelch Tail Elimination (STE)

•Channel Guard Encode/Decode (Tone or Digital)

•Type 99 Tone Decode

Figure 1 - System Radio

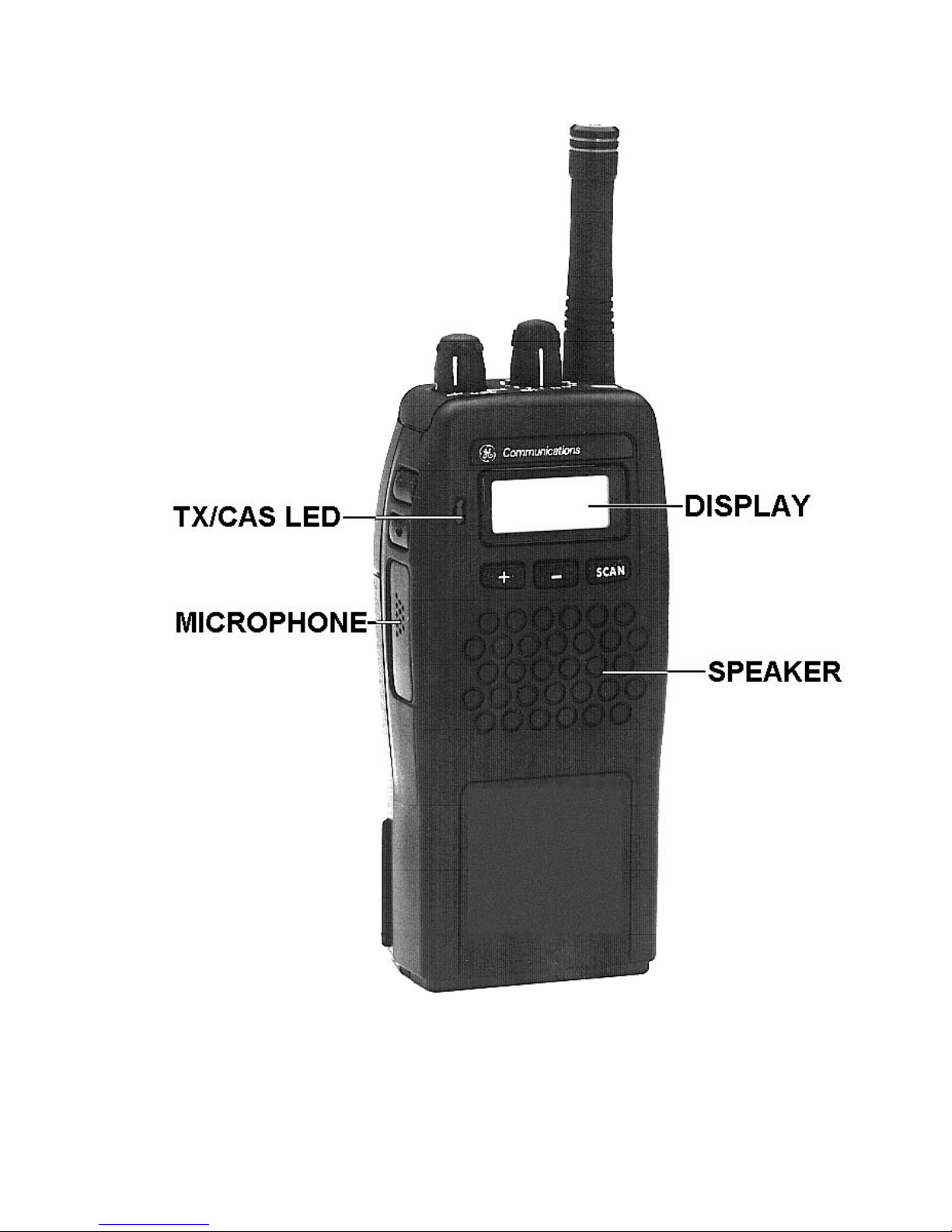

Figure 2 - Scan Radio

•Automatic Number Identification (ANI)

•RF Power (High or Low)

•Receive Frequency Microprocessor Oscillator Shift

•Transmit Frequency Microprocessor Oscillator Shift

•Channel Spacing (12.5 kHz or 25/30 kHz)

•Telephone Interconnect DTMF Keypad enable

(KPC-400)

Features that are programmable on an overall radio

basis include:

•Display Backlighting

•Alert Tones

•Emergency HOME Channel

•Three (3) Auto-Dial Telephone Numbers

(KPC-400 only)

•Carrier Control Timer (CCT)

•Hi/Low RF Power Button Enable/Disable

•Scan Options

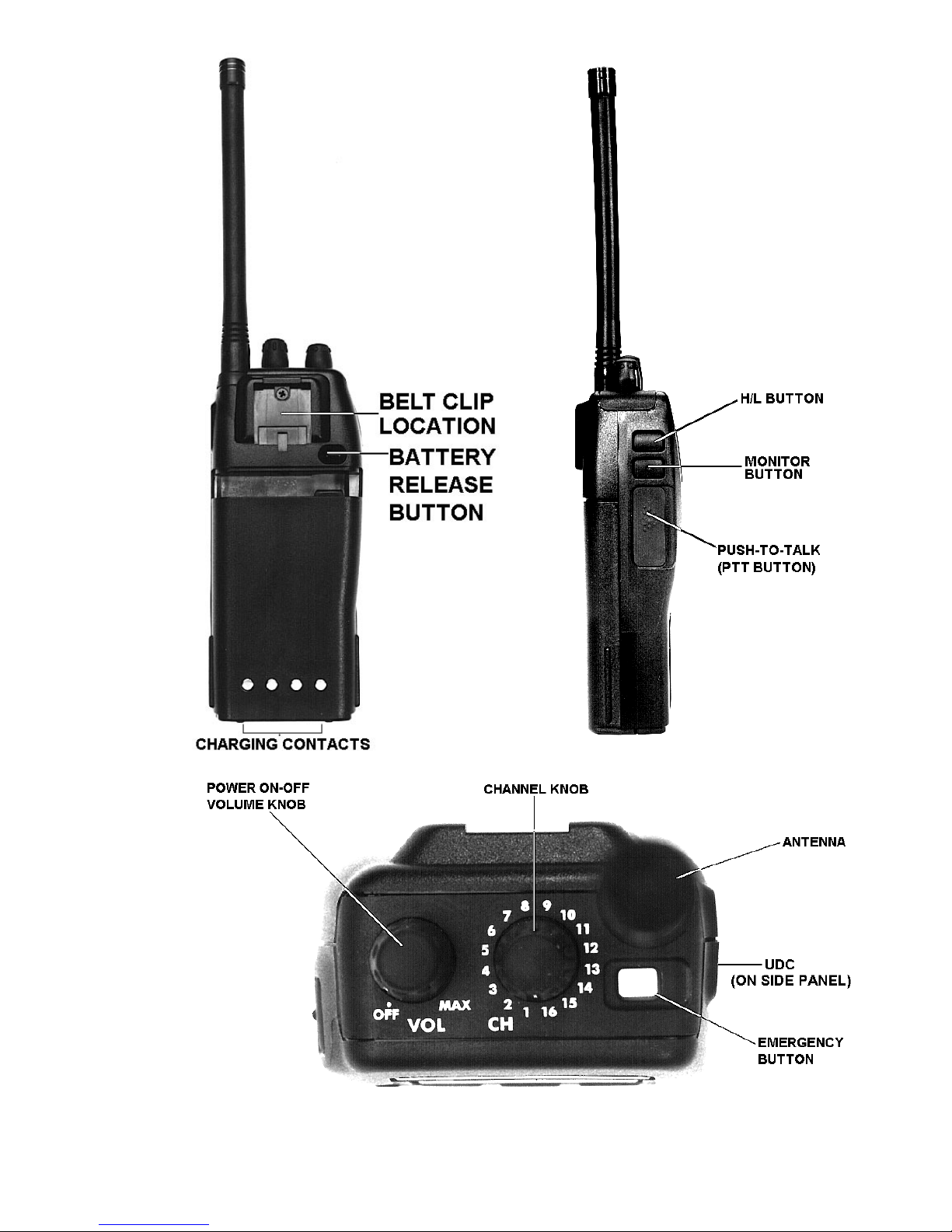

Figure 3 - Top, Back And Left Panel Views

CONTROLS

ON/OFF/

VOLUME

Turns radio on and off and adjusts

audio listening level.

When the radio is turned on, it will

resume operation at the last operat-

ing state (channel, etc.) and the

power-up alert tones will be

sounded. Three (3) beeps indicate

the radio is in the normal (receive

mode); four (4) beeps indicates the

radio is scanning. The operating

status of the radio will be displayed

in the Liquid Crystal Display (LCD)

window.

PTT BUTTON

Pressing the PTT button on the side

of the radio will key the radio trans-

mitter.

If the radio is not scanning, it will

transmit on the selected (displayed)

channel. If the radio is scanning

whenthe PTT button is pressed, the

radio may be programmed to trans-

mit on the selected channel or on

the current receive scan channel if

the PTT is pressed during the scan

hang time.

If the selected channel is pro-

grammedwithType99ToneDecode

enabled, pressing the PTT button
