Ericsson RBS 3107 Manual de usuario

Installation Instruction

RBS 3107

INSTALLATION INSTR.

All manuals and user guides at all-guides.com

all-guides.com

Disclaimer

No part of this document may be reproduced in any form without the written

permission of the copyright owner.

The contents of this document are subject to revision without notice due to

continued progress in methodology, design and manufacturing. Ericsson shall

have no liability for any error or damage of any kind resulting from the use

of this document.

1/1531-COH 109 2073 Uen H 2006-11-06

All manuals and user guides at all-guides.com

Contents

1 Introduction 1

2 Prerequisites 1

2.1 Documentation 1

2.2 Tools 3

2.3 Equipment 4

2.4 Conditions 4

3 Procedure 5

3.1 Unpacking and Checking the Material 7

3.2 Positioning and Anchoring the Cabinet 7

3.3 Earth Grounding the Cabinet 10

3.4 Connecting the External Battery Backup (Optional) 11

3.4.1 Installing the Temperature Sensor Cable 12

3.4.2 Installing the External Battery Backup 12

3.5 Connecting the AC Power 16

3.6 Installing the Internal Backup Batteries (Optional) 28

3.6.1 Installing Batteries 28

3.6.2 Connecting the Batteries 30

3.6.3 Securing the Batteries 33

3.7 Connecting Site Transmission from the Transmission

Cabinet (Alternative) 35

3.7.1 Connecting Transmission Cables, Shielded Twisted Pair,

100 , 110 or 120 , Balanced (T1, J1, E1) - Alternative 1 36

3.7.2 Connecting Transmission Cables, Coaxial, 75 ,

Unbalanced (E1) - Alternative 2 40

3.7.3 Connecting Transmission Cables, Coaxial, 75 ,

Unbalanced (E3, T3) - Alternative 3 45

3.7.4 Connecting Transmission Cables, Fiber Optic - Alternative 4 47

3.8 Connecting Site Transmission from Transmission

Equipment Installed in the RBS (Alternative) 48

3.9 Connecting External Alarms 49

3.10 Connecting the Ericsson GPS Solution 53

3.11 Connecting RF Cables 53

3.12 Powering Up the RBS 55

3.13 Performing Concluding Routines 56

4 Related Documents 57

1/1531-COH 109 2073 Uen H 2006-11-06

All manuals and user guides at all-guides.com

Installation Instruction

5 Revision History 57

5.1 Rev. G to Rev. H 57

1/1531-COH 109 2073 Uen H 2006-11-06

All manuals and user guides at all-guides.com

Prerequisites

1 Introduction

This document describes how to install the RBS 3107 on site and how to

connect it to external interfaces.

2 Prerequisites

This section contains information on the documentation, tools, equipment, and

conditions required for the installation procedure.

2.1 Documentation

Ensure that the following documents are read and understood:

• Personal Health and Safety Information

• System Safety Information

• Product Handling

Ensure that the following documents are available:

• Site Installation Documentation

The site installation documentation is produced by the engineering

department.

• Grounding Guidelines for RBS Sites

• Grounding Material Installation Instruction

• Technical Product Description

• Verification of Installation at Site

• Hardware Configuration Data

If applicable:

• Transmission Configurations and Installation

1/1531-COH 109 2073 Uen H 2006-11-06

All manuals and user guides at all-guides.com

Installation Instruction

• GPS Solution Synchronisation, WCDMA, EN/LZT 735 0028

Note: References to document numbers are found in Section 4 on page 57.

21/1531-COH 109 2073 Uen H 2006-11-06

All manuals and user guides at all-guides.com

all-guides.com

Prerequisites

2.2 Tools

The tools required for the installation of the RBS 3107 are shown in the table

below.

Table 1 Tools Required

Product Name Description Product Number

Personal tool set Personal tools LTT 601 135/1

Open-ended wrench

(u-wrench)(1) set

LTT 601 139/1

T8 Torx screwdriver LSA 901 43/6

T15 Torx screwdriver LSA 901 43/2

T30 Torx screwdriver LSA 901 43/5

Screwdriver for bits LSS 103 28/1

Side cutters (side cutting

pliers)(1) LSD 901 43/1

Cable cutters LDK 901 15/1

Cable shield cutters LDK 901 18/1

Wire stripper 0.2 – 0.6 mm LSD 901 45/1

Spirit level LMV 901 04/1

Ear protectors LYB 921 50/1

Tools included in the

personal tool set, needed

for the installation

Eye protectors LYB 921 51/1

230 V AC LTT 601 146/1Hammer drill

Cordless hammer drill(2) Cordless 230 V AC LTT 601 147/1

Box socket set with ratchet

wrench

LTT 601 138/1

Torque wrench, 0 – 10 Nm

with T30 torx bit

LTT 601 148/1

Torque set, 20 – 100 Nm LTT 601 141/1

Torque set, 5 – 25 Nm

with 3/8 in. socket adapter

LTT 601 140/1

Open-ended head (u-key),

24 mm(1) LSB 107 12/3

Open-ended head (u-key),

27 mm(1) LSB 107 12/4

Open-ended head (u-key),

32 mm(1) LSB 107 12/5

Other tools needed

Eyebolts, M12 SAR 201 120/03

(1) Ericsson name within parentheses.

(2) Hammer drills for voltages other than 230 V AC cannot be ordered from Ericsson.

31/1531-COH 109 2073 Uen H 2006-11-06

All manuals and user guides at all-guides.com

Installation Instruction

2.3 Equipment

The instructions in this document describe the installation, or use, of the

following hardware:

• RBS 3107 cabinet

• Earth grounding kit

• Power cables

• RF cables

• Transmission cables

• Alarm cables

• Site LAN cable

2.4 Conditions

The following conditions must be fulfilled before work starts:

Before Going to the Site

Before going to the site, ensure the following:

• Site access permission has been received

• The Site Installation Documentation is available

• All tools and instruments are available

Before Starting the Installation

Before starting the installation, ensure the following:

• The site is prepared according to the Site Installation Documentation

• The existing base frame is undamaged

• The ordered hardware is available

• The AC power supply for the RBS 3107 is installed and tested

• The site earth grounding is installed and tested

• The antenna system is installed and tested

41/1531-COH 109 2073 Uen H 2006-11-06

All manuals and user guides at all-guides.com

Procedure

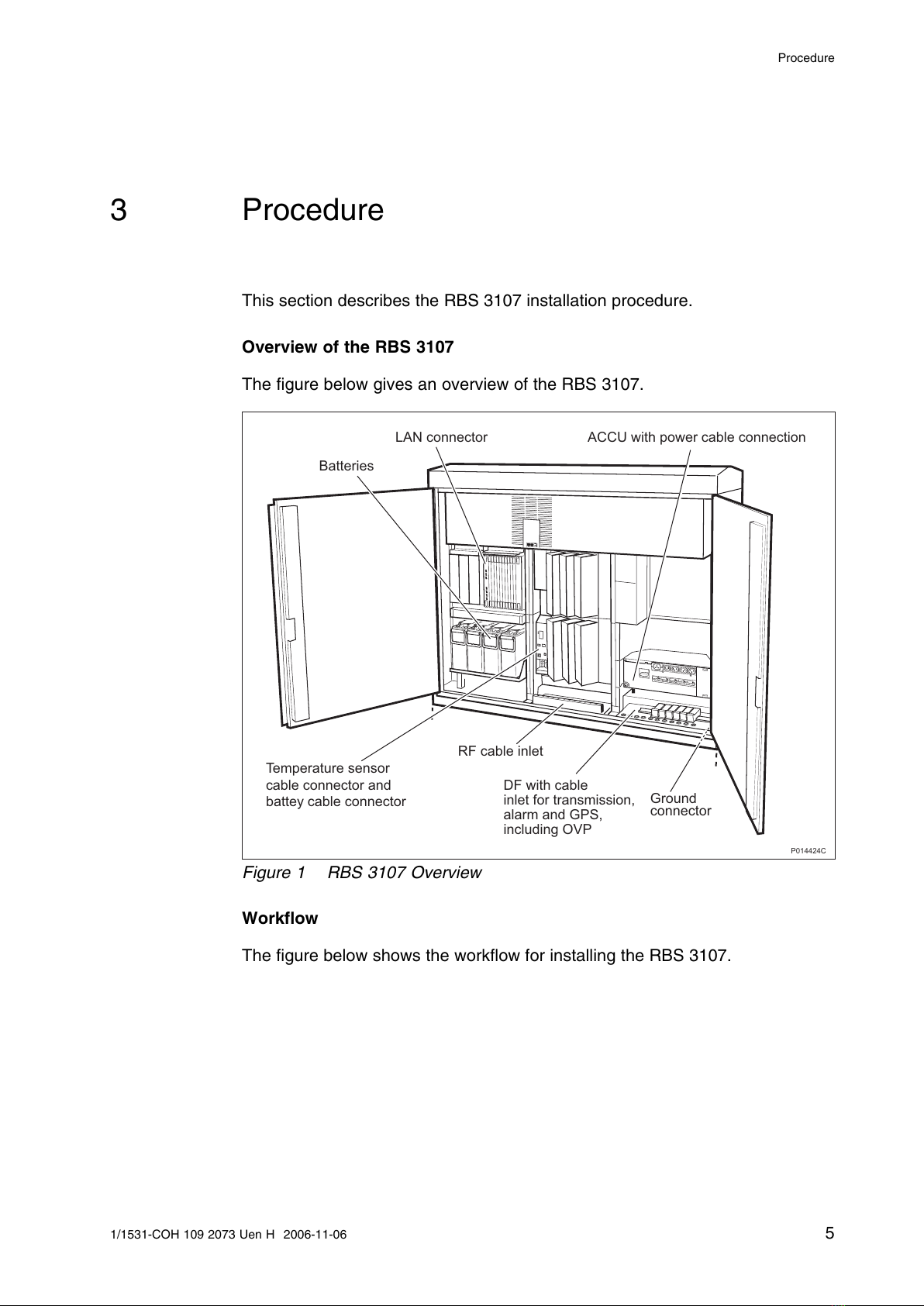

3 Procedure

This section describes the RBS 3107 installation procedure.

Overview of the RBS 3107

The figure below gives an overview of the RBS 3107.

P014424C

ACCU with power cable connection

Ground

connector

DF with cable

inlet for transmission,

alarm and GPS,

including OVP

LAN connector

Batteries

RF cable inlet

Temperature sensor

cable connector and

battey cable connector

Figure 1 RBS 3107 Overview

Workflow

The figure below shows the workflow for installing the RBS 3107.

1/1531-COH 109 2073 Uen H 2006-11-06

All manuals and user guides at all-guides.com

Installation Instruction

Figure 2 RBS 3107 Installation Workflow

61/1531-COH 109 2073 Uen H 2006-11-06
