Epson B813021 Manual de usuario

Transparency Unit

for use with EPSON Scanners

B813021/B813022

This transparency unit is a high-quality device developed to enable

Epson Scanner owners to scan transparencies and slides. By

installing this unit on your Epson scanner, you can scan

transparencies and slides beautifully, in full color. Also, it is not

necessary to remove this unit if you wish to return to scanning

normal reflective (paper) documents.

Unpacking the Unit

When you first open the package, make sure that all the following

items are included and that none has been damaged during

shipping. Contact your Epson dealer if any item is missing or

damaged.

Reflective

Doclrmclzt

User’s Guide

Unit

Mat

Screws (2) Transparency Document Guide

Removing the Shipping Screw

To prevent damage during shipping a shipping screw is attached to

the transparency unit. Make sure this screw

is removed according

to the following steps before you attempt

to use this unit.

1. Turn the unit so the glass side faces up.

2. Remove the screw from the position shown below.

3. Insert the screw you just removed into the storage-hole in the

position shown.

Note: lKeep the shipping screw in a safe place; you will need it if

you should need to transport the scanner. When

transporting the scanner, you should remove the

transparency unit and reattach the shipping screw.

lIf the unit’s lamp assembly is not in its initial position, you

cannot attach the shipping screw. If this happens,

reattach the unit to the scanner, close the unit, and turn

the scanner on; the unit’s lamp assembly then returns to

its initial position. Then turn off the scanner and remove

the transparency unit.

Installing the Transparency

Unit on the Scanner

Follow the steps below to install the transparency unit on the

scanner.

1. Make sure the scanner’s power switch is turned off and remove

the power cable from the scanner.

2. Remove the document cover from the scanner.

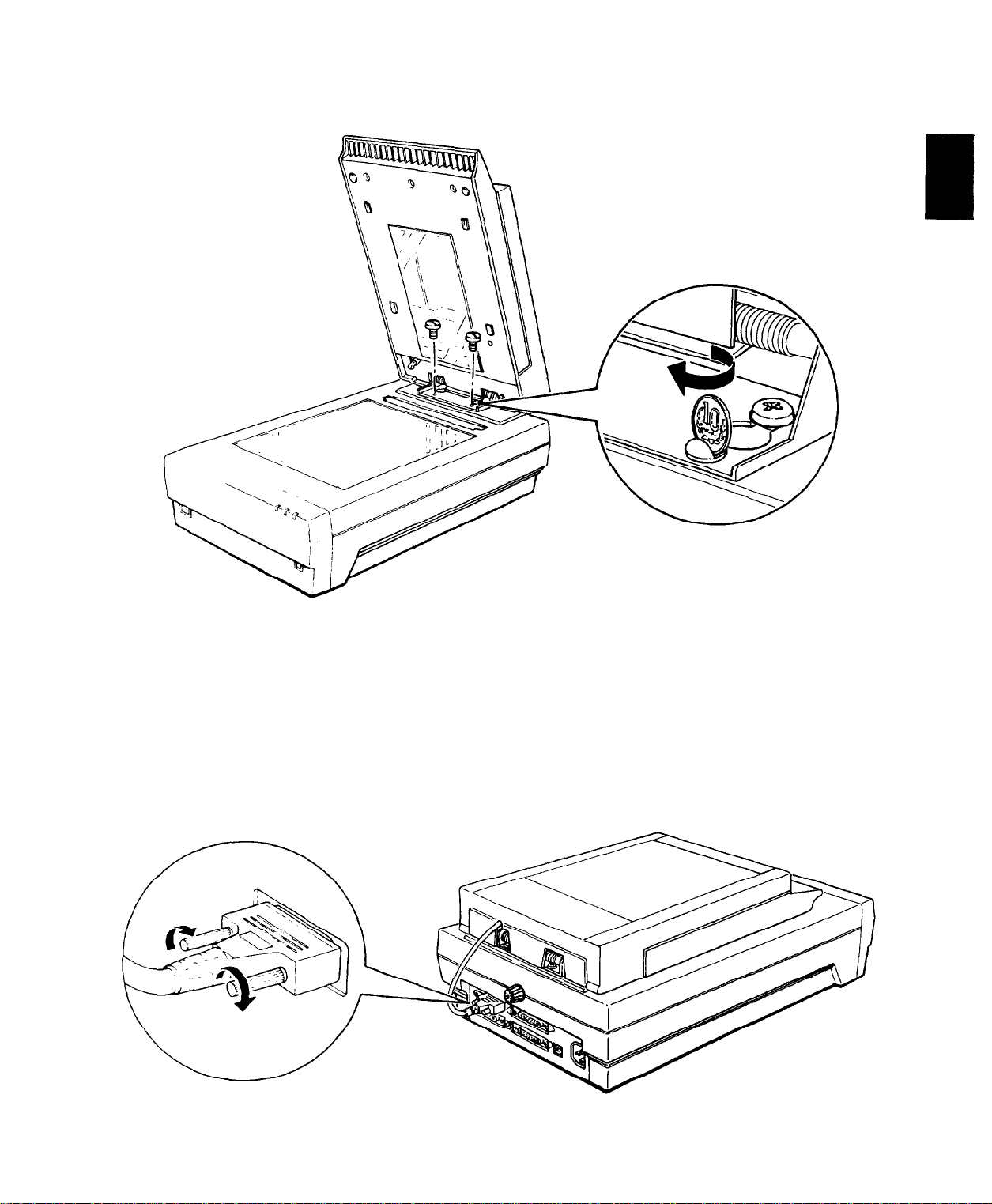

3. The scanner comes with two mounting screws attached; slide the

mounting slots on the transparency unit forward underneath

these two screws.

4. Use a coin to tighten the two screws and secure the transparency

unit.

5. Close the transparency unit.

6. Connect the transparency unit’s connector to the option

connector on the scanner.

Transparency Document Guide and Reflective

Document Mat

A transparency document guide and reflective document mat are

included with this unit. Use as necessary.

Positioning Transparencies

You can scan the transparency types shown below:

Document type Transparency documents (including slide film) in

color or monochrome

Scanning size Up to 5 x 5 inches (127 x 127 mm)

Note: lWipe the glass of the transparency unit, the scanner’s

document table, and the narrow window near the

mounting bracket before scanning transparencies.

Your scanner software automatically handles the

operation of the transparency unit.

Position transparency documents according to the steps below.

1. Open the transparency unit.

2. Place the transparency document guide on the scanner’s

document table.

3. Using the transparency document guide, place the transparency

document face down on the scanners glass document table.

Align the transparency document with the upper right-hand

corner of the transparency document guide.

4. Close the unit. If the reflective document mat is in place, remove

it from the transparency unit.

Note: Make sure the unit is completely closed. If it is not closed, an

option error results and you cannot scan the document.

Scanning Normal (Reflective) Documents

When you return to scanning normal reflective documents, you

should always insert the reflective document mat included with this

unit. Also, make sure you remove the transparency document

guide from the scanners document table.

Insert the reflective document mat as described below.

1. Open the transparency unit.

Insert the reflective document mat.

Position the reflective document and close

the unit.

To remove the reflective document mat, lift up on the mat and pull

it out of the transparency unit.
