Installation Guide

Guide d’installation

Safety Instructions

For your safety, read all the instructions in this guide before using the wall mount. Incorrect handling that

ignores instructions in this guide could damage the wall mount or could result in personal injury or property

damage. Keep this installation guide on hand for future reference.

Read the safety instructions in the User's Guide for your projector and follow the instructions in this document.

Explanation of Symbols

The warning marks shown below are used throughout this installation guide to prevent personal injury or

property damage. Make sure you understand these warnings when reading this installation guide.

Safety Precautions for Installation

This symbol indicates information that, if ignored, could possibly result in personal injury or even death

due to incorrect handling.

This symbol indicates information that, if ignored, could possibly result in personal injury or physical

damage due to incorrect handling.

This symbol indicates related or useful information.

Symbol indicating an action that must not be done

Symbol indicating an action that should be done

The wall mount is designed specifically for mounting a projector to a wall. If anything other than a

projector is mounted, the weight may result in damage.

If the wall mount falls, it could cause personal injury or property damage.

The installation work (wall mounting) should be performed by specialists who have technical knowledge

and ability. Incomplete or incorrect installation could cause the wall mount to fall and cause personal

injury or property damage.

Follow the instructions in this guide when installing the wall mount.

If the instructions are not followed, the wall mount may fall, resulting in personal injury or property damage.

Handle the power cord carefully.

Incorrect handling may cause fire or electric shock. Observe the following precautions when handling:

• Do not handle the power plug with wet hands.

• Do not use a power cord that is damaged or modified.

• Do not pull the power cord with too much force when routing the cable through the wall mount.

Do not install the wall mount in a place where it might be subjected to vibration or shock.

Vibration or shock could cause damage to the projector or mounting surface. It could also cause the wall mount or

projector to fall and cause personal injury or property damage.

Install the wall mount so that it can sufficiently support the weight of the projector and wall mount, and

resist any horizontal vibration. Use M8 nuts and bolts.

Nuts and bolts smaller than M8 could cause the wall mount to fall. Epson accepts no responsibility for any damage

or injury caused by lack of wall strength or inadequate installation.

The installation work should be performed by at least two qualified service personnel. If you need to

loosen any screws during installation, be careful not to drop the wall mount.

If the wall mount or projector falls, it could cause personal injury or property damage.

Warning

Caution

Warning

English

Location

•Before installing the projector, verify the power supply wiring for the installation location.

•Install the projector away from other electric devices such as fluorescent lights or air conditioners. Some

kinds of fluorescent lights could interfere with the remote control of the projector.

•Install the projector away from direct sunlight and other bright light sources.

•It is recommended to keep the VGA computer cable length less than 65 ft (20 meters) to reduce external

noise.

About This Installation Guide

This guide describes how to mount the ultra-short-throw projectors BrightLink Pro 1410Wi, BrightLink 475Wi/

480i/485Wi, and PowerLite 470/475W/480/485W to a wall using the included EPSON wall mount.

When you mount the projector on the wall with the wall mount, the wall requires enough strength to hold

the projector and the wall mount.

This wall mount should be installed on a concrete wall. Confirm the weight of the projector and the wall

mount before installation, and maintain the strength of the wall. If the wall is not strong enough, reinforce

the wall before installation.

Inspect the wall mount on a regular basis to ensure there are no broken parts or loose screws.

If there are any broken parts, stop using the wall mount immediately. If the wall mount or projector falls, it could

cause personal injury or property damage.

Never modify the wall mount.

Do not hang on the wall mount or hang a heavy object on the wall mount.

If the projector or wall mount falls, it could cause personal injury or property damage.

Do not use adhesives, lubricants, or oils to install or adjust the wall mount. If you use adhesives to prevent the

screws from loosening or things such as lubricants or oils on the part of the projector attached to the slide plate,

the case may crack and cause the projector to fall, resulting in personal injury or property damage.

Tighten all screws firmly after adjustment.

Otherwise, the projector or wall mount may fall and cause personal injury or property damage.

Never loosen the bolts and nuts after installation.

Confirm that the screws have not become loose on a regular basis. If you find any loose screws, tighten them

firmly. Otherwise, the projector or wall mount may fall and cause personal injury or property damage.

When performing wiring, make sure the cable does not come into contact with any screws or bolts.

Handling the cable incorrectly may cause fire or electric shock.

Do not install the wall mount in a location where the operating temperature for your projector model may

be exceeded. Such an environment may damage the projector.

Install the wall mount in a place free from excessive dust and humidity to prevent the lens or optical

components from becoming dirty.

Do not use excessive force when adjusting the wall mount.

The wall mount may break, resulting in personal injury.

Warning

Caution

1Package Contents s5

2Specifications s6

3Connecting Devices s8

4Positioning the Projector

1. Installation worksheet for projecting on a pre-installed wall-mounted board

2. Installation worksheet for projecting on a plain wall

3. Installation measurements in inches

4. Installation measurements in millimeters

s11

5Installing the Projector

1. Disassemble the parts

2. Assemble the parts

3. Install the wall plate on the wall

4. Determine the projection distance and pull out the slider

5. Route the cables through the wall mount arm

6. Attach the mount arm to the wall plate

7. Adjust the vertical slide position of the arm

8. Attach the projector to the wall mount

9. Connect the power cord and other cables to the projector

s25

6Adjusting the Image

1. Turn on the projector

2. Display the mount adjustment test pattern, as described below

3. Change the aspect ratio if necessary

4. Adjust the focus

5. Use the adjustment knob on the left side to adjust the horizontal roll

6. Use the adjustment knob on the right side to adjust the horizontal rotation

7. Use the adjustment knob on the top to adjust the vertical tilt

8. Adjust the horizontal slide

9. Adjust the forward/backward slide

10. Adjust the vertical slide

11. Turn off the display of the test pattern

s36

7Attaching the Covers

1. Attach the wall plate covers and end cap

2. Attach the cable cover to the projector

s42

English

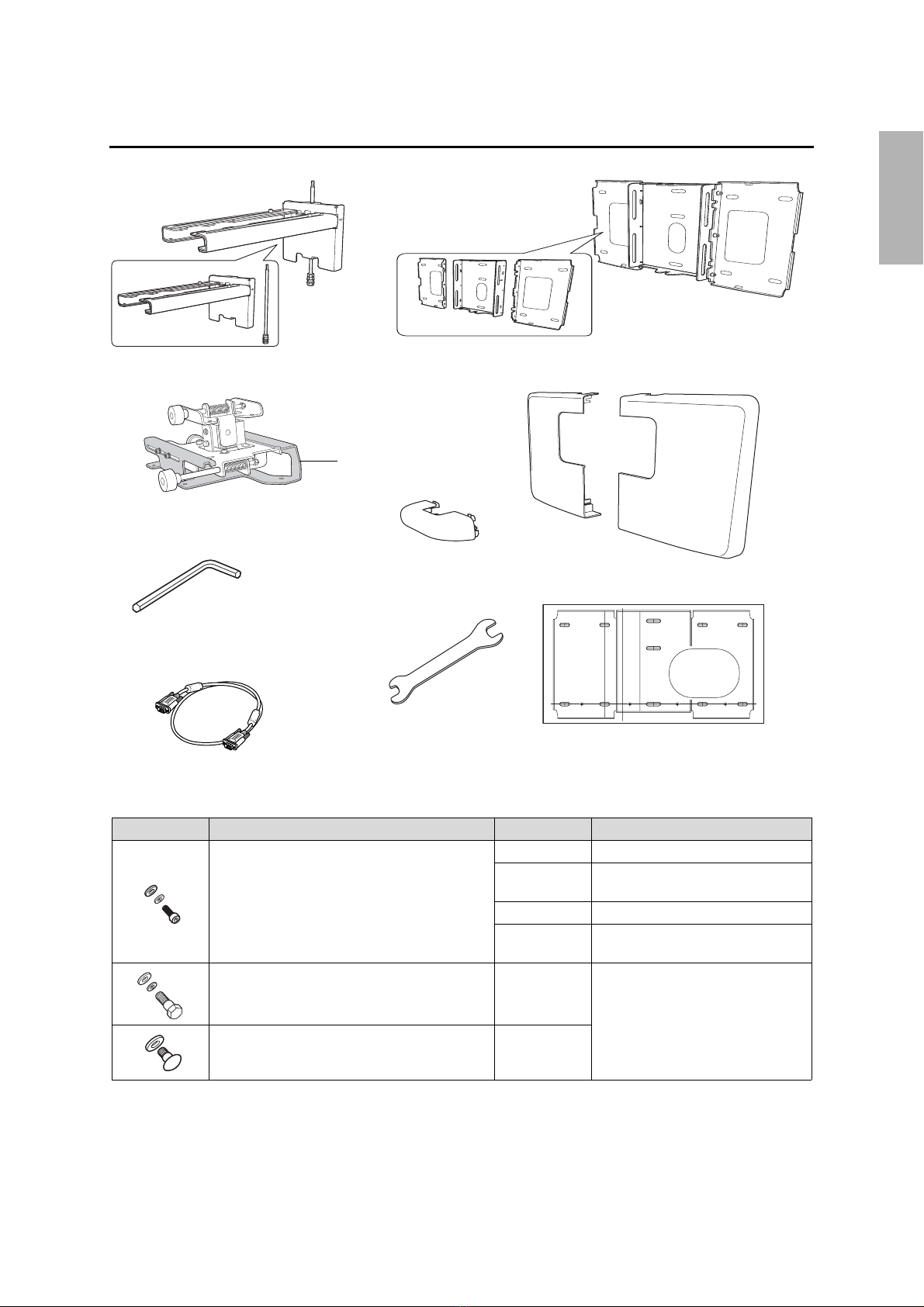

1 Package Contents

•Use the bolts or screws supplied with the wall mount to install it as directed in this guide. Do not

substitute these bolts with any other types.

•You need to use commercially available M8 x 50 mm anchors (at least 3) to attach the wall plate to the

wall.

•Gather the tools and parts you need before you begin installation, including a #3 cross-head screwdriver.

Shape Name Quantity Application

M4 x 12 mm hexagon socket head cap bolt with

washer/spring washer

6 For wall plate assembly

4 For 3-axis adjustment unit/wall mount

installation

4 For slide plate/projector installation

2 For slide plate/3-axis adjustment unit

installation (secured when shipped)

M6 x 20 mm hexagon shoulder bolt with washer/

spring washer

1 For wall mount/wall plate installation

(secured when shipped)

M6 x 20 mm cross recessed head shoulder screw

with plastic washer

Hexagon wrench (for M4)

Wall plate cover

Wall mount

Template sheet

(for installing the wall plate)

End cap

3-axis adjustment unit (attached

to slide plate when shipped)

Open-ended wrench

13 mm (for M8 and M6) x

6 mm (for hexagonal

shaft)

Wall plate

VGA computer cable (may be included

with projector or wall mount)

Slide plate

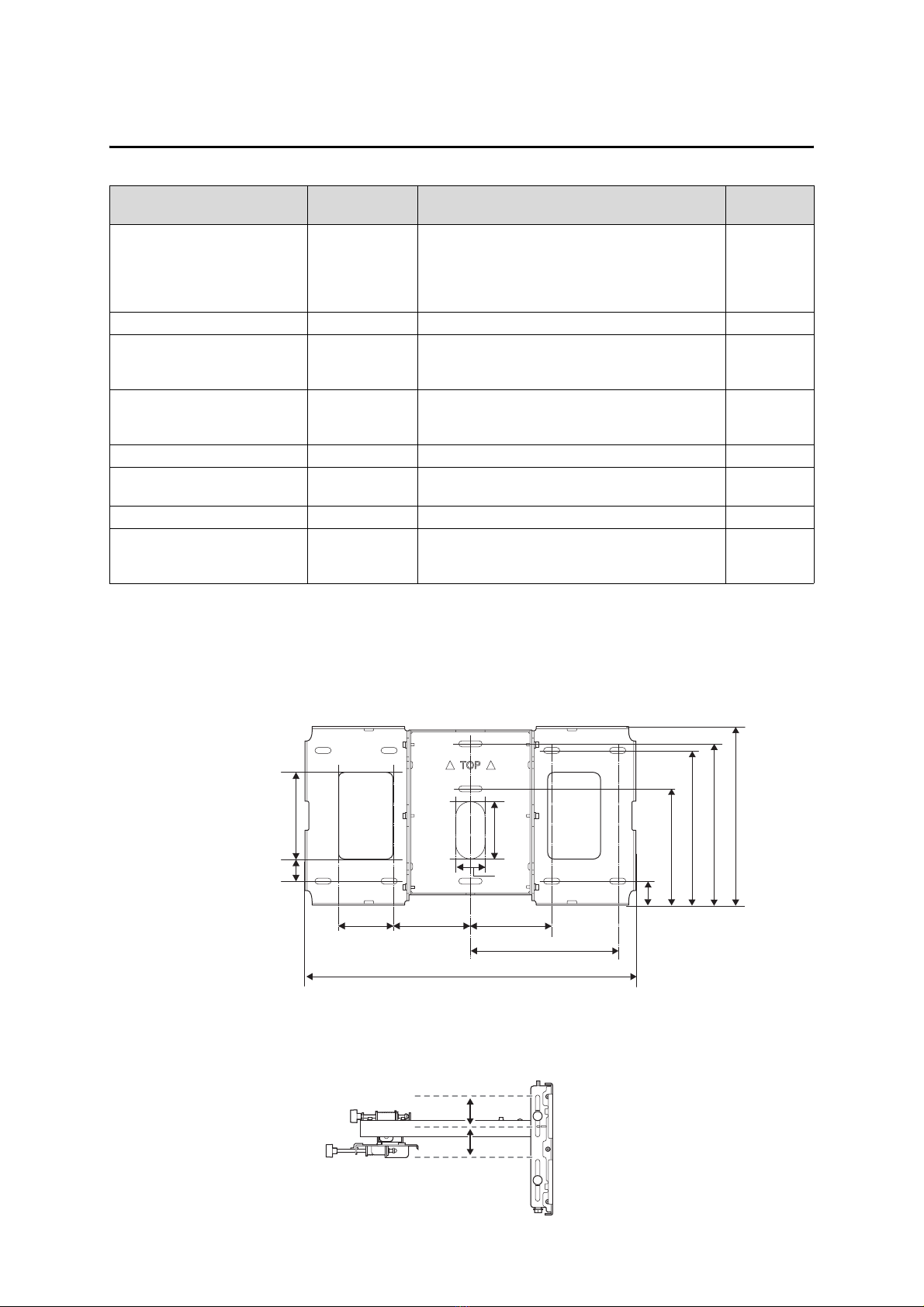

2 Specifications

Wall plate

The wall plate is in three piece when shipped, and the middle piece is attached to the wall mount arm. Use the

included M4 x 12 mm bolts (x6) to attach the separate pieces together before mounting the projector. See

page 26 for instructions.

Vertical slide adjustment range

Item Specification Additional information Reference

Page

Wall mount weight (including the

3-axis adjustment unit, slide plate,

wall plate, wall plate cover, and

end cap)

Approx. 16.3 lb

(7.4 kg)

Wall mount: 6.2 lb (2.8 kg)

3-axis adjustment unit: 2.4 lb (1.1 kg)

Slide plate: 1.5 lb (0.7 kg)

Wall plate: 5.5 lb (2.5 kg)

Wall plate cover and end cap: 0.7 lb (0.3 kg)

—

Maximum load capacity 15.4 lb (7 kg) — —

Forward/backward slide

adjustment range

0 to 12.2 in.

(310 mm)

Arm slide adjustment range: 0 to 9.8 in. (248 mm)

Adjustment from 3-axis adjustment unit installation

position: 2.4 in. (62 mm)

Refer to the

illustration

below

Vertical slide adjustment range ± 1.5 in. (38 mm) — Refer to the

illustration

below

Horizontal roll adjustment range ± 3° Fine adjustments possible with adjustment knob 38

Horizontal rotation adjustment

range

± 3° Fine adjustments possible with adjustment knob 39

Vertical tilt adjustment range ± 3° Fine adjustments possible with adjustment knob 39

Horizontal slide adjustment range ± 1.8 in. (45 mm) — Refer to the

illustration

below

4.7 in.

(120 mm)

1.2 in.

(30 mm)

1.3 in.

(33 mm)

2.9 in.

(75 mm)

4.2 in.

(106.5 mm)

3.1 in.

(79 mm)

1.6 in.

(40 mm)

4.4 in.

(112 mm)

8.0 in. (203 mm)

6.3 in. (160 mm)

8.4 in. (213 mm)

18 in. (456 mm)

8.7 in. (222 mm)

9.7 in. (246 mm)

1.5 in. (38 mm)

English

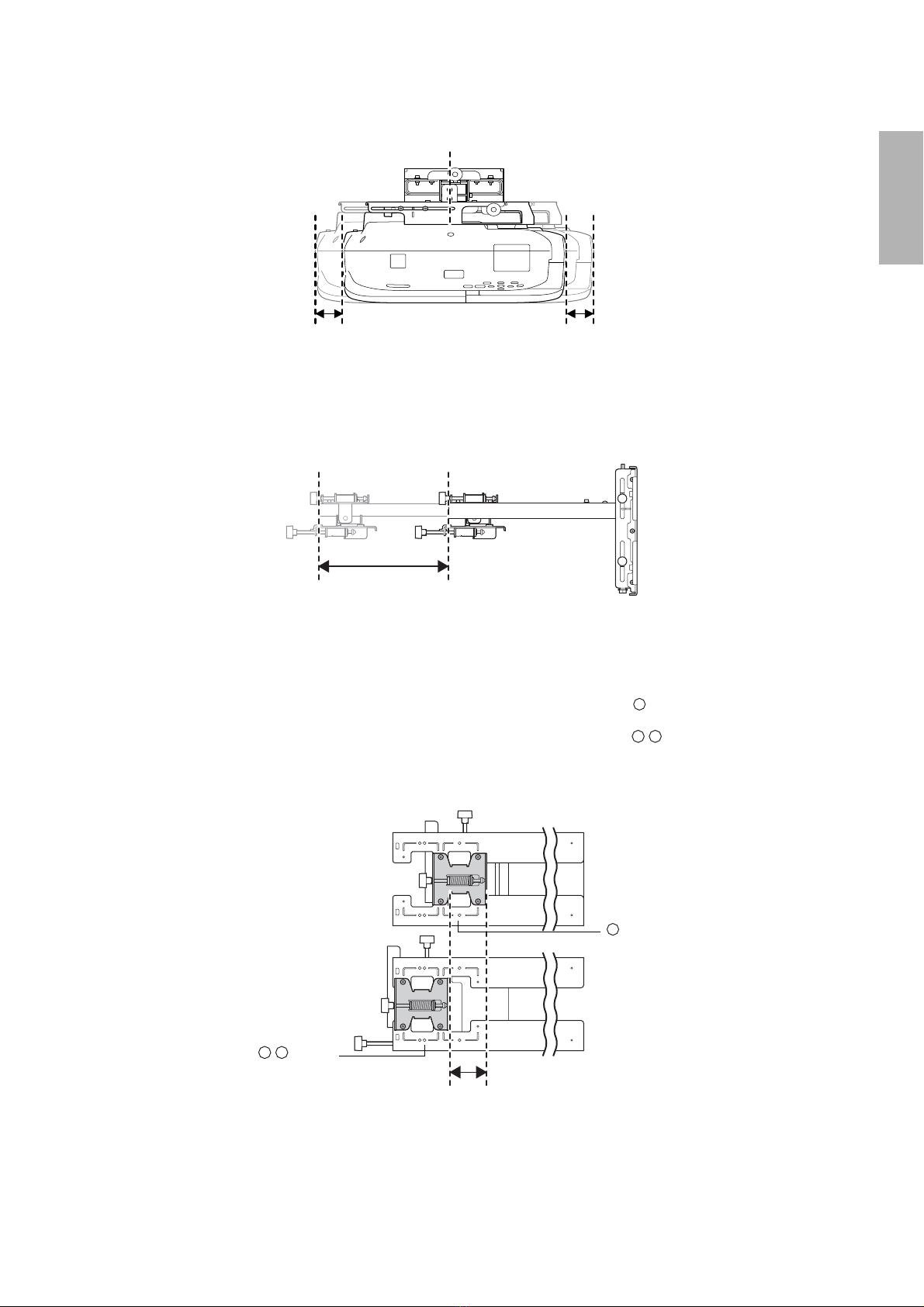

Horizontal slide adjustment range

Forward/backward slide adjustment range

Arm slide adjustment range

Adjustment from 3-axis adjustment unit installation position

By changing the installation position of the 3-axis adjustment unit to the front or back, you can adjust the

installation position of the projector.

When the screen size is less than 70 inches, install it at the position marked with a stamp on the mount arm.

When the screen size is 70 inches or more, install it at the position marked with a stamp on the mount

arm.

To see these stamps, you need to remove the two top screws and slide out the arm extension.

1.8 in. (45 mm) 1.8 in. (45 mm)

9.8 in. (248 mm)

2.4 in.

(62 mm)

stamp

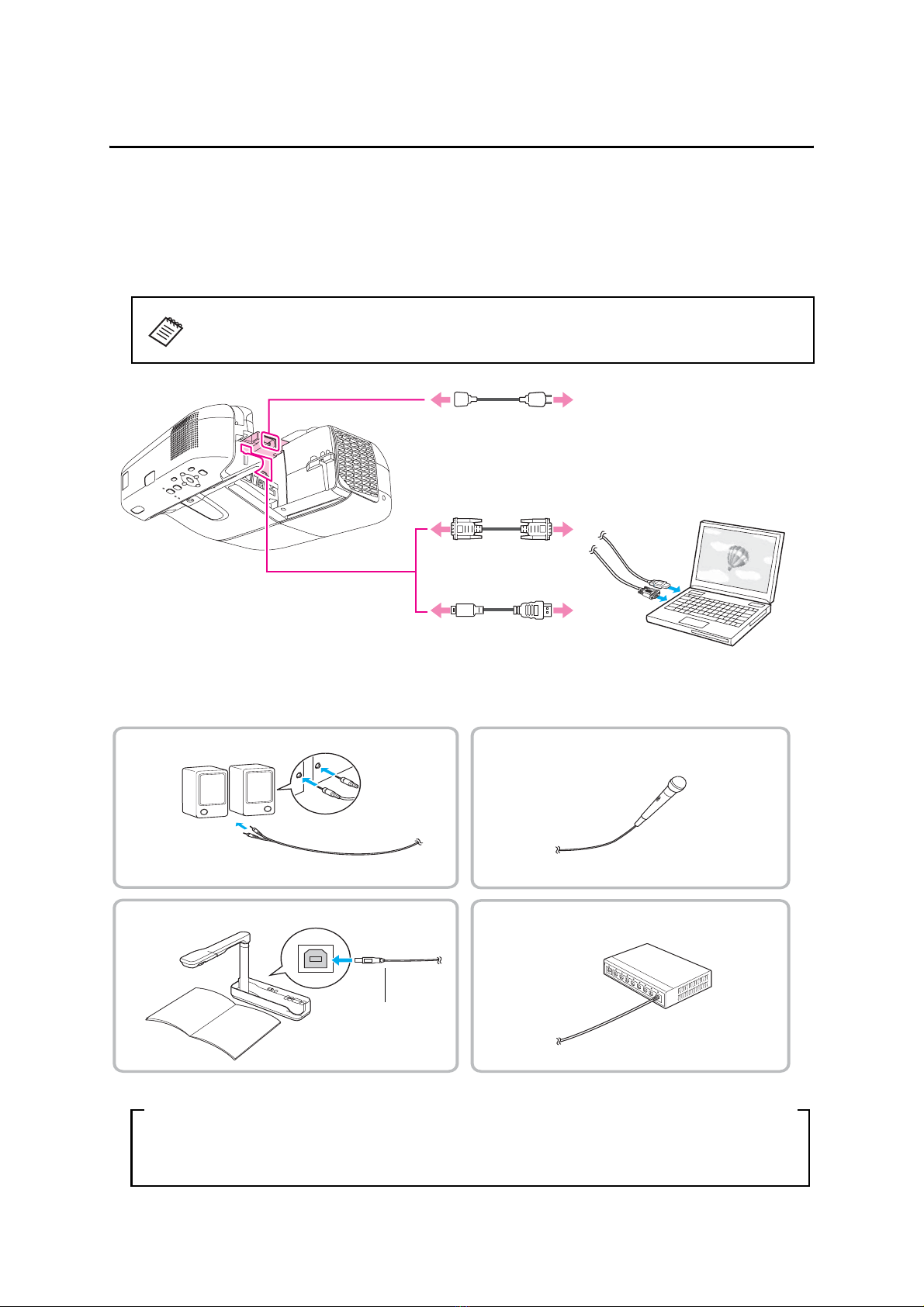

3ConnectingDevices

Make sure you have the power cord, computer cable, and other parts at the location where the wall mount is

to be installed.

Make sure you also have all necessary cables for devices, such as a document camera or microphone, that you

will connect to the projector. For details, refer to the User’s Guide on the projector CD or at epson.com/

brightlinkdownloads (U.S.) or epson.ca/brightlinkdownloads (Canada).

Some of the illustrations in this guide may look different from your projector, but the

instructions are the same.

External speakers

LAN device

Microphone

USB cable

(for Interactive Functions on BrightLink

and BrightLink Pro models)

Document camera

(EPSON DC-06)

Power cord

Computer cable

(for computer video output)

Dedicated USB cable

(supplied with

document camera)

Audio cable

(not included)

LAN cable

(not included)

When interacting with a computer, you need a USB cable (unless you are connecting wirelessly to

the BrightLink Pro 1410Wi). When using the projector's built-in tools, you do not need a USB cable.

For Interactive Use (BrightLink 475Wi/480i/485Wi and BrightLink Pro 1410Wi)

English

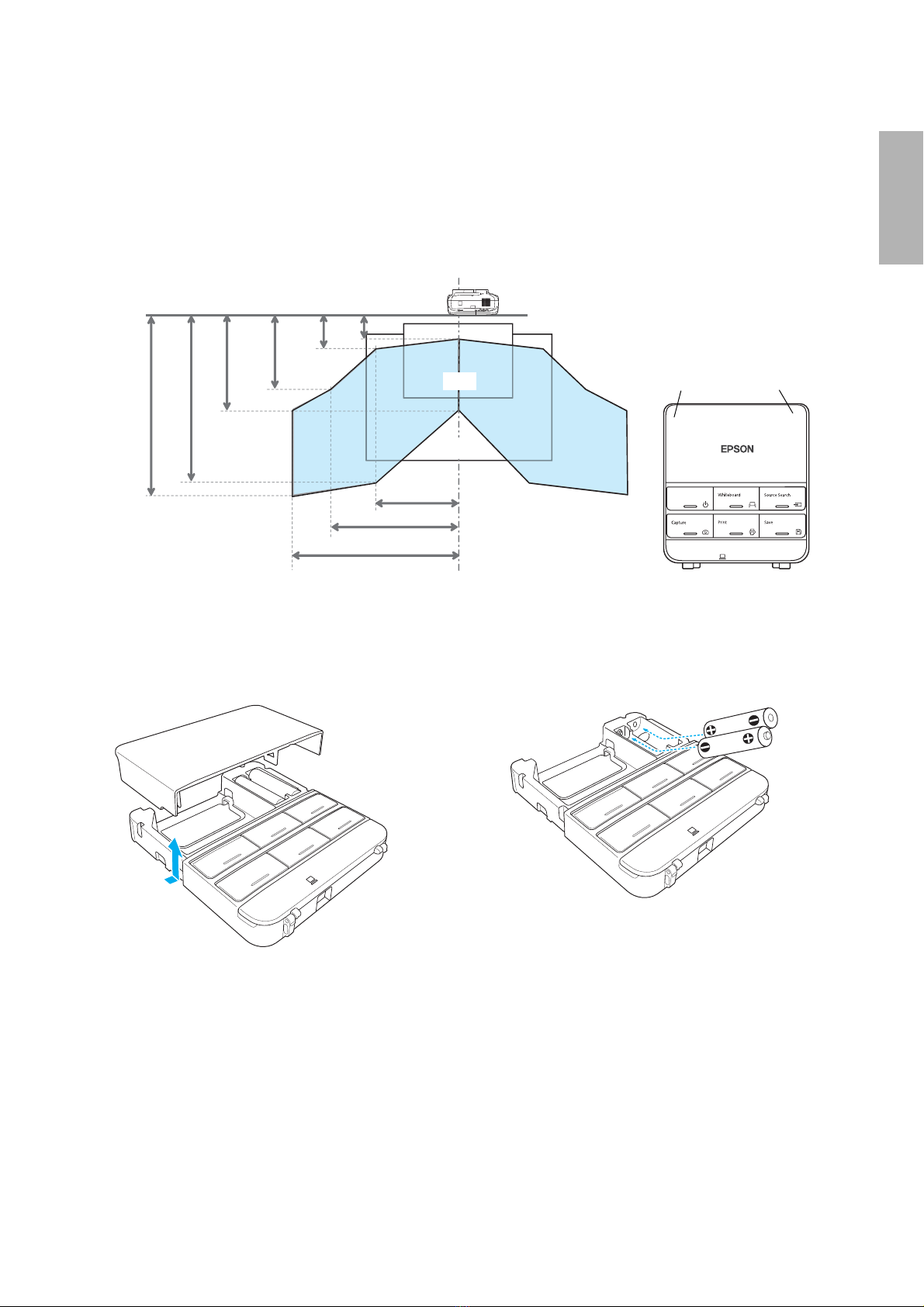

Connecting the Control Pad (BrightLink Pro 1410Wi Only)

The control pad is included with the BrightLink Pro 1410Wi projector. It provides a convenient alternative to

the remote control for turning on the projector, changing the source, and selecting whiteboard mode. You can

also use the control pad to capture, print, and save your projected images.

You must install the control pad on the same surface as the projector, within the range shown in the shaded

area below. You can use the included batteries to power the control pad, or the optional remote control cable

set (ELPKC28).

Remove the top cover and install the batteries. (If you have the optional remote control cable set, you do not

need batteries.)

68.9 in.

(1.75 m)

35.4 in.

(0.9 m)

27.6 in.

(0.7 m)

13.8 in.

(0.35 m)

9.8 in.

(0.25 m)

39.3 in. (1.0 m)

59.0 in. (1.5 m)

78.7 in. (2.0 m)

78.7 in.

(2.0 m)

60-inch


100-inch


Remote control

light emitting areas

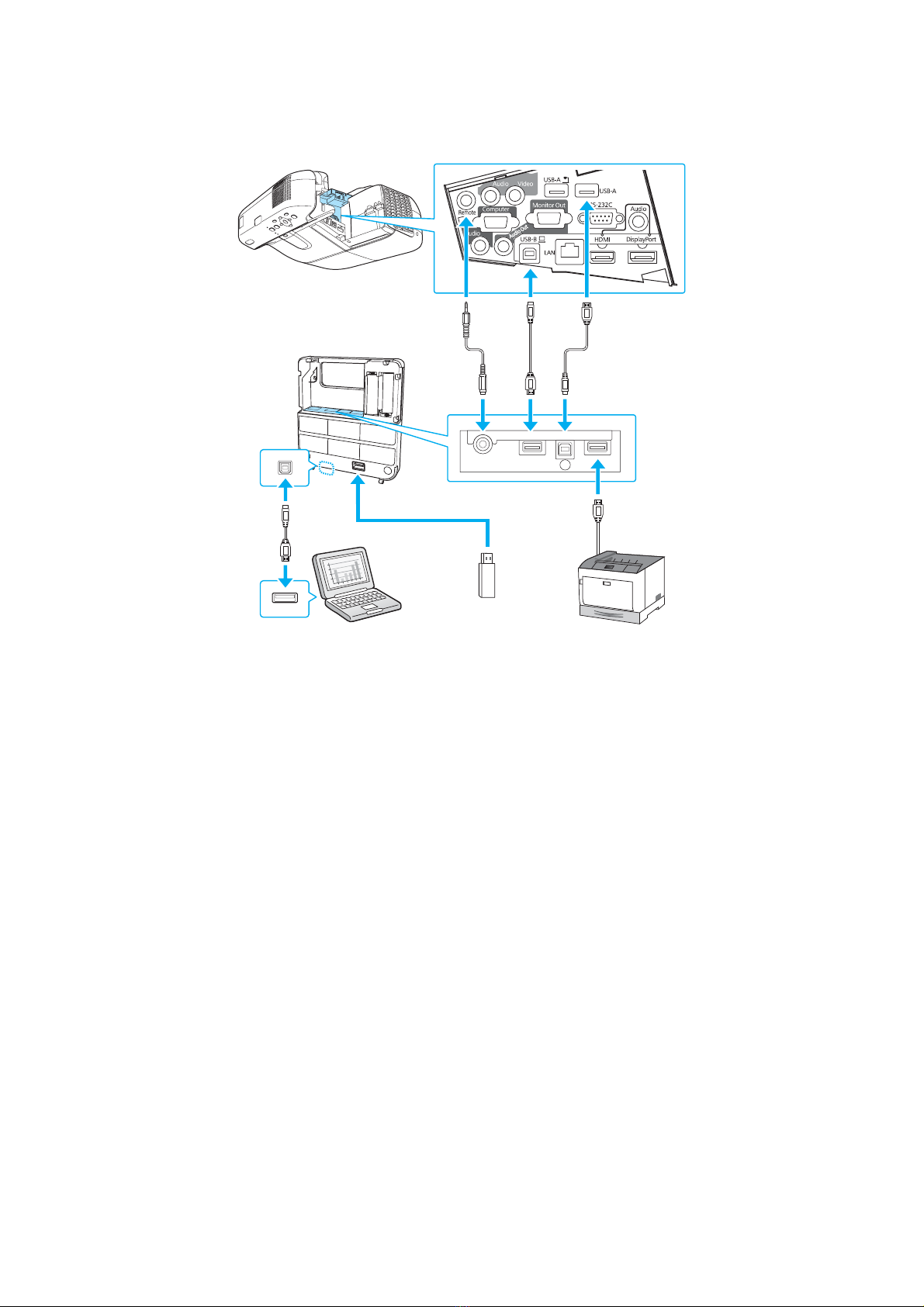

The following illustration shows the connections available from the projector to the control pad, and from the

control pad to a computer, thumbdrive, and printer.

For more information on installing and connecting the control pad, see the Control Pad Installation Guide that

came with the projector.

Optional remote

control cable

USB

cable

USB cable (not included)

USB cable

USB

cable

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Proyector de Epson

Epson

Epson EMP-51 Manual de usuario

Epson

Epson BrightLink 475Wi Manual de usuario

Epson

Epson V11H348020 Manual de usuario

Epson

Epson PowerLite Pro Z9750UNL Manual de usuario

Epson

Epson EB-L1500U Manual técnico

Epson

Epson PowerLite 4300 Instrucciones de funcionamiento y seguridad

Epson

Epson PowerLite Presenter HD Hoja de especificaciones

Epson

Epson EB-G6050W Guide Manual de usuario

Epson

Epson PowerLite Pro Z8150NL Guía de referencia

Epson

Epson EB-955W Instrucciones de instalación

Epson

Epson PowerLite X9 Hoja de especificaciones

Epson

Epson PowerLite 5500c Manual de usuario

Epson

Epson V11H319220 - MovieMate 60 LCD Projector Manual de usuario

Epson

Epson PowerLite 1930 Hoja de especificaciones

Epson

Epson PowerLite Home Cinema 8100 Manual de usuario

Epson

Epson PowerLite 53c Hoja de especificaciones

Epson

Epson EX51 Hoja de especificaciones

Epson

Epson PowerLite Pro Cinema LS10000 Manual de usuario

Epson

Epson PowerLite 7600p Manual de usuario

Epson

Epson PowerLite 7000XB Manual de usuario

Epson

Epson Home Cinema 2200 Hoja de especificaciones

Epson

Epson PowerLite Home Cinema 3010+ Hoja de especificaciones

Epson

Epson EB-G5350 Manual de usuario

Epson

Epson PowerLite Cinema 200+ Manual de usuario

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL-HW65ES Manual de servicio

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

NEC

NEC NP600S EDU Manual de usuario

BenQ

BenQ SH753P Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Sony

Sony SRX-R815P Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario

Asus

Asus ZenBeam Latte Manual de usuario

BOXLIGHT

BOXLIGHT CP-322i/CP-634i Manual de usuario

JVC

JVC 1108TTH-AO-AO Manual de usuario
