EPSON®PowerLite®Cinema 200

Home Theater Projector

User’sGuide

any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior

written permission of SEIKO EPSON CORPORATION. The information contained herein is designed only for

use with this EPSON product. EPSON is not responsible for any use of this information as applied to other

products.

Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to the purchaser of this product or third

parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse,

or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the

U.S.) failure to strictly comply with SEIKO EPSON CORPORATION’s operating and maintenance instructions.

SEIKO EPSON CORPORATION shall not be liable for any damages or problems arising from the use of any

options or any consumable products other than those designated as Original EPSON Products or EPSON

Approved Products by SEIKO EPSON CORPORATION.

EPSON is a registered trademark of SEIKO EPSON CORPORATION.

EPSON Extra Care, EPSON Connection and EPSON Store are service marks, and PrivateLine and PowerLite are

registered trademarks of Epson America, Inc.

Pixelworks and DNX are trademarks of Pixelworks, Inc.

General Notice: Other product names used herein are for identification purposes only and may be trademarks of

their respective owners. EPSON disclaims any and all rights in those marks.

CPD-17301

Contents

Introduction 7

Registration and Warranty 7

Projector Parts 8

Projection Controls 9

Optional Accessories 10

Using This Manual 11

Getting More Information 11

Setting Up the Projector 13

Choosing a Location 13

Connecting the Cables 15

Other Connections 16

Displaying and Adjusting the Image 17

Focusing and Zooming the Image 17

Inverting and Mirroring the Image 18

Selecting the Input Signal Setting 18

Positioning the Image 19

Performing Keystone Correction 19

Basic Operation 21

Turning On the Projector 21

Turning the Projector Off 22

Selecting the Image Source 22

Choosing the Aspect Ratio 23

Choosing the Color Mode 24

Locking the Projector 25

Making Adjustments 27

Using the Menu System 27

Changing How the Menu Displays 28

Adjusting the Image Quality 29

Brightness and Contrast Settings 29

Sharpness and Picture Quality Settings 30

Color Settings 31

Adjustments for Computer Images 32

Saving and Resetting Menu Selections 33

Creating Memory Settings 33

Resetting the Projector 34

Customizing Projector Features 35

Image Sizing 35

Screen Options 36

Other Setup Options 36

Using Cinema Color Editor 39

Setting Up Your Computer 39

System Requirements 39

Installing the Software 40

Connecting to the Computer 41

Using Cinema Color Editor 42

Remote Control Operations 43

Adjusting the Picture Quality 44

Adjusting the Color 45

Saving and Recalling Picture Settings 46

Managing Your Settings 48

Maintenance 49

Cleaning the Lens 49

Cleaning the Projector Case 49

Changing the Remote Control’s Batteries 50

Cleaning and Replacing the Air Filter 51

Replacing the Lamp 52

Resetting the Lamp Usage Timer 53

Storing the Projector 54

Transporting the Projector 54

Problem Solving 55

What To Do When the Lights Flash 55

Checking the Projector Status 56

Solving Picture Problems 57

Solving Remote Control Problems 60

Where To Get Help 61

Specifications 63

General 63

Lamp 63

Remote Control 63

Dimensions 64

Electrical 64

Environmental 64

Safety 64

Compatible Video Formats 65

Aspect Ratio Settings 66

Notices 69

Important Safety Information 69

Remote Control Information 70

FCC Compliance Statement 71

Declaration of Conformity 72

Epson America, Inc., Limited Warranty 72

Index 75

Introduction

The EPSON®PowerLite®Cinema 200 projector lets you enjoy theater-quality images in the

relaxing environment of your own home. Designed especially for home cinema use, it offers

these outstanding features:

■1280 ×720 resolution, 800:1 contrast ratio, and up to 1300 lumens for incredibly rich,

sharp images

■PixelworksTM Digital Natural ExpressionTM technology to make fast-moving images

appear clear and lifelike

■True 16:9 wide-format projection

■Flexible setup configurations, including front or rear projection and ceiling mounted,

with a screen trigger port to automatically raise and lower your projection screen

■Vertical and horizontal lens shift to position the image without distortion

■Adjustable color modes to quickly optimize viewing for different lighting environments,

and Cinema Color Editor software for making fine custom color adjustments

■Electronic zoom and focus for precise image adjustment

■Parental control using the projector’s child lock

Registration and Warranty

The EPSON PowerLite Cinema 200 comes with a basic two-year carry-in warranty. For

details, see page 72.

In addition, for customers who register their projector, EPSON offers free Extra CareSM

Home Service. In the unlikely event of an equipment failure, you won’t have to wait for your

unit to be repaired. Instead, EPSON will ship you a replacement unit anywhere in the United

States or Canada, usually via overnight delivery. See your Extra Care Home Service brochure

for details.

To register, simply fill out the registration card that came with your projector and mail it to

EPSON. Or you can register online at http://www.epson.com/webreg. Registering also lets

you receive special updates on new accessories, products, and service.

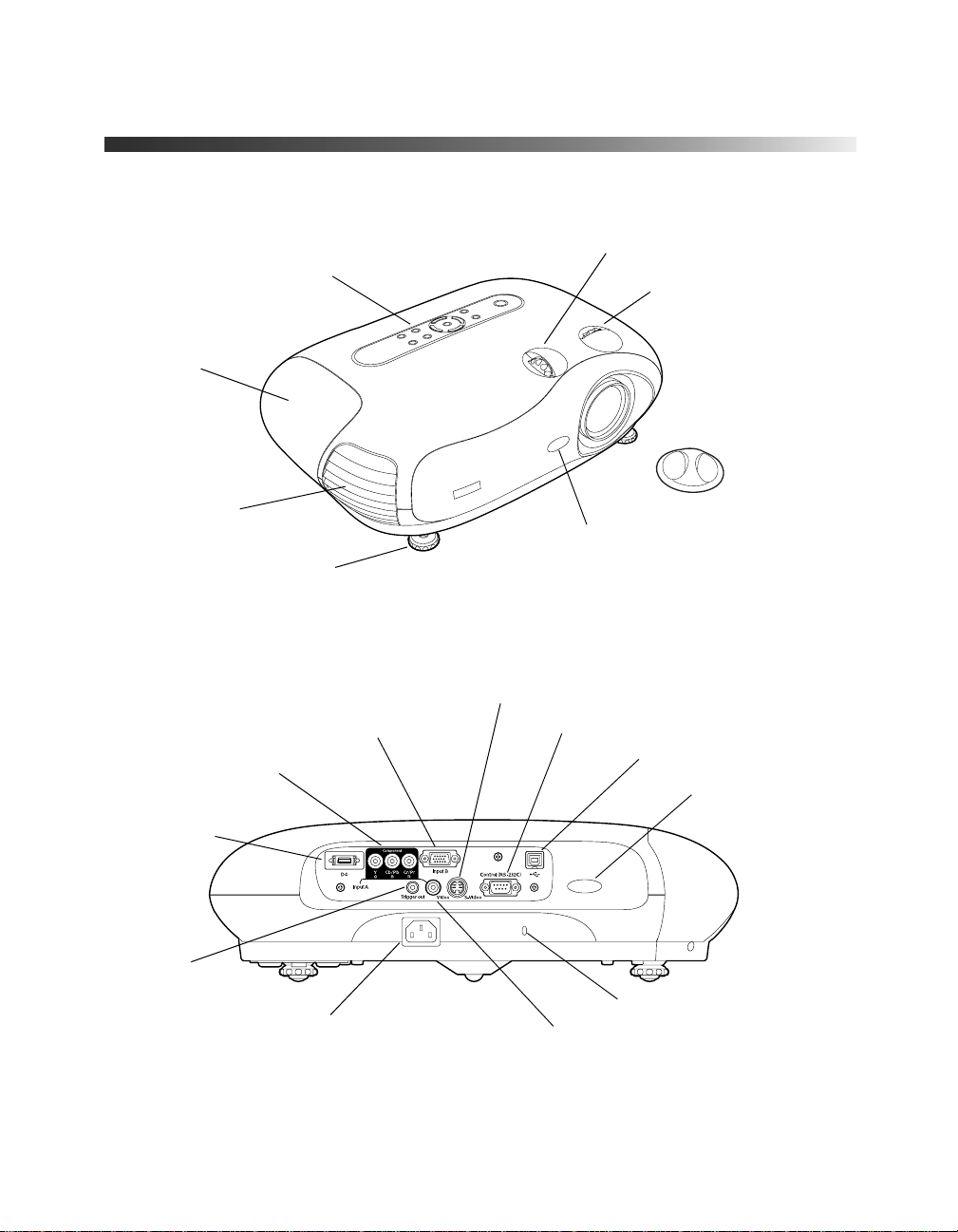

Projector Parts

Control panel

Ventilation slots

Lens cover

Vertical lens shift knob

Adjustable foot

S-Video port

Input B

(computer VGA port)

Input A

(component video)

AC power inlet

Infrared receiver

Kensington®lock port

Infrared receiver

Triggerout

port

D4 port (used

mainly in

Japan)

USB port

Video port (composite video)

Control (RS-232C) port

Lamp cover

Horizontal lens shift knob

Projection Controls

Power button

Indicator lights

Keystone correction buttons

Corrects the shape of a non-rectangular image

Menu navigation

buttons

Source button

Switches the video input source

Esc button

Exits the current menu item

Aspect button

Changes the picture’s

aspect ratio

Source buttons

Switch between equipment

connected to the projector

Color Mode button

Optimizes viewing for

different lighting environments

On/Off buttons

Memory button

Recalls custom picture settings

Menu navigation buttons

Pattern button

Displays test patterns to adjust

the image Zoom and Focus buttons

Menu button

Displays the projector’s menus

Focus button

Menu button

Displays the on-screen menu

Zoom

button

Aspect button

Changes the picture’s aspect ratio

ESC button

Exits the current menu item

Blank button

Turns off the screen image

Illumination button

Lights the buttons on the remote

control

Menu selection/Line menu

Selects menu items or opens

Line Menu

Optional Accessories

EPSON provides the following optional accessories for the projector:

You can purchase many of these accessories from your dealer, by calling EPSON

at (800) 873-7766, or by visiting the EPSON StoreSM at www.epsonstore.com

(U.S. sales only). In Canada, please call (800) 463-7766 for dealer referral.

Product Part number

Replacement lamp (ELPLP28) V13H010L28

Air filter replacement (ELPAF04) V13H134A04

Ceiling mount ELPHB01

Kensington security lock ELPSL01

Projection screens:

50-inch portable screen

60-inch portable pop-up screen

80-inch portable pop-up screen

ELPSC06

ELPSC07

ELPSC08

Macintosh®adapter set (includes monitor adapter

and desktop adapter) ELPAP01

S-video cable ELPSV01
