6Introduction

Introduction

The PowerLite

Pro Cinema 31000/61000 projector lets you enjoy theater-quality images in

the relaxing environment of your own home. Designed especially for home cinema use, it

offers these outstanding features:

■

Native 1080p (1920 × 1080) resolution, dynamic contrast ratio up to 1000000:1

(500000:1 for the Pro Cinema 31000), and up to 1200 lumens of brightness (white light

output and color light output) for incredibly rich, sharp images in any room lighting

■

Auto Iris system that constantly controls the light output based on the gamma and

black/white levels of your projected content, for perfectly adjusted images and deepest

blacks

■

Epson

Fine

™

3LCD technology for reliable picture quality, increased contrast ratio

and uniform colors

■

1080Perfect

™

video processing using HQV

Reon-VX technology for more film-like

images free of noise or artifacts

■

10-bit with partial 12-bit color quality for unmatched color accuracy, with over a billion

colors available

■

Epson AccuCinema

™

color management delivered by the built-in optical Cinema Filter

blocks out excess light for an expanded, purer color range and sophisticated grayscale

tracking

■

HDMI

™

(High Definition Multimedia Interface

™

) port for superior, uncompressed

digital video

■

True 16:9 wide-format projection

■

Flexible setup configurations, including front projection and ceiling mounted, with

vertical and horizontal offset lens shift

■

Five color modes, including x.v.Color

™

, to quickly optimize viewing for different lighting

environments, and a vast array of custom color adjustments

Introduction 7

Projector Parts

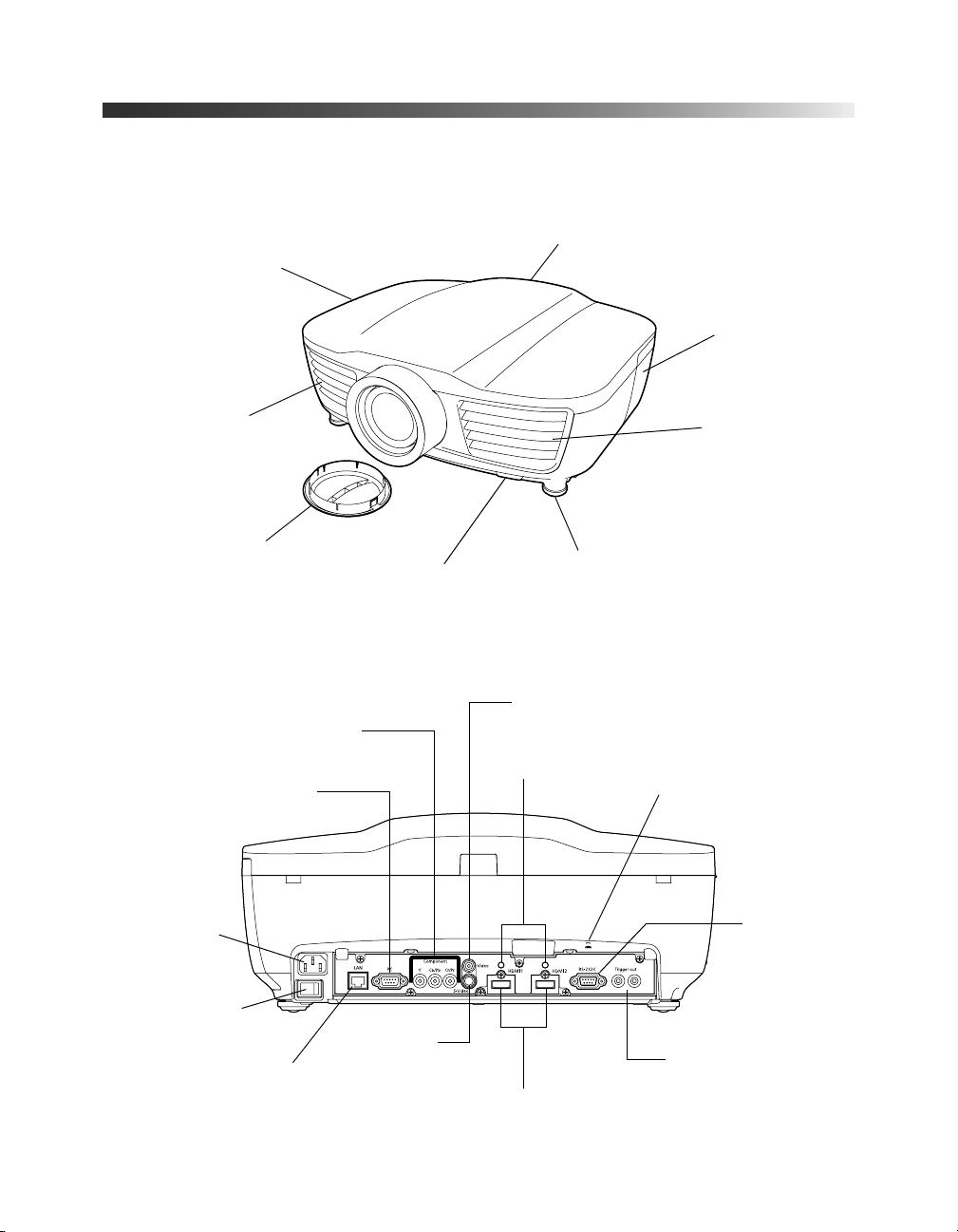

Control panel (side)

Ventilation slots

(intake)

Lens cover Adjustable foot

Video port

HDMI ports

Component video port

AC power inlet

Kensington

lock port

Infrared receiver

(front)

S-Video port

Trigger out ports

(second port on Pro

Cinema 61000 only)

PC port

Main power switch

Front

Back

Lamp cover

LAN port

(Pro Cinema 61000 only)

Cable holders

Infrared receiver

(rear)

Ventilation slots

(exhaust)

Control port

(RS-232C)

8Introduction

Power

button

Menu navigation

buttons

Esc button

Exits the current

menu item

Menu button

Displays the

menus

Status lights (see page 61)

Mounting bracket

attachment points

Enter button

Selects menu items or

opens the line menu

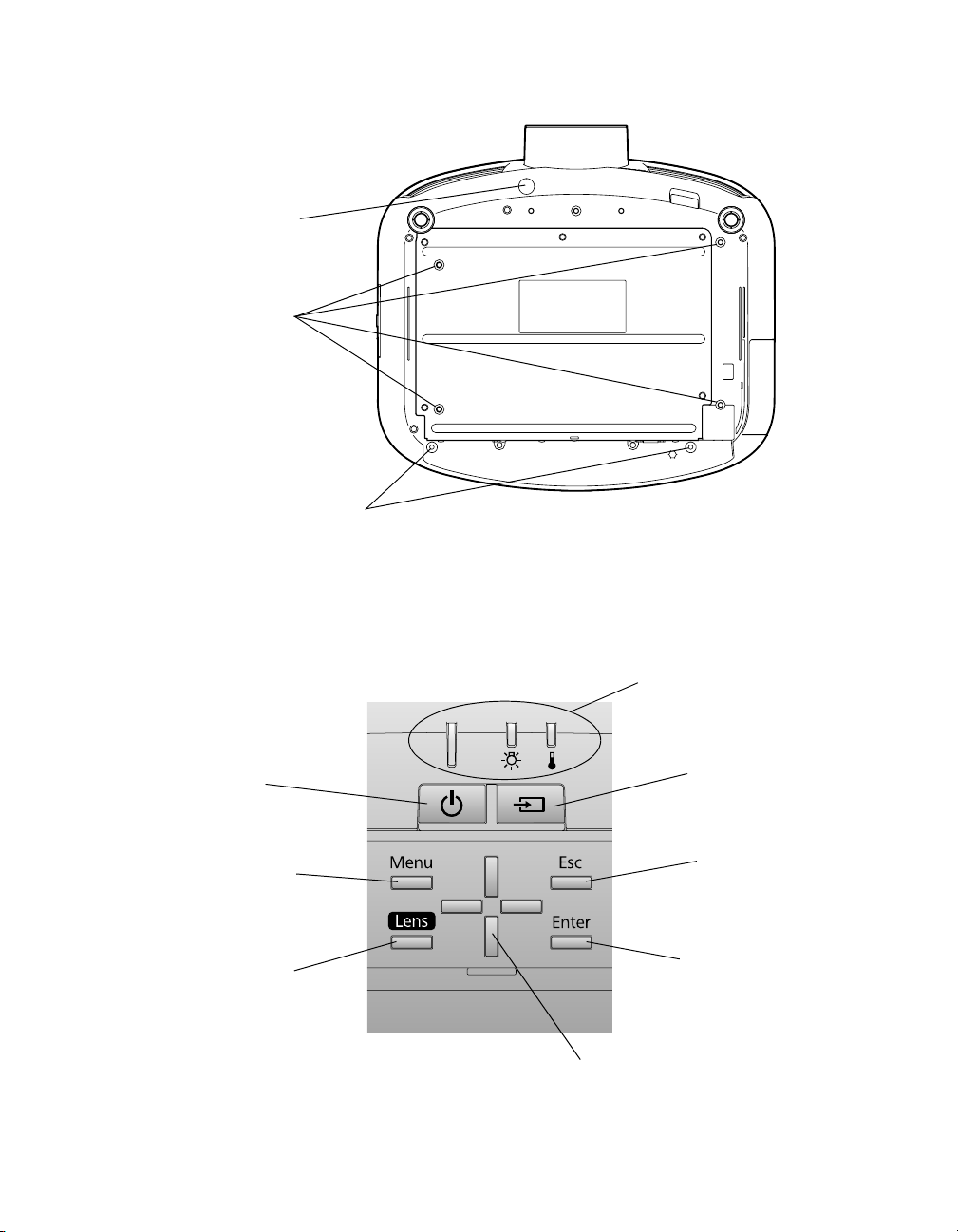

Bottom

Projector Control Panel

Optional cable cover

attachment points

Source button

Switches the

video input source

Air filter cover release

Lens button

Adjusts focus,

zoom, and lens shift

Introduction 9

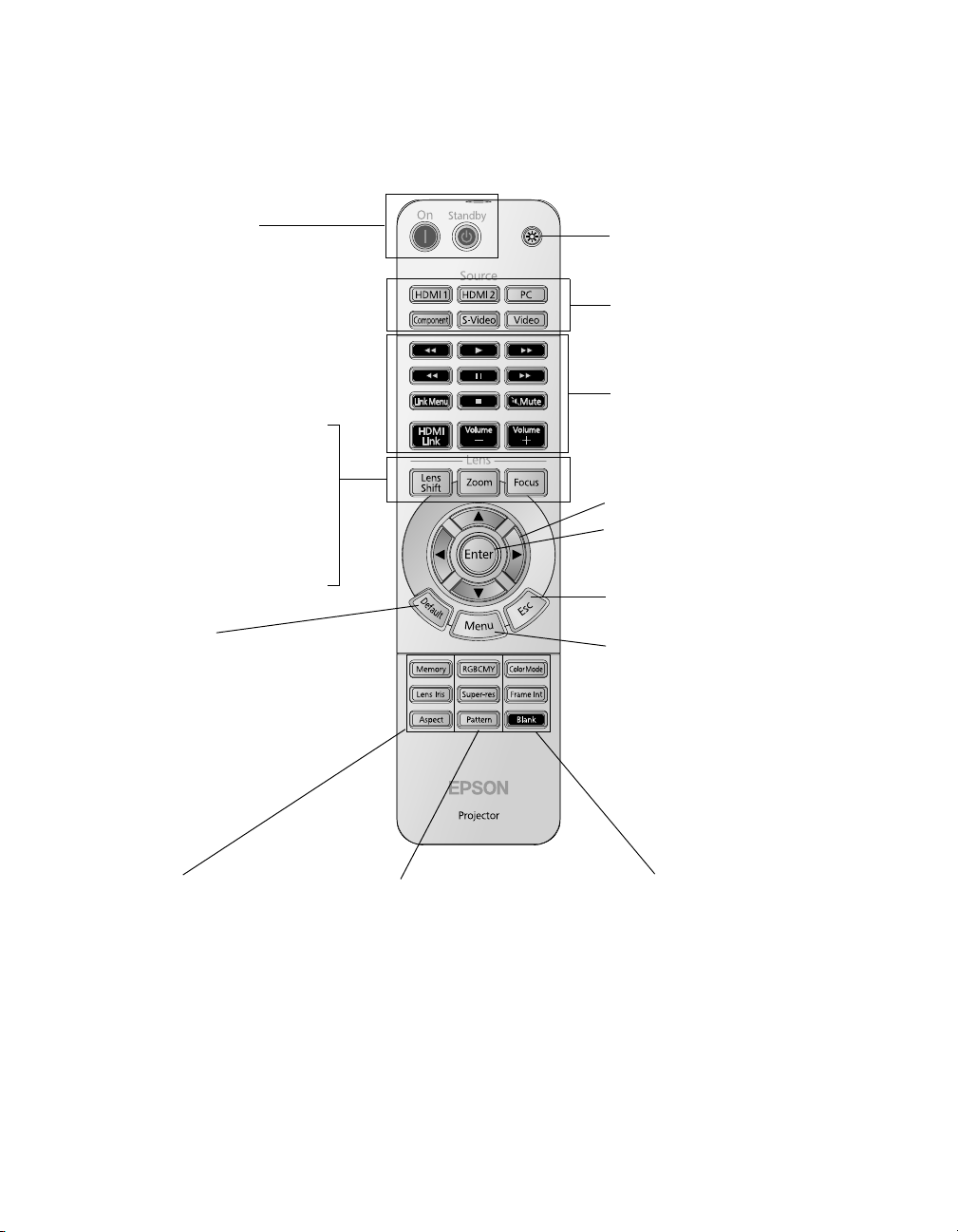

Remote Control

Source buttons

Switch between equipment

connected to the projector

Color Mode button

Optimizes viewing for

different lighting environments

Frame Int (interpolation) button

Smooths motion in rapid

pictures

Blank button

Temporarily stops projection or

hides the menu screen

Power buttons

Turn projector on or off

Memory button

Recalls custom picture

settings

Lens Iris button

Adjusts the amount of light

passing through the lens

Aspect button

Changes the picture’s aspect

ratio

Menu navigation buttons

Menu button

Displays the projector’s menus

Esc (escape) button

Exits the current menu item

Enter button

Selects menu items or opens

the line menu

Default button

Restores default settings

when menu is displayed

Illumination button

Lights the remote control

buttons for easy viewing

RGBCMY button

Adjusts the hue, saturation, and

brightness for each color

Super-res button

Sharpens blurred edges of

upscaled images

Pattern button

Displays test patterns to adjust

the image

Lens Shift button

Moves image up/down/left/right

Zoom button

Adjusts the image size

Focus button

Sharpens the image

HDMI Link buttons

Let you operate HDMI CEC

compatible devices

10 Introduction

Optional Accessories

Epson provides the following optional accessories for the projector:

In addition to the accessories listed above, 1-year and 2-year extended service plans are

available. You can purchase these plans and other accessories from an authorized Epson

reseller. To find the nearest reseller, please call 800-GO-EPSON (800-463-7766). To

purchase online, visit www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).

Registration and Warranty

Your projector comes with a basic three-year carry-in warranty. For details, see page 79.

In addition, Epson offers free Extra Care

Home Service. In the unlikely event of an

equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will

ship you a replacement unit anywhere in the United States, Canada, or Puerto Rico. See your

Extra Care Home Service brochure for details.

To register, simply follow the registration instructions on the CD, or register online at

www.epson.com/webreg. Registering also lets you receive special updates on new accessories,

products, and service.

Product Part number

Replacement lamp V13H010L66

Air filter replacement V13H134A28

Kensington security lock (anti-theft device) ELPSL01

Cable cover V12H003005

Projector mount ELPHB800

Panamorph™ Fixed Anamorphic Lens Kit ELPFALK

Panamorph Movable Anamorphic Lens Kit ELPALK2
