6Introduction

Introduction

The PowerLite®Home Cinema 3020/3020e projector lets you enjoy theater-quality 2D and

3D images in the relaxing environment of your own home. Designed especially for home

cinema use, it offers these outstanding features:

■Native 1080p (1920 × 1080) resolution, dynamic contrast ratio up to 40,000:1 and up to

2200 lumens of brightness (white light output) for incredibly rich, sharp images in any

room lighting

■Auto Iris system that constantly controls the light output based on the gamma and

black/white levels of your projected content, for perfectly adjusted images and deepest

blacks

■Epson®C2FineTM 3LCD technology for reliable picture quality, increased contrast ratio

and uniform colors

■10-bit color quality for unmatched color accuracy, with over a billion colors available

■HDMI®(High-Definition Multimedia Interface®) ports for superior, uncompressed

digital video

■True 16:9 wide-format projection

■Powerful 10 W per channel stereo system with two speakers

■Flexible setup configurations, including front projection and ceiling mounted, with

horizontal keystone slider for offset placement

Introduction 7

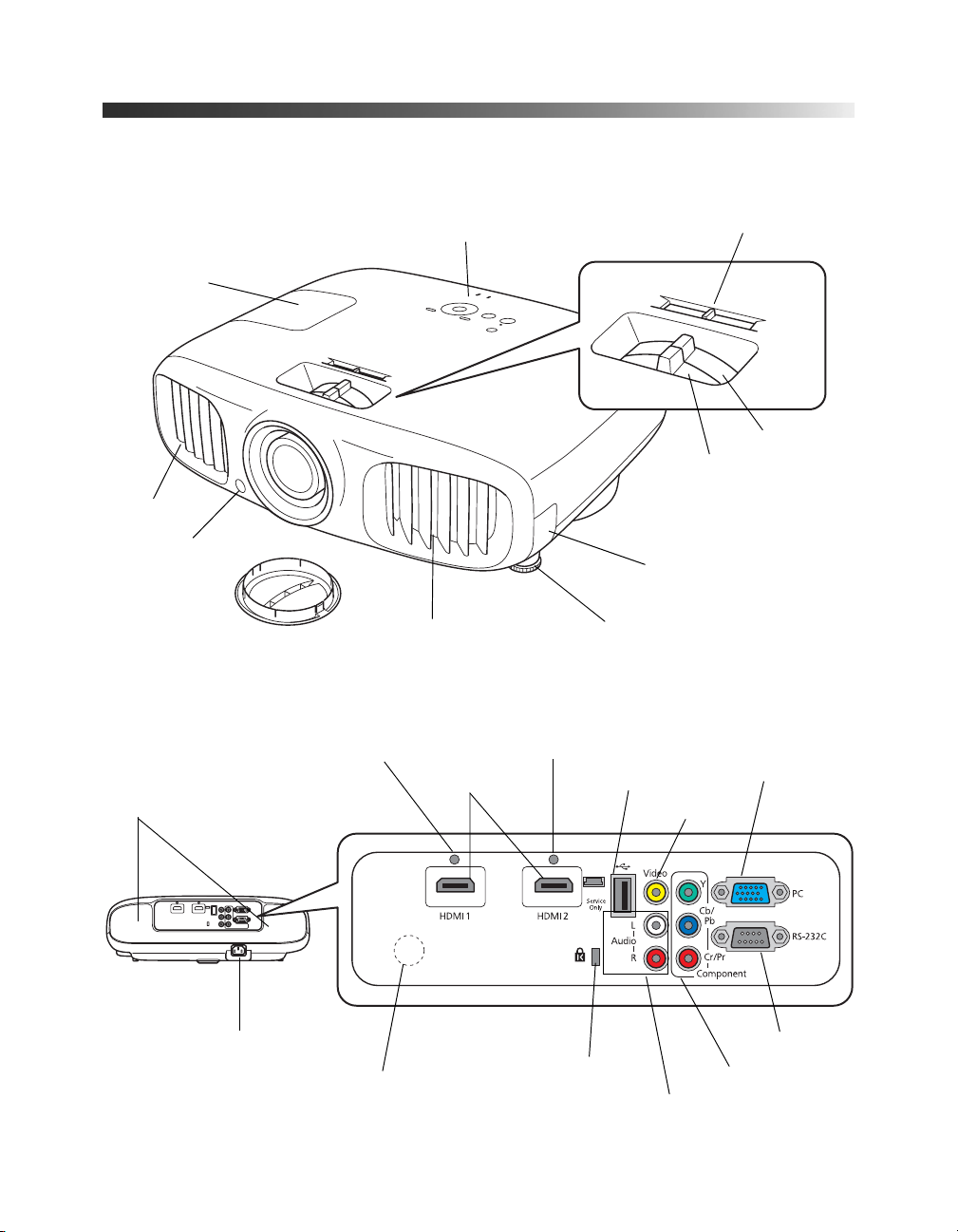

Projector Parts

Control panel

Air exhaust

Lens cover Adjustable foot

HDMI ports

Remote receiver

Horizontal keystone slider

Zoom ring

Front

Back

Lamp cover

Cable clip hole

Air intake

Air filter cover

Focus ring

Speakers

Power inlet

Cable clip hole

Kensington®lock port

Audio (L-R) port

Component port

RS-232C port

USB port

Remote receiver

Video port

PC port

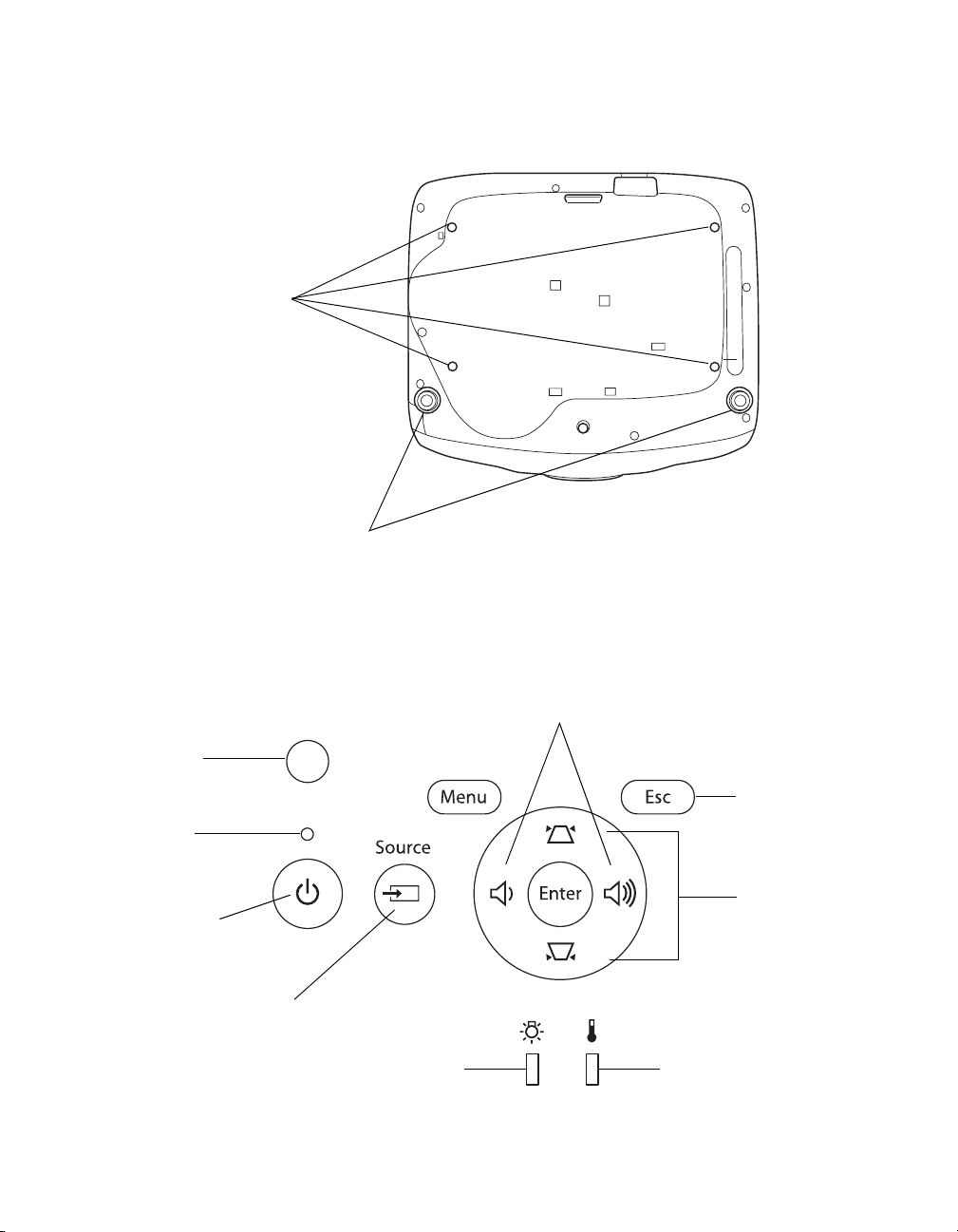

8Introduction

Brightness

sensor

Escape button

Power button

Mounting bracket

attachment points

Bottom

Projector Control Panel

Front adjustable feet

Power

light

Source button

Volume/horizontal

keystone buttons

Vertical

keystone

buttons

Lamp

light

Temperature

light

Introduction 9

Remote Control – PowerLite Home Cinema 3020

Source buttons

Switch between equipment

connected to the projector

On button

Turns projector on

navigation

buttons

3D Format button

Adjusts the 3D

Format setting

Color Mode button

Quickly change color settings

to match room lighting

Aspect button

Changes the picture’s aspect ratio

Blank button

Temporarily stops projection or

hides the menu screen

Auto Iris button

Toggles the Auto Iris

function on or off

HDMI Link button

Enables and disables the

HDMI link function

Frame int setting

Adjusts the Frame Interpolation

setting

Illumination button

Lights the remote control

buttons for easy viewing

Menu button

Displays the projector’s

menus

Default button

Resets menu

selection to default

values

2D/3D button

Toggles

between 2D and

3D projection

RGBCMY button

Displays the color adjustment menu

Memory button

Accesses the memory menu

HDMI Link control buttons

Control playback of a linked

video device

Super-res button

Adjusts the Super-res setting

on or off

Standby button

Turns projector off

Split button

Toggles the Split

Screen function on or

off

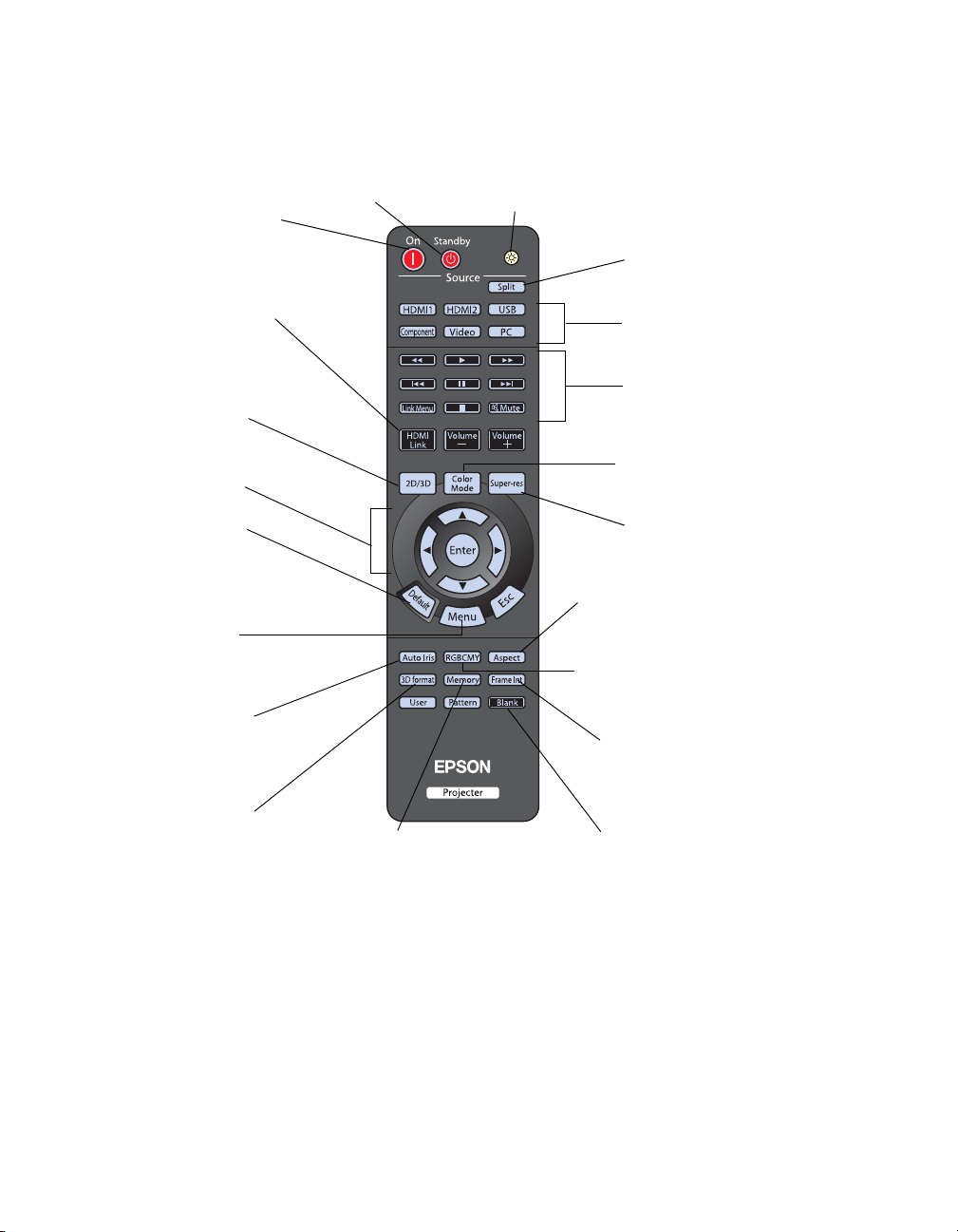

10 Introduction

Remote Control – PowerLite Home Cinema 3020e

Source buttons

Switch between equipment

connected to the projector

On button

Turns projector on

navigation

buttons

Color Mode button

Quickly change color settings

to match room lighting

Aspect button

Changes the picture’s aspect ratio

Blank button

Temporarily stops projection or

hides the menu screen

Auto Iris button

Toggles the Auto Iris

function on or off

HDMI Link button

Enables and disables the

HDMI link function

Frame Int button

Adjusts the Frame Interpolation

setting

Menu button

Displays the projector’s

menus

Default button

Resets menu

selection to default

values

2D/3D button

Toggles

between 2D and

3D projection

RGBCMY button

Displays the color adjustment menu

Memory button

Accesses the

memory menu

HDMI Link control buttons

Control playback of a linked

video device

Super-res button

Adjusts the Super-res setting

on or off

WirelessHD

Transmitter

controls

Illumination button

Lights the remote control

buttons for easy viewing

Standby button

Turns projector off

Split button

Toggles the Split

Screen function on or

off
