EPSON®PowerLite®503c/713c

Quick Setup

Connect the power cord to your projector and plug the other end into a grounded outlet.

3Connect the other end to your laptop’s video or monitor port. If you can’t connect the cable

to your PowerBook®, you may need to use an adapter. See your User’s Guide for instructions.

Locate everything

you’ll need

Plug in your projector

Turn on your equipment

Caution: Before unplugging

the projector...

To shut the projector down properly:

1. Press the red Power button twice.

Let the projector cool while the power

light flashes orange (about a minute).

2. Once the light stops flashing and stays

on, it’s safe to unplug the projector.

Never unplug the projector when the

power light is green or flashing orange.

For this setup, you’ll need just these two cables:

You won’t need to install any software.

Make sure your projector and laptop are turned off.

Connect one end of the computer cable to

the Computer port on the projector.

Connect the projector

to your laptop

power cord computer cable

The power light

turns orange.

Rotate the lens ring to pop out the lens,

then squeeze the tabs to remove the lens cap.

Pop out the lens

To turn on the projector, press the red Power button.

The power light flashes green, and then stays on.

Turn on or restart your laptop. (Windows®only: If you see

this Add New Hardware screen, click Cancel.)

Power button

Follow these

instructions to

connect your laptop

to the projector.

To connect other

devices, such as a VCR

or desktop

PC, see

your User’s Guide.

Turn Over

squeeze here

EPSON PowerLite 503c/713c

If you see a blank screen or the No signal message

after turning on your laptop, check the following:

Make sure the power light is green and

not flashing and the lens cover is off.

Try turning off the laptop and restarting it.

If you’ve connected more than one computer and/or video source,

you may need to press the Source button on top of the projector.

(Allow a few seconds for the projector to sync up after pressing it.)

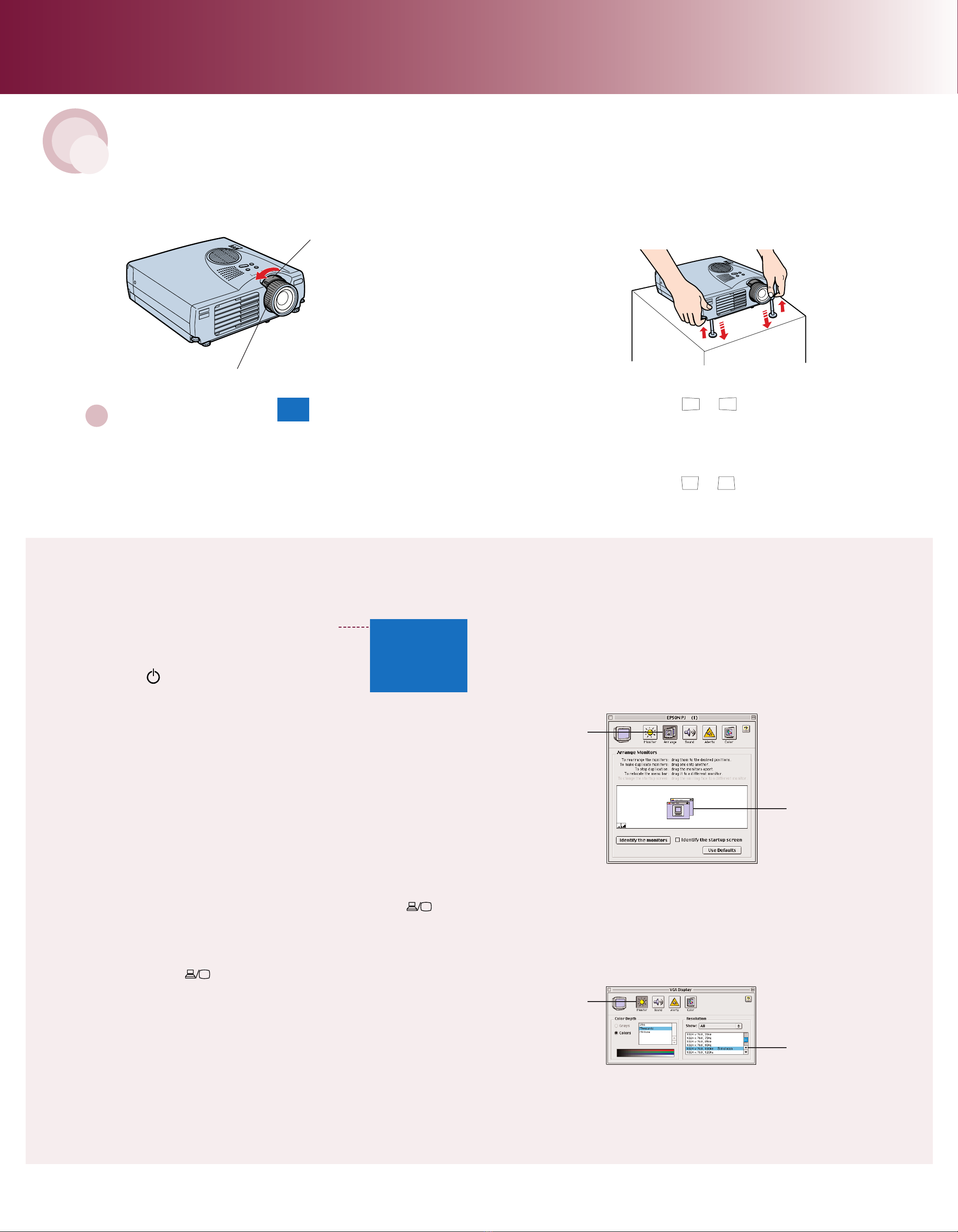

Adjust the image

1Rotate the focus ring to sharpen the image.

If You See a Blank Screen

Hold down the Fn button and press the function key that lets you

display on an external monitor. It may have an icon such as ,

or it may be labelled CRT/LCD. Allow a few seconds for the projector

to sync up after pressing it.

On most systems, the key lets you toggle between the LCD

screen and the projector, or display on both at the same time.

You might need to use the Display utility in the Control Panel

to enable both the LCD screen and external monitor port.

Check your laptop’s manual or online help for details.

If you’re using a Windows laptop:

If you’re using a Macintosh®:

CPD-12797

EPSON is a registered trademark of SEIKO EPSON CORPORATION. PowerLite is a registered trademark of Epson America, Inc.

General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners. EPSON disclaims any and all rights in those marks.

2Rotate the lens ring to reduce or enlarge the image.

(You can also move the projector closer to or farther

from the screen.)

3To raise the image, pull up the blue foot release levers and lift

the front of the projector. Once the image is positioned where

you want it, release the levers to lock the feet in position.

4If your image looks like or , you’ve placed the projector

off to one side of the screen, at an angle. Move it directly in

front of the center of the screen, facing the screen squarely.

5If your image looks like or , press the + or – side of

the Keystone button to correct the shape of the image.

EPSON®PowerLite®503c/713c

Note: If you see a blank screen after focusing,

see the instructions in the box below.

1. From the Apple menu, select Control Panels, then click Monitors

or Monitors and Sound.

2. Click the Arrange icon.

3. Drag one monitor icon on top of the other. This lets you display

on the projector screen as well as the LCD screen.

If the Arrange option isn’t available, you may need to select one of the

Simulscan resolution settings:

4. Click the Monitor icon.

5. Select a Simulscan resolution as shown. (Allow a few seconds for

the projector to sync up after making the selection.)

No signal

drag one monitor icon

on top of the other

click here

select a Simulscan

resolution

click here

No signal

lens ring

focus ring
