EPSON PowerLite 735c

Multimedia Projector

User’s Guide Supplement

Installing and Setting Up Wireless Projecting for Macintosh

Using EMP NS Connect for Wireless Projecting

Using Projector Groups

Using E-Mail Alerts

Projecting Movies Through EasyMP

Bernslip.fm Page 1 Friday, December 12, 2003 3:02 PM

EPSON is a registered trademark and EasyMP is a trademark of SEIKO

EPSON CORPORATION.

PowerLite is a registered trademark of Epson America, Inc.

General Notice: Other product names used herein are for identification

purposes only and may be trademarks of their respective owners. EPSON

disclaims any and all rights in those marks.

Bernslip.fm Page 2 Friday, December 12, 2003 3:02 PM

Introduction

Your EPSON PowerLite 735c projector includes new features for

Macintosh®and Windows®user that are not covered in the User’s

Guide. The following features are now available:

■Presenting through a wireless network from a Macintosh

■A new version of NS Connection (for Windows and Macintosh)

that supports improved performance in wireless presenting,

including the ability to connect to four projectors at once

■Support for SXGA+ and UXGA video modes

■E-mail notification through the wired or wireless connection

when an error occurs on the projector

■The ability to play MPEG2 movies and view PNG files from a

memory card in the projector

This booklet provides instructions for using the new features.

Installing and Setting Up Wireless

Projecting for Macintosh

The EMP NS Connection software is now available for Macintosh.

This allows you to project wirelessly from Apple®Macintosh systems

equipped with an 802.11b wireless network interface.

System Requirements

Before you install the software, make sure your Macintosh meets the

following requirements:

■Power Macintosh®series, iMac,

®PowerBook,

®or iBook®series

system, running Mac OS X 10.2.4 or above

■802.11b wireless network interface (AirPort)

■At least 256MB of RAM

■At least 128MB of free hard disk space

■SVGA (800 ×600) or better display adapter and monitor

note

If you want to monitor the

projector using HP

OpenView,

™you can request

an SNMP management

plug-in from EPSON.

Bernslip.fm Page 3 Friday, December 12, 2003 3:02 PM

Installing the Software

Follow these steps:

1. Insert the EasyMP software CD-ROM in your drive. You see a

window containing the EMP NS Connection.pkg icon.

2. Double-click the EMP NS Connection.pkg icon.

3. Click Continue. You see the software license agreement.

4. Click Continue, then Agree.

5. Select the destination drive, then click Continue. You see the

following install window:

6. Click Install. When installation is complete, close the window.

Bernslip.fm Page 4 Friday, December 12, 2003 3:02 PM

Configuring Your Network Connection

Follow the instructions in your Projector User’s Guide to start EasyMP

and insert the EPSON 802.11b card in the projector.

Determine whether you will use Ad Hoc mode or Access Point mode

to connect to the projector. Follow the instructions in your Projector

User’s Guide to configure the projector for the mode you will be using.

Then follow the instructions beginning on page 5 to set up your

Macintosh in either Ad Hoc mode or Access Point mode.

Before you can connect to the projector, you need to make sure the

network settings on your Macintosh match the settings on the

projector.

1. From the Apple pull-down menu, select System Preferences.

Then double-click the Network icon. You see the Network

Settings window:

2. Under Port Configurations, select AirPort for a wireless

network or Built-in Ethernet for a wired network.

3. Click Apply Now. Then close the window.

note

EMP NS Connection does

not support Macintosh

Channel Ad Hoc mode.

Check the port you want to use

note

Make sure that only one port

is selected.

Bernslip.fm Page 5 Friday, December 12, 2003 3:02 PM

■For optimal performance, set your screen resolution to

1024 ×768 or lower with a color depth of Thousands

(16 bit).

■When making Location settings, you can select the desired

location and change all the network settings one at a time.

4. Make sure the following is displayed in the communication status

bar in the top right corner of the screen:

■If the projector has been assigned an ESSID name, click the

communication status icon and select the projector’s ESSID

name from the menu.

■If you are using the wired LAN Connection mode, click Turn

AirPort Off.

Using EMP NS Connect for Wireless

Projecting

Your projector now includes version 1.20 of EMP NS Connection for

Windows (equivalent to version 1.0 for Macintosh). If you are using a

Macintosh, the screens will look different from those shown in this

section, but the same features are available.

Follow the instructions in your Projector User’s Guide to install the

software, start EasyMP, and set up your projector and computer in

either Ad Hoc mode (computer to computer) or Access Point mode.

Then follow these steps:

1. Make sure you’ve installed your wireless 802.11b card. Then do

one of the following:

■Windows: select EMP NS Connection from the Start menu.

■Macintosh: double-click the EMP NS Connection icon in

your Applications folder.

note

If you see a message during

installation that the

EPSON GDI Monitor

Driver has not passed

Windows Logo testing, click

Continue Anyway.

Bernslip.fm Page 6 Friday, December 12, 2003 3:02 PM

The first time you start NS Connection in Windows, you see a

window asking you to select your network.

2. Select the IP address for your computer’s network adapter card

and click OK.

You see the screen below. (If you have previously started NS

Connection, or you’re using a Macintosh, this is the first screen

you see.)

If the connection is working properly, you see your projector

listed. If you have additional EPSON projectors on the network,

they are also listed, along with their status.

note

If you don’t see your network

adapter’s IP address, allow a

minute for it to appear. If

your access point uses

DHCP, sometimes it takes a

minute for the server to pick

up the IP address.

note

If you don’t see the Switch

network window and you

want to change to a different

network adapter, click the

Extension button. In

Windows, click Switch

LAN. On Macintosh, click

Set up network.

Select projector

This box indicates

projector status

Bernslip.fm Page 7 Friday, December 12, 2003 3:02 PM

The color of the status icon indicates the projector’s status:

■Gray: the projector is not connected

■Red: the projector is connected to another computer

■Green: the projector is connected to your computer.

3. If you don’t see your projector, check the following:

■Make sure your wireless signal is strong enough to establish a

connection (see your computer documentation for details).

■Make sure your computer’s SSID matches the ESSID you

assigned to the projector (for example, CONF ROOM).

Remember that both the SSID and ESSID are case-sensitive.

■If you are using Access Point mode, make sure the projector

and your computer are on the same subnet.

■Make sure the projector and your computer are

communicating on the same channel.

■Restart your computer and start NS Connection again.

■If you still don’t see your projector and you are using Access

Point mode, follow the instructions in “Connecting in IP

Connect Mode” on page 11 to connect to the projector.

4. Once the name of your projector appears, select it and click

Connect. If more than one projector is listed, you can select up to

four projectors and connect to them at the same time.

If the selected projector is already being used by another person,

you can still connect to it; however, doing so automatically

disconnects the other user.

If you set up the projector to prompt you for a keyword before

connecting, you see this screen:

note

The status icon colors may

be easier to see on the

projected image than on the

computer.

note

If you want your

presentation encrypted,

click Extension and select

Use encrypted

communication.

This step enhances security

but decreases the data

transmission speed.

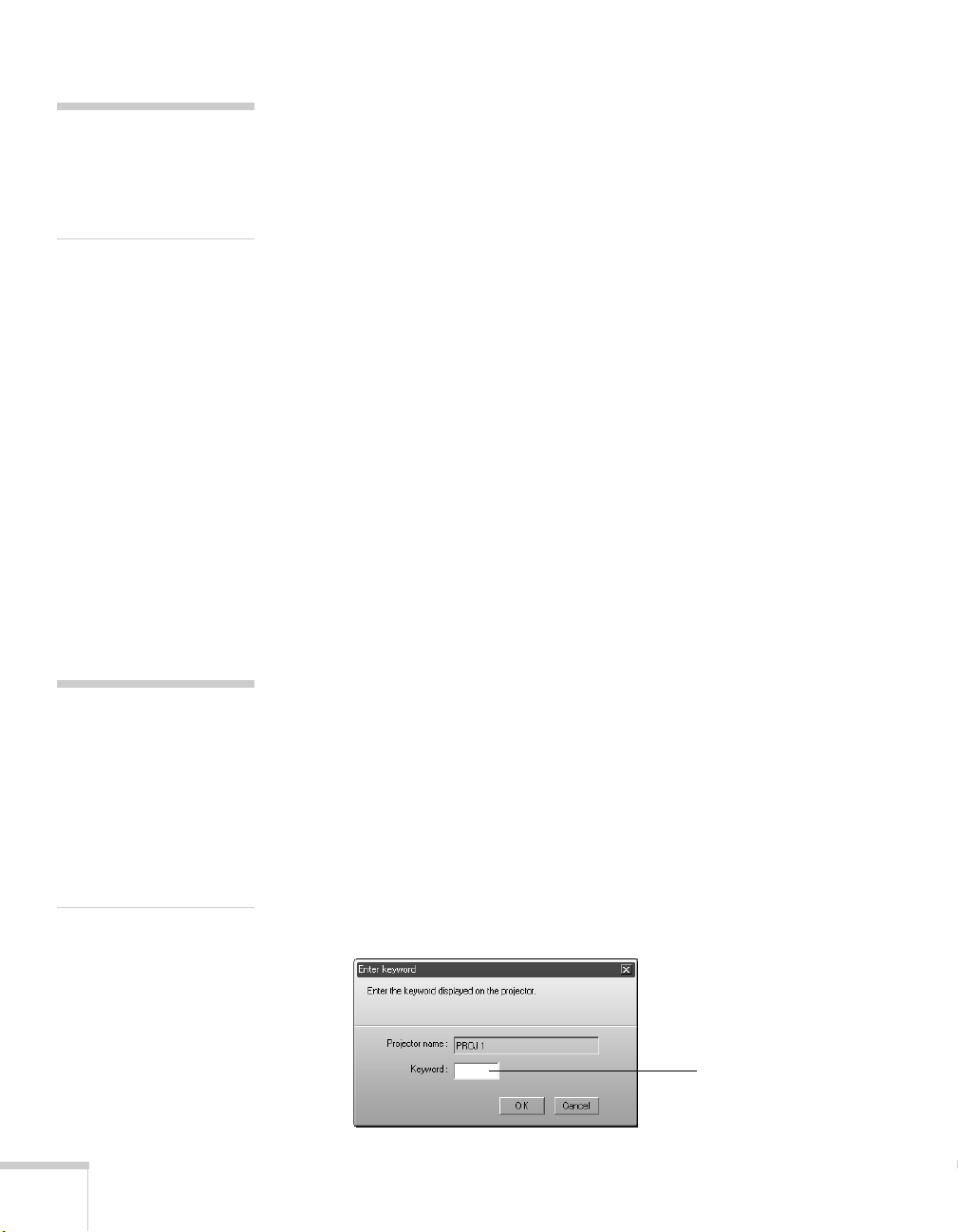

Enter keyword

Bernslip.fm Page 8 Friday, December 12, 2003 3:02 PM

5. Type in the four-digit number displayed on the EasyMP Network

screen and click OK.

Once the connection is established, you see your computer’s

image transmitted to the projector, and a floating control bar:

6. If necessary, drag the control bar out of the way, or minimize it.

7. When done with your presentation, click Disconnect on the

control bar.

Using the Control Bar

Clicking one of the buttons on the control bar may cause a submenu

to appear above the control bar. For example, clicking the button

displays the following submenu:

Bernslip.fm Page 9 Friday, December 12, 2003 3:02 PM

If you are using more than one projector, you can use the Projector

drop-down menu to select the projector to which you want to make

any of the following changes:

■Brightness

Increase or decrease brightness

■Keystone

Click +to narrow the top edge of the screen, or -to narrow the

bottom edge (this option functions like the Sync buttons on the

projector’s control panel)

■Contrast

Increase or decrease image contrast

■Color Mode

Lets you select from five preset modes to adjust the color and

brightness for specific environments: sRGB for computer displays

(the default when projecting from a computer with analog video),

Meeting for presentations in bright rooms, Presentation for

presentations in dark rooms, Theatre for optimizing movie

images (the default for video display), and Game for video games

Clicking the button displays the following screen and allows you

to modify the zoom magnification and position:

When you’re done making changes, click the arrow in the upper right

corner to close the menu.

Giving a Wireless Presentation

When projecting a PowerPoint®presentation, you can use the Page

down and Page up buttons on the remote control to move through

your slideshow. This works the same way as when you connect your

computer to the projector with the USB cable.

Bernslip.fm Page 10 Friday, December 12, 2003 3:02 PM

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Proyector de Epson

Epson

Epson EX30 Manual de usuario

Epson

Epson BrightLink485wi Manual de usuario

Epson

Epson 410W - PowerLite WXGA LCD Projector Manual de usuario

Epson

Epson TW600 Manual de usuario

Epson

Epson EH-TW6100W Manual de usuario

Epson

Epson EMP-TW100 Manual de usuario

Epson

Epson CO-FH02 Manual de usuario

Epson

Epson PowerLite Home Cinema 1080 Manual de usuario

Epson

Epson EX30 Manual de usuario

Epson

Epson PowerLite Pro Cinema 6020UB Hoja de especificaciones

Epson

Epson EX3210 Manual de usuario

Epson

Epson EB-1776W Manual de usuario

Epson

Epson PowerLite 8700 UB Manual de usuario

Epson

Epson PowerLite 1266 Manual de usuario

Epson

Epson PowerLite S7 Manual de usuario

Epson

Epson CO-FH02 Manual de usuario

Epson

Epson EB S6 Manual de usuario

Epson

Epson PowerLite Pro G5350NL Manual de usuario

Epson

Epson Pro L30002UNL Manual de usuario

Epson

Epson PowerLite 85 Guía de referencia

Epson

Epson dreamio EMP-TW520 Manual de usuario

Epson

Epson CO-FH02 Hoja de especificaciones

Epson

Epson PowerLite 1220 Manual de usuario

Epson

Epson PowerLite S1 Manual de instalación y operación

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL-HW65ES Manual de servicio

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

NEC

NEC NP600S EDU Manual de usuario

BenQ

BenQ SH753P Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Sony

Sony SRX-R815P Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario

Asus

Asus ZenBeam Latte Manual de usuario

BOXLIGHT

BOXLIGHT CP-322i/CP-634i Manual de usuario

JVC

JVC 1108TTH-AO-AO Manual de usuario
