Epson EMP-TS10 Manual de usuario
Connecting to aVideo Source
3
Connecting to a Computer
4
Setup
Screen Size and Setting-up Distance
Setting-up Methods
2
START
Hannover SET UP GUIDE English-hyoshi
Printed in Japan
402171600
(9002555)
02.02-.6A(C05)
Using the Remote Control
Remote Control Operating Range
Before Using the Remote Control
1Inserting the Batteries
Before Using the Remote Control
The batteries are not inserted into the remote control at the time of purchase, and so you
need to insert them before the remote control can be used.
Inserting the Batteries
Remove the battery compartment cover.
While pressing the cover here, lift the cover up.
Insert the batteries.
Make sure the polarities of the batteries are correct.
Replace the battery compartment cover.
After inserting the tab of the battery cover, push the
cover down until it clicks into place.
Hannover SET UP GUIDE English-01
1
Battery Replacement Period and Cautions
If the remote control becomes slow in responding or if it stops working, the batteries
may be spent. If this happens, replace the batteries with fresh ones.
Guide for battery replacement: Approximately 3 months if used for 30
minutes per day
*The replacement period given above may vary depending on the amount of usage
and the ambient conditions.
Use the following type of batteries as replacements.
Alkaline dry cell LR6 (AA) x 2
1
Using the Remote Control

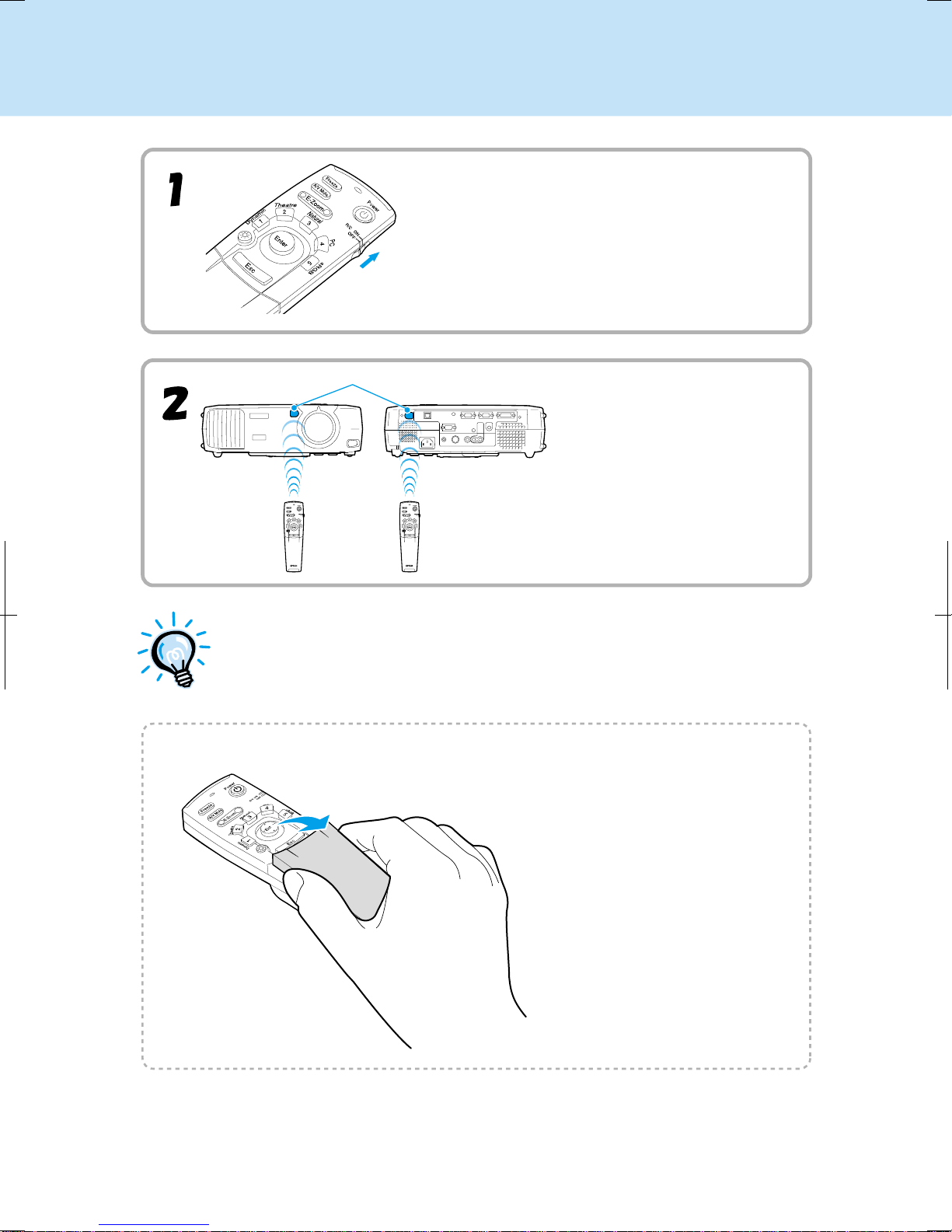

Set the R/C switch on the remote control to
the ON position.
Point the remote control
light-emitting area toward one of
the remote control light-
receiving area on the projector
and operate the remote control
buttons.
Do not allow sunlight or light from fluorescent lamps to shine directly
onto the projector's remote control light-receiving area, otherwise it may
interfere with the reception of signals from the remote control.
2
Opening the cover
Hold the cover on both
sides.
Remote control light-receiving area
Hannover SET UP GUIDE English-02
Approx. 30˚ Approx. 30˚ Approx. 30˚Approx. 30˚
Approx. 15
Approx. 15˚
Approx. 15˚
Approx. 15˚
Approx. 10 m
(30 ft.)
Approx. 10 m
(30 ft.) Approx. 10 m
(30 ft.)
Remote Control Operating Range
Remote Operating Range
Use the remote control within the ranges indicated below. If the distance or angle between
the remote control and the remote control light-receiving area is outside the normal
operating range, the remote control may not work.
Operating distance Operating angle
Approx. 10 m (30 ft.) Approx. ±30˚ horizontally
Approx. ±15˚ vertically
3
illumination
button
Approx. ±30˚ horizontally
Approx. ±15˚ vertically
(illumination) button
When the button is pressed, the
buttons shown in colour in the
illustration at left are illuminated for
10 seconds. If you press the
button while the buttons are
illuminated, the illumination will
continue for a further 10 seconds.
Hannover SET UP GUIDE English-03
Setup
Screen Size and Setting-up Distance
2
*When installing against a wall, leave a
space of about 20 cm (7.9 inches) between
the projector and the wall.
300”
200”
100”
80”
60”
40”
30”
610
×
460 (cm)
410
×
300
200×150
160×120
120×90
81×61
61×46
0.9 – 1.1
1.2 – 1.6
1.8 – 2.4
2.5 – 3.2
3.1 – 4.1
6.1 – 8.3
9.2 – 12.4(m)
20 cm
(7.9 inches)*
20 cm
(7.9 inches)*
The distance between the projector and the screen determines the actual image size.
Recommended distance : 0.9m - 12.4m (3.0 - 40.7 ft.)
While referring to the table below, position the projector so that the image size is smaller
than the screen size.
Screen size (cm (ft.))
30” (61 × 46 (2.0 × 1.5))
40” (81 × 61 (2.7 × 2.0))
60” (120 × 90 (3.9 × 3.0))
80” (160 × 120 (5.3 × 3.9))
100” (200 × 150 (6.6 × 4.9))
200” (410 × 300 (13.5 × 9.8))
300” (610 × 460 (20.0 × 15.1))
Approximate projection
distance* (m (ft.))
0.9 – 1.1 (3.0 – 3.6)
1.2 – 1.6 (3.9 – 5.2)
1.8 – 2.4 (5.9 – 7.9)
2.5 – 3.2 (8.2 – 10.5)
3.1 – 4.1 (10.2 – 13.5)
6.1 – 8.3 (20.0 – 27.2)
9.2 – 12.4 (30.2 – 40.7)
The projector’s lens allows a zoom ratio of up to about 1.35.The
image size at the maximum zoom setting is about 1.35 times bigger
than the image size at the minimum zoom setting.
The image size will be reduced when keystone correction is carried
out.
* The value for the projection distance should be used as a guide for setting up the projector.
The actual distance will vary depending on projection conditions.
4
Hannover SET UP GUIDE English-04
5
Front projection
Rear projection using a
translucent screen
Rear projection onto a
translucent screen with the
projector installed to the ceiling
Front/ceiling projection
The projector supports the following five projection methods, allowing you
to choose the best method for displaying your images.
After setting up the projector, refer to the User's Guide for details on turning
on the power and adjusting settings such as the screen size.
("Basic Operations" in User's Guide)
Setting-up Methods
When turning the projector upside
down, attach the rubber stands that
are included.
This can prevent the control panel
from directly touching the
installation surface.
When setting up the projector, be sure to first read the
Safety
Instructions/World-Wide Warranty Term
s for information on the
safety precautions that must be observed at this time.
* A special method of installation is required in order to suspend the projector from the ceiling. Please
contact the place of purchase if you would like to use this installation method.
* When projecting with the projector installed upside down or behind the screen, turn on both the "Rear
Proj." and "Ceiling" settings in the "Advanced" menu.
("Advanced" menu in User's Guide)
Rubber stands
(Attach in
3 places)
Projecting from locations such as the
top of a cabinet
When installing the projector upside down, set
the "Ceiling" command in the "Advanced"
menu.
("Advanced" menu in User's Guide)
Hannover SET UP GUIDE English-05
Continued
To Audio 2 port
(white/red)
To video
output port
To audio
output port To Audio 1 port
Component video cable
(accessory)
Stereo mini-pin audio cable
(commercially-available)
red
white
To Computer 2/Component
Video port
To Computer 2/Component
Video port
Connecting to aVideo Source
Projecting Component Video Images
3
When audio output is via a stereo mini-pin audio cable
Component video cable
(accessory)
2RCA audio cable (white/red)
(commercially-available)
6
Turn off the power for both the projector and the video source before connecting them.
If the power for either device is on at the time of connection, damage may result.
Check the shapes of the cable connectors and the device ports before making the
connections.If you try to force a connector to fit a device port with a different shape or
number of terminals, a malfunction or damage to the connector or port may result.
Refer to the "Appendices - Optional Accessories" in the separate User's Guide for details
of the optional cables.
When audio output is via a 2RCA audio cable
To audio output
L port (white)
To audio output
R port (red)
To video
output port
Hannover SET UP GUIDE English-06
After making the connections, change the "Comp2/YCbCr Input" in the
"Setting" menu to either "YCbCr" or "YPbPr" to match the signals from
these devices. ("Setting" menu in
User's Guide
)
After making the connections, change the "Audio Input" setting in the
"Audio" menu to either "Audio1" or "Audio2", depending on which input
port you are using.
7
Hannover SET UP GUIDE English-07
Projecting Composite Video Images
8
yellow
white
red
3RCA A/V cable
(commercially-available)
Stereo mini-pin audio cable
(commercially-available)
RCA video cable (yellow)
(commercially-available)
When connected via a 3RCA A/V cable
When connected via an RCA video cable and a stereo mini-pin audio cable
After making the connections, change the "Audio Input" setting in the
"Audio" menu to either "Audio1" or "Audio2", depending on which
input port you are using.The default setting is "Audio2".
To Audio 1 port
To Video port (yellow)
To audio output
port
To video output
port (yellow)
To Video port (yellow)
To Audio 2 port (white/red)
To video output port (yellow)
To audio output L port (white)
To audio output R port (red)
Hannover SET UP GUIDE English-08
red
white
To S-Video port
To Audio 2 port
(white/red)
To S-Video port
To Audio 1 port
2RCA audio cable (white/red)
(commercially-available)
S-Video cable
(commercially-available)
Stereo mini-pin audio cable
(commercially-available)
When audio output is via a 2RCA audio cable
When audio output is via a stereo mini-pin audio cable
S-Video cable
(commercially-available)
9
To audio output
port
To video output
port
To audio output
L port (white)
To audio output
R port (red)
To video output
port
After making the connections, change the "Audio Input" setting in the
"Audio" menu to either "Audio1" or "Audio2", depending on which
input port you are using.The default setting is "Audio2".
Hannover SET UP GUIDE English-09
Projecting S-Video Images
