Epson EMP-7550 - XGA LCD Projector Manual de usuario

Important Information About Your

projector

Important Safety Information

Warning:

Never look into the projector lens when the lamp is

switched on as the bright light can damage your eyes. Never let

children look into the lens when it is on.

Warning:

Never open any covers on the projector except the

lamp and filter covers. Dangerous electrical voltages inside

the projector can cause severe injury. Except as specifically

directed in this Owner’s Manual, do not attempt to service

this product yourself. Refer all servicing to qualified service

personnel.

Warning:

Keep the plastic bags for the projector, accessories

and optional parts out of the reach of children. Children

covering their heads with bags may result in death by

suffocation. Be particularly careful around small children.

Caution:

When you replace the lamp, never touch the new

bulb with your bare hands. The invisible residue left by the oil

on your hands may be shorten the bulb life. Use a cloth or

gloves to handle the new bulb.

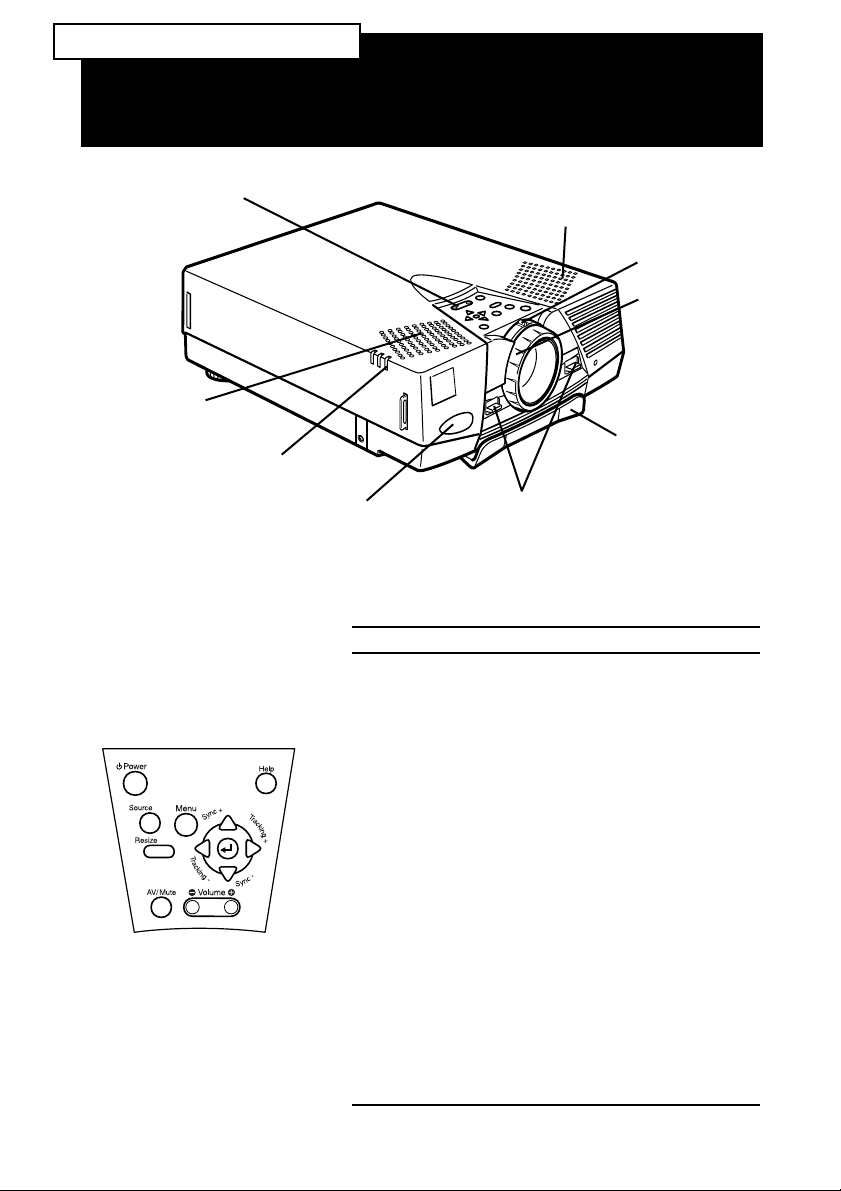

Button Function

Power Turns the projector on or off.

Source Switches the input source to Computer or

Video.

Menu Displays or hides the menu.

Up, down arrows

(Sync+/Sync-) Synchronizes the computer’s graphic signal.

Use these buttons to adjust an overall image

that is fuzzy or streaked, or to select menu

items during menu operations.

Left, right

arrows(tracking-/

tracking+)

Matches the projector’s internal clock to

various computer graphic signals (tracking

adjustment).

Use these buttons to adjust an image with

vertical lines, or to change numeric settings

during menu operations.

Enter button Registers a menu selection.

Resize Switches between Resizing screen and

Window screen (PC input).

AV/Mute Turns off the screen and sound of the

projector temporarily.

– Volume + Adjusts the volume.

Help Displays the help menu for various types of

problems you may encounter.

operation panel

zoom ring

focus ring

front foot

foot adjust lever

speaker

operation indicator

remote control receiver

Operation Panel

EMP-7550/7500/5550/5500

UICK

TART

Button Function

Menu Displays or hides the menu.

Source Switches the input source to Computer or

Video.

Effects buttons Use to display special effects; 1 Pointer, 2

Box, 3 Line, 4 Marker, 5 Clear.

Top multi-purpose

button Acts as a right mouse click, registers a menu

selection, and selects other custom

functions.

Bottom multi-

purpose button Acts as a left mouse click, registers a menu

selection, and selects other custom

functions.

Help Displays the help menu for various types of

problems you may encounter.

Resize Switches between Resizing screen and

Window screen (PC input).

Custom Zooms an image using the Mouse Right/Left

buttons.

Freeze Keeps the current computer or video image

on the screen.

AV/Mute Turns off the screen and sound of the

projector temporarily.

– Volume + Adjusts the volume.

Power Turns the projector on or off.

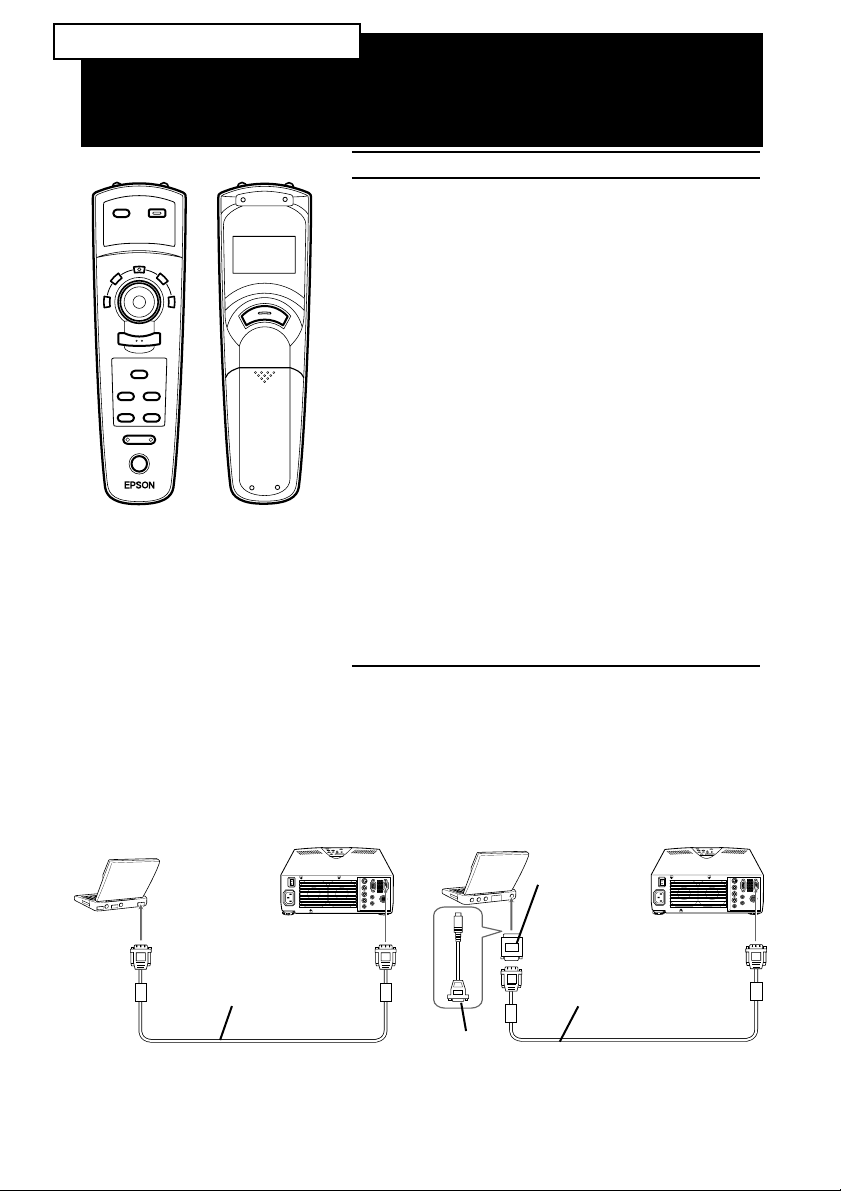

Connecting to

a PC laptop computer Connecting to

a Macintosh PowerBook

- Volume +

Power

Source

Effects

Resize

Help

Custom

Freeze

AV/Mute

Remote control

Computer cable Computer cable

Mac

desktop

adapter

Video

cable

adapter

UICK

TART

EMP-7550/7500/5550/5500

After sales service contact addresses

EPSON (UK) LIMITED

(01442) 261144

Campus 100

Maylands Avenue

Hemel Hempstead

Herts. HP2 7TJ

United Kingdom

EPSON HONG KONG LIMITED

(852) 2585 4300

Rooms 4706-10 47 th Floor

China Resources Building

26 Harbour Road Wanchai

Hong Kong

EPSON FRANCE S.A.

33-1-40873737

68 Bis Rue Marjolin

92305 Levallois Perret

France

EPSON ELECTRONICS TRADING

LTD. (TAIWAN BRANCH)

(02) 27177360

10F, No. 287 Nanking E.Road, Sec.3,

Taipei, Taiwan R.O.C.

EPSON DEUTSCHLAND GMBH

0211/56030

Zülpicher Straße 6,

40549 Düsseldorf

F.R. Germany

EPSON SINGAPORE PTE LTD

337-7911

No.1, Temasek Avenue

#36-00, Millenia Tower

Singapore 039192

Singapore

EPSON ITALIA S.P.A

0039-2-26233-1

V.le Casiraghi 427

20099 Sesto S. Giovanni (MI)

Italy

EPSON AUSTRALIA PTY

LIMITED

(02) 9903 9000

70 Gibbes Street

Chatswood NSW 2067

Australia

EPSON IBÉRICA, S.A.

(93) 5821500

Av. Roma, 18-26

08290 Cerdanyola del Vallès

(Barcelona)

Spain

DATA/VIDEO PROJECTOR

Owner’s Manual

retrieval system, or transmitted in any form or by any means, electronic,

mechanical, photocopying, recording, or otherwise, without the prior written

permission of SEIKO EPSON CORPORATION. No patent liability is

assumed with respect to the use of the information contained herein. Neither

is any liability assumed for damages resulting from the use of the information

contained herein.

Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to

the purchaser of this product or third parties for damages, losses, costs, or

expenses incurred by purchaser or third parties as a result of: accident, misuse,

or abuse of this product or unauthorized modifications, repairs, or alterations

to this product, or (excluding the U.S.) failure to strictly comply with SEIKO

EPSON CORPORATION’s operating and maintenance instructions.

SEIKO EPSON CORPORATION shall not be liable against any damages or

problems arising from the use of any options or any consumable products

other than those designated as Original EPSON Products or EPSON

Approved Products by SEIKO EPSON CORPORATION.

EPSON is a registered trademark and PowerLite is a trademark of SEIKO

EPSON CORPORATION.

General Notice:

The following trademarks and registered trademarks are the

property of their respective owners and are used in this publication for

identification purposes only.

• EPSON/Seiko Epson Corp.

• Macintosh, Macintosh OS System 7, PowerBook, Quadra, Centris, Power

Mac/Apple Computer Corp.

• IBM/International Business Machines, Inc.

• Windows 3.x, Windows 95/Microsoft Corp.

• SRS and the SRS symbol are registered trademarks of SRS

Labs, Inc. in the United States and selected foreign countries.

SRS technology is incorporated under license from SRS Labs, Inc. and is

protected under United States Patent Nos. 4,748,669 and 4,841, 572

with numerous additional issued and pending foreign patents.

Purchase of this product does not convey the right to sell recordings made

with SRS technology.

• SRS is an abbreviation for SOUND RETRIEVAL SYSTEM.

Other product names used herein are also for identification purposes only and

may be trademarks of their respective owners. EPSON disclaims any and all

rights in those marks.

■ ■ ■ ■ ■

■

iii

■

Contents

Contents iii

Introduction vii

Getting the Most Out of Your Projector................................ix

Remote control ..........................................................................ix

Optional Accessories....................................................................x

About This Manual................................................................xi

Safety Instructions................................................................xii

Where to Get Help.............................................................. xiv

World Wide Web site.................................................................xv

Transporting your projecotor................................................xv

1 Installation 1

Unpacking the Projector.........................................................2

Additional Components.............................................................. 3

Setting Up the Projector.........................................................4

Connecting to a Computer.....................................................7

Connecting to a PC desktop computer ....................................... 8

Connecting to a PC laptop computer........................................10

Connecting to a Macintosh desktop computer.......................... 12

Connecting to a Macintosh PowerBook....................................14

Connecting to a Video Source.................................................. 16

Connecting to an External Speaker or PA System..................18

Contents

■

■ ■ ■ ■

2 Using the Projector 21

Turning the Equipment On and Off.....................................23

Turning the Projector On and Off............................................ 23

Sleep Mode .............................................................................. 24

Focusing and Positioning the Screen Image ..........................25

Resize Button........................................................................... 27

Controlling the Projector.......................................................... 28

Using the Remote Control.......................................................29

Using the Operation Panel .......................................................31

Projector Status Indicators....................................................33

Operation Indicator.................................................................. 33

Lamp Indicator......................................................................... 34

Temperature Indicator.............................................................. 34

3 Using the Projector Menus 35

Accessing the Main Menu.....................................................36

Changing a Menu Setting.....................................................36

Video Menu (Image source = Computer) .................................39

Video Menu (Image source = Video)........................................ 41

Audio Menu............................................................................. 42

Setting Menu ........................................................................... 42

User’s Logo Menu ...................................................................45

Effect Menu ............................................................................. 47

About Menu............................................................................. 48

RESET ALL Menu................................................................... 48

4 Maintenance 51

Cleaning the Lens.................................................................52

Cleaning the Projector Case..................................................52

Cleaning the Air Filter..........................................................53

Replacing the Lamp..............................................................54

5 Troubleshooting 57

Problems with the Projector..................................................58

Problems with the Image or Sound.......................................60

Otros manuales para EMP-7550 - XGA LCD Projector

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Proyector de Epson

Epson

Epson Pro Cinema LS12000 Manual de usuario

Epson

Epson PowerLite 92 Hoja de especificaciones

Epson

Epson EasyMP.net Network Option Board Manual de usuario

Epson

Epson EMP-S4 Manual de usuario

Epson

Epson V11H879541 Manual de usuario

Epson

Epson EB-538Wi Manual de usuario

Epson

Epson ELP-600 Manual de usuario

Epson

Epson PowerLite 8150i Manual de uso y cuidado

Epson

Epson PowerLite S1 Manual de usuario

Epson

Epson BrightLink 710Ui Manual de usuario

Epson

Epson PowerLite 78 Manual de usuario

Epson

Epson VS410 Guía de referencia

Epson

Epson 821p - PowerLite XGA LCD Projector Hoja de especificaciones

Epson

Epson PowerLite 1261W Manual de usuario

Epson

Epson G5000 - PowerLite XGA LCD Projector Guía de referencia

Epson

Epson ActionNote 500C Manual del propietario

Epson

Epson PowerLite Cinema 200 Manual del propietario

Epson

Epson EMP 400W Manual de usuario

Epson

Epson PowerLite 1825 Manual del propietario

Epson

Epson 755c - PowerLite XGA LCD Projector Manual de usuario

Epson

Epson VS350W Manual de usuario

Epson

Epson DREAMIO EH-TW2900 Manual de usuario

Epson

Epson MovieMate 30s Manual de usuario

Epson

Epson PowerLite S27 Manual de usuario

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL-HW65ES Manual de servicio

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

NEC

NEC NP600S EDU Manual de usuario

BenQ

BenQ SH753P Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Sony

Sony SRX-R815P Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario

Asus

Asus ZenBeam Latte Manual de usuario

BOXLIGHT

BOXLIGHT CP-322i/CP-634i Manual de usuario

JVC

JVC 1108TTH-AO-AO Manual de usuario
