1-F C 1-F M 1-F Y 1-F BK

WARNING Never look into the lens while

the projector's power is turned on.

Be sure to read the Owner's Manual thoroughly before using this projector.

9001870

01.08

.1A(C01)

Printed in Japan

EMP-713/703/503

QUICK REFERENCE GUIDE

Printed on 100% recycled paper.

1-B C 1-B M 1-B Y 1-B BK

Setting Up Adjust the distance between the projector and

the screen until the desired image size is obtained.

* When installing to wall, leave a space of about

7.87 inches (0.2m) between the projector and the wall.

Page 4 of

Owner's Manual

screen size

projection

distance

(7.7–9.2)

(11.5–13.8m)

(3.8–4.5)

148.3–180.2

223.9–271.7

299.5–363.3

450.7–546.3 inches

(3.0–3.6)

118.1–143.6

(2.3–2.7)

87.8–107.0

(1.5–1.7)

(1.1–1.3)

(–1.1)

–44.7

42.5–52.1

57.6–70.4

30"

26"

40"

60"

80"

100"

150"

200"

300"

(5.7–6.9)

61X46

53X40

81X61

120X90

160X120

200X150

305X228

410X300

610X460(cm)

Checking the Indicators

The projector is equipped with indicators that alert you to problems with projector operation.

The following tables show what the indicators mean and how to remedy problems that they indicate.

If an indicator is showing a status which does not appear in the previous tables, contact your dealer or the nearest address provided on page 79 of

the Owner's Manual.

Contact your dealer for a spare lamp.

Page 39 of

Owner's Manual

Troubleshooting

Operation indicator

Lamp indicator

Temperature indicator

Operation Indicator

Lamp Indicator

Temperature Indicator

Indicator status Problem and remedy

Illuminated

in Orange

Blinking

in Orange

Blinking

in Orange

Blinking

in Orange

Standby condition

Projection starts when the is pressed.

Power

Cool-down in progress

After while, the projector switches to the

standby condition (the indicator lights orange).

Illuminated

in Green Projecting in progress

Blinking

in Green

Warm-up in progress

After warm-up is complete, projection

will start when a video signal is input.

Blinking

in Red

Blinking

in Red

Blinking

in Red

Internal problem

Stop using the projector and ask for projector

to be repaired. *1

Internal problem

Stop using the projector and ask for projector

to be repaired. *1

Extinguished

The power is not switched on

Illuminated

in Red

Illuminated

in Red

Lamp error

Replace the lamp with a new one .

Time to replace the lamp.

Replace the lamp with a new one .

Nearing the time for replacing the lamp

Prepare a new lamp.*2

The power has not been switched on or normal

projection is in progress.

The power has not been switched on or normal

projection is in progress.

Excessive internal temperature (overheating)

The lamp goes off automatically and projection

becomes impossible. Wait for approximately 5

minutes with the projector in that state. After 5

minutes has passed, pull out the power plug

once, then insert it again.

When the power plug is reinserted, the projector

will recover to the normal state, so press the

and turn on the power again.

High-speed cooling in progress.

If the internal temperature rises any higher,

projection will stop.

Check that the air inlet and exhaust vents are clear

and that the indoor temperature is not too high.

Power

2-F C 2-F M 2-F Y 2-F BK

Computer

Audio

InOut

S-Video

Audio

Video

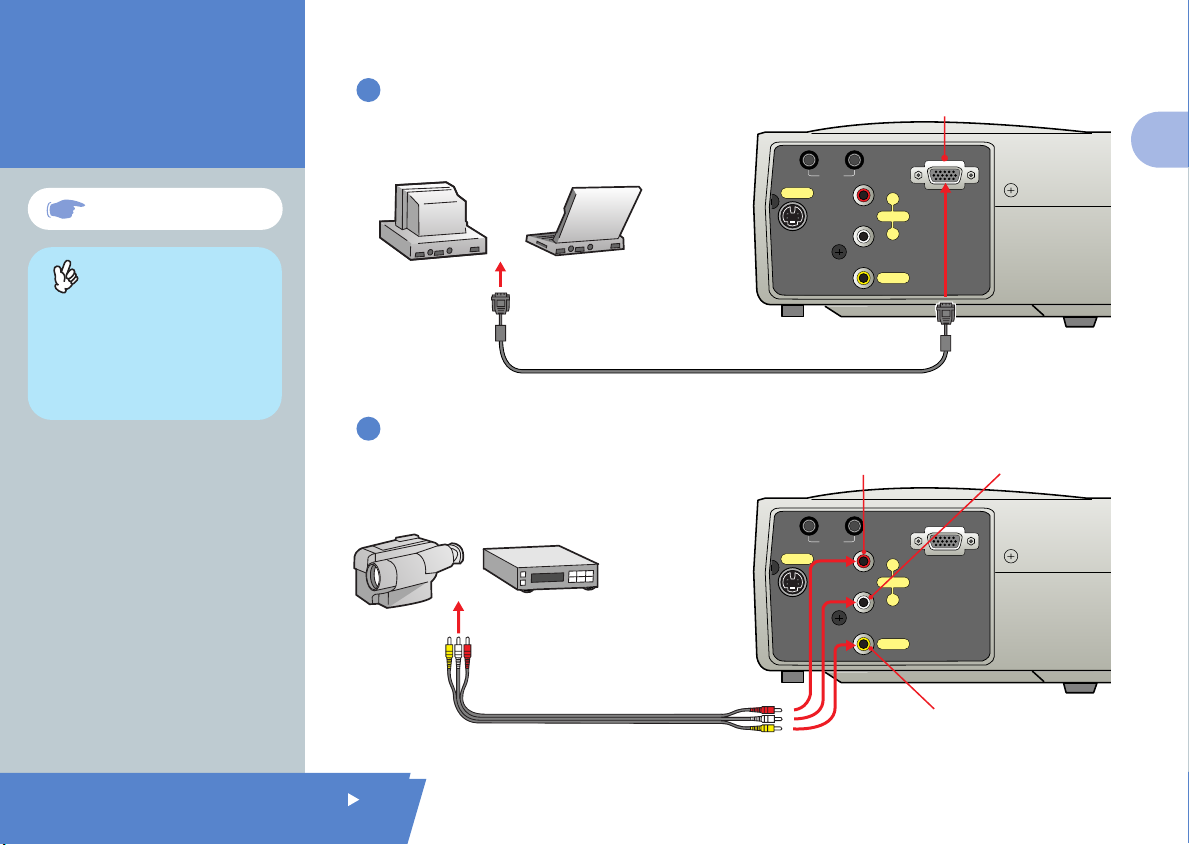

Connections Connecting to a Computer

Connecting to a Video Source

* Turn off the power for both the projector and the other equipment before connecting them.

Computer cable (accessory)

A/V cable (accessory)

To computer's

monitor port

(video port)

To video output connector (yellow)

To audio output L connector (white)

To audio output R connector (red)

Video connector (yellow)

Audio R connector (red) Audio L connector (white)

Depending on the shape of the

computer monitor terminal, it may not

be possible to make connections with

the accessory computer cable. Please

convert it using a commercially

available adapter, etc.

Computer connector

Pages 6,22 of Owner's Manual

Tip

Setting Up /

Connections

Computer

Audio

InOut

S-Video

Audio

Video

Troubleshooting

Viewing the Online Help

This projector is provided with an online help function which can be used when you have a

problem using the projector.

Press .

Select the item to view.

Press the on

the projector's control panel.

Or tilt the on the

remote control.

Accept the selected item.

Press the on the

projector's control panel.

Or press the on the

remote control.

The selected item will appear

on the screen.

Projector Remote Control

Power

Source

Enter

Help

Keystone

Select

Help

Select

Enter

If you follow the instructions to solve the problem

unsuccessfully,unplug the power from the wall outlet and

contact your local dealer.

: Select : Enter : Exit

Help for the image.

Help for the sound.

Language selection.(Language)

Return

An image does not appear on the Screen.

The image is blurred.

The image is not displayed fully on the screen.

(cut off/too big/too small/partial)

The colors of the image are not correct.

The image is too dark.

The image is a trapezoid.

Return

: Select : Enter : Exit

2-B C 2-B M 2-B Y 2-B BK

Momentarily turning off images and sound

First press the , select "Settings" and then "A/V Mute". Then select the type of screen to be displayed

when projection is being stopped. The following choices are available. The default setting is the black screen.

Projection of the images and sound will be restarted.

If you use this function while projecting moving images, the images and sound will still continue to be

played back, and you cannot return to the point where the A/V Mute function was activated.

The A/V Mute function momentarily pauses the image and sound, and displays either a blank blue

or black screen or the user's logo screen. It can be used when you do not want to show viewers

details of operations such as selecting different files when computer images are being projected.

A/V Mute function

Pages 36,52 of Owner's Manual

Functions for

Enhancing Projection

Press .

Press once more.

Power

Projecting

Remove the lens cover.

Connect the power cord to the projector.

Turn on the power for the

input source.

In the case of a VCR, press the PLAY button.

Press the to turn on the

projector's power.

Connect the power cord to an electrical outlet.

If using the remote control, set

the R/C switch to the ON

position and then press the

will start flashing green and

projection will start.

(Warm-up in progress)

The indicator will light orange.

Operation

indicator

Pages 29,30 of Owner's

Manual

Rotate the zoom lever to the central position to extend the lens.

3-F C 3-F M 3-F Y 3-F BK

If images do not appear ...

If you have other problems ...

If a laptop computer or a computer with a

LCD screen has been connected to the

projector, you may need to change the

output destination for video signals

depending on the computer keys ( or

) or the computer's settings. The

output destination can normally be

changed by holding down the computer's

and pressing one of the Function

keys.

Once the source has been changed, after

a short wait the projector will start

projecting. If the output has been

changed to external output, only the

external output should be used.

For details, refer to the documentation

provided with your computer.

Change the input

signal.

Refer to the online

Help information.

After restarting the computer,

change the Control Panel

monitor and sound settings

so that Mirroring is active.

* Refer to Troubleshooting.

Projector Remote Control

Tip

Press , and

then follow the

instructions.

Examples of changing output

NEC

Panasonic

TOSHIBA

IBM

SONY

FUJITSU

Macintosh

Projecting

Power

Source

Enter

Help

Keystone

Select

Help

Power

Source

Enter

Help

Keystone

Select

Enlarging part of projected images

Enlargement ratio

E-Zoom function

Page 36 of

Owner's Manual

After enlarging part of the image,

you can tilt the to scroll around

the image.

To cancel the enlargement effect,

press the .

Press the right side of the button

to enlarge the image.

Press the left side of

the button to reduce

the size of the

enlarged area.

Functions for

Enhancing Projection

Press .

Tip

Press to enlarge the image being projected.

Tilt the on the remote control to scroll to the area that is to be viewed.

3-B C 3-B M 3-B Y 3-B BK

Enhancing presentation materials

Effect function

Page 51 of

Owner's Manual

Tip

Press . Press .

Press .

Functions for

Enhancing Projection

Press .

Press to erase the stamps,

squares, markers and free lines set

for decorative purposes.

Displays the pointer icon. Tilt the

to move the icon, and then

press to stamp the pointer

icon in position.

Displays the square icon. Tilt the

to move the icon to the

starting point, and then press .

Tilt the again to move the

icon to the ending position, and

then press .

Displays the marker icon. Tilt the

to move the icon to the

starting point, and then press .

Tilt the again to move the

icon to the ending position, and

then press .

Displays the free line icon. Tilt the

to move the icon to the

starting point, and then press .

Then tilt the in the direction

that the line is to be drawn.

Press the to complete line

drawing.

Adjustment Adjusting the projection angle

Adjusting the image size and focus

Focus adjustment

Image size adjustment

See page 7.

If you change the projection angle, you

may get keystone distortion in the

images.You can use the on

the projector's control panel to correct

keystone distortion.

Turn to Wide to increase the size

Turn to Tele to reduce the size

Tip

Pages 31,32 of

Owner's Manual

Becomes

lower

Becomes higher

Keystone

Lift the front of the projector while pressing on the foot lever, adjust the amount extension or

retraction of the front foot, then adjust the projector’s projection angle.

To make fine adjustments:

4-F C 4-F M 4-F Y 4-F BK

Automatically adjusting computer images to the

optimum settings

Other adjustments

Remote Control

Using the on-screen menus

Remote Control

Main menu Remote control

Select

Move

down

Return

Move

right

Move

left

Move

Adjustment /

Turning Off the Projector

Press on the remote control to automatically adjust the tracking and the display position and

synchronization.

Press on the remote control to display the setting menu on the projection screen.

Then adjust the required settings, such as brightness, contrast and sharpness.

Functions for

Enhancing Projection

Using the remote control for one-person presentations

The remote control can be used to carry out the same functions as left-clicking and right-clicking mouse buttons

on a computer. You can use the remote control to control the computer's mouse pointer from a distance.

When using the remote control as

a wireless mouse, you need to

connect the projector as follows.

Use the USB mouse cable if you

are connecting to the computer’s USB

terminal.

If the mouse function does not

work after connecting a PS/2 mouse,

you will need to restart the computer.

Use only the accessory mouse

cable provided, otherwise the

wireless mouse function may not

operate correctly.

Mouse pointer movement

Tilt the in the direction you want

the mouse pointer to go.

Mouse clicks

Mouse/USB port

Mouse/Com connector

USB

Mouse

connector

Mouse

Mouse cable

(accessory)

This projector is equipped with a variety of useful functions

for enhancing projection.

Refer to the corresponding pages of the Owner's Manual for

details on each function.

For left clicks: Press For right clicks: Press

Tip

USB Mouse

Mouse/Com

Computer

Audio

Out

S-Video

Audio

Video

4-B C 4-B M 4-B Y 4-B BK

Turning Off

the Projector

Press the twice to turn off the

projector's power.

Turn off the power for the equipment connected

to the projector.

Check that is lit steadily with an orange color,

and then disconnect the power cord.

If the power cord is disconnected while is still flashing orange, it may cause problems with

projector operation.

will start flashing orange. (Cool-down in progress)

* Set the R/C switch on the remote control to the OFF position.

Operation indicator

Pages 29,30 of

Owner's

Manual

Adjustment /

Turning Off the Projector

Power

Adjustment

If the images have keystone distortion ...

Press on the projector's control panel to correct the keystone distortion.

Correcting keystone distortion

Pages 38 of

Owner's Manual

When keystone correction is carried

out, the projected image will become

smaller.

The trapezoid correction state is

recorded in memory. Please readjust it

when the projection angle is changed.

If the images become uneven in

appearance after keystone correction is

carried out, decrease the Sharpness

setting.

Tip

Keystone

Power

Source

Enter

Help

Keystone

Select

Keystone

4-B C 4-B M 4-B Y 4-B BK

Turning Off

the Projector

Press the twice to turn off the

projector's power.

Turn off the power for the equipment connected

to the projector.

Check that is lit steadily with an orange color,

and then disconnect the power cord.

If the power cord is disconnected while is still flashing orange, it may cause problems with

projector operation.

will start flashing orange. (Cool-down in progress)

* Set the R/C switch on the remote control to the OFF position.

Operation indicator

Pages 29,30 of

Owner's

Manual

Adjustment /

Turning Off the Projector

Power

Adjustment

If the images have keystone distortion ...

Press on the projector's control panel to correct the keystone distortion.

Correcting keystone distortion

Pages 38 of

Owner's Manual

When keystone correction is carried

out, the projected image will become

smaller.

The trapezoid correction state is

recorded in memory. Please readjust it

when the projection angle is changed.

If the images become uneven in

appearance after keystone correction is

carried out, decrease the Sharpness

setting.

Tip

Keystone

Power

Source

Enter

Help

Keystone

Select

Keystone

4-F C 4-F M 4-F Y 4-F BK

Automatically adjusting computer images to the

optimum settings

Other adjustments

Remote Control

Using the on-screen menus

Remote Control

Main menu Remote control

Select

Move

down

Return

Move

right

Move

left

Move

Adjustment /

Turning Off the Projector

Press on the remote control to automatically adjust the tracking and the display position and

synchronization.

Press on the remote control to display the setting menu on the projection screen.

Then adjust the required settings, such as brightness, contrast and sharpness.

Functions for

Enhancing Projection

Using the remote control for one-person presentations

The remote control can be used to carry out the same functions as left-clicking and right-clicking mouse buttons

on a computer. You can use the remote control to control the computer's mouse pointer from a distance.

When using the remote control as

a wireless mouse, you need to

connect the projector as follows.

Use the USB mouse cable if you

are connecting to the computer’s USB

terminal.

If the mouse function does not

work after connecting a PS/2 mouse,

you will need to restart the computer.

Use only the accessory mouse

cable provided, otherwise the

wireless mouse function may not

operate correctly.

Mouse pointer movement

Tilt the in the direction you want

the mouse pointer to go.

Mouse clicks

Mouse/USB port

Mouse/Com connector

USB

Mouse

connector

Mouse

Mouse cable

(accessory)

This projector is equipped with a variety of useful functions

for enhancing projection.

Refer to the corresponding pages of the Owner's Manual for

details on each function.

For left clicks: Press For right clicks: Press

Tip

USB Mouse

Mouse/Com

Computer

Audio

Out

S-Video

Audio

Video

Otros manuales para EMP-713

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Proyector de Epson

Epson

Epson PowerLite 1830 Hoja de especificaciones

Epson

Epson EB-925 Manual de usuario

Epson

Epson PowerLite Presenter i/i+ Manual de usuario

Epson

Epson BrightLink 475Wi Manual de usuario

Epson

Epson Pro L12000QNL Manual de usuario

Epson

Epson PowerLite 737c Manual de usuario

Epson

Epson EB-585Wi Manual de usuario

Epson

Epson 830p - PowerLite XGA LCD Projector Manual de usuario

Epson

Epson EH-TW8000 Manual de usuario

Epson

Epson 8300NL - PowerLite XGA LCD Projector Manual de usuario

Epson

Epson PowerLite 8300i withEasyMP.net module Manual de usuario

Epson

Epson PowerLite Pro G5450WU Guía de referencia

Epson

Epson EX3212 Manual de usuario

Epson

Epson Home Cinema 4010 Hoja de especificaciones

Epson

Epson PowerLite S11 Hoja de especificaciones

Epson

Epson V11H294020 - PowerLite 84 XGA LCD Projector Guía de referencia

Epson

Epson EB-585Wi Manual de usuario

Epson

Epson MegaPlex MG-850HD Manual de usuario

Epson

Epson EX3220 Manual de usuario

Epson

Epson 6110i - PowerLite XGA LCD Projector Manual

Epson

Epson AP-60 - Projector Sound Solution Manual de usuario

Epson

Epson PowerLite 1985WU Manual de usuario

Epson

Epson PowerLite 1751 Hoja de especificaciones

Epson

Epson PowerLite 8000i Manual de usuario

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL-HW65ES Manual de servicio

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

NEC

NEC NP600S EDU Manual de usuario

BenQ

BenQ SH753P Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Sony

Sony SRX-R815P Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario

Asus

Asus ZenBeam Latte Manual de usuario

BOXLIGHT

BOXLIGHT CP-322i/CP-634i Manual de usuario

JVC

JVC 1108TTH-AO-AO Manual de usuario
