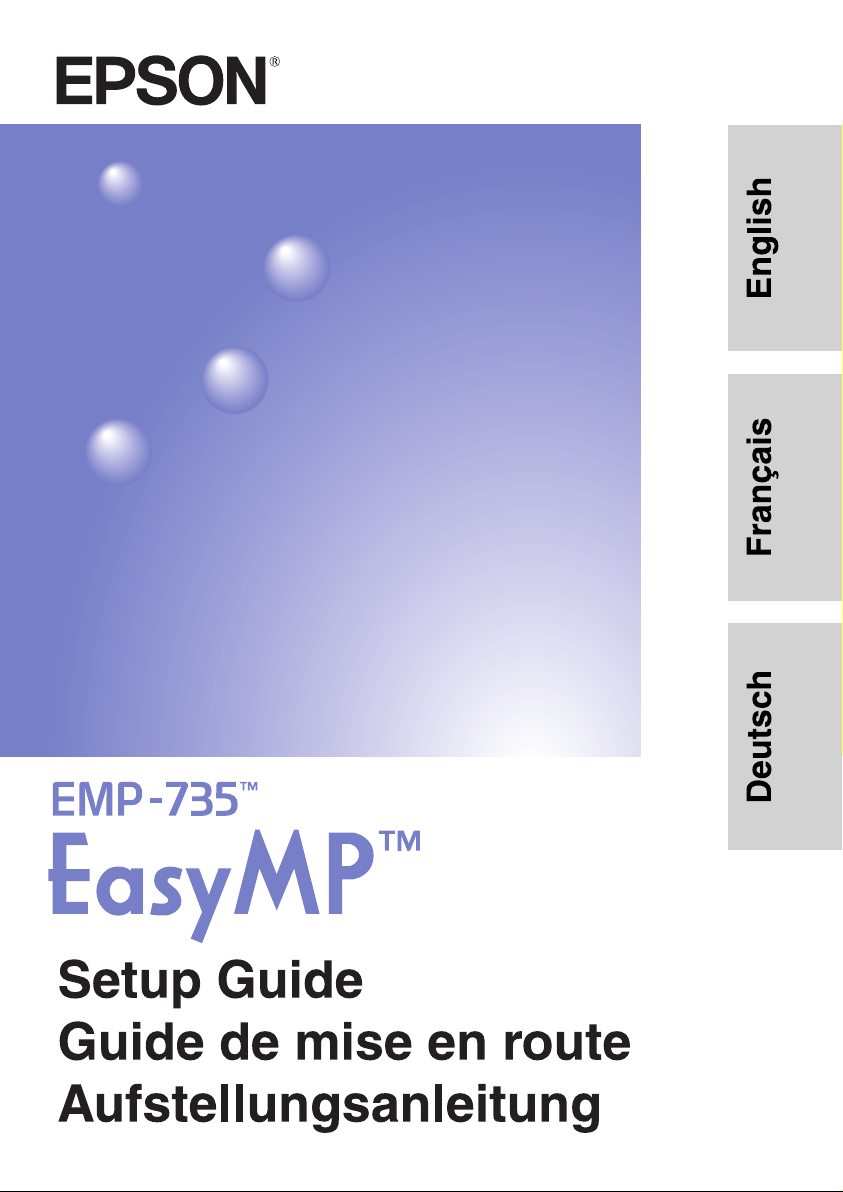

Epson EasyMP EMP-735 Manual de usuario

English

EasyMP Setup Guide

English

Notations Used in This Guide

When "projector" appears in the text of this guide, it may refer to items which

are accessories or optional equipment in addition to the main projector unit

itself.

Caution : Indicates procedures which may result in damage or injury if

sufficient care is not taken.

Tip : Indicates additional information and points which may be

useful to know regarding a topic.

Indicates pages where related information or more detailed

description is provided.

Indicates that an explanation of the underlined word or

words in front of this symbol appears in the glossary of

terms. See "Appendices: Glossary". p.62

[(Button Name)] Shows the buttons on the control panel or on the remote

control.

Ex: [ESC]

English

Contents

Functions .......................................................................................... 5

Projecting Images Using a Wireless Computer Connection

(Network Screen) ................................................................................. 5

Monitoring Projector Errors with EMP Monitor and SNMP ................ 6

Using a Memory Card to Give a Presentation Without a Computer

(CardPlayer) ......................................................................................... 7

Software Overview............................................................................ 9

EasyMP Software Overview (Projector)................................................ 9

EasyMP Software Overview (Computer) .............................................. 9

Before Use

Operating Environment ................................................................... 12

System Requirements for EasyMP Software....................................... 12

Conditions for Connecting to CompatibleWireless LAN Cards and

Access Points ..................................................................................... 14

Precautions Regarding the Use of the IncludedWireless LAN Card... 14

Inserting and Removing Cards ....................................................... 16

Installation ........................................................................................... 16

Removal ............................................................................................... 17

Interpreting the Access Lamp.............................................................. 18

Installing EasyMP Software ............................................................ 19

Projecting Images from a Computer Communicating

via a Network (Network Screen)

Types of Network Connections ....................................................... 22

Connecting Using Easy Connect Mode .......................................... 23

Before Connecting ............................................................................... 23

Steps for Connecting Using Easy Connect Mode................................ 24

Using the Toolbars .......................................................................... 35

Icon Use and Actions...........................................................................35

E-Zoom ................................................................................................ 37

Basic Settings....................................................................................... 38

Disconnecting from a Network Connection..................................... 40

Disconnecting at the Computer............................................................ 40

Disconnecting at the Projector............................................................. 40

Contents

Connecting in Access Point Mode................................................... 41

Before Connecting............................................................................... 41

Connecting in Access Point Mode....................................................... 41

What If the Projector You Want does not Appear?.............................. 52

Transmitting Encrypted Data............................................................... 56

Appendices

Compatible Memory Cards ............................................................. 60

Uninstalling EasyMP Software ........................................................ 61

Glossary .......................................................................................... 62

About Compliance Statement ......................................................... 64

Index ............................................................................................... 66

English

Functions

EasyMP supplied with the projector has two main functions:

• Network Screen Function - uses a wireless connection to connect to a

network and project images from a computer

• CardPlayer Function - projects files stored on a memory card in this

projector and allows a presentation to be shown without connecting to a

computer.

Projecting Images Using a Wireless Computer Connection

(Network Screen)

Have you ever tried to set up for a presentation where you had to fumble with cables

in the limited time between speakers or had to rearrange seating to connect a cable

that was just a little too short?

By setting up the wireless LAN card included with the projector, you can project

images from a computer that has a wireless LAN card or internal wireless LAN

functionality.

The two wireless LAN connection modes are "Easy connect mode

(ad hoc mode )" and "Access point mode (infrastructure mode)".

Of the two, when using "Easy connect mode", connection is as simple as setting up

corresponding passwords or numbers on both the projector and computer.

Projectors and computers can not only be connected one-to-one, but one computer

can be connected to as many as four projectors. This way, projectors placed in

several classrooms or conference rooms can simultaneously project images from

one computer.

Easy Connection with a Wireless LAN

Functions

If a wireless LAN system is already installed in an office, use the "Access point

mode" to share projectors from a participating computer via the company network.

Monitoring Projector Errors with EMP Monitor and SNMP

Using the "EMP Monitor" provided on the included CD-ROM, it is possible to

simultaneously monitor and control the projector from a computer, when using

"Access point mode" to connect to a computer on a wireless LAN. The monitoring

function monitors the error state, power status, and input status of the projector. The

control function performs simultaneous start-up, and image signal input switching

of multiple projectors. Using EMP monitor, it is possible for a single operator to

control the simultaneous starting and monitoring of projectors arranged in separate

classrooms or meeting rooms.

You can also use SNMP to monitor and control the status of projectors from a

computer. SNMP creates a notification message when an abnormal condition occurs

on a projector, and sends the notification to a computer identified by a pre-defined

IP address.

* In order to monitor a projector using SNMP, you need to first install SNMP

management software on the computer.

Connecting Via an Access Point in a Wireless LAN

English

Using a Memory Card to Give a Presentation Without a

Computer (CardPlayer)

When a memory card containing image files, or a "scenario" made from PowerPoint

files, is set into the projector, its contents can be projected directly using the

CardPlayer function. Neither a computer, nor the application software are

necessary.

You can make your presentation with just this projector and a memory card, and not

be weighed down by other equipment.

Using "EMP SlideMaker2", which is provided on the CD-ROM, makes the

following operations simple.

• Extracting the selected slides from a PowerPoint file.

• Combine the selected slides from different PowerPoint files and save them

as one file.

This type of file is referred to as a "scenario" in this guide.

In addition to PowerPoint files, a scenario may contain JPEG, and BMP files.

See "Files that Can be Included in Scenarios" in the EasyMP Operation Guide.

Projecting a PowerPoint file without a computer

PowerPoint

File 1

PowerPoint

File 2 PowerPoint

File 3

Scenario File

Functions

Using "EMP SlideMaker2", you can extract and rearrange the selected parts of your

presentation without editing the original files, and easily and efficiently create

presentation material tailored to suit your audience and needs.

Insert a memory card containing a scenario into the projector. Select the CardPlayer,

and use the scenario playing function to present the scenario.

By storing pictures from a digital camera on a memory card, and inserting that

memory card into the projector, the photos can be projected directly using the

CardPlayer function. A computer is unnecessary because the projector can show

these images directly.

If graphics files are combined into folders, besides being able to view a file list, the

graphics files can be projected one-at-a-time in order as if showing photographic

slides.

See "Files that Can be Projected by the CardPlayer" in the EasyMP Operation

Guide.

Projecting Photograph Data from a Digital Camera

English

Software Overview

"Network Screen" and "CardPlayer" are already installed on the projector. These

applications are referred to as "EasyMP" in this manual.

Furthermore, "EMP NS Connection", "EMP SlideMaker2", and "EMP Monitor"

may be installed on a computer and are included amongst the software on the

"EasyMP Software CD-ROM".

Each of these programs is described below.

EasyMP Software Overview (Projector)

EasyMP supplied with this projector has the following functions.

EasyMP Software Overview (Computer)

The "EasyMP Software CD-ROM", which is included, contains the following three

programs to assist EasyMP. Individual program products can be selected and

installed as needed. For detailed installation information, refer to "Installing

EasyMP Software". p.19

Network Screen This function projects images from a computer

communicating via a network. Furthermore, this software

can be used to apply settings to a projector using a Web

browser, or to manage a projector using SNMP .

CardPlayer This function is used to project scenario and graphics files

stored on a memory card inserted into a projector, and it is

used to edit scenarios.

EMP NS Connection This software is used to transmit images from computer to

a projector using a wireless LAN.

EMP SlideMaker2 This software is used to create and transmit scenarios.

EMP Monitor This software is used to simultaneously monitor and

control multiple projectors that are connected to a network.
