Epson TM-U220-i Manual de usuario

User’s Manual

Important Safety Information. . . . . . . . . . . . . . . . . . .page 2

Part Names and Functions. . . . . . . . . . . . . . . . . . . . . .page 4

Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 6

Basic Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 10

Installing/Replacing the Ribbon Cassette . . . . . page 12

Installing/Replacing the Roll Paper . . . . . . . . . . . page 15

Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 17

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 18

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 20

Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 21

M00089701EN

English

Important Safety Information

This manual presents important information intended to ensure safe and effective use of this

product. Read this manual carefully and store it in an accessible location.

For information on development of a system with this product and setup, see also Technical

Reference Guide. You can access Technical Reference Guide from the included Manual CD.

Key to Symbols

The symbols in this manual are identified by their level of importance, as defined below. Read the

following carefully before handling the product.

!WARNING:

Warnings must be observed carefully to avoid serious bodily injury.

!CAUTION:

Cautions must be observed to avoid minor injury to yourself, damage to your equipment, or loss of

data.

QNote:

Notes have important information and useful tips on the operation of your product.

Safety Precautions

!WARNING:

❏

If this product produces smoke, a strange odor, or unusual noise, immediately unplug the

AC cable, and then contact your dealer or an Epson service center for advice. Continued

use may lead to fire or electric shock.

❏

Do not use this product with any voltage other than the specified one. Doing so may lead

to fire or electric shock.

❏

Do not connect the cables in ways other than those specified in the manuals. Different

connections may cause equipment damage or fire.

❏

Do not use this product where inflammable fumes of gasoline, benzine, thinner, or other

inflammable liquids may be in the air. Doing so may cause an explosion or fire.

❏

Do not use aerosol sprayers containing flammable gas inside or around this product.

Doing so may cause fire.

❏

If water or other liquid spills into this product, immediately unplug the AC cable, and then

contact your dealer or an Epson service center for advice. Continued use may lead to fire

or shock.

❏

Do not allow foreign objects to fall into this product. Penetration by foreign objects may

lead to fire or electric shock.

❏

Never attempt to repair this product yourself. Improper repair work can be dangerous.

❏

Never disassemble or modify this product. Tampering with this product may result in

injury, fire, or electric shock.

English

!CAUTION:

❏

Do not use this product in locations subject to high humidity or dust levels. Excessive humidity

and dust may cause paper jams and other problems, such as fire, or electric shock.

❏

Be sure to set this product on a firm, stable, horizontal surface. The product may break or cause

injury if it falls.

❏

Do not stand on or place heavy objects on top of this product. Equipment may fall or collapse,

causing breakage and possible injury.

❏

The print head can be very hot during and immediately after printing. If you need to touch it, such

as for cleaning, wait until it cools down. Touching it before that may cause burns.

❏

Do not connect a telephone line to the drawer kick connector. There is a risk of the telephone line

or product being damaged.

❏

To ensure safety, unplug this product before leaving it for an extended period.

Caution Labels

The caution label on the product indicates the following precautions.

!KCAUTION:

Do not touch the print head during printing or immediately after printing. It may be very hot after printing.

!CAUTION:

When connecting external devices to the USB ports, follow the precautions below.

❏

Confirm the rated current of the external devices by checking the descriptions on the devices or

manuals. Connect the external devices only when those total rated current is less than 600 mA.

Do not use a device whose rated current is unclear.

❏

Use UL-approved external devices (only for North American users).

English

Part Names and Functions

Roll paper cover

Open this cover to install/replace the roll paper.

Ribbon cassette cover

Open this cover to install/replace the ribbon cassette.

Power switch

Use this switch to turn on or off the printer.

Cover open lever

Use this lever to open the roll paper cover.

Control panel

POWER LED: This LED is on when the printer is on.

ERROR LED: This LED indicates an error. (U“ERROR LED is on” on page 18 or “ERROR LED is

flashing” on page 18)

PAPER OUT LED: This LED is on when the paper is out. This LED flashes when the printer is in

standby.

FEED button: This button feeds paper.

Roll paper cover

Ribbon cassette cover

Power switch

Cover open lever

Control panel

English

Interface

All the ports and connectors are located on the back of the printer.

*: Mounted interfaces vary by the printer model.

Drawer kick connector

Serial port / VGA port *

microSD card slot

Ethernet port

USB host ports USB device port

DC-in connector

English

Setup

Installing the Printer

Install the printer horizontally on a flat surface.

QNote:

❏

Take measures to prevent the printer from moving by vibration during paper cutting and when

using a drawer. Affixing tape (DF-10) is provided as option.

❏

The printer can also be hung on a wall using the optional wall hanging bracket (WH-10).

English

Connecting the AC Adapter

Follow the steps below to connect the AC adapter.

1. Firmly insert the DC connector of the AC adapter all the way into the DC-in connector on the

printer.

2. Firmly insert the connector of the AC cable all the way into the AC inlet on the AC adapter.

3. Firmly insert the plug all the way into the grounded wall outlet.

4. Set the AC adapter so that its label side is facing down.

QNote:

You can also use the optional power supply box (OT-BX220) to store the AC adapter under the

printer.

English

Connecting External Devices

If you connect external devices, connect each cable to the port/connector on the back of the

printer. (U“Interface” on page 5)

!CAUTION:

❏

When connecting external devices to the USB ports, follow the precautions below.

• Confirm the rated current of the external devices by checking the descriptions on the devices or manuals.

Connect the external devices only when those total rated current is less than 600 mA. Do not use a device

whose rated current is unclear.

• Use UL-approved external devices (only for North American users).

❏

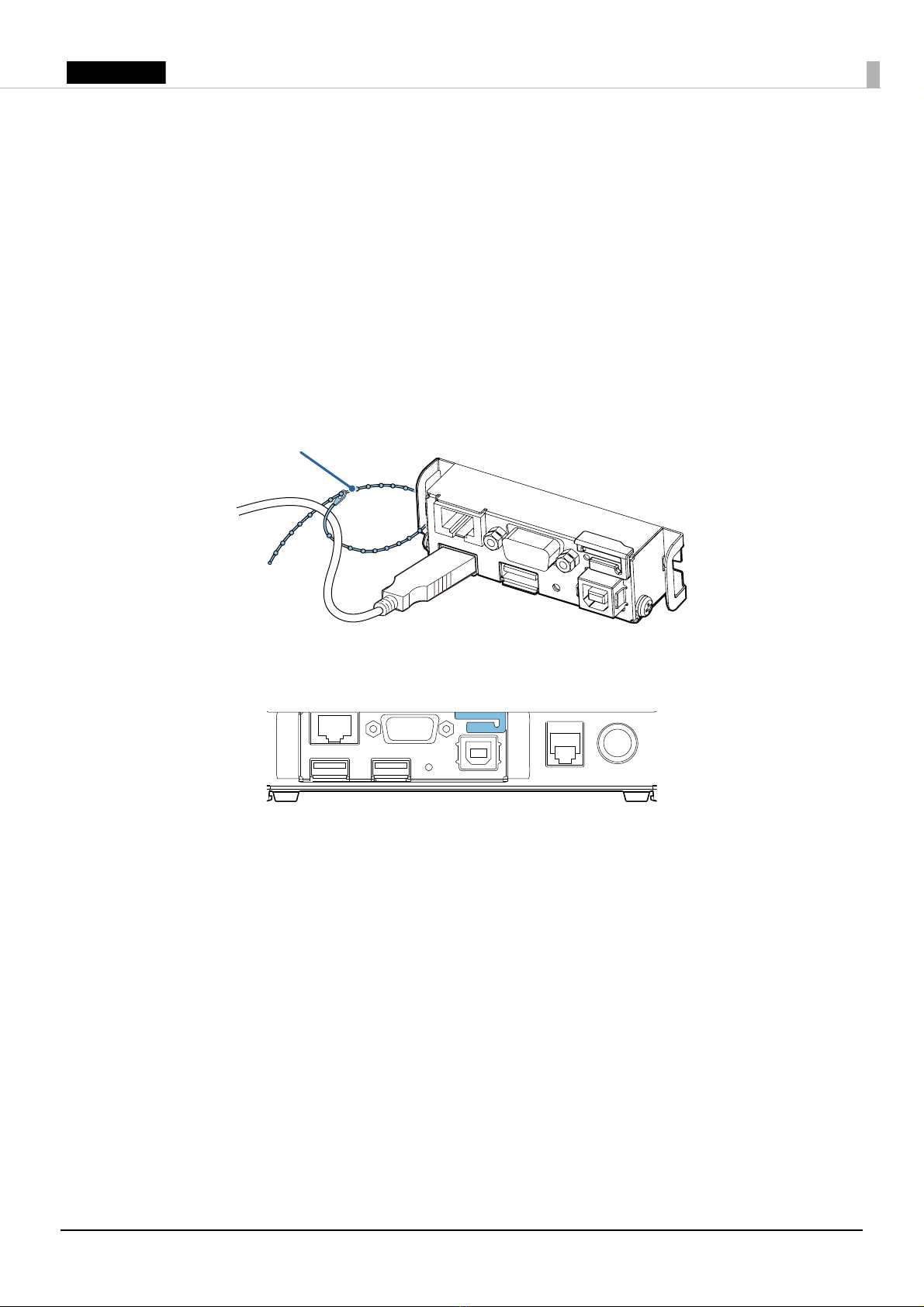

When connecting the USB cables, pass the cables through the cable band to prevent them from

coming off.

❏

When using the printer, make sure the protective cover fits firmly into place.

❏

When Ethernet cables are installed outdoors, make sure devices without proper surge protection

are cushioned by being connected through devices that do have surge protection. Otherwise, the

devices can be damaged by lightning.

QNote:

Connecting the optional Wireless LAN Cable Set (OT-WL01) to the USB port enables the wireless

LAN connection. While connecting via wireless LAN, keep the Ethernet cable unconnected to the

printer.

Cable band

English

Attaching the Power Switch Cover

Attaching the enclosed power switch cover prevents inadvertent changing of the power switch and

tampering. You can turn the power switch on and off by inserting a sharp-pointed object in the

holes in the power switch cover.

To detach these covers, also use a sharp-pointed object.

!WARNING:

If an accident occurs with the power switch cover attached, unplug the AC cable immediately.

Continued use may lead to fire or electric shock.

Power switch cover

English

Basic Operations

Turning Power On/Off

Press the power switch to turn on or off the power.

QNote:

It takes approximately 30 seconds after the printer is turned on until it is ready for printing.

Opening the Covers

Opening the roll paper cover

Pull the cover open lever to open the roll paper cover.

!CAUTION:

Do not open the roll paper cover during printing. Doing so may cause an injury or the product

to no longer work properly.
