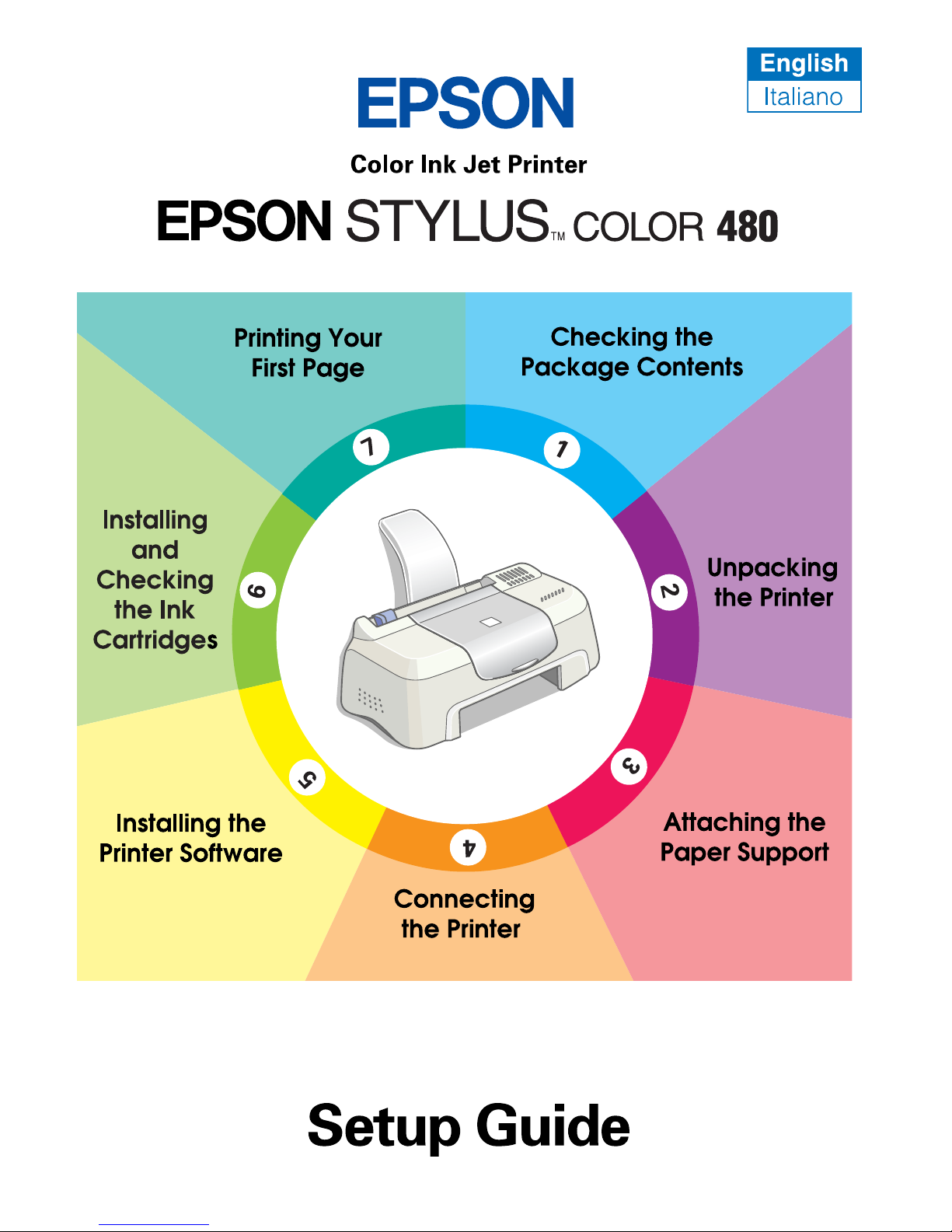

Epson STYLUS COLOR 480 Manual de usuario

4012277-00

C01

Checking the Package Contents

Unpacking the printer

Remove all tape and protective materials attached to the printer.

paper support

paper manuals

Daily Use

Setup

printer

printer software &

Reference Guide CD-ROM

The package contents may vary in certain locations.

Packaged with your printer are both black and color ink cartridges to start you

printing straight away. In order to ensure your printer produces the highest

quality printouts, some of the ink will be used in the initial setup and check

process. This will not happen with your next set of cartridges.

Please note: the use of genuine EPSON consumables is recommended to ensure

that printout quality and trouble-free operation is maintained.

ink cartridge package

(contains both black and

color ink cartridges.)

power cord*

* Thepowercordmaycome

attached to the printer in

certain locations.

Follow steps through in this manual to install the printer software.

After the software installation is complete, follow the on-screen messages

and proceed to step . To ensure that your printer is operating correctly,

proceed to step after an on-screen message informs you that the setup

is complete.

*Th

e num

er o

tape str

p use

may vary

rom w

s s

own.

Attaching the Paper Support

Insert the paper support into the slots at the rear of the printer and place the

printer on a flat, stable surface. Leave enough space in front of the printer

for paper to be ejected smoothly.

Connecting the Printer

Your printer connects to your computer via a shielded, twisted-pair parallel

interface. Make sure that the parallel cable supports bidirectional

communication. Otherwise, the printer will not work. Depending upon

your geographic location, you may need to obtain the appropriate cable.

See "Options and Consumable Products" in the Daily Use guide for details.

Follow these steps to connect the printer to your PC.

1. Make sure that the computer is turned off, and the printer’s power cord

is unplugged.

2. Plug the cable connector securely into the

printer's interface connector. Then

squeeze the wire clips together until they

lock in place on both sides. If your cable

has a ground wire, connect it to the

ground connector below the interface

connector.

3. Plug the other end of the cable into the computer's parallel interface. If

there is a ground wire at the computer end of the cable, connect it to the

ground connector at the back of the computer.

Installing the Printer Software

After connecting the printer to your computer, you need to install the

software included on the “Printer Software for EPSON Stylus COLOR 480”

CD-ROM shipped with your printer.

If you wish to make a floppy disk version of the printer software on your

CD-ROM, you can use the driver disk creation utility included on the CD.

Note:

❏When using Windows 2000, if you do not follow the steps below to install the

printer software, Microsoft’s Universal driver may be installed instead. To see

if the Universal driver has been installed, right click anywhere in the printer

driver window and then click About in the list that appears. If a screen

containing the words Unidrv Printer Driver is displayed, follow the steps

below to reinstall the printer driver.

❏If the Digital Signature Not Found dialog box appears during the installation

process, click Yes. If you click No, you must reinstall the printer software as

described below.

Follow these steps to install your printer software.

1. Make sure that your printer is unplugged.

2. Turn on your computer and start Windows. If the New Hardware

Found dialog box or any other Wizard appears, click Cancel.

3. Insert the printer software CD shipped with your printer in the CD-

ROM drive. The Installer dialog box appears. If it doesnot, double-click

the My Computer icon. Click the CD-ROM icon, then select open from

the File menu. Then double-click Epsetup.exe. (For floppy disk users,

insert the disk in a disk drive and double-click the My Computer icon,

then the floppy disk drive icon, and then Setup.exe.)

4. Select Install Printer Driver/Utility, and click .

Then click OK in the dialog box that appears to

start the printer software installation.

5. Follow the on-screen instructions to plug the

power cord into a properly grounded electrical

outlet. Before plugging in the cord, check the

label on the back of the printer to make sure the

voltage required by the printer matches that of

the electrical outlet you will plugging it into.

Also, make sure that you have the correct power cable for your power

source.

cCaution:

It is not possible to change the printer’s voltage. If the rated voltage and

your outlet voltage do not match, contact your dealer for assistance. Do

not plug in the power cord.

Note:

If the power cord is not attached to the printer, connect it to the AC inlet on

the back of the printer.

6. After plugging in the power cord, the Setup

utilityopensautomatically.Ifamessageinforms

you to restart your computer, follow the

instructions.

Installing and Checking the Ink

Cartridges

When your printer software installation is complete, the Setup utility opens

automatically. The Setup utility leads you through the ink cartridge

installation process and then prints nozzle and print head alignment check

patterns to ensure that your printer is operating correctly. Follow the on-

screen instructions. When an on-screen message informs you that the ink

cartridge installation is complete, click OK and proceed to step .

Note:

❏After the setup process is complete, a printer-shaped shortcut icon appears on

the Windows taskbar. For details on how to use this icon see "Monitoring

Preferences" in your online Reference Guide.

❏If you did not use the Setup utility to install ink cartridges, use EPSON Status

Monitor3 to install them. To access EPSON Status Monitor3, right click the

printer shortcut icon on the taskbar, and choose EPSON Stylus COLOR 480.

Then click the How to button.

Installing the Ink Cartridges

Please pay attention to the following information when installing the ink

cartridges.

wWarning:

The ink cartridges are self-contained units. Under ordinary use, ink will

not leak from a cartridge. If ink does get on your hands, wash them

thoroughly with soap and water. If ink gets into your eyes, flush them

immediately with water.

cCaution:

❏You must remove the yellow tape seals from the cartridges before

installing them; otherwise, the cartridges will become unusable.

❏Do not remove the blue portion of the tape seals from the cartridges;

otherwise, the cartridges may become clogged and unable to print.

❏Do not remove the tape seals from the bottom of the cartridges;

otherwise, ink will leak.

❏Once you install the ink cartridges, do not open their clamps again

until you replace the ink cartridges; otherwise, the cartridges may

become unusable.

❏Do not move the print head by hand; otherwise, you may damage

the printer.

Note:

❏Do not open the ink cartridge packages until just before you install them, or

the ink may dry up.

❏Install both ink cartridges. If either of the cartridges is not installed, the printer

will not work.

Checking the printer

After installing the inkcartridges, theSetup utilityautomatically guides you

through the nozzle check and print head alignment check. Follow the

on-screen instructions.

Nozzle check

The printer will print a test pattern, allowing you to check if any nozzles are

clogged.

Here are sample printouts.

Segments are missing

Good sample Print head needs to be cleaned.

If the printout is satisfactory, proceed to the next section, “Print head

alignment.”

If the nozzle check page does not print satisfactorily (for example, if any

segment of the printed lines is missing), click Cleaning to clean the print

heads.

If print quality hasn’t improved after repeating the nozzle checking and

cleaning procedures four or five times, contact your dealer.

Print head alignment

The printer will print test patterns, allowing you to

check if the print head is aligned.

Here are sample printouts.

From each pattern on the printed test sheet, choose

the vertical line that is aligned best. For each

pattern, select the corresponding line number from

the appropriate drop-down list box in the Print

Head Alignment dialog box, then click Finish to put

the new settings into effect.

Note:

If you cannot find a line which is aligned correctly, select

the number of the line which is the closest to being correct

and click Realignment. The alignment test sheet will

be printed again.

Printing Your First Page

After making sure your printer is operating correctly, you are ready to print

your first page. To familiarize yourself with the printer software, we

recommend printing one of the sample files provided with your printer

software. To print a sample file, follow the instructions in this section.

If you choose to print your own document instead, open the document in

your application, then proceed to step 4 in the relevant section below,

making changes where appropriate.

Note:

❏See your software manual for details on how to use your application software.

❏Depending on the type of document you are printing and the type of paper you

are using, you may have to make settings different from those described in this

section.

Follow these steps to print the sample file.

1. Make sure A4 or letter size plain paper is loaded in the printer.

2. Insert the printer driver CD-ROM. If the Installer dialog box appears,

click Quit.

3. Double-clickthe My Computer icon.Right-clickthe CD-ROMicon and

click Open.

4. Double-click the sample.bmp file to open it.

5. To change the printer driver settings, open the File

menu and click Print. A Print dialog box similar to

the one below opens (This example is from Paint).

6. Make sure EPSON Stylus COLOR 480 is selected in

the Name list box, then click Properties.The printer

driver opens.

7. Click the Main tab, then click anywhere in the

Media Type box and select Plain Paper.

Note:

The printer driver lets you choose from a wide variety of settings to get the best

results. See your online Reference Guide for detailed information.

8. Click Close, Print, or OK to print. You may need to click a combination

of these buttons.

While printing, the EPSON Progress Meter will appear, showing the

printing progress and the status of your printer.

The setup process for this printer is now complete.

See the Daily Use guide when you want information on regular printer

operations. See the Reference Guide included on the printer software CD-

ROM for detailed information on making printer driver settings, printing

on special paper, and troubleshooting.

Otros manuales para STYLUS COLOR 480

Tabla de contenidos

Otros manuales de Impresora de Epson

Epson

Epson ME-101 Manual de instrucciones

Epson

Epson XP-15000 Series Manual de usuario

Epson

Epson LX-300 Manual de usuario

Epson

Epson FX-286 - Impact Printer Manual de uso y mantenimiento

Epson

Epson ET-3600/L605 Manual de usuario

Epson

Epson Stylus C84WN Instrucciones de funcionamiento y seguridad

Epson

Epson LQ-860 - Impact Printer Manual de usuario

Epson

Epson P?820WD Manual de usuario

Epson

Epson Stylus C86 Manual de usuario

Epson

Epson M205 Manual de instrucciones

Epson

Epson R1800 - Stylus Photo Color Inkjet Printer Manual de instrucciones

Epson

Epson Stylus Pro 7700 Series Manual de usuario

Epson

Epson TM-T88VI-DT2 Manual de usuario

Epson

Epson CR-420i Dimensiones

Epson

Epson AcuLaser CX16 Manual de usuario

Epson

Epson WorkForce WF-3520DWF Guía del usuario

Epson

Epson Stylus Pro 9890 Series Manual de usuario

Epson

Epson TM-T88V Manual de usuario

Epson

Epson EPL-6200 Manual de usuario

Epson

Epson LabelWorks LW-Z5010 Series Manual de uso y cuidado

Epson

Epson TM-T20II Manual de usuario

Epson

Epson ST-C2100 Manual de instrucciones

Epson

Epson TM-P60II Manual de usuario

Epson

Epson U220B - TM Two-color Dot-matrix Printer Manual de usuario

Manuales populares de Impresora de otras marcas

Lexmark

Lexmark 1400 Series Manual

Canon

Canon i70 Series Manual de usuario

Evolis

Evolis Elypso Manual de usuario

Kyocera

Kyocera FS-9530DN Manual de usuario

Canon

Canon LASER SHOT LBP-1210 Manual de usuario

Samsung

Samsung BIXOLON SRP-350plusF Manual de usuario

Canon

Canon PIXMA PRO-1 Series Manual de usuario

Canon

Canon PIXMA G3560 Guía de configuración

Dell

Dell Color Laser Printer 2130cn Manual de usuario

Tektronix

Tektronix Phaser 840 Manual de usuario

Canon

Canon CLBR 460ps Manual de usuario

Eltron

Eltron P210 Guide Manual de usuario

Ricoh

Ricoh MD-P1 Manual de usuario

Canon

Canon imagePASS-A2 Manual de usuario

Canon

Canon S820D Manual de usuario

IRA3D

IRA3D POETRY4 Manual de usuario

Ricoh

Ricoh Aficio AP400 Manual de usuario

BIXOLON

BIXOLON SRP-352plusV Manual de usuario
