Epson PICTUREMATE PM 225 Manual de usuario

User’s Guide

Contents

Welcome! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Prepare to Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Choose Photos and Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Do More With Your Photos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Print From an External Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Print From a Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Copy Photos to and From Your Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Replace Print Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Take PictureMate With You . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Set PictureMate Preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Printer Care and Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Set Up Network Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

PictureMate CharmTM is your easy-to-use, personal

photo lab. Just insert a digital camera memory card

and you’re ready to print brilliant, long-lasting photos.

Because PictureMate®is light and portable, you can

print whenever and wherever you take pictures. Plus,

your PictureMate prints will be as brilliant and vibrant

generations from now as they are today.

A Quick Introduction to

Digital Photography

With film cameras, the process was

simple; buy film, take pictures, leave

the film at the photo lab, and come back later for your

photos and negatives. Since you had negatives, you

could take them back later if you wanted reprints.

The digital process is simple too, and it gives you

complete control. Just follow the basic steps shown on

the right.

1. Review and Delete

After you finish taking your photos, review

them on your digital camera’s screen.

Delete the photos you don’t want.

2. Print

Insert your camera’s memory card

in PictureMate, choose your

photos, and print.

3. Save

To preserve your digital photo files (just like film

negatives), save them to your computer. Then you can

reprint them any time.

4. Clear the Memory Card

After you save your photos, use your camera to delete

them from your card to make room for more photos.

Welcome!

Special Features

Printing with your PictureMate becomes even easier

with these special features:

From PictureMate’s photo viewer

screen, you can view your photos

and press Print to print the ones

you want. Or you can select to print

all photos. (See page 11.)

If your camera supports DPOF

(Digital Print Order Format), you can

select which photos to print while

the memory card is still in your

camera. When you insert the card

into PictureMate, you just have to

press OK and Print.

(See page 15.)

If you have a PictBridge®-enabled

camera, you can connect the camera to

PictureMate and control printing right

from your camera. (See page 23.)

If you want to print outdoors or in other

places without convenient electrical

outlets, you can buy the optional

PictureMate battery. (See page 34.)

If you have a Bluetooth®-enabled

mobile device or computer, you can

send photos wirelessly to PictureMate

for printing using the optional Bluetooth

Photo Print Adapter. (See page 24.)

Supported Photo Formats

Make sure your photos meet these requirements for

printing with your PictureMate (without a computer):

●JPEG files only

●Resolutions ranging from 80 × 80 to

9200 × 9200 pixels

PictureMate recognizes and prints the first 9,990

photos on your memory card.

Where to Find Information

See your Start Here sheet to unpack,

set up, and use your PictureMate.

Basics explains how to print photos

directly from your memory card, from

your computer, and from other devices,

replace the Print Pack, and solve

problems.

The online User’s Guide has detailed

instructions for using PictureMate. (A

shortcut to the User’s Guide is installed

from the CD.)

Where to Get a Print Pack and

Accessories

The PictureMate Print Pack has

everything you need to print in one box:

photo paper and a photo cartridge.

You can buy a Print Pack wherever

PictureMate is sold or from retailers that

sell printer supplies.

The following Print Packs are available:

You can also buy a Print Pack and other PictureMate

accessories from an Epson authorized reseller. To find

the nearest reseller, call 800-GO-EPSON

(800-463-7766). Or you can purchase online at

www.epsonstore.com (U.S. sales) or www.epson.ca

(Canadian sales).

Print Pack

contents

Part

number

Supported

PictureMate models

Glossy photo paper

(150 sheets) and

photo cartridge

T5846 All PictureMate 200/

300 Series models

Matte photo paper

(100 sheets) and

photo cartridge

T5845-M

PictureMate Buttons

Start

printing

Change the number

of photos displayed

Turn PictureMate

on or off

Display optional

settings menu

Move through

photos and

menu options

Stop printing

or cancel

settings

Before you print with PictureMate, you need to:

●Insert your memory card (below)

●Load paper (see page 7)

When you finish printing, you can remove your

memory card (see page 9).

Inserting Your Memory Card

1Move the handle to the back. Then open the top

cover.

2Raise and adjust the photo viewer screen.

3Press the corner of the output tray to open it.

Prepare to Print

4Press the POn button to turn on PictureMate.

5Insert the memory card into the correct slot, as

shown on the right. Insert just one card at a time.

Note: PictureMate can’t read multiple cards at once.

6Push the card in carefully until it stops (it won’t go

in all the way).

When the card is in, the memory card light comes

on and begins to flash.

Caution: Do not remove a card while the memory card

light is flashing; you may lose photos on your card.

Now you are ready to choose your photos and start

printing. (See page 11.)

MicrodriveTM

CompactFlash® (Type I and II)

SDTM (Secure Digital) and SDHCTM

(High Capacity)

miniSDTM * and miniSDHC*

microSD* and microSDHC*

MMCTM (MultiMediaCardTM)

MMCplus

MMCmobile* and MMCmicro*

xD-Picture CardTM

xD-Picture Card (Type M, M+, and H)

Sony Memory Stick® **

Memory Stick DuoTM *

Memory Stick Micro*

Memory Stick PROTM

Memory Stick PRO DuoTM *

Memory Stick PRO-HG DuoTM *

MagicGateTM Memory Stick**

MagicGate Memory Stick DuoTM *

Top slot:

Bottom slot:

* Requires adapter

** Maximum capacity 128MB

Memory card light

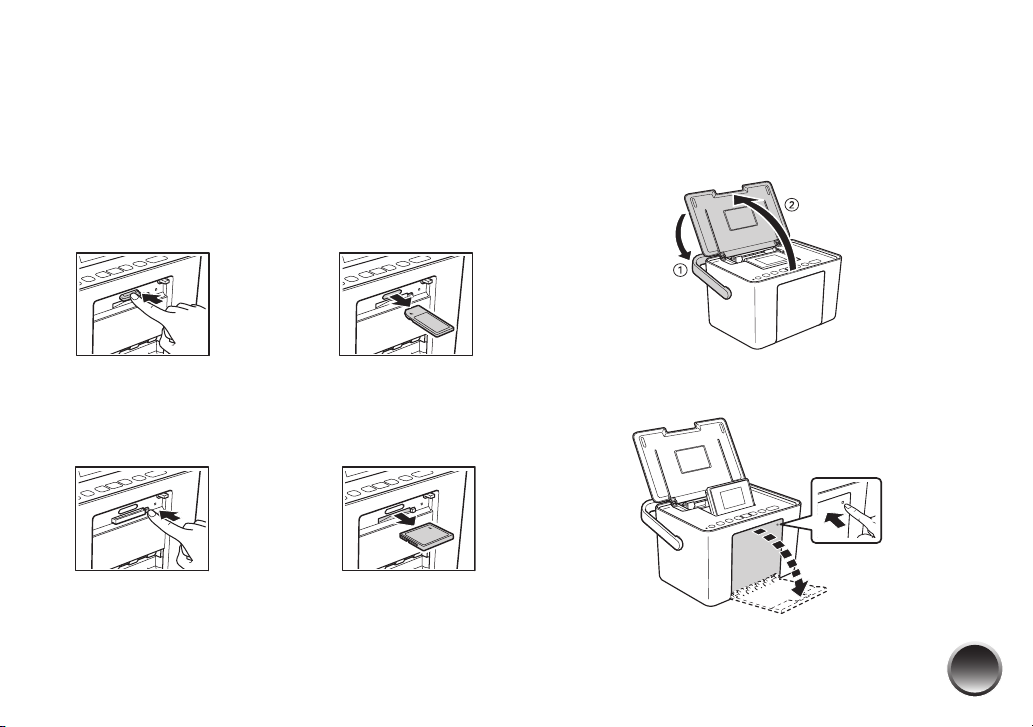

Removing Your Memory Card

When you are ready to remove a memory card, first

make sure the memory card light is not flashing.

Caution: Do not remove a card while the memory card light is

flashing; you may lose photos on your card.

Top slot: Push in the card and release it, then pull it

straight out of the slot.

Bottom slot: Push in and release the card release

button so it pops out. Then push in the button again to

eject your card and pull it straight out of the slot.

Loading Paper

Caution: Don’t load plain paper; this may damage PictureMate.

1Move the handle to the back. Then open the top

cover and raise the photo viewer screen.

2Press the corner of the output tray to open it.

3Slide the edge guides outward.

4Create a stack of up to 20 sheets of paper and

separate the sheets slightly by fanning them.

5Place your paper into the slot between the edge

guides with the glossy or whiter side up. Slide the

edge guides inward slightly.

Note: Load a maximum of 20 sheets at a time. Load

your paper glossy or whiter side up to prevent smearing.

6Store any unused paper in the original package

and keep it flat in a dry area to prevent curling.

Note: When you need more paper, order a PictureMate Print

Pack. See page 29 for more information.

Choosing a Group of Photos

If your memory card contains 1000 photos or more,

PictureMate sorts them by file name and divides them

into groups of 999 photos. Select the group from

which you want to print photos.

Note: The last group may contain less than 999 photos.

1Load paper and a memory card.

2When you see a message saying that the memory

card contains 1000 photos or more, press OK.

3Press lor r to select the group from which you

want to print photos, then press OK. Now you are

ready to select and print photos. See page 13 to

print your photos.

Load glossy or

whiter side up
